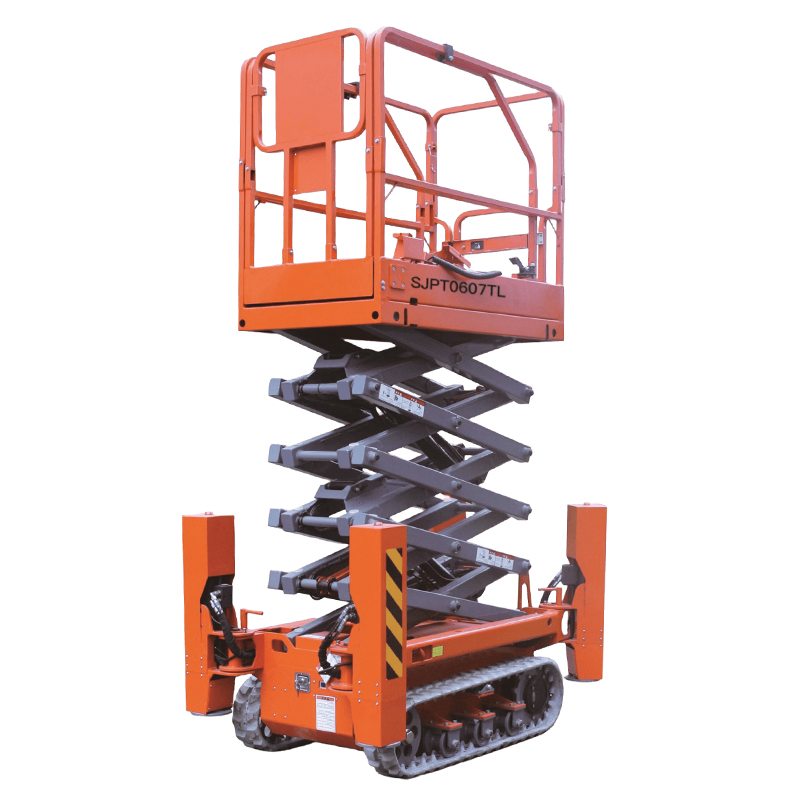

6m 8m 10m 12m 14m 16m Self-Propelled Electric Elevated Work Platfrom Battery Powered Hydraulic Outdoor Mobile Tracked Crawler Scissor Lift Price with Outrigger

Basic Information

Model NO.:SJPT0810TLE

Application:Warehouse Crane, Building Crane

Lift Mechanism:Scissor Lift

Carrying Capacity:Light Level

Moves:Moving

Driven Type:AC

Certification:CE, ISO 9001

Product Name:Scissor Lift

Max. Working Height:10m

Platform Size:180*80cm

Rated Load:300kg

Driving Speed:2.5km/H

Origin:China

Production Capacity:100 Sets/Month

Product Description

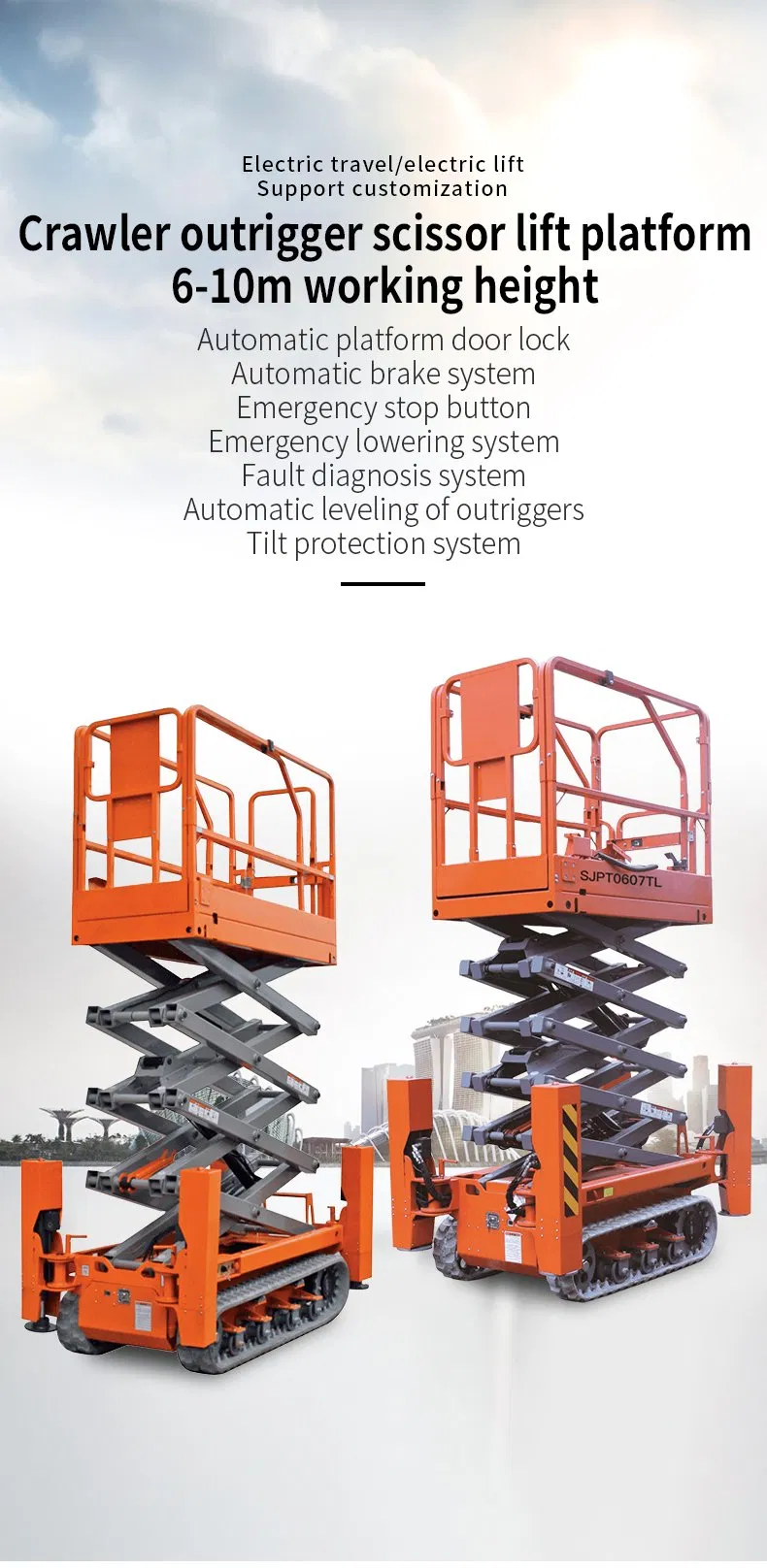

Outdoor Indoor Maintenance Aerial Work Machine Electric Hydraulic Lift Platform

6–10m Working Height | Electric Travel & Electric Lift | Support Customization

Automatic platform door lock
Automatic brake system
Emergency stop button
Emergency lowering system
Fault diagnosis system
Automatic leveling of outriggers
Tilt protection system

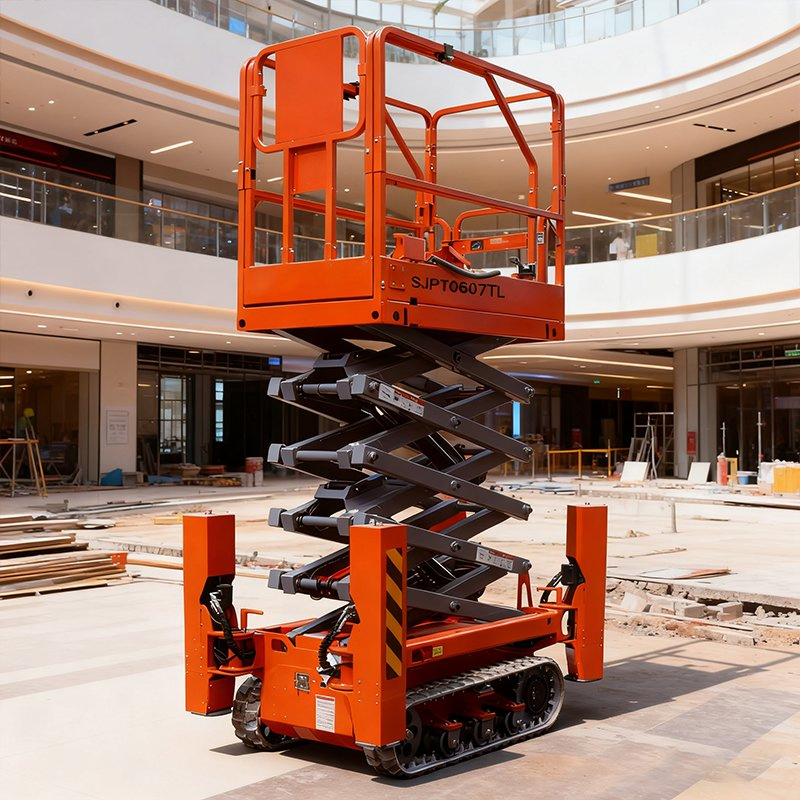

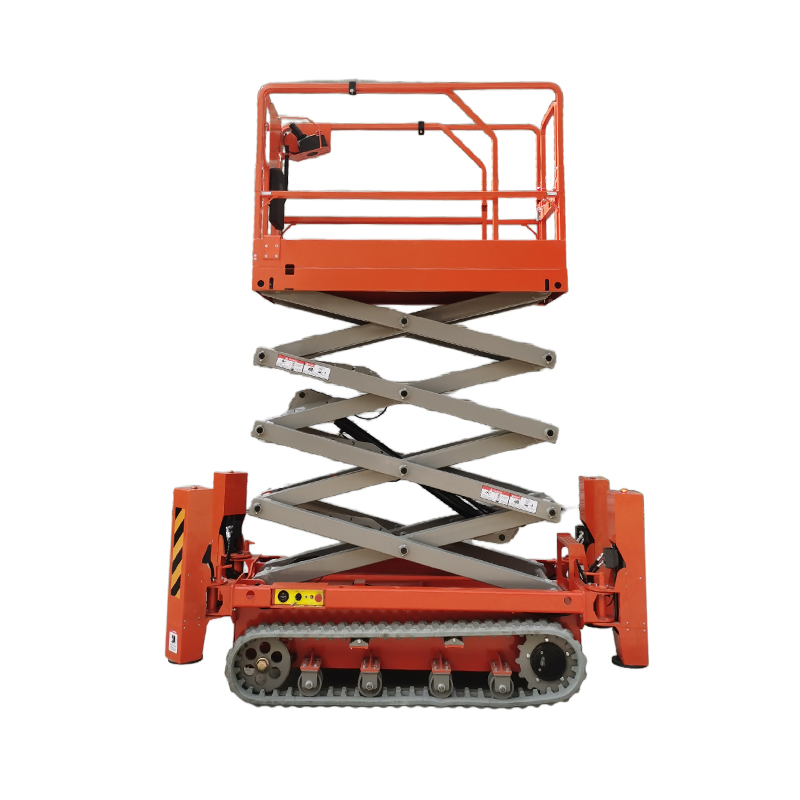

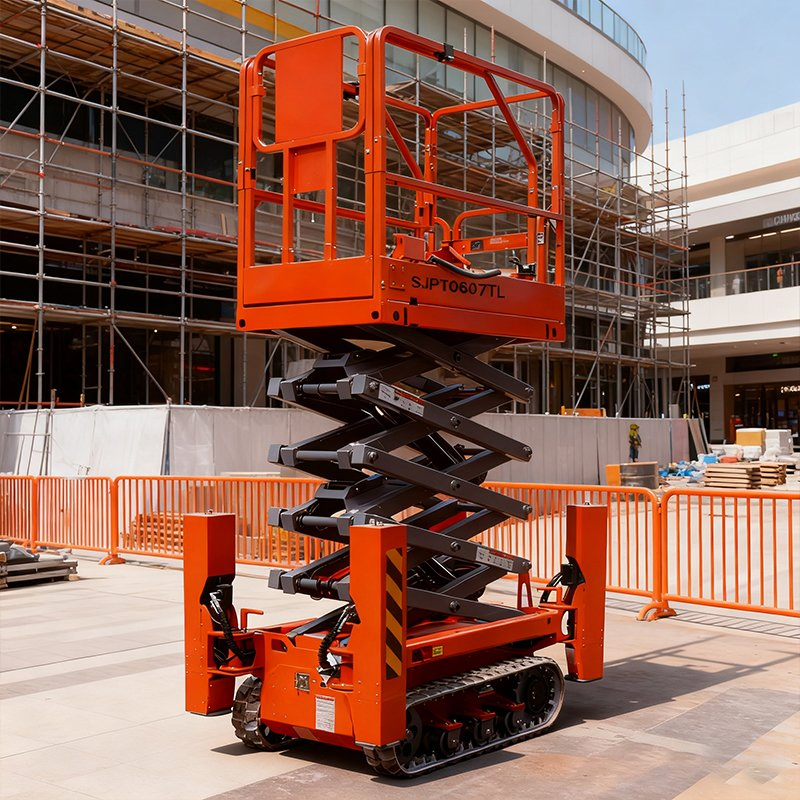

This crawler scissor lift with outriggers is designed for complex terrain and high-stability aerial work. It offers superior ground adaptability, precise lifting control, and advanced safety protection.

Specification Table

Model	SJPT0607TLE	SJPT0610TLE	SJPT0810TLE	SJPT1212TLE	SJPT1412TLE
Dimensions
Max. Working Height	8m	8.3m	10.3m	14m	16m
Max. Platform Height	6m	6.3m	8.3m	12m	14m
Platform Length	1400mm	1800mm	1800mm	2270mm	2730mm
Platform Width	780mm	800mm	800mm	1130mm	1130mm
Performance
Rated Load Capacity	230kg	230kg	300kg	450kg	450kg
Travel Speed (Stowed)	2.5Km/h	2.5Km/h	2.5Km/h	2.5Km/h	2.5Km/h
Max. Gradeability	30%	30%	30%	30%	30%
Machine Weight	1310kg	1580kg	1900kg	3760kg	4760kg

Key Features

Electric Travel & Electric Lift: Smooth, energy-saving, and efficient operation.

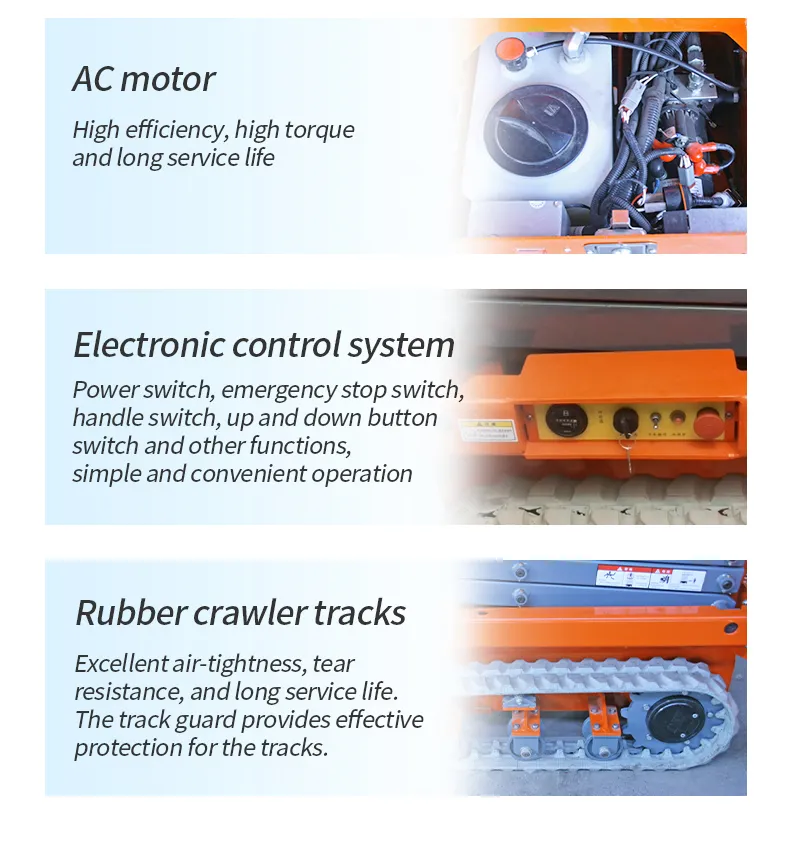

Crawler Tracks for All-terrain Mobility: Rubber tracks ensure traction on muddy, uneven, or soft surfaces.

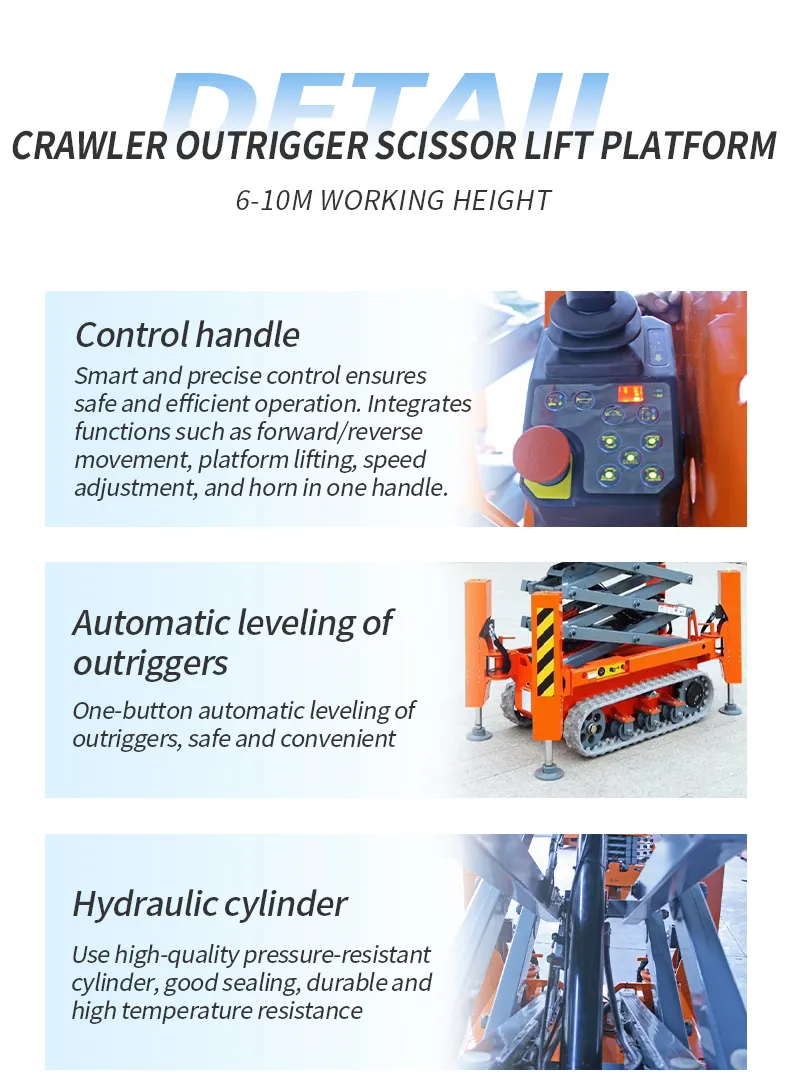

Automatic Outrigger Leveling System: One-button leveling for stable posture on uneven ground.
Exceptional Stability: Crawler base combined with 4 independent hydraulic outriggers.
Integrated Safety System: Equipped with tilt protection, emergency stop, and fault diagnosis.

Comprehensive Safety & Components

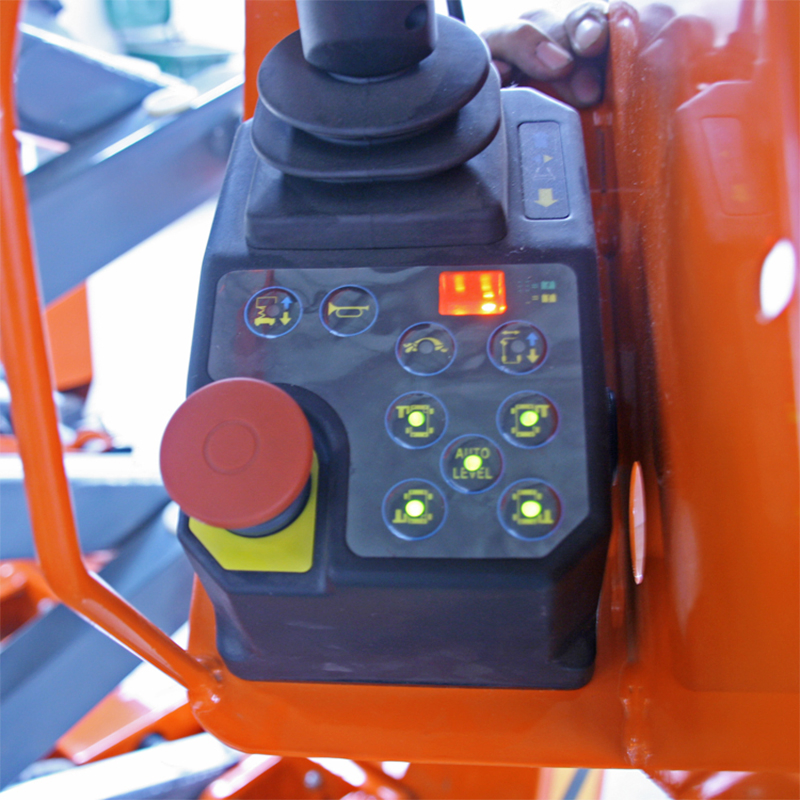

Equipped with advanced hardware including Smart Control Handles, high-quality Hydraulic Cylinders, and high-efficiency AC Motors to provide strong power for both lifting and driving systems.

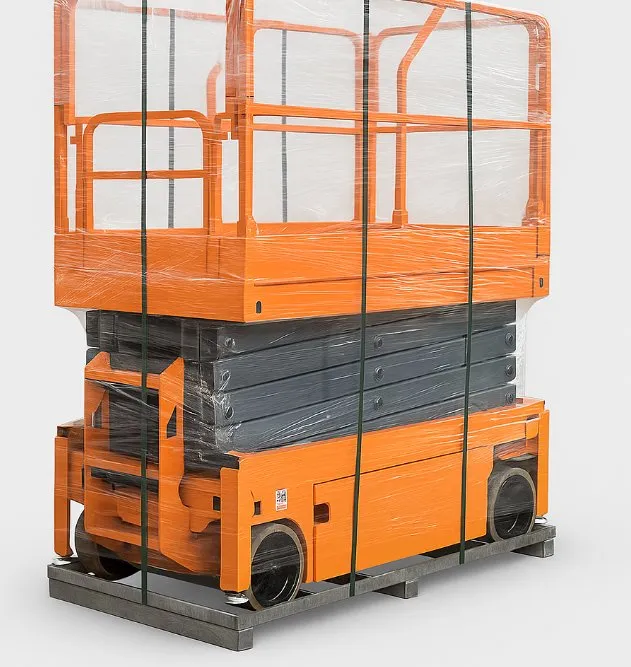

Packing & Delivery

Standard export pallet
Waterproof protective film wrapping
Edge guard and anti-rust treatment
Secured with steel straps
Designed for 20GP and 40HQ container shipping

Why Choose Us

Professional aerial work platform manufacturer
Advanced workshop and strict quality control
Precision welding, painting, and assembly lines
Skilled engineering team and global support
OEM and customization available
Fast delivery and comprehensive after-sales service

Frequently Asked Questions

1. What is the advantage of adding outriggers to the crawler scissor lift?

The outriggers provide automatic leveling and additional stability on uneven ground, significantly improving safety when the lift is raised to full height.

2. Can the crawler lift operate on soft or muddy ground?

Yes. The rubber crawler tracks offer strong traction and a large ground-contact surface, making it suitable for soft soil, gravel, mud, and slopes.

3. Is customization available for this model?

Yes, we support custom working heights, colors, branding/logo printing, and optional safety configuration upgrades (OEM & ODM).

4. What is the warranty period for this scissor lift?

We provide a 12-month warranty for the entire machine (excluding wearing parts), including free technical support and spare parts replacement.

5. What are the main applications for this crawler scissor lift?

It is ideal for indoor maintenance in large venues, high-rise building repairs, billboard installation, and outdoor construction sites on rugged terrain.

6. What type of power system does it use?

The machine uses a high-efficiency electric AC motor and battery power system (e.g., 24V or 48V depending on the model) for both driving and lifting.
