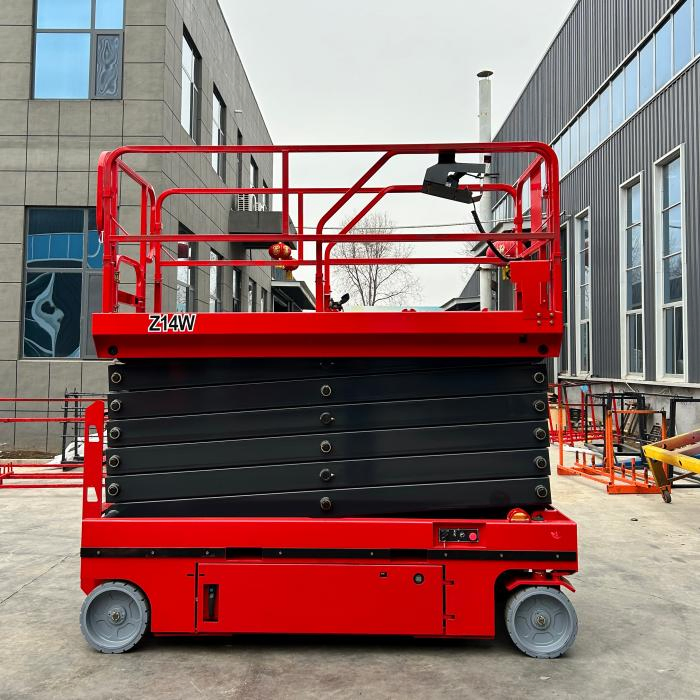

Gp 14m Electric Scissor Lift - Zero Emission & 300kg Capacity for Industrial and Construction Use
Gp 14m Electric Scissor Lift - Zero Emission & 300kg Capacity for Industrial and Construction Use
Gp 14m Electric Scissor Lift - Zero Emission & 300kg Capacity for Industrial and Construction Use
Gp 14m Electric Scissor Lift - Zero Emission & 300kg Capacity for Industrial and Construction Use
Gp 14m Electric Scissor Lift - Zero Emission & 300kg Capacity for Industrial and Construction Use
1 / 5
Gp 14m Electric Scissor Lift - Zero Emission & 300kg Capacity for Industrial and Construction Use
Gp 14m Electric Scissor Lift - Zero Emission & 300kg Capacity for Industrial and Construction Use
Gp 14m Electric Scissor Lift - Zero Emission & 300kg Capacity for Industrial and Construction Use
Gp 14m Electric Scissor Lift - Zero Emission & 300kg Capacity for Industrial and Construction Use
Gp 14m Electric Scissor Lift - Zero Emission & 300kg Capacity for Industrial and Construction Use

Gp 14m Electric Scissor Lift - Zero Emission & 300kg Capacity for Industrial and Construction Use

Customization: Available
After-sales Service: 1 Years
Warranty: 1 Years
Send Inquiry

Product Description

Overview & Basic Information
Model NO.
GTJZ14E
Lift Mechanism
Scissor Lift
Driven Type
AC
Certification
CE
Carrying Capacity
Light Level
Running Mode
Moving
Max. Occupancy
2 Persons
Wheelbase
2.24m
Packaging & Delivery
Package Size
285.00cm * 131.00cm * 260.00cm
Gross Weight
3570.000kg
Product Advantages & Characteristics
  • Utilizes advanced forklift system technology for leading international performance.
  • Designed with human engineering principles for fully humanized operation.
  • Equipped with imported seals, bearings, and electrical components to ensure high reliability.
  • Battery-powered systems feature high-quality assembly electronic controls for maximum stability.
  • Developed and produced in strict accordance with ISO9000 and CE standards.
  • Engineered for environmental safety with zero-emission operation suitable for indoor use.
Product Parameters
Max. Working Height15.8m
Max. Platform Height13.8m
Platform Dimensions2.7 × 1.11 × 1.1m
Length-stowed2.85m
Width-stowed1.31m
Height-stowed2.6m
Height-stowed (Folding guardrails)2.06m
Slide-out platform extension deck length0.9m
Wheelbase2.24m
Weight3570kg
Max. Lift Capacity230kg
Max. Platform Occupancy2
Drive Speed (Stowed)3.5km/h
Gradeability (Stowed)25%
Battery24V/240Ah
Charger24V/36A
Detailed Photos

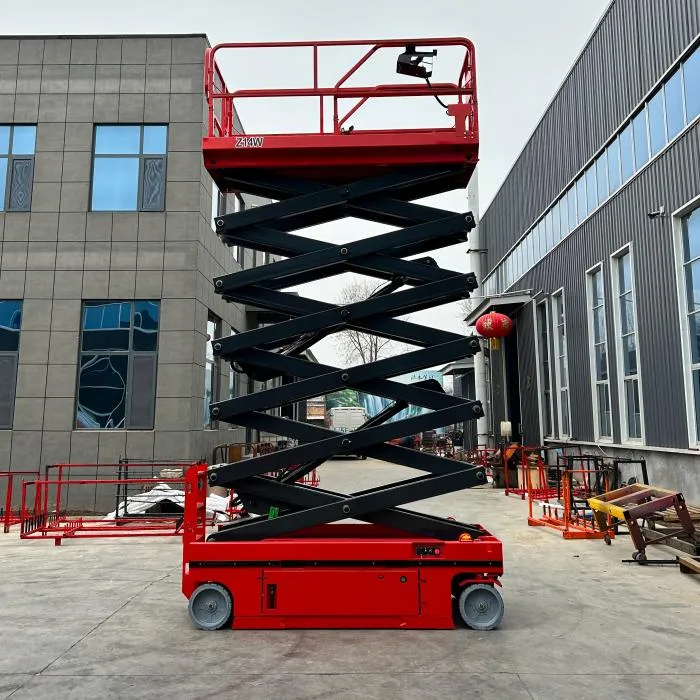

Electric Scissor Lift View 1

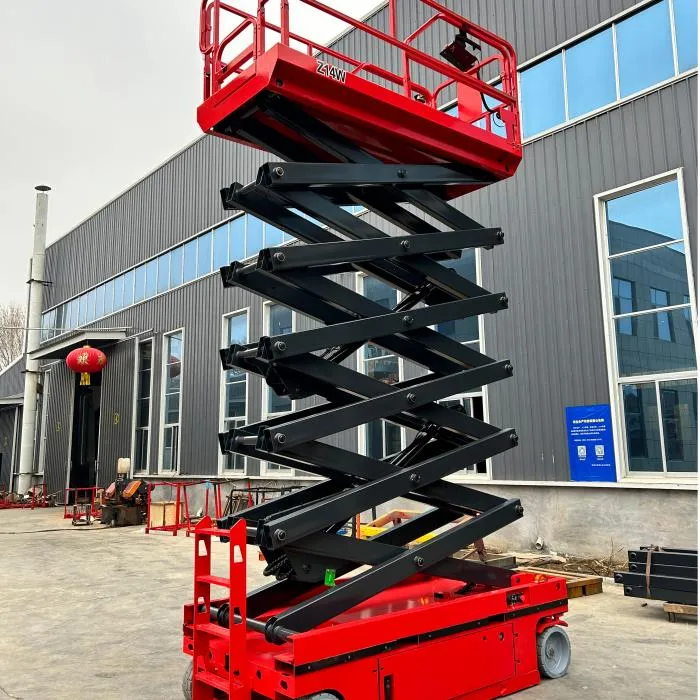

Electric Scissor Lift View 2

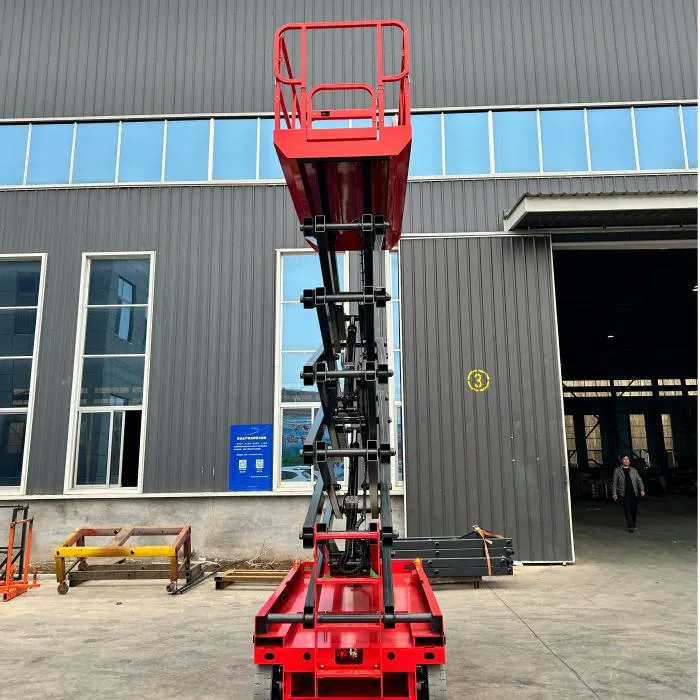

Electric Scissor Lift View 3

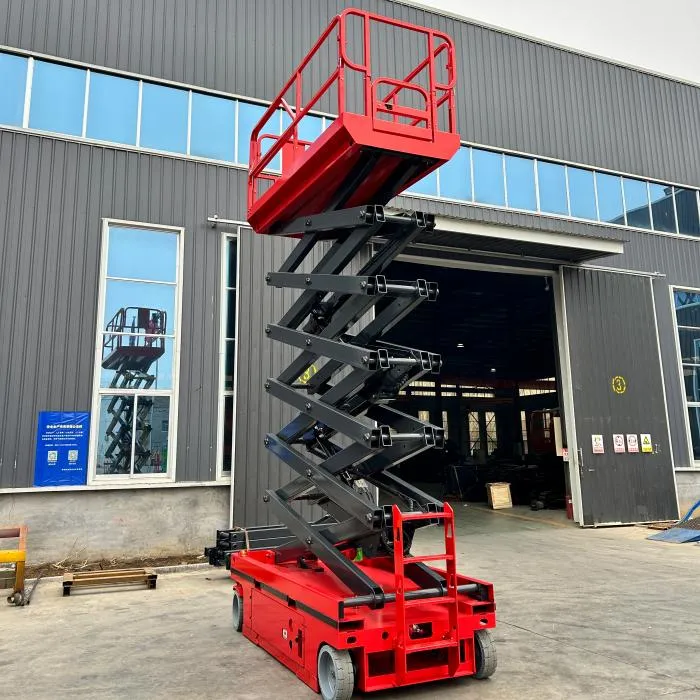

Electric Scissor Lift View 4

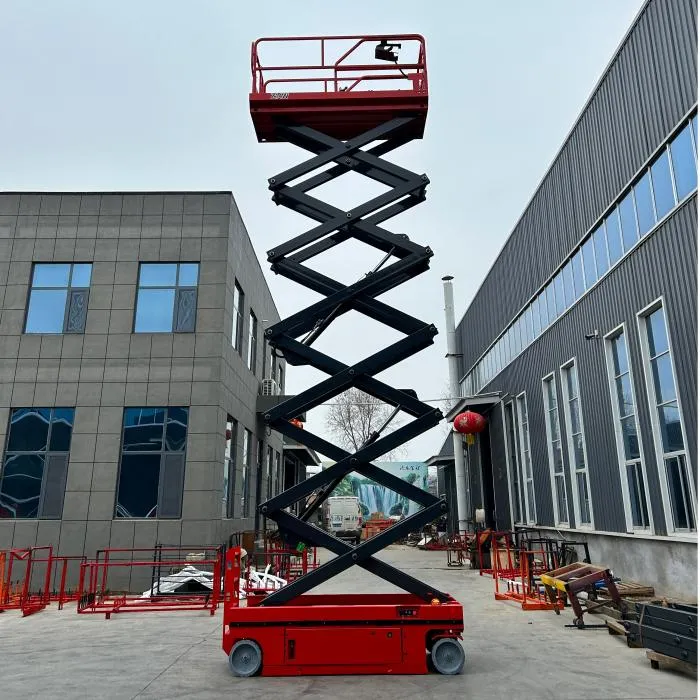

Electric Scissor Lift View 5

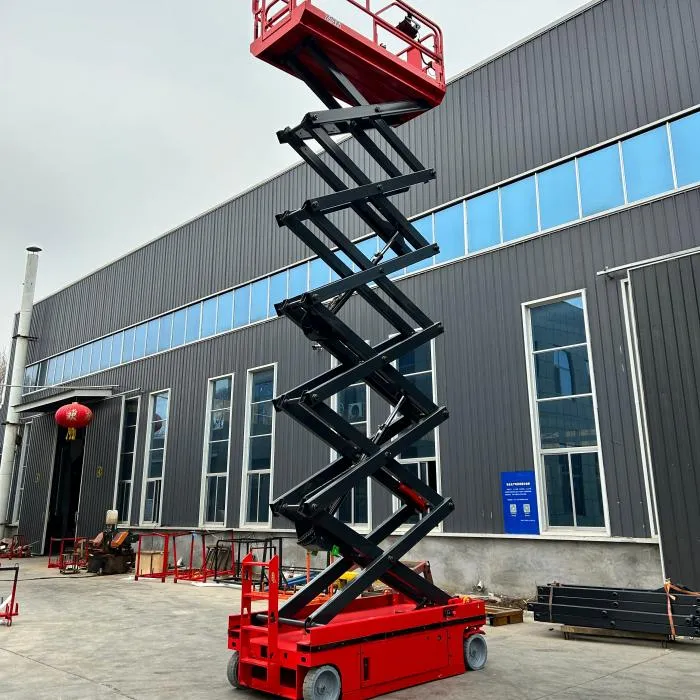

Electric Scissor Lift View 6
Technical Specifications Chart 1
Product Detail View
Application Scenario
Maintenance and Control
Safety Features
Dimension Diagram
Frequently Asked Questions
What is the maximum working height of the GTJZ14E model?
The GTJZ14E electric scissor lift offers a maximum working height of 15.8 meters, making it ideal for high-reach maintenance and construction tasks.
What is the lift capacity of this platform?
It has a maximum lift capacity of 230kg, which can accommodate up to 2 occupants plus necessary tools. The extension deck has a capacity of 113kg.
Is this scissor lift suitable for indoor use?
Yes, it is driven by a 24V battery system with zero emissions and features solid non-marking tires, making it perfect for indoor workshops, warehouses, and clean environments.
Can the guardrails be folded for transport?
Absolutely. The height when stowed is 2.6m, but it can be reduced to 2.06m when the guardrails are folded, allowing it to pass through standard doorways and low-clearance areas.
What is the gradeability of the GTJZ14E?
The unit features a 25% gradeability when stowed, allowing it to navigate ramps and slight inclines effectively on job sites.
How long does it take to lift to the maximum height?
The lifting speed ranges from 3 to 5 meters per minute, ensuring a safe and steady ascent to the maximum platform height.
