Sizzor Lift Carry Push Around Scissor Lift High Jack 1m-5m

1 / 5

Sizzor Lift Carry Push Around Scissor Lift High Jack 1m-5m

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋Basic Information

Model NO.

SS1001

Lift Mechanism

Scissor Lift

Driven Type

Hydraulic

Lifting Height

205~4140mm

Load Capacity

500~4000kg

Platform Size

1600*1000mm

Certification

GS, CE, RoHS, ISO 9001

Material

Steel / Aluminum

🚀Product Description

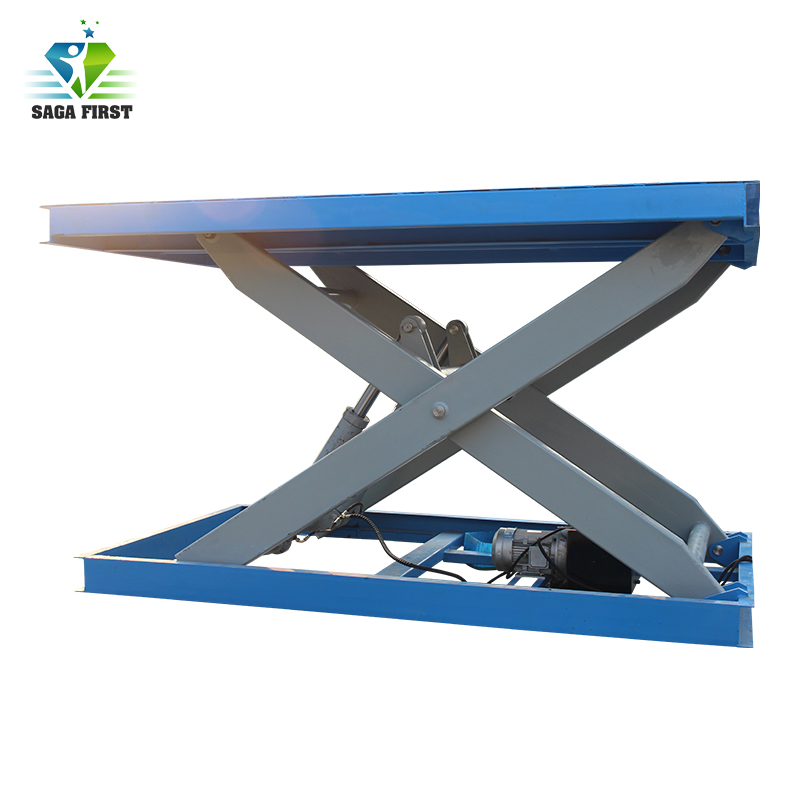

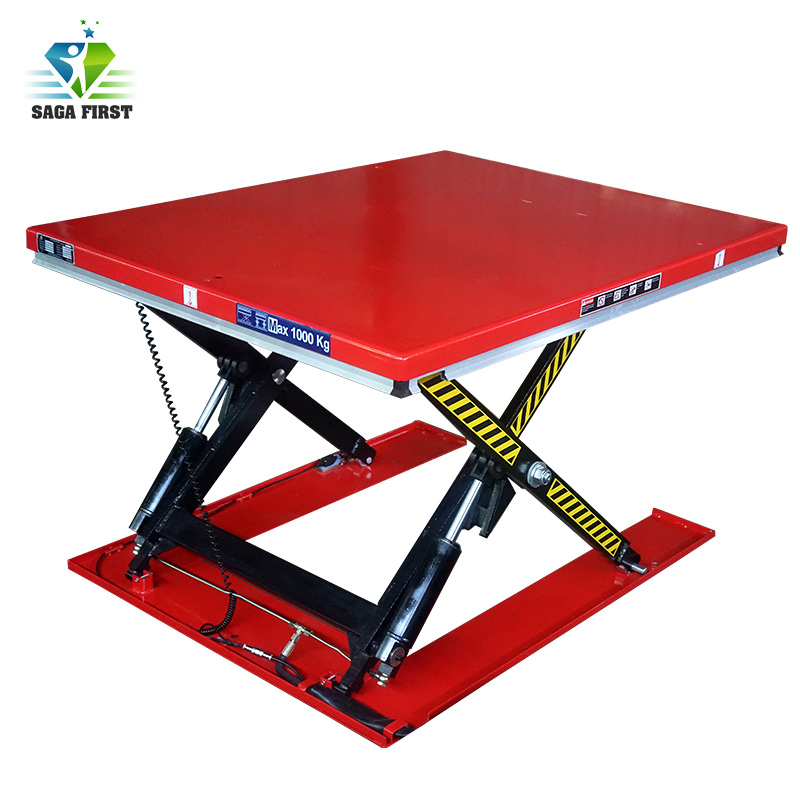

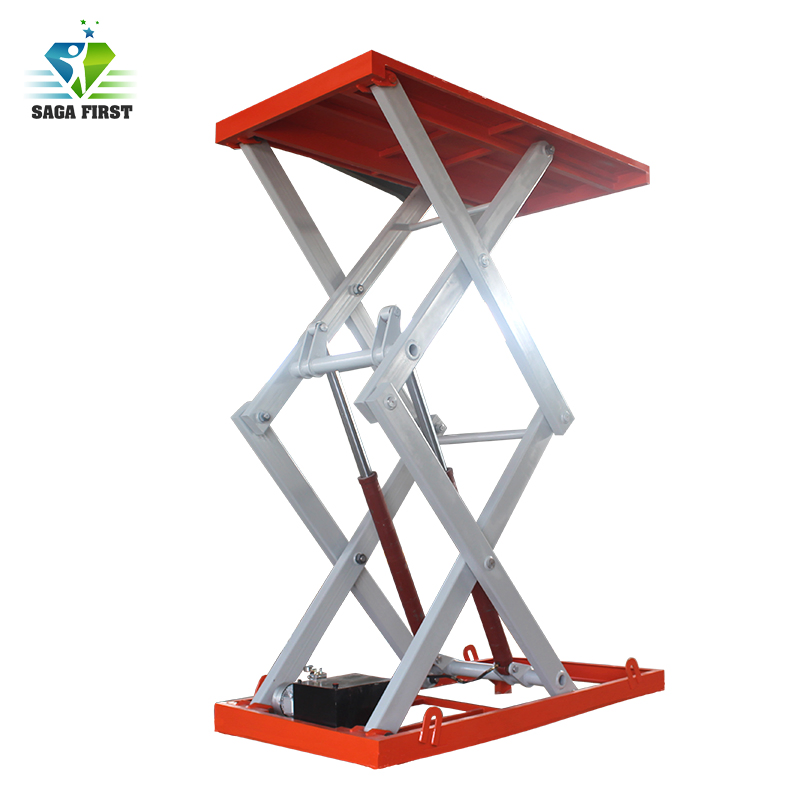

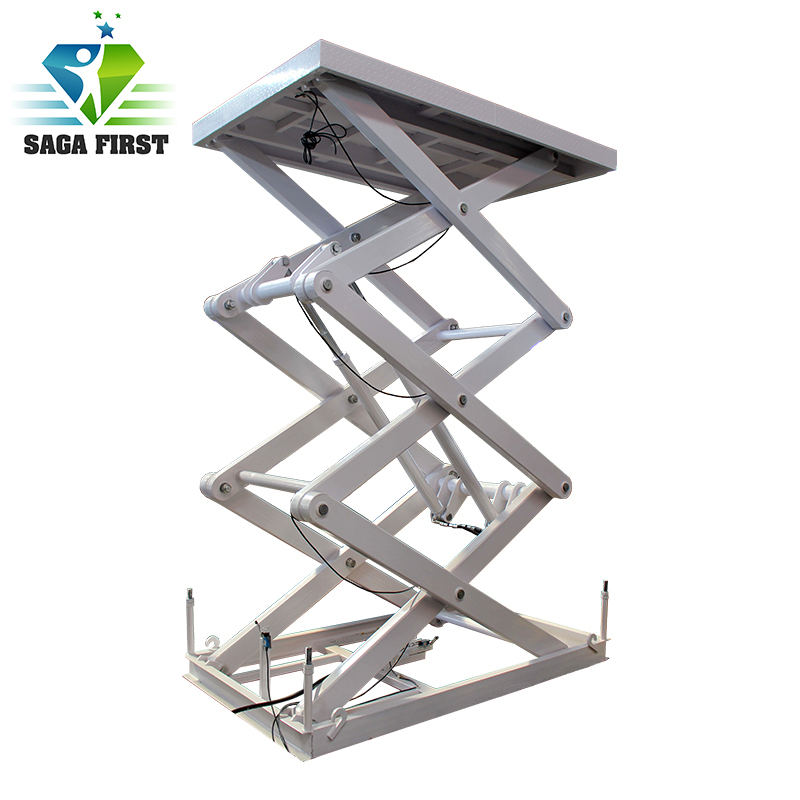

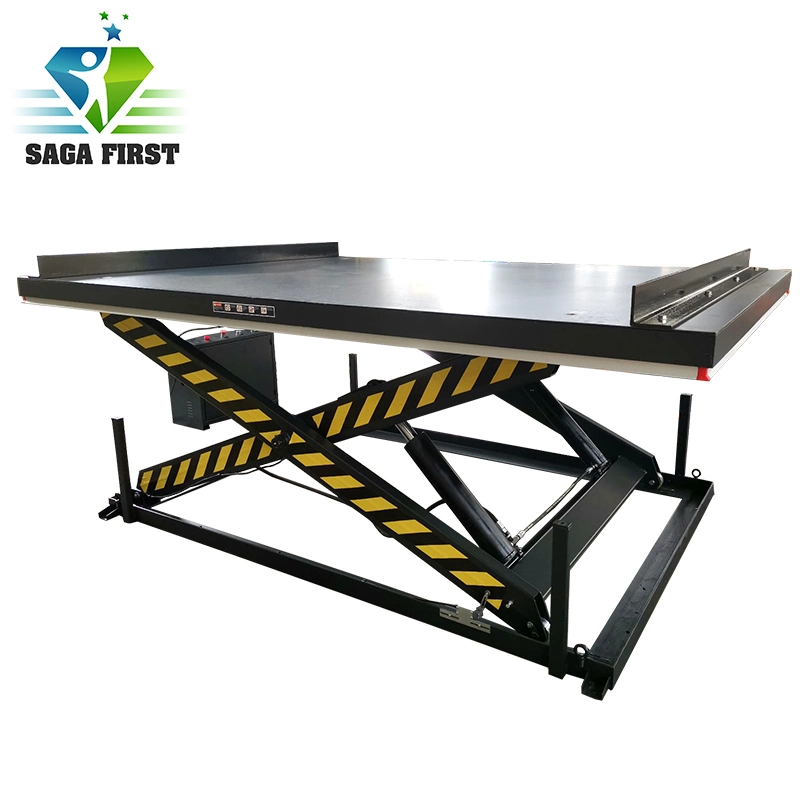

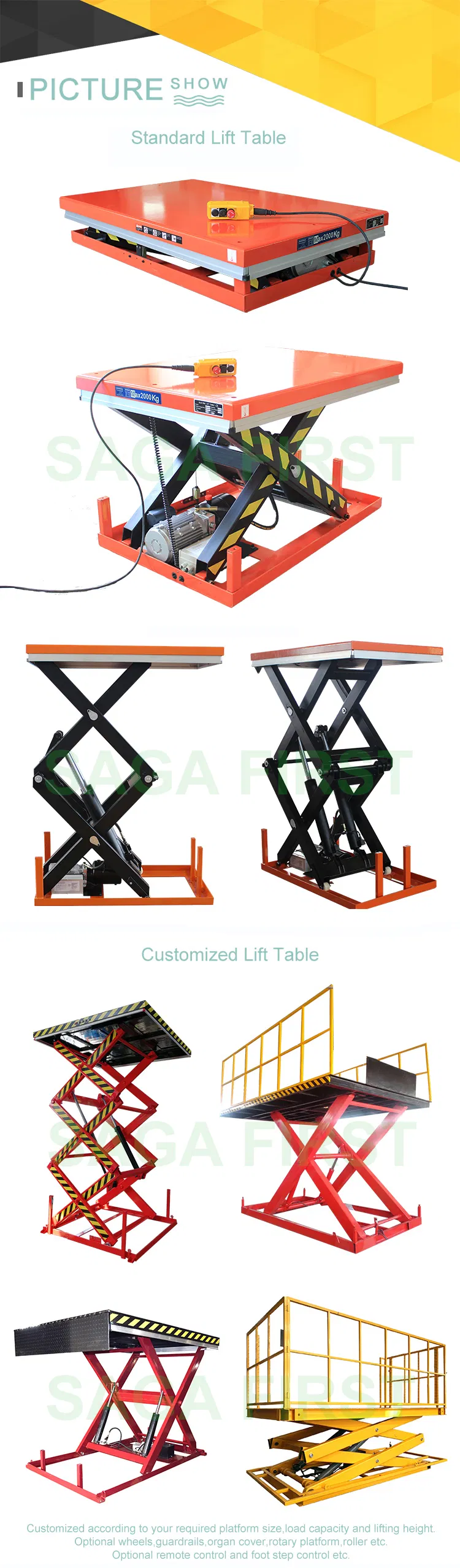

Customized Electric Hydraulic Scissor Lift Table

Electric Hydraulic Scissor Lift Tables are high-quality electronic hydraulic lifts compliant with American standard ANSI/ASME and European standard EN1570. Standard models offer load capacities from 1000kg to 4000kg, with lifting heights ranging from 205mm to 4140mm. Customized services are available for platform size, load capacity, and lifting height to meet specific demands.

The compact structure can be modularized for small spaces. Equipped with a new electric propulsion system, it provides high flexibility and environmentally friendly operation. The automatic hole protection system ensures a safe and reliable user experience.

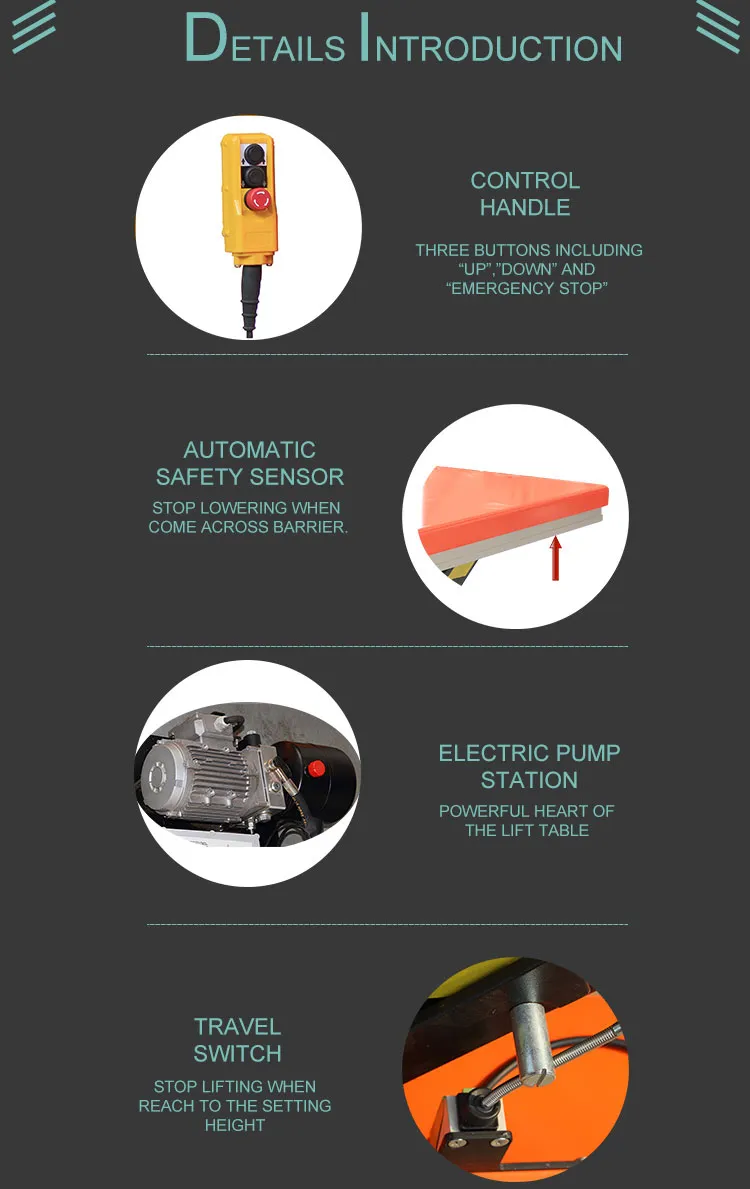

🛡Safety Precautions

✔Explosion-proof valves
✔Spillover valve
✔Emergency decline valve
✔Overload protection locking
✔Automatic Safety sensor
✔Anti-pinch scissor design

📊Technical Specifications

Model	Load Capacity (KG)	Self Height (MM)	Max Platform Height (MM)	Platform Size (MM)	Lifting Time (S)	Voltage	Net Weight (KG)
SS1001	1000	205	1000	1300×820	20~25	1 phase or 3 phase (Customized)	160
SS1002	1000	205	1000	1600×1000	20~25		186
SS2001	2000	230	1000	1300×850	20~25		235
SS4001	4000	240	1050	1700×1200	30~40		375
HD1000	1000	305	1780	1300X820	35-45		210
HT1000	1000	470	3000	1700x1000	35-45		450

✨Features & Advantages

📦Shot blasting and stoving varnish for high anti-corrosion.
📦High-quality pump station for stable lifting and falling.
📦Self-lubricating design on main pin-rolls to prolong life span.
📦Removable lifting eye for easy installation.
📦Heavy-duty cylinders with drainage system and check valve.
📦Pressure relief valve to prevent overload operation.

🔧Our Services

We provide a comprehensive service package including customized design based on specific requirements, professional model recommendations, and global shipment arrangements. Every unit comes with an operation video, a detailed maintenance manual, and quick express delivery for spare parts within 7 days if required.

❓Frequently Asked Questions

What is the quality warranty period?

We offer a 24-month (two-year) quality guarantee. During this period, replacement parts are provided free of charge.

Can the lift table be customized?

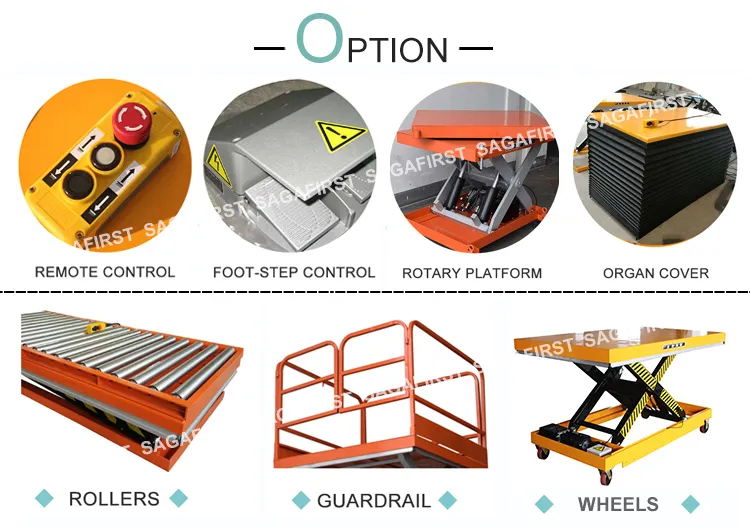

Yes, we offer OEM and ODM services. We can customize the lifting capacity, lifting height, platform size, painting color, and logo based on your needs.

How can I repair the equipment if a problem occurs?

The equipment has a very low failure rate. If an issue arises, we provide technical guidance via videos, pictures, and detailed repair instructions.

Where can I buy replacement parts?

The lift uses common hardware parts. You can easily purchase them at your local hardware market or forklift parts shop.

What are the available safety features?

Standard safety features include explosion-proof valves, emergency decline valves, overload protection devices, and automatic safety sensors that stop movement upon meeting barriers.

What is the typical delivery time?

Standard delivery time is approximately 15 to 20 days after the initial down payment is received.
