Mobile Push Vertical Mast Lift with Tilting Function

Customization: Available
After-sales Service: Can Post Spare Parts Within 1 Week
Warranty: One Year

Product Description

Basic Information

Model NO.
MT600-1
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Lift Chain
Carrying Capacity
Light Level
Moves
Manual Pushing
Driven Type
AC
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
CE, ISO 9001
Platform Height
6.2m
Working Height
8.2m
Loading Capacity
150kg
Lifting Power
0.75kw
Platform Size
0.67*0.66m
Transport Package
PVC Film Wrapped in Pallet
Specification
1.24*0.74*1.99m

Product Description

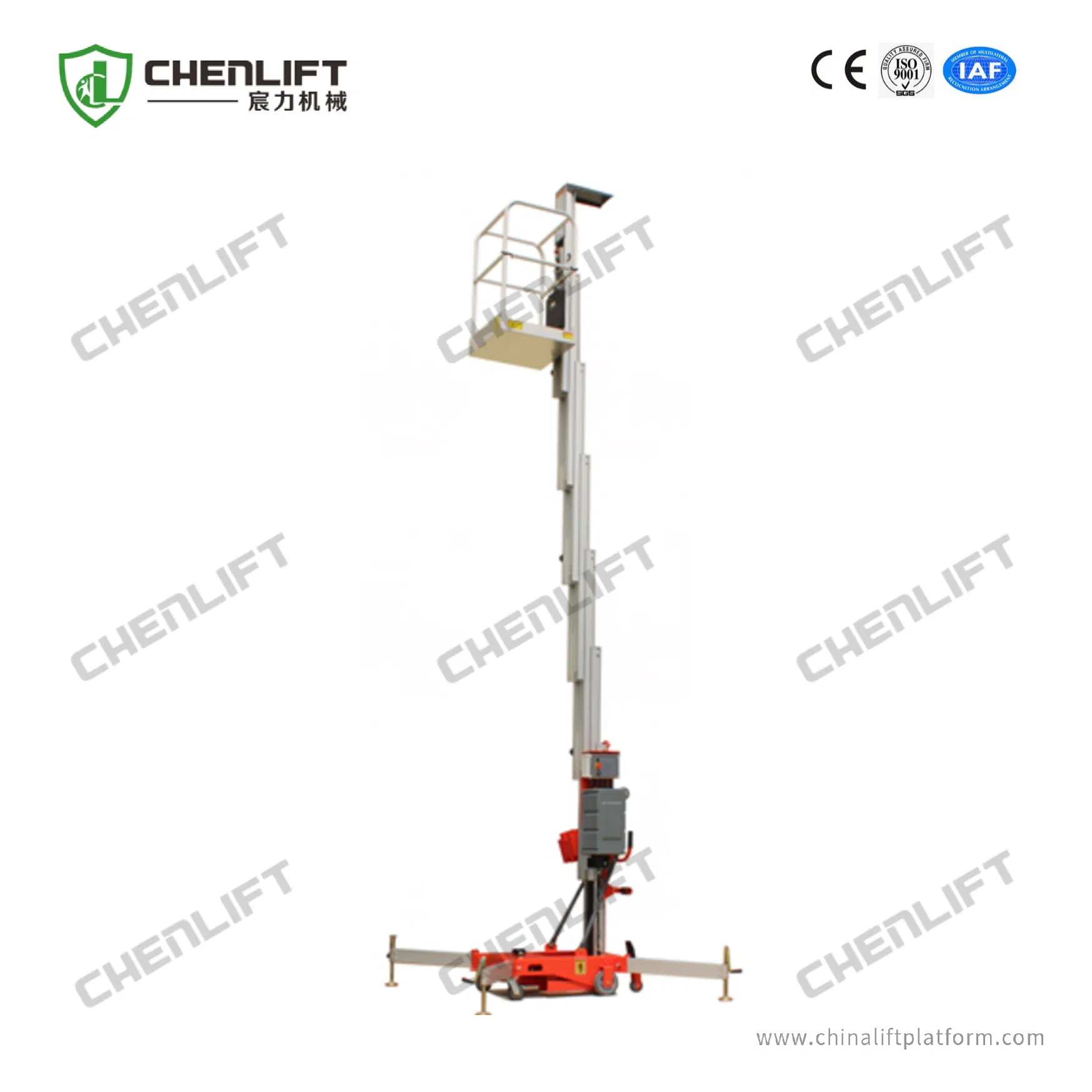

Mobile Push Vertical Mast Lift with Tilting Function

The Single Mast Vertical Lift is mainly used for the installation and maintenance of the narrow spaces such as workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and more. It is easily to go through the regular doors and elevators.

Power supply standard is AC version (110V or 220V or 380V) and DC chargeable battery version (12V) or AC & DC version are both optional. DC battery version always comes with battery charger, batteries can be recharged by automatic, built-in charger, and battery discharge indicator warns of low charge conditions.

The lifting height ranges from 1.99m to 12m for different size Vertical Lift and the loading capacity varies from 120Kg to 150Kg.

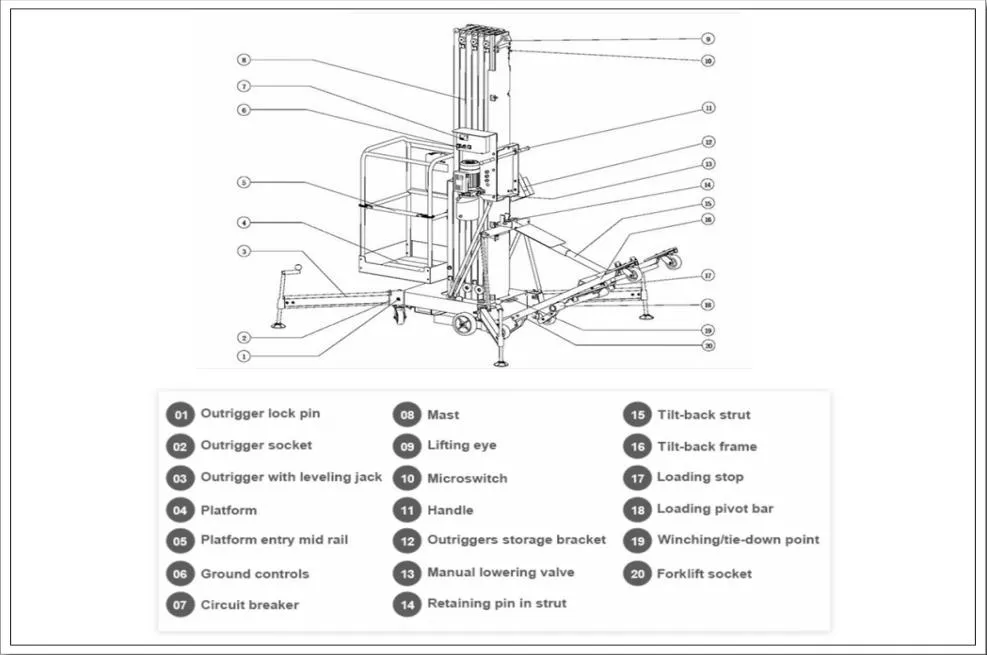

Key Features

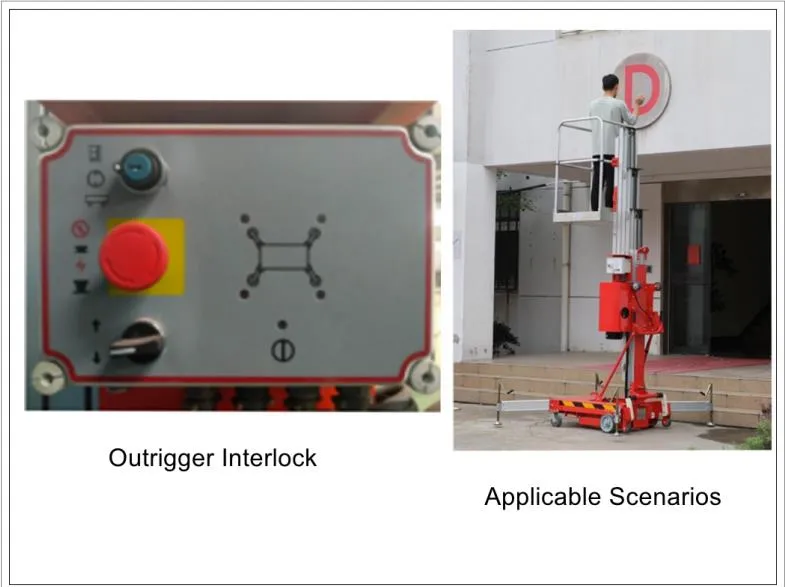

Outrigger Interlock
Deadman Switch
AC power on Platform
Emergency Stop Button

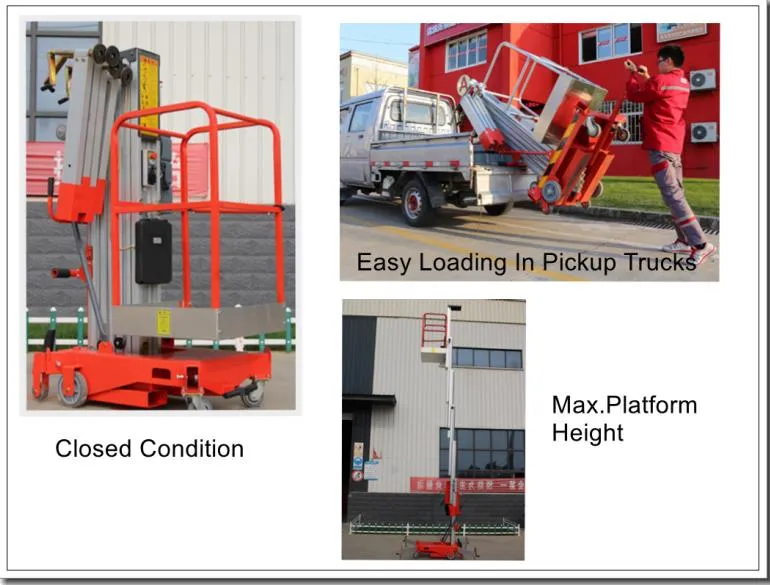

Easily Loading to Pickup Truck
Emergency Lowing System
Leveling Gauge
Forklift Pocket
Cylinder Holding Valve

Technical Specifications & Details

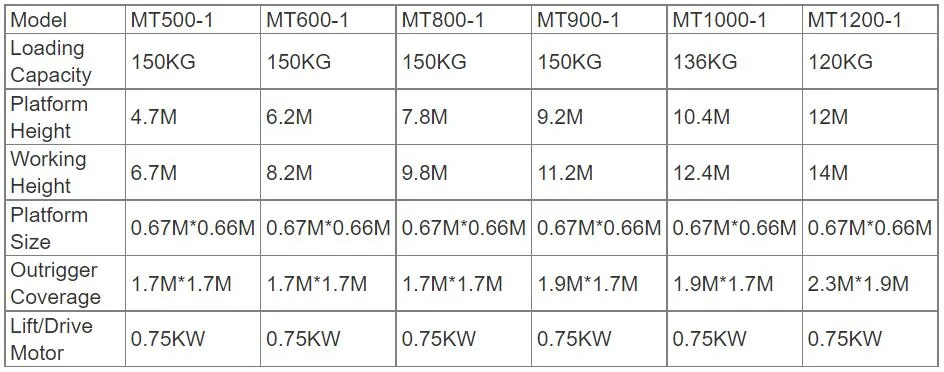

Specifications

Production & Quality Control

Specializing in a range of aerial lift and aerial work platform equipment for unique applications with established global presence across over 30 countries.

Company Overview

Compliance & Certification

Certificates

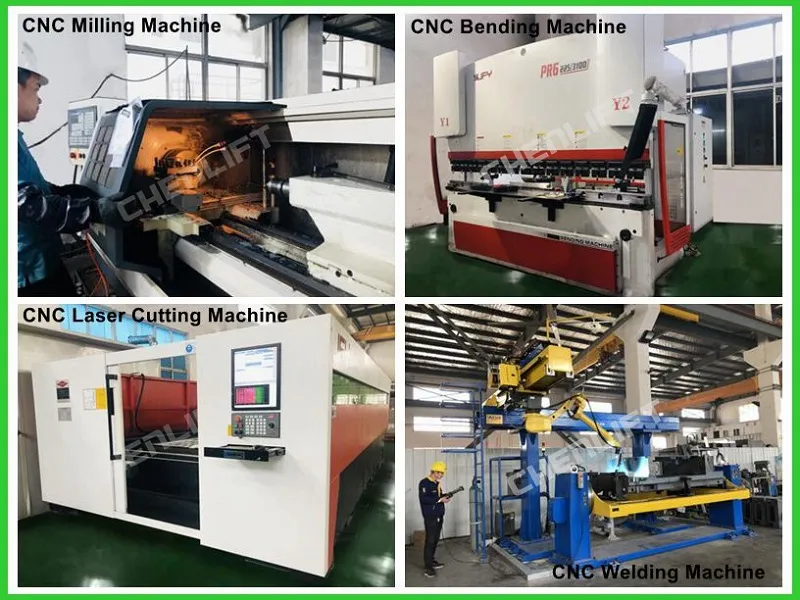

Factory Facilities & Exhibitions

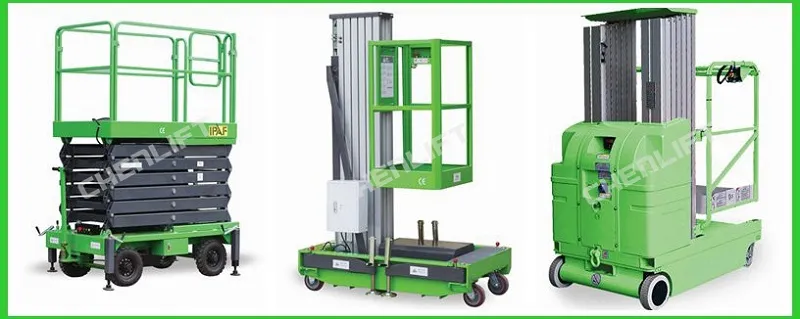

Other Related Products

Related Products

Our Professional Service

Customized Design based on requirements
Professional model recommendations
Global Shipment Arrangement
Operation Videos & Tutorials
Fast Spare Parts Delivery (7 days)

Frequently Asked Questions

What is the maximum working height of the MT600-1 model?
The MT600-1 model provides a platform height of 6.2m, resulting in a maximum working height of approximately 8.2m.
Can this lift operate on battery power?
Yes, we offer multiple power options: standard AC (110V/220V/380V), a 12V DC chargeable battery version, or a combined AC & DC version.
Is it small enough to fit through standard doors?
Absolutely. The compact design and tilting function allow it to pass easily through regular doors and fit into standard elevators.
What safety features are included for the operator?
The lift is equipped with several safety systems, including an outrigger interlock, emergency stop button, emergency lowering system, and a deadman switch on the platform.
What is the loading capacity for this single mast lift?
This model has a loading capacity of 150kg, making it ideal for one person plus tools and materials.
How is the equipment transported and loaded?
The unit features integrated forklift pockets and a design that allows it to be easily loaded onto a pickup truck for transport between sites.
