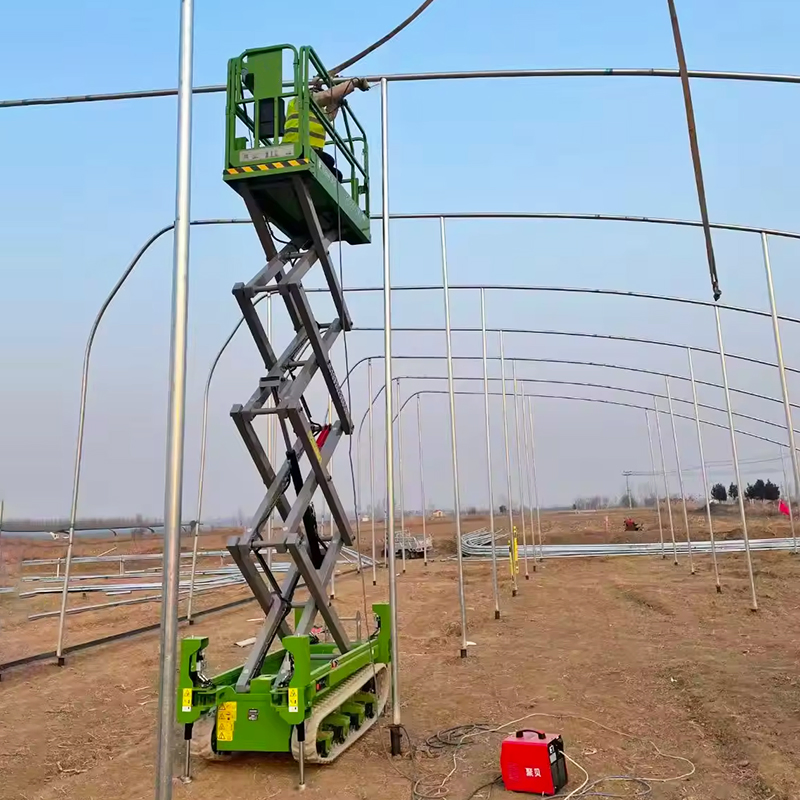

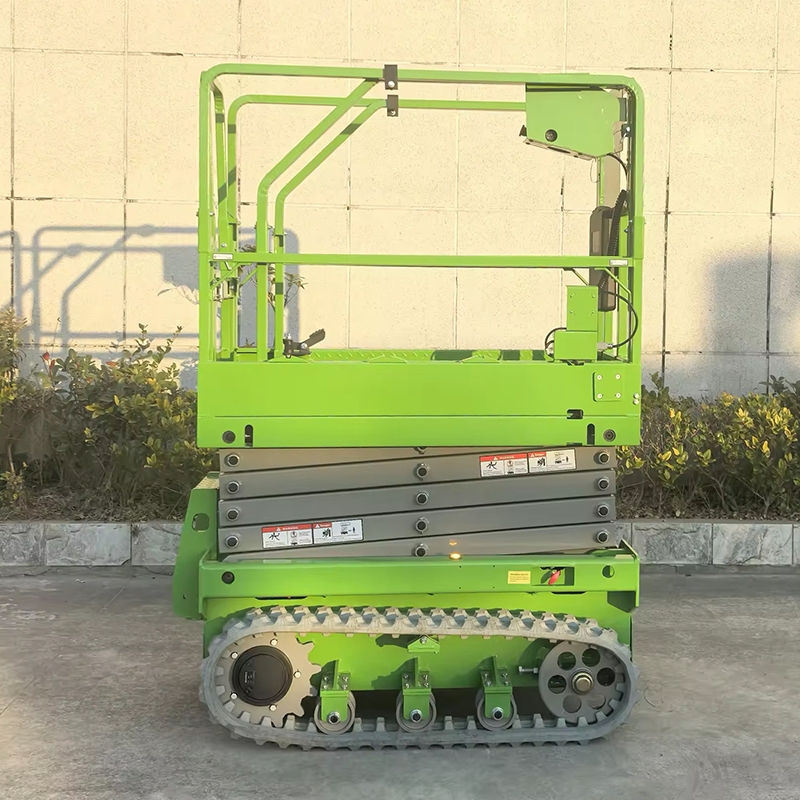

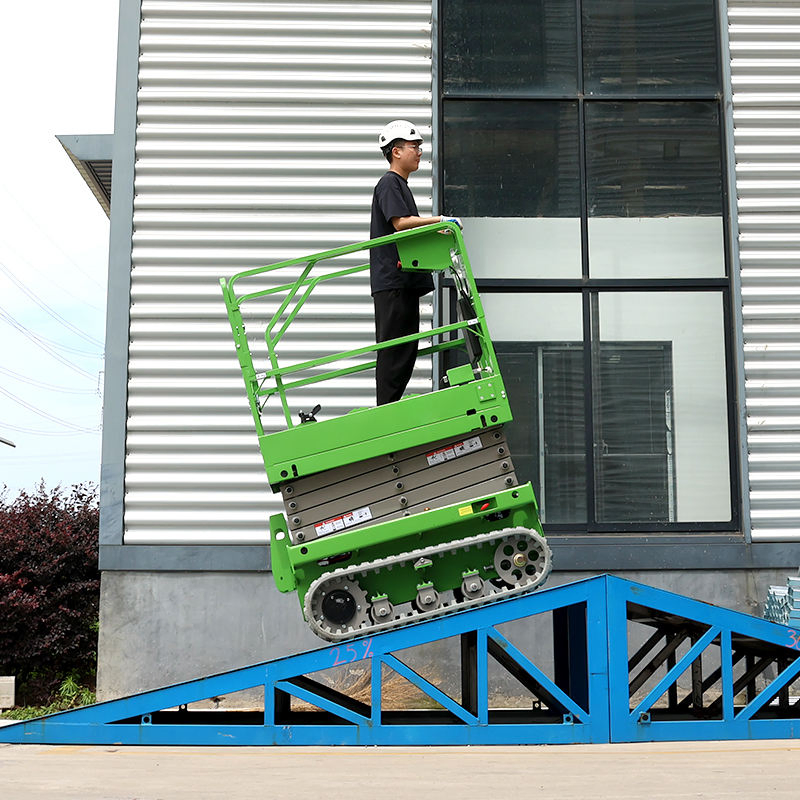

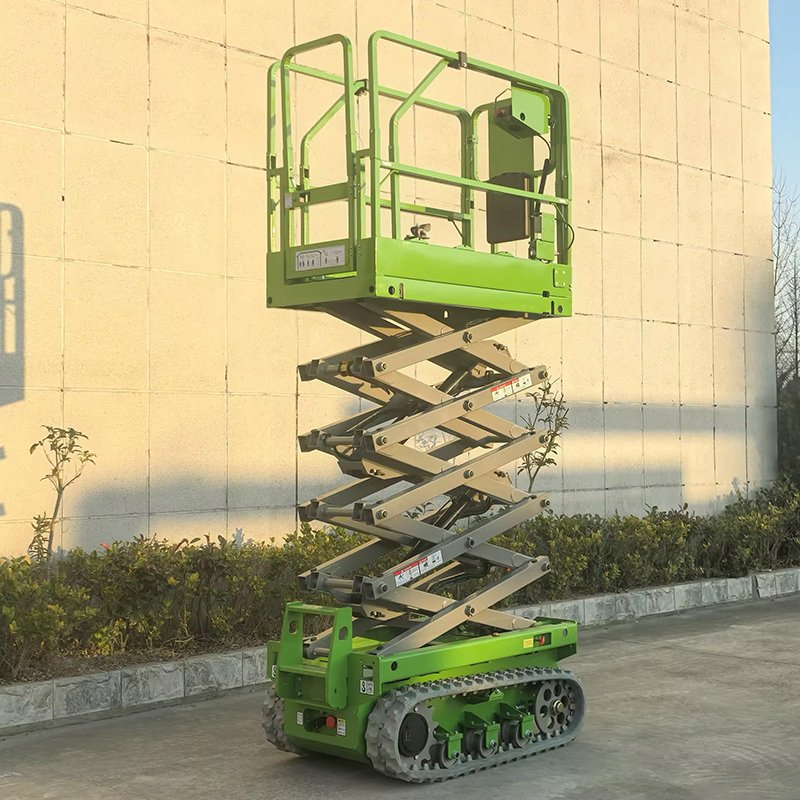

3m-16m Mobile Mini Manlift Automatic Aerial Work Platform Electric Self-Propelled Scissor Lift
3m-16m Mobile Mini Manlift Automatic Aerial Work Platform Electric Self-Propelled Scissor Lift
3m-16m Mobile Mini Manlift Automatic Aerial Work Platform Electric Self-Propelled Scissor Lift
3m-16m Mobile Mini Manlift Automatic Aerial Work Platform Electric Self-Propelled Scissor Lift
3m-16m Mobile Mini Manlift Automatic Aerial Work Platform Electric Self-Propelled Scissor Lift
1 / 5
3m-16m Mobile Mini Manlift Automatic Aerial Work Platform Electric Self-Propelled Scissor Lift
3m-16m Mobile Mini Manlift Automatic Aerial Work Platform Electric Self-Propelled Scissor Lift
3m-16m Mobile Mini Manlift Automatic Aerial Work Platform Electric Self-Propelled Scissor Lift
3m-16m Mobile Mini Manlift Automatic Aerial Work Platform Electric Self-Propelled Scissor Lift
3m-16m Mobile Mini Manlift Automatic Aerial Work Platform Electric Self-Propelled Scissor Lift

3m-16m Mobile Mini Manlift Automatic Aerial Work Platform Electric Self-Propelled Scissor Lift

Customization: Available
After-sales Service: Online Support
Warranty: 1years
Send Inquiry

Product Description

Basic Info

Model NO.BJ-0507T
ApplicationWorkshop Crane, Warehouse Crane, Building Crane
Lift MechanismScissor Lift
Carrying Capacity230kg
MovesSelf-propelled
Driven TypeHydraulic
Running ModeMoving
FeatureExplosion-Proof, Insulating
CertificationCE, ISO 9001
Product Dimensions1560*880*1520mm
Max Platform Occupancy2
Max Working Inclination1.5°/2.5°
Electric Motor24V/2×1kw

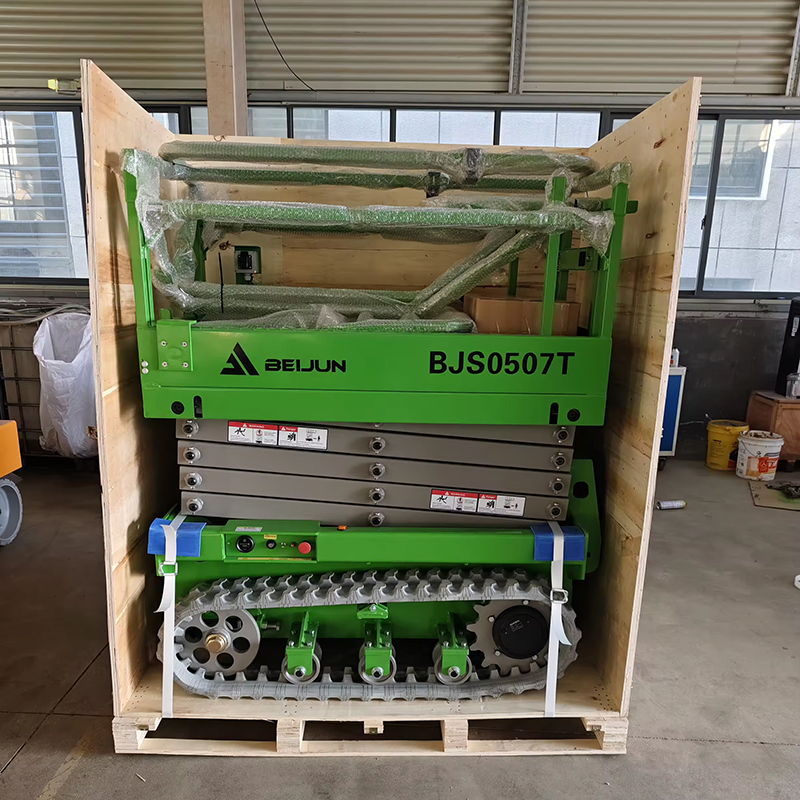

Transport PackageWooden Packing

Product Description

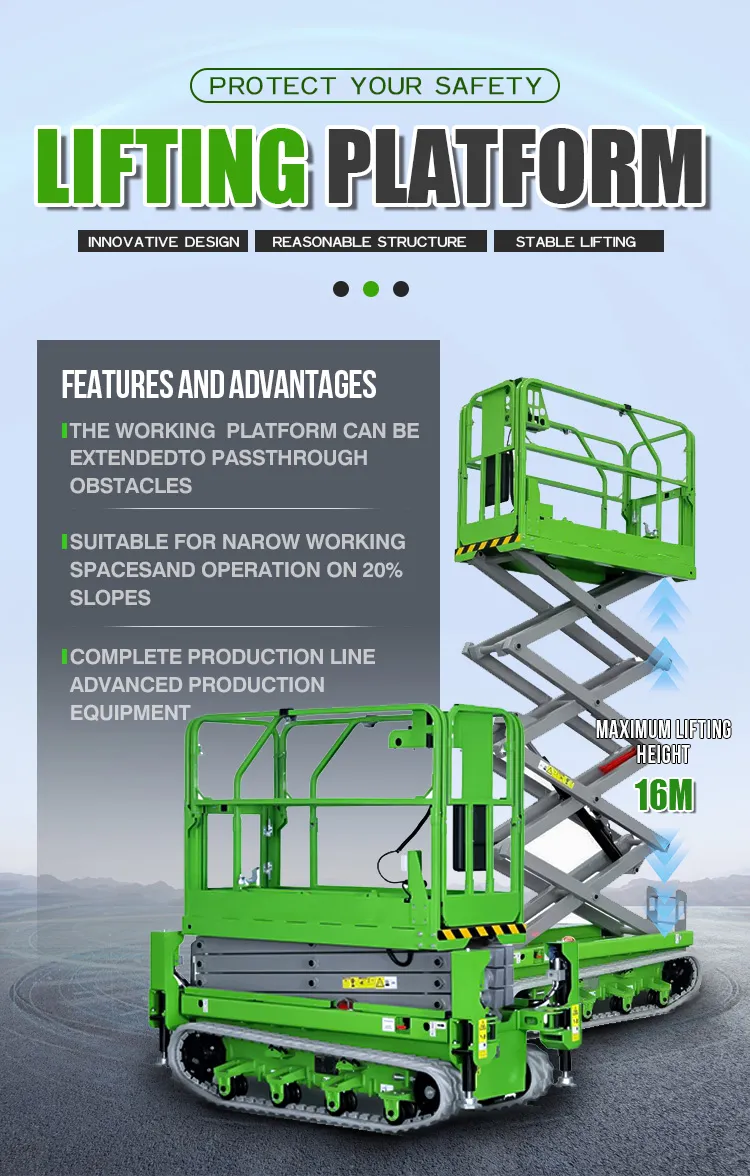

Scissor Lift View 1
Scissor Lift View 2

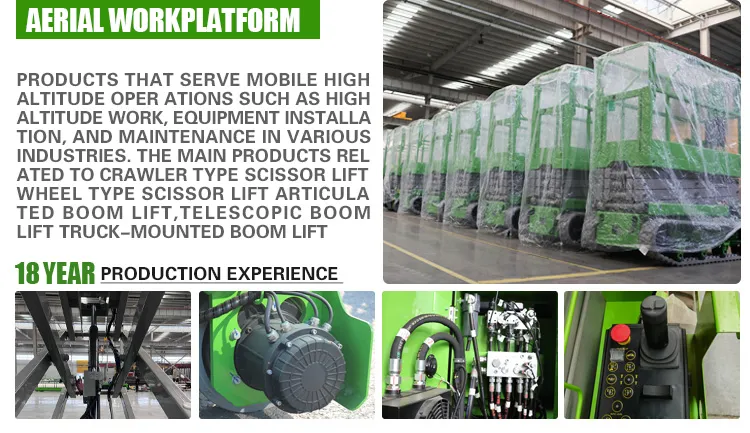

Scissor Lift View 3

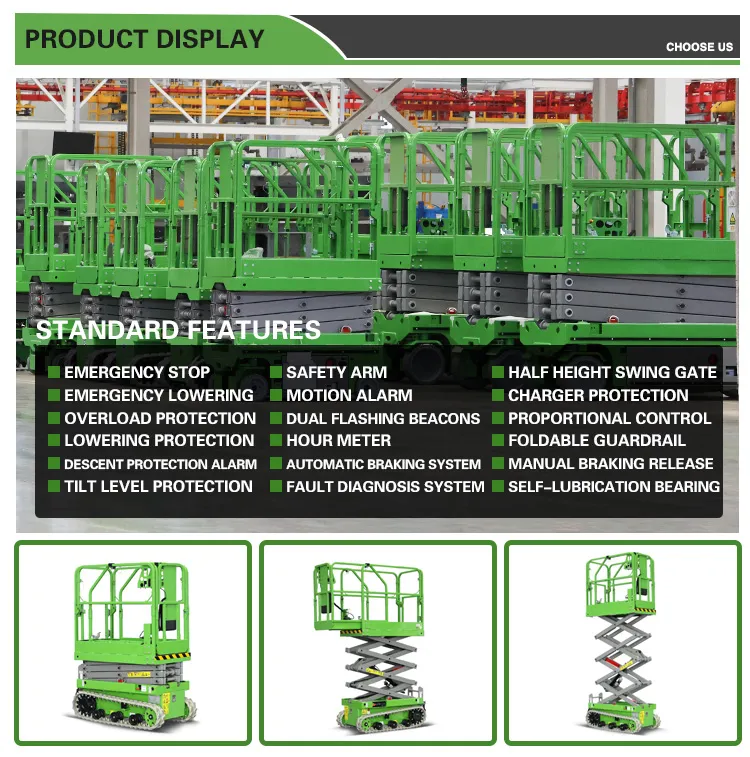

Scissor Lift View 4

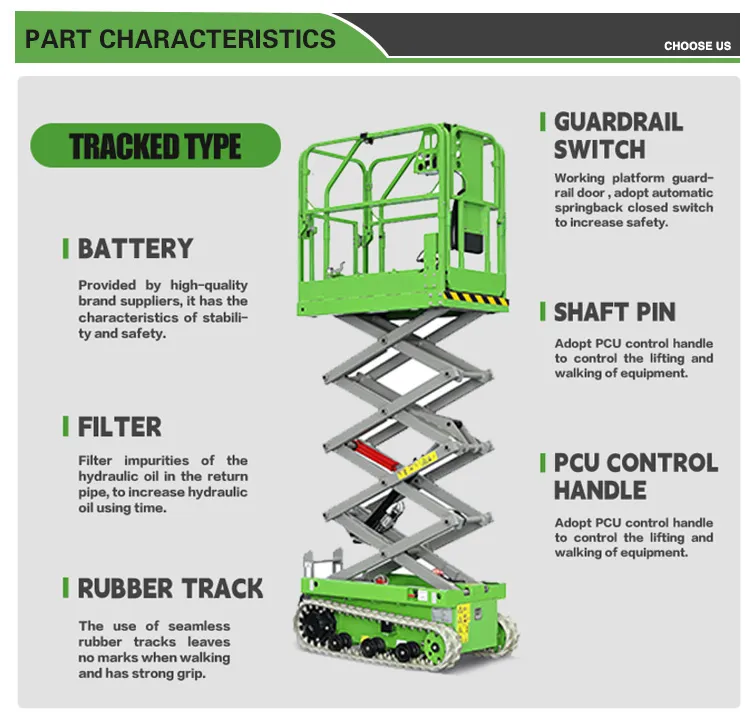

Scissor Lift View 5

Product Parameters

Model BJS0507T BJS0607T BJS0610T BJS0810T BJS1012TL BJS1212TL BJS1416TL
Dimensions
Max operating height (m)6.67.88.310.3121416
Max platform height (m)4.65.86.38.3101214
Platform length (mm)1400140018001800227022702670
Platform width (mm)760780800800112011201120
Overall length (mm)1520152020102010278027803160
Overall width (mm)880920960960136013601610
Performance
Rated load capacity (kg)230230300300450450450
Max platform Occupancy2222333
Driving speed (Stowed) (km/h)2.52.52.52.52.52.52.5
Gradeability (%)30303030303030
Power
Battery2×12V 120Ah2×12V 120Ah4×12V 83Ah4×12V 83Ah8×12V 150Ah8×12V 150Ah8×12V 150Ah
Electric motor24V/2×1KW24V/2×1KW24V/2×1KW24V/2×1KW48V/4KW*248V/4KW*248V/4KW*2

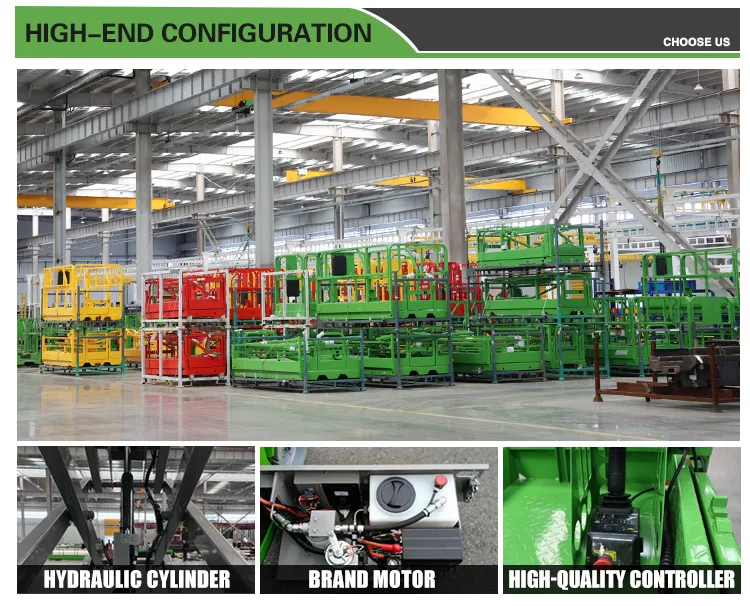

Details 1

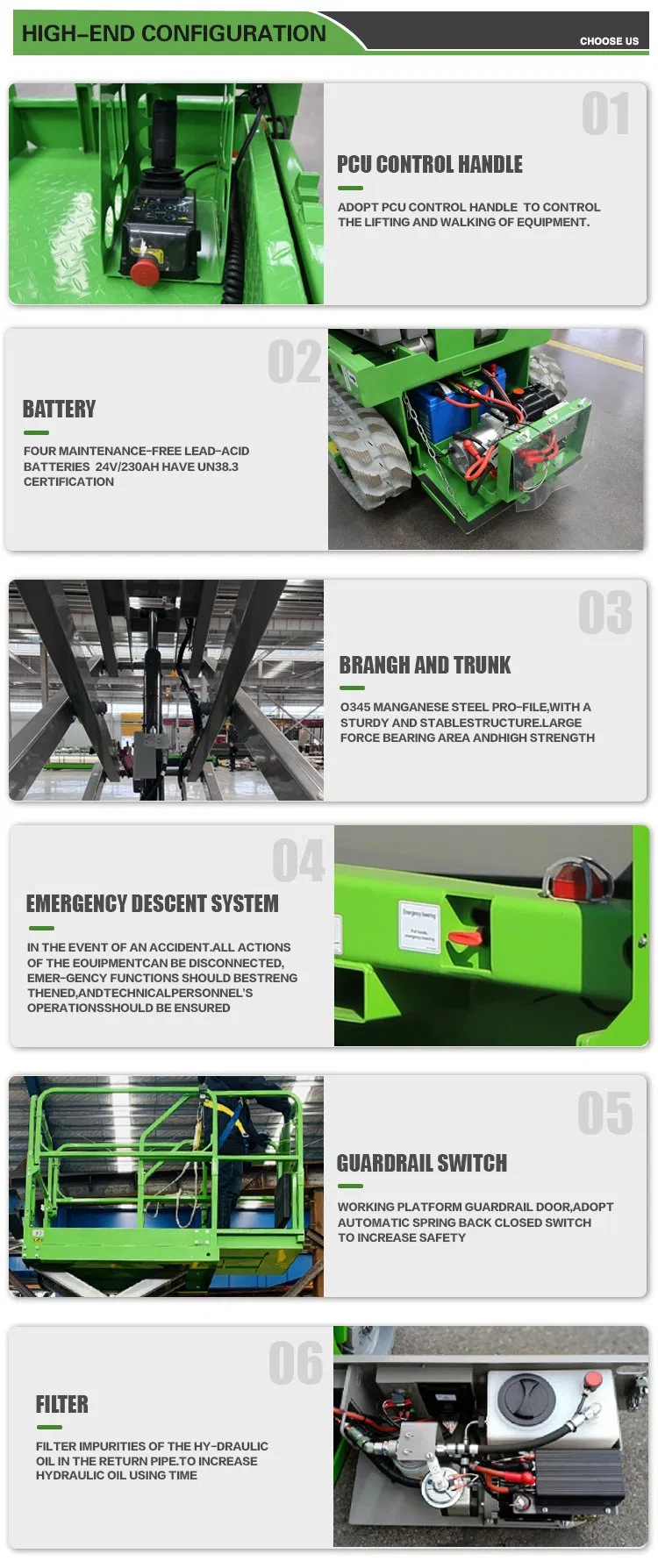

Details 2
Details 3

Company Profile

Factory 1
Factory 2
Factory 3

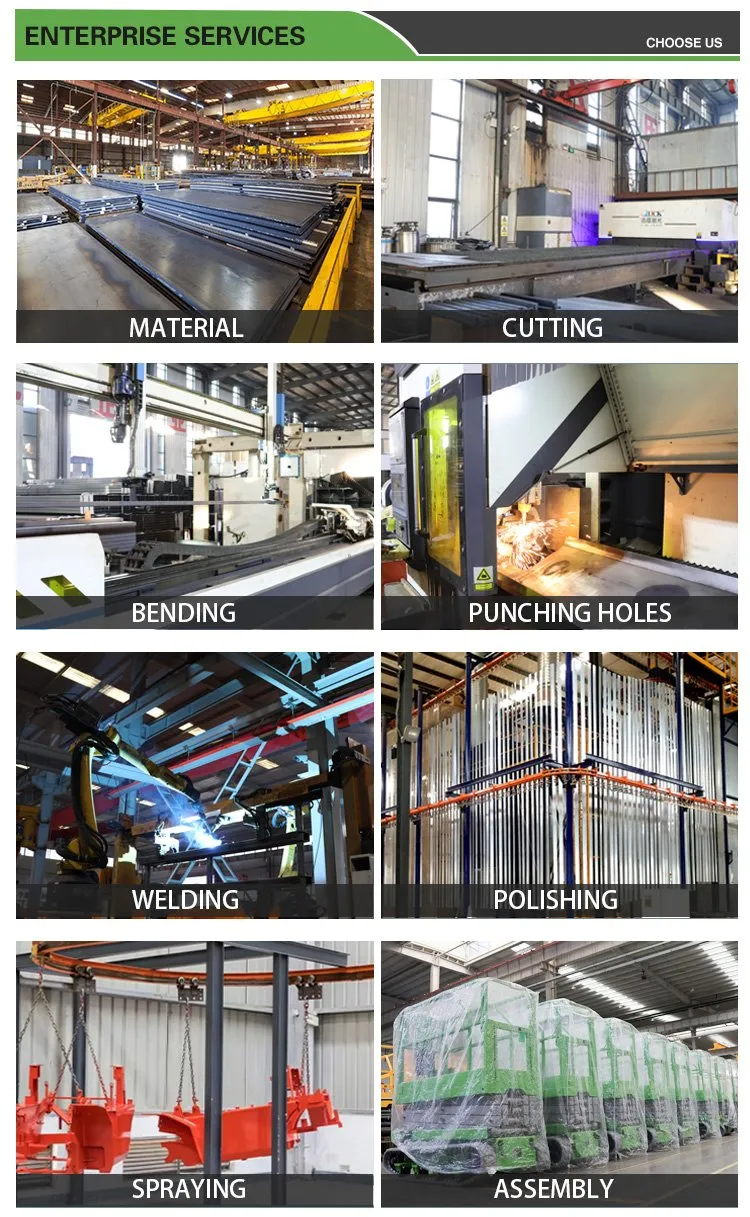

Factory 4
Factory 5
Factory 6

Frequently Asked Questions

What is the maximum load capacity for the BJ-0507T model?
The BJ-0507T model has a rated load capacity of 230kg, suitable for 2 people and their tools.
Is this scissor lift self-propelled?
Yes, it is a self-propelled unit driven by a hydraulic system, allowing for easy movement around workshops and warehouses.
What kind of batteries are used in these aerial platforms?
The units are equipped with maintenance-free lead-acid batteries, typically 24V or 48V depending on the specific model.
Can these lifts be used on sensitive flooring?
Yes, the smaller models feature non-marking rubber tracks, which are ideal for indoor workshop and building use without damaging the floor.
What safety certifications do these lifts have?
The products are fully certified with CE and ISO 9001 standards, ensuring high quality and safety for aerial work.
What is the maximum working height available in this series?
The series offers a range of heights, with the BJS1416TL reaching a maximum operating height of 16 meters.
