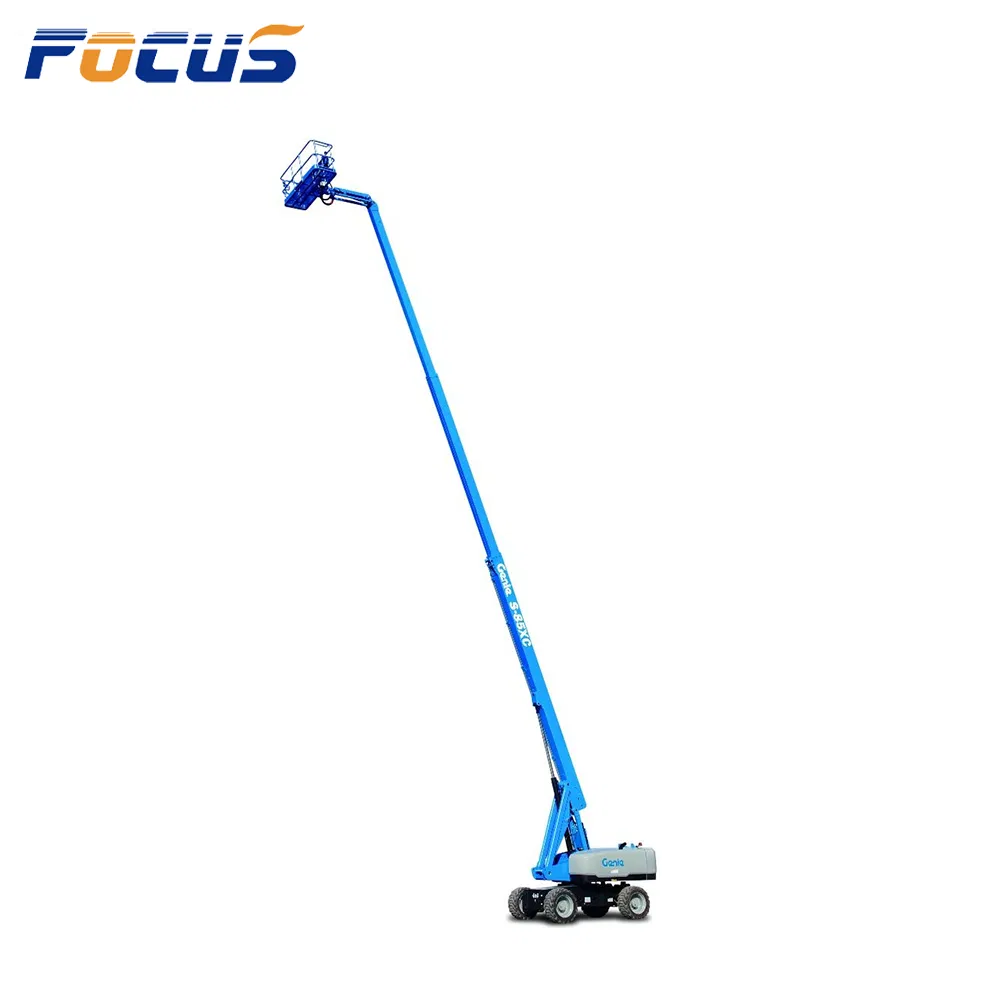

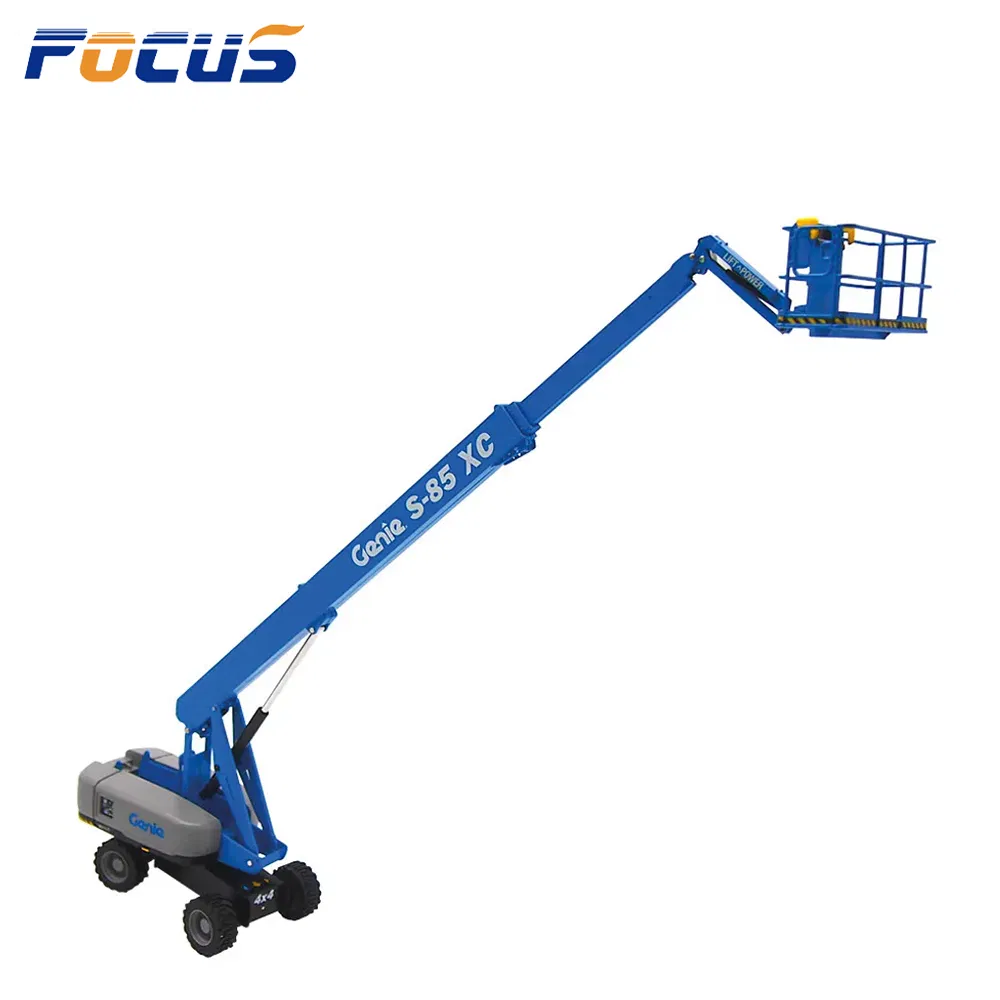

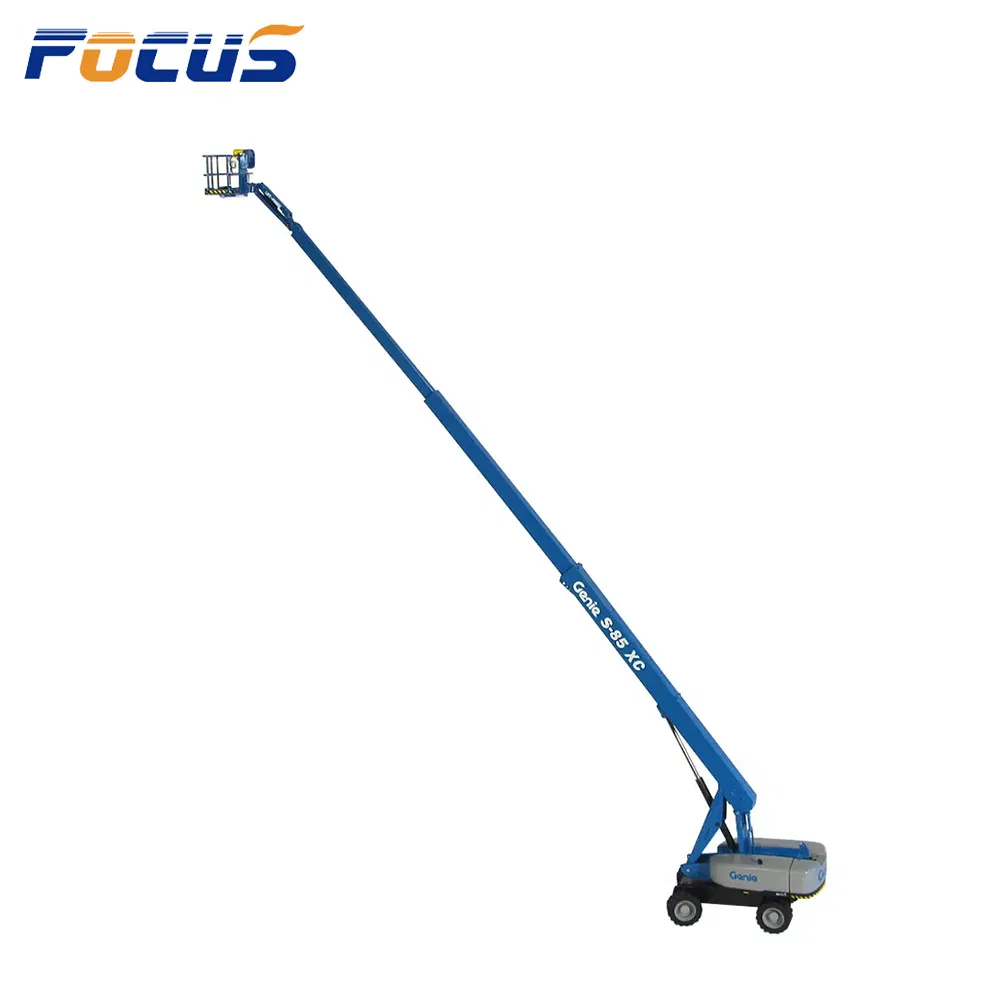

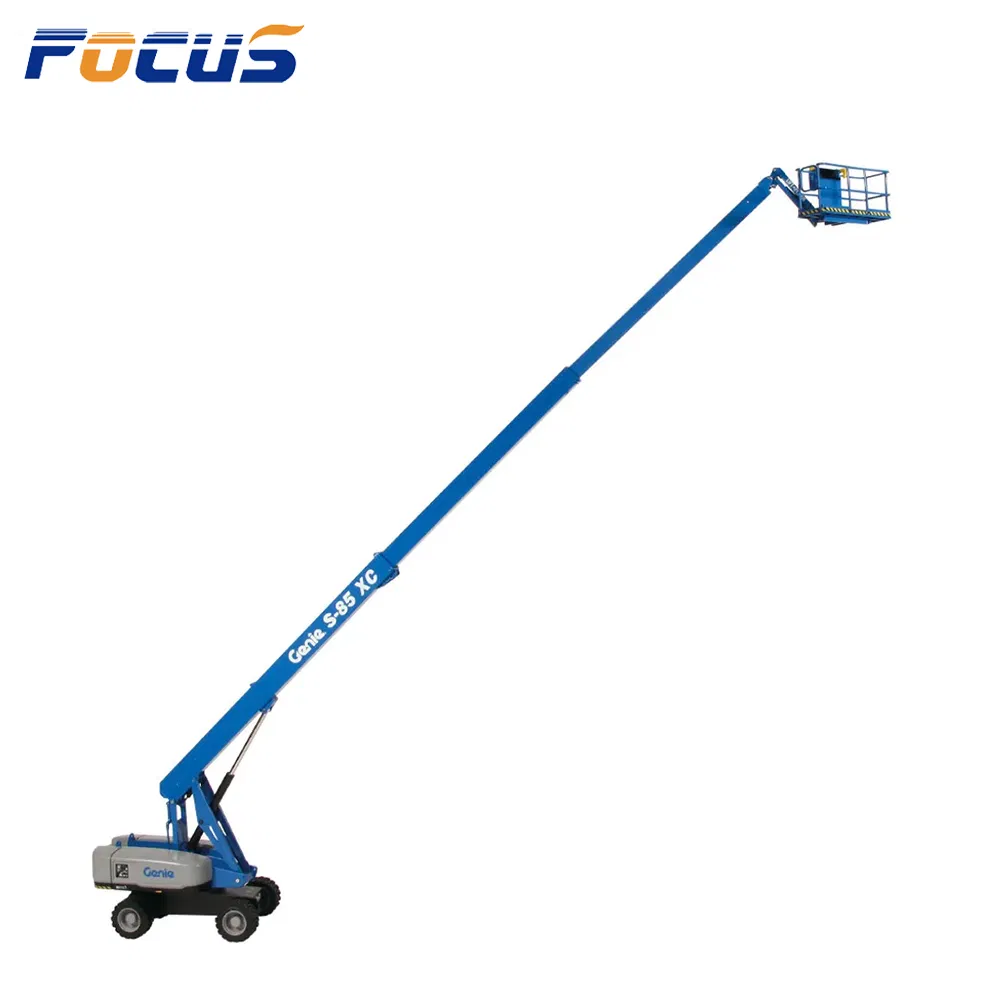

New/Used Genie S85xc Construction Site Use Articulating Telescopic Self Propelled Boom Lift
New/Used Genie S85xc Construction Site Use Articulating Telescopic Self Propelled Boom Lift
New/Used Genie S85xc Construction Site Use Articulating Telescopic Self Propelled Boom Lift
New/Used Genie S85xc Construction Site Use Articulating Telescopic Self Propelled Boom Lift
New/Used Genie S85xc Construction Site Use Articulating Telescopic Self Propelled Boom Lift
1 / 5
New/Used Genie S85xc Construction Site Use Articulating Telescopic Self Propelled Boom Lift
New/Used Genie S85xc Construction Site Use Articulating Telescopic Self Propelled Boom Lift
New/Used Genie S85xc Construction Site Use Articulating Telescopic Self Propelled Boom Lift
New/Used Genie S85xc Construction Site Use Articulating Telescopic Self Propelled Boom Lift
New/Used Genie S85xc Construction Site Use Articulating Telescopic Self Propelled Boom Lift

New/Used Genie S85xc Construction Site Use Articulating Telescopic Self Propelled Boom Lift

Customization: Available
After-sales Service: Video Technical Support, Spare Parts Support
Warranty: 12 Month
Send Inquiry

Product Description

Basic Information
Model NO.
Genie S85-XC / S65-Xc
Lift Mechanism
Telescoping Lift
Driven Type
Hydraulic
Working Height
21.81m
Horizontal Outreach
16.51m
Max SWL
300/454kg
Certification
GS, CE, RoHS, ISO 9001
Rotation
360° Continuous
Product Description

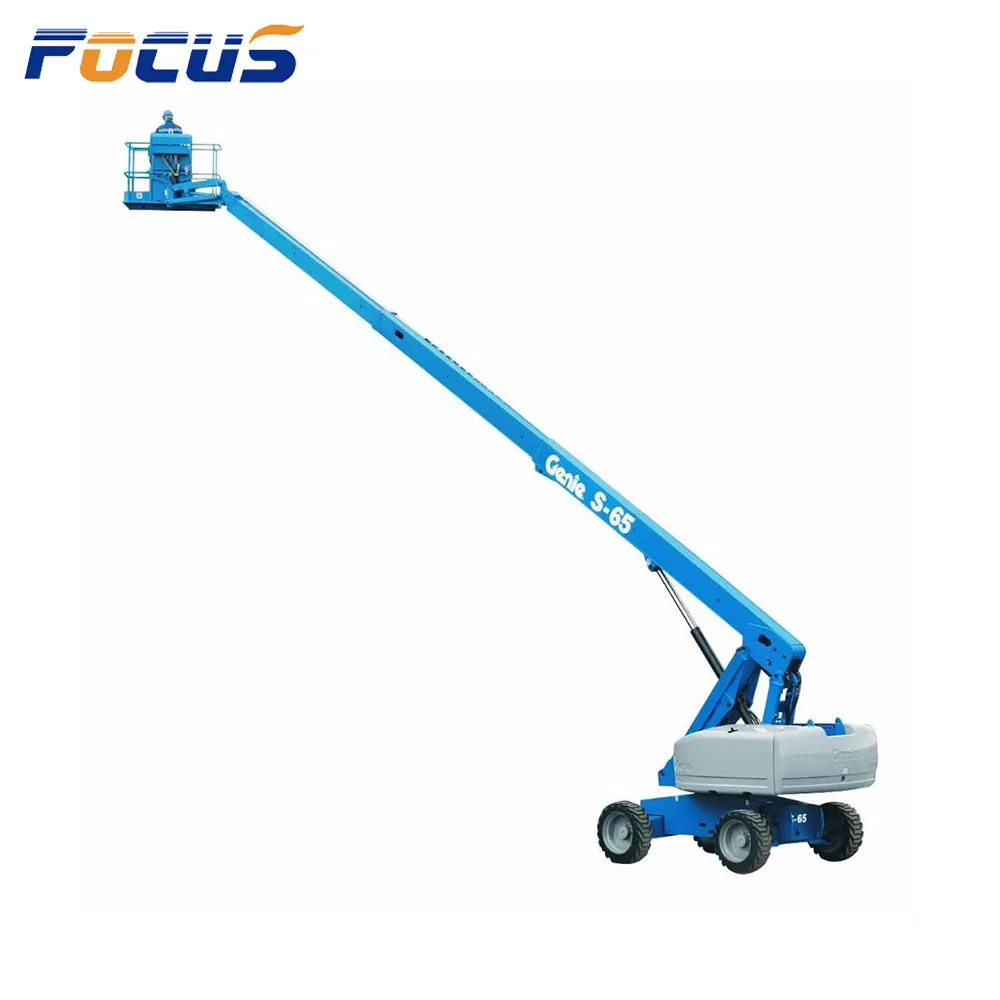

Genie S65 4x4 21.8m Diesel Boom Lift Construction Equipment
The Genie® S®-65 XC telescopic boom offers a dual lift capacity of 660-lb (300 kg) unrestricted and 1,000-lb (454 kg) restricted to perform a wider range of heavier lift tasks on construction and industrial job sites. The Genie Xtra Capacity™ (XC) feature lets up to three people work onboard while still leaving room for tools and job site materials.
  • ✓ Maximum capacity with a robust jib design to handle increased loads
  • ✓ Load sense technology for accurate load weighing and zero-load field calibration
  • ✓ Chassis tilt sensor technology maximizes access to hard-to-reach work areas
  • ✓ Onboard diagnostics maximize serviceability
  • ✓ Option to add the new Genie Lift Power™ generator system

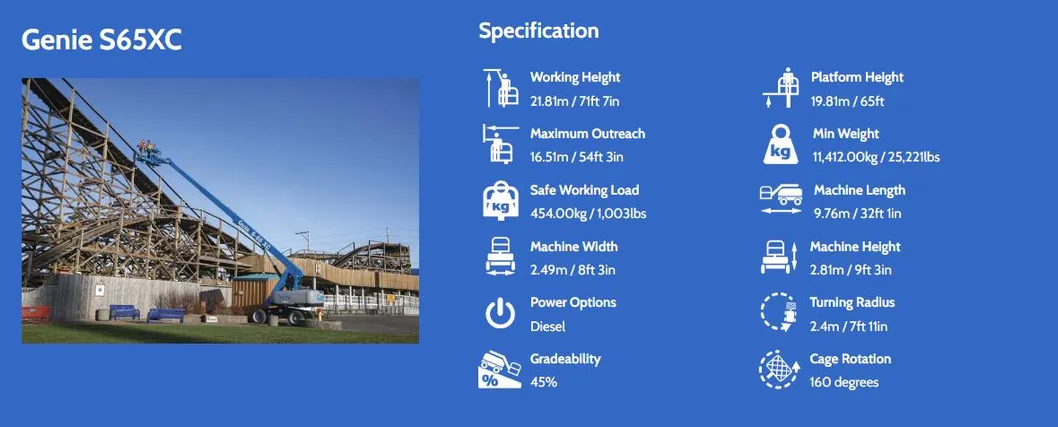

Genie S85xc Boom Lift
Detailed Photos

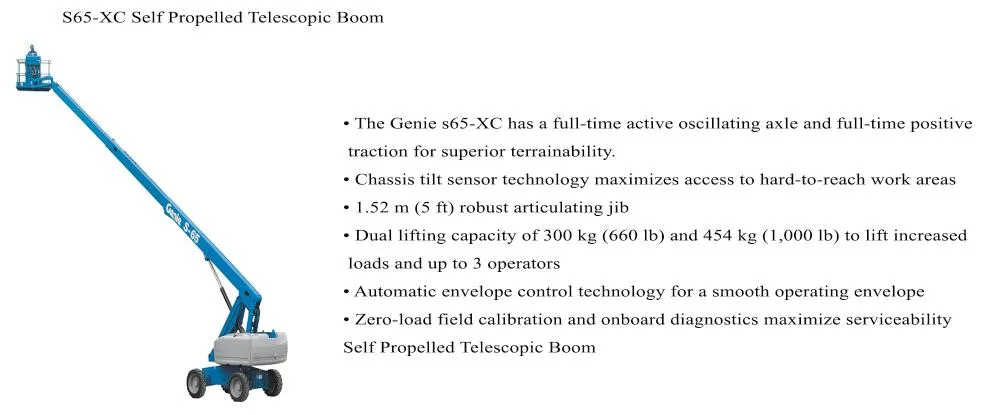

Detailed View 1

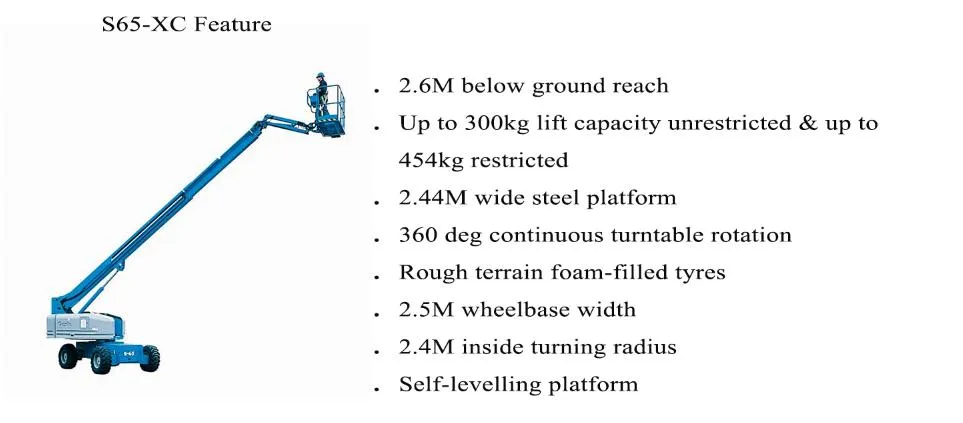

Detailed View 2

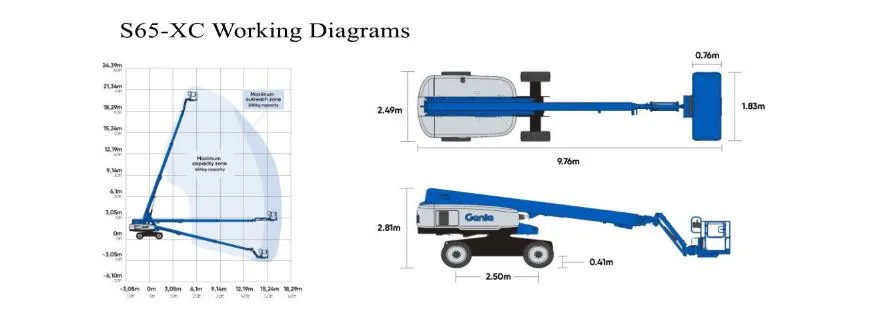

Detailed View 3

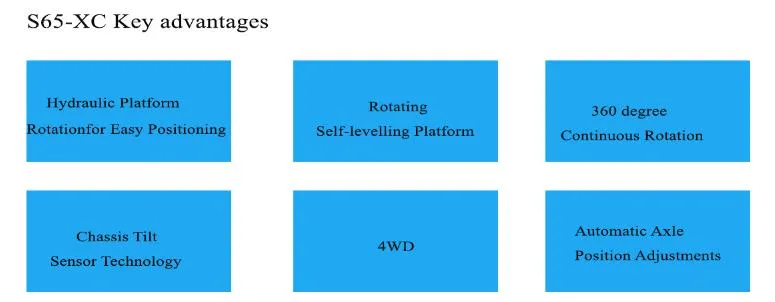

Detailed View 4

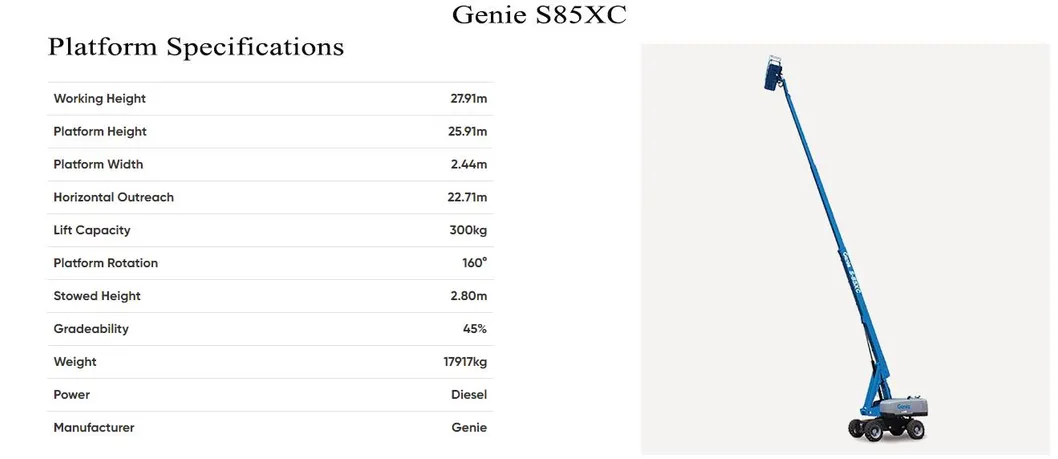

Detailed View 5

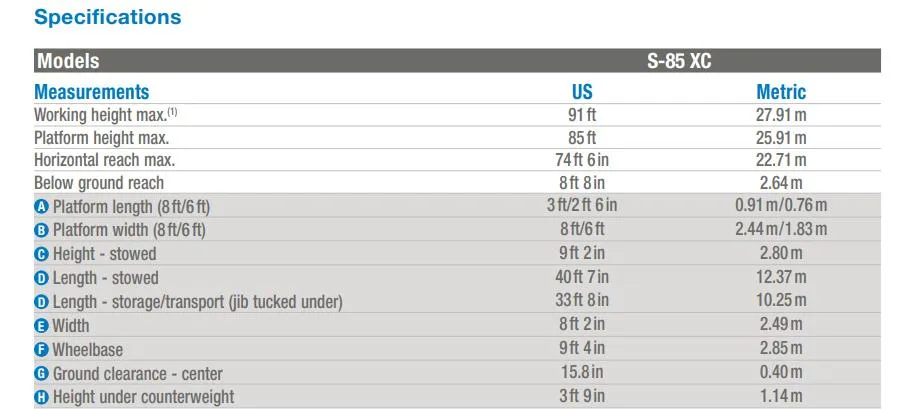

Detailed View 6

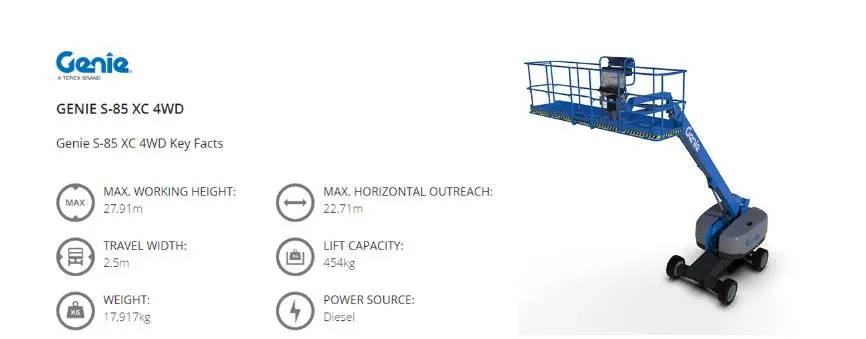

Detailed View 7
Certifications
Certification 1

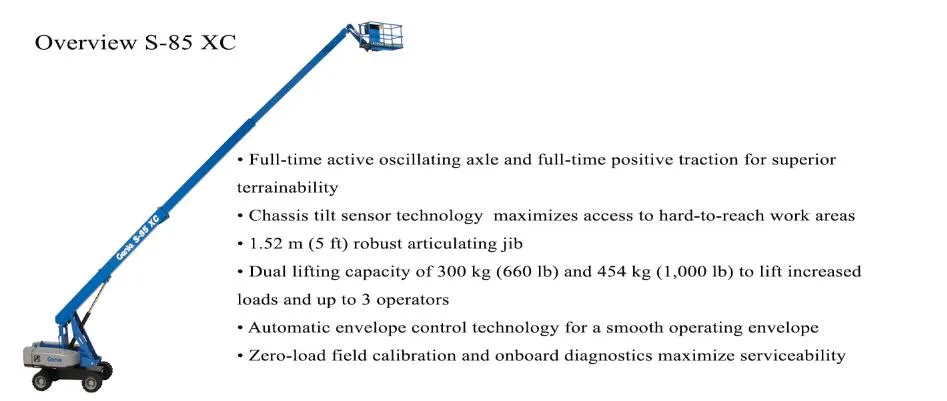

Certification 2

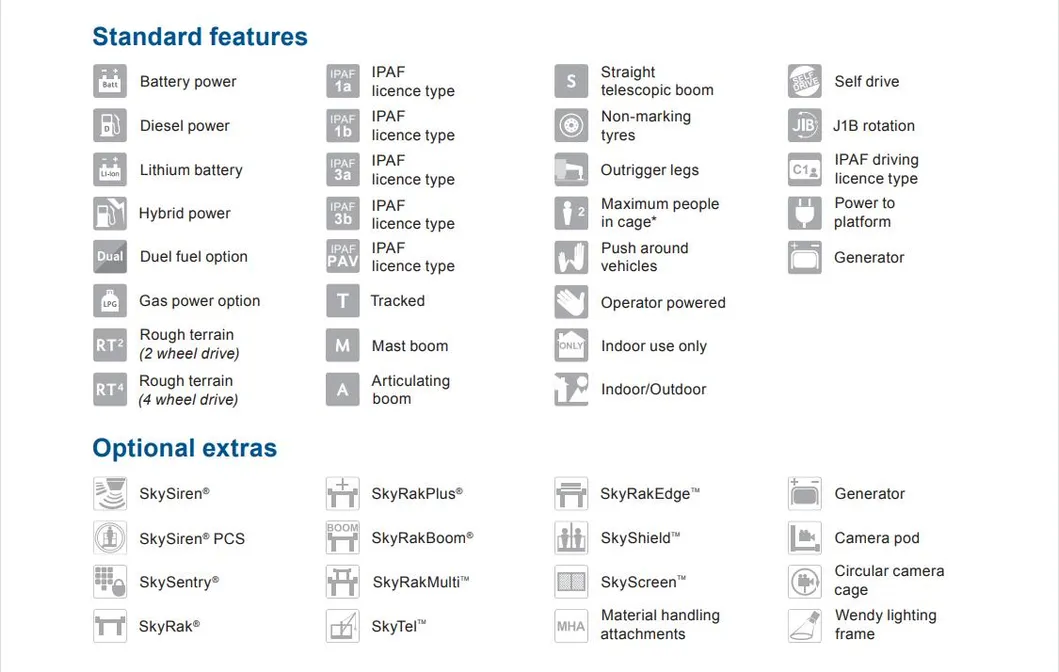

Certification 3
Product Parameters
Genie S-65 XC Specifications
Measurements
Working height maximum21.81 m71 ft
Platform height maximum19.81 m65 ft
Horizontal reach maximum16.51 m54 ft 2 in
Below ground reach2.65 m8 ft 8 in
Productivity
Lift capacity - unrestricted300 kg660 lbs
Lift capacity - restricted454 kg1000 lbs
Platform rotation160°160°
Turntable rotation360° continuous
Drive speed - stowed4.8 km/h3.0 mph
Gradeability - stowed45%45%
Power
Power sourceDeutz D2011L03i, 48 hp (36 kW)
Fuel tank capacity - diesel132 L35 gal
Packaging, Shipping & After Sales
Packaging and Shipping

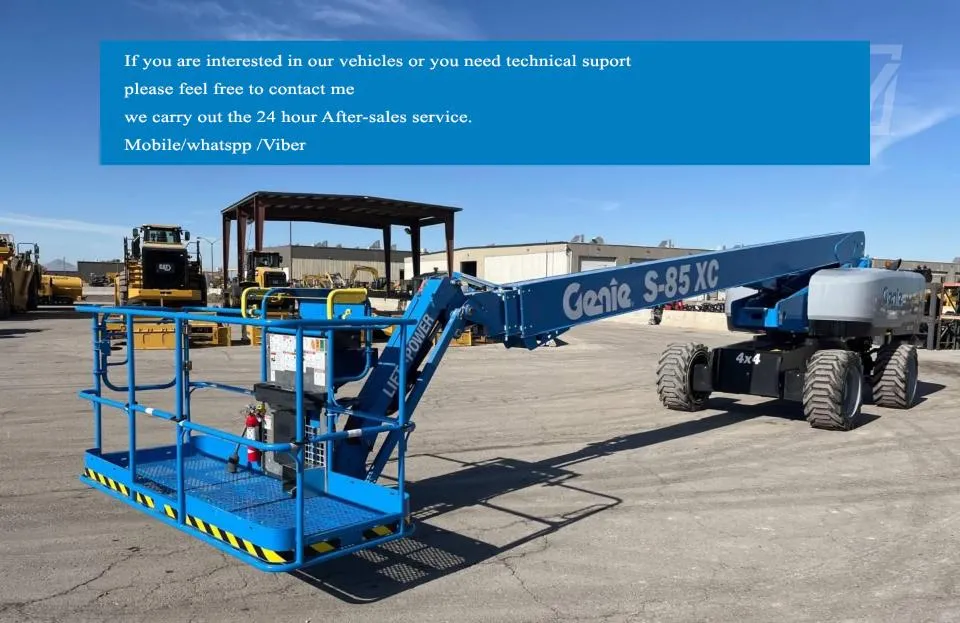

After Sales Service
Frequently Asked Questions
What is the dual lift capacity of the Genie S-65 XC?
The Genie S-65 XC offers a dual capacity of 300 kg (660 lb) unrestricted and 454 kg (1,000 lb) restricted, allowing for heavier tasks.
How many workers can the platform accommodate?
The Xtra Capacity (XC) design allows up to three people to work on the platform simultaneously while still having space for tools.
What are the main benefits of the load sense technology?
It provides accurate load weighing and zero-load field calibration, ensuring safety and compliance with weight limits.
What is the maximum working height of this model?
The Genie S-65 XC reaches a maximum working height of 21.81 meters (71 feet).
Is the boom lift suitable for rough terrain?
Yes, it features a 4x4 drive system and 45% gradeability, making it ideal for challenging construction site conditions.
What engine is used in the Genie S-65 XC?
It is powered by a reliable Deutz D2011L03i diesel engine, providing 48 hp (36 kW) of power.
