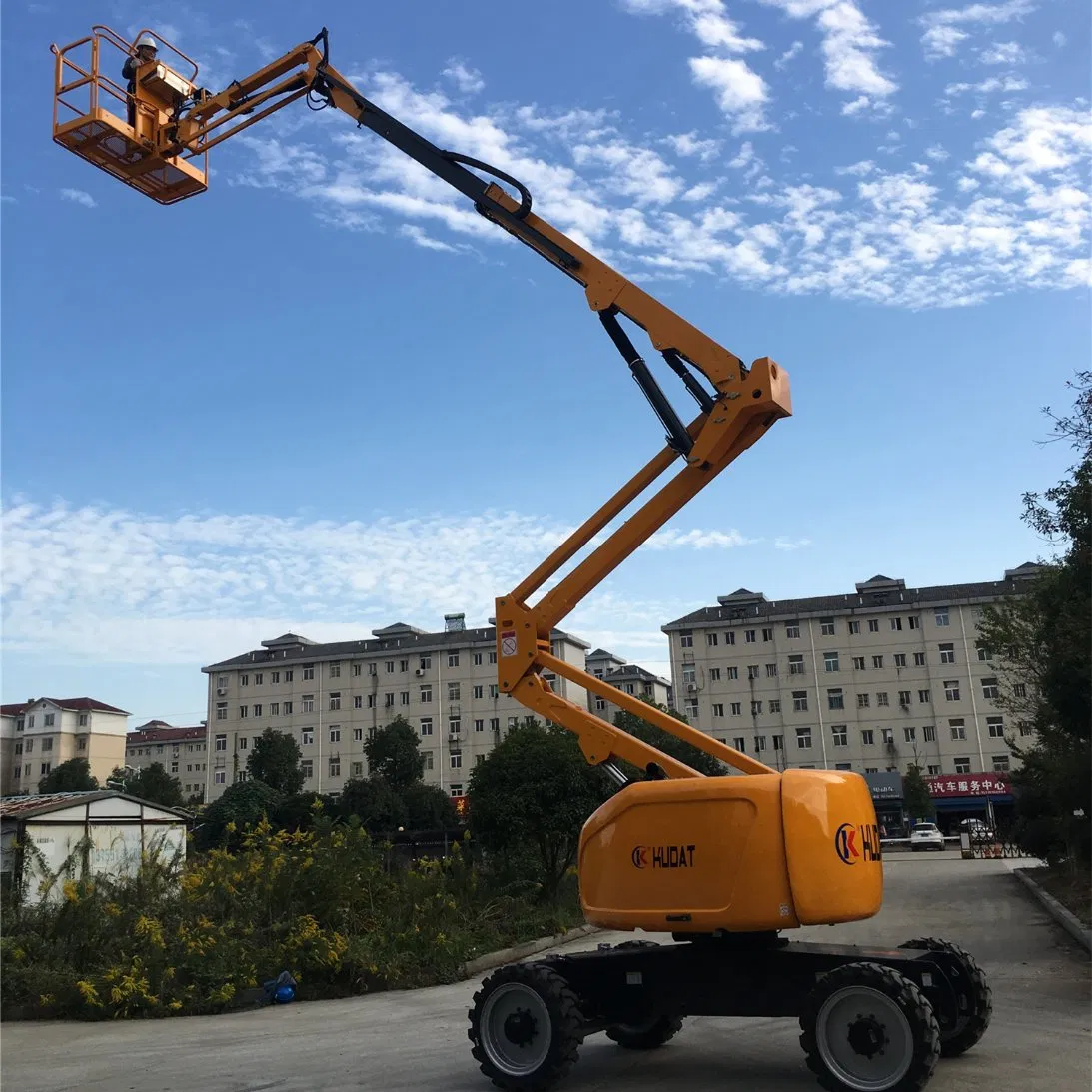

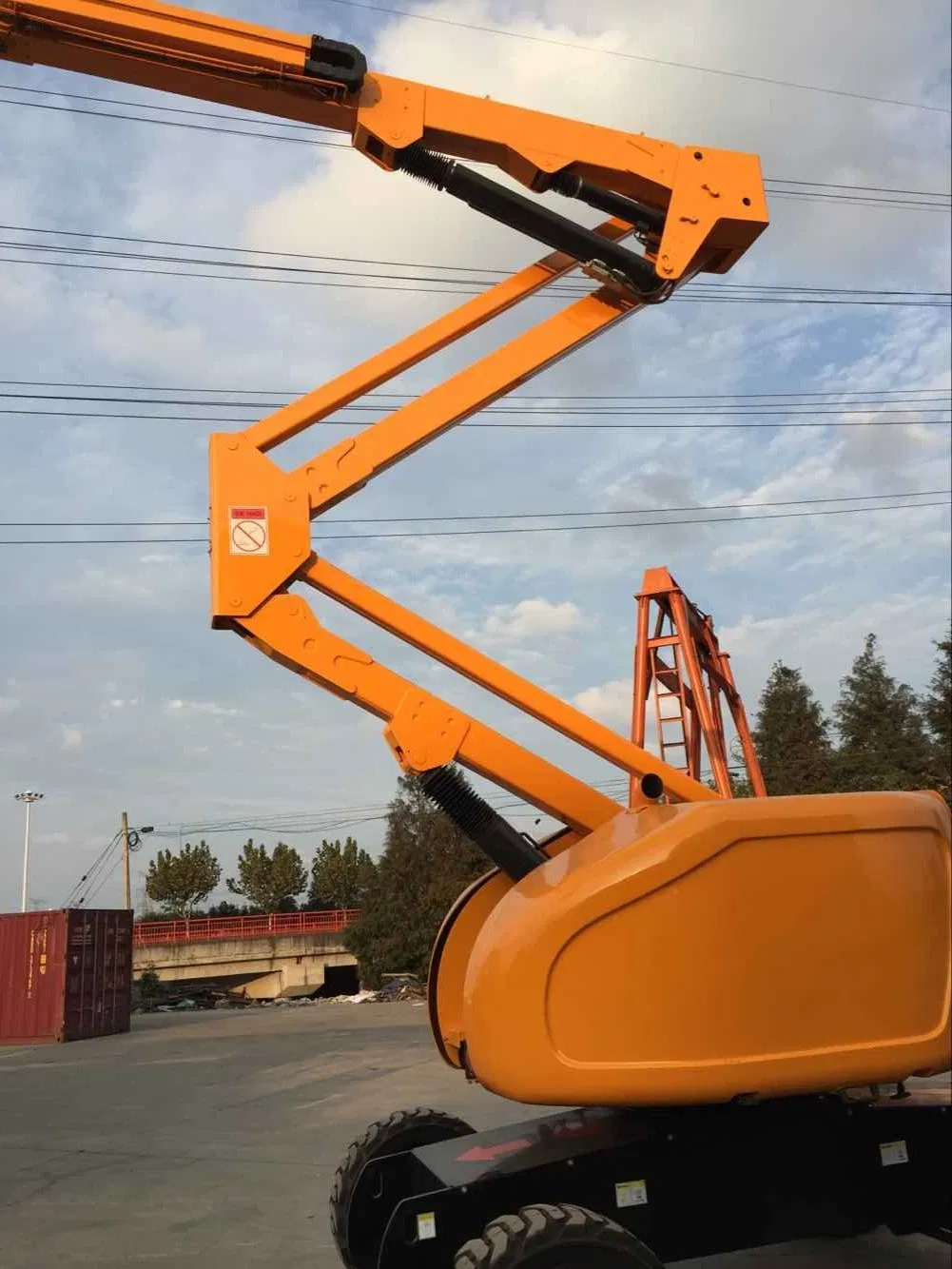

12-28m Electric Li-ion Articulating Boom Lifts Aerial Working Platform
12-28m Electric Li-ion Articulating Boom Lifts Aerial Working Platform
12-28m Electric Li-ion Articulating Boom Lifts Aerial Working Platform
12-28m Electric Li-ion Articulating Boom Lifts Aerial Working Platform
12-28m Electric Li-ion Articulating Boom Lifts Aerial Working Platform
1 / 5
12-28m Electric Li-ion Articulating Boom Lifts Aerial Working Platform
12-28m Electric Li-ion Articulating Boom Lifts Aerial Working Platform
12-28m Electric Li-ion Articulating Boom Lifts Aerial Working Platform
12-28m Electric Li-ion Articulating Boom Lifts Aerial Working Platform
12-28m Electric Li-ion Articulating Boom Lifts Aerial Working Platform

12-28m Electric Li-ion Articulating Boom Lifts Aerial Working Platform

Customization: Available
Lift Mechanism: Telescoping Lift
Carrying Capacity: Middle-Level
Send Inquiry

Product Description

Basic Specifications

Model NO.RZ18E
MovesSelf-propelled
Driven TypeHydraulic
Running ModeMoving
CertificationCE, ISO 9001
Working Height17.8m
Platform Height15.8m
Safe Load230kgs
Platform Size1.83*0.76*1.1m
Outreach9.55m
Max Occupancy2 Persons
HS Code8428909090

Product Key Features

◈ Made of high strength steel with premium European hydraulic and control parts.
◈ Built-in pipeline design to prevent damage from sun, rain, or external objects.
◈ Lightweight shape with low-pressure rubber tracks suitable for any ground surface.
◈ Separately controlled outriggers to bypass obstacles in confined workspaces.
◈ Reliable torque control system to ensure vehicle stability and prevent rolling.
◈ Wired remote control for walking; working bucket equipped with a 220V outlet.
◈ Compact and flexible design for superior maneuverability.

Technical Parameters (12-28M Series)

Model Unit RZ12E RZ14E RZ16E RZ18E RZ20E RZ22E RZ26E RZ28E
Size Specifications
Max working heightm1214.41617.820.12226.228
Max platform heightm1012.41415.818.12024.226
Max horizontal outreachm6.47.47.89.5511.61215.417.6
Platform dimensionsm1.1x0.651.53x0.761.83x0.762.44x0.91
Width (stowed)m1.51.7522.382.482.58
Performance
Max lift capacitykg200230
Platform rotation-120°±90°
Gradeability-40%45%30%45%
Power & Weight
BatteryV/Ah48/24048/40080/560
Weightkg4800620068008200900098351500017000

Product Gallery

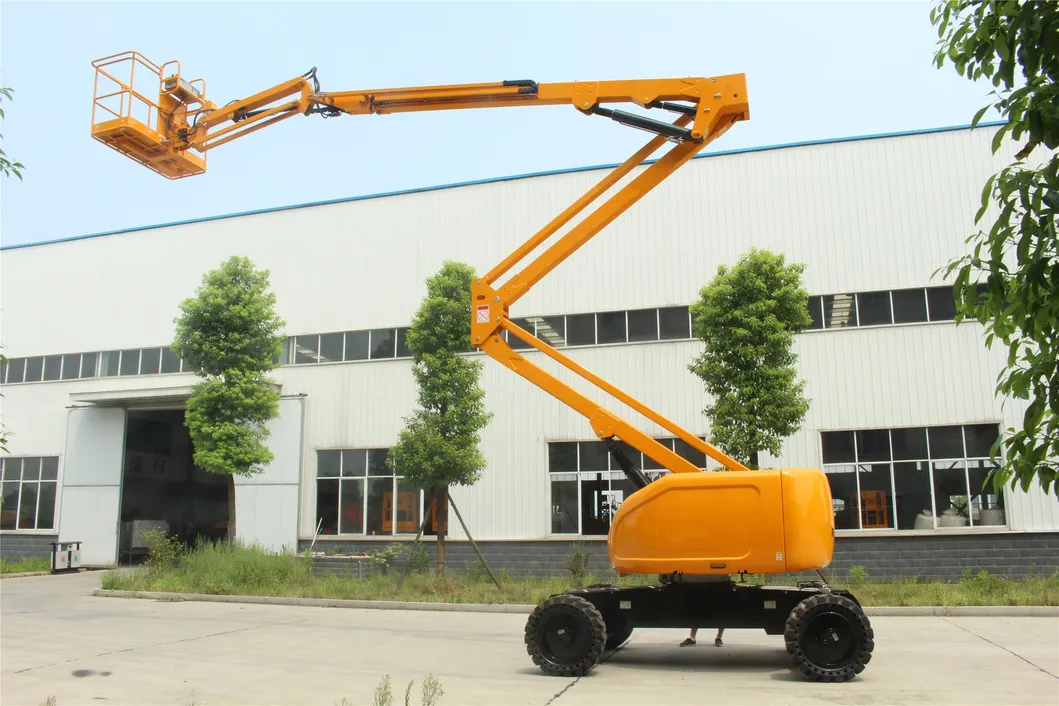

Electric Articulating Boom Lift

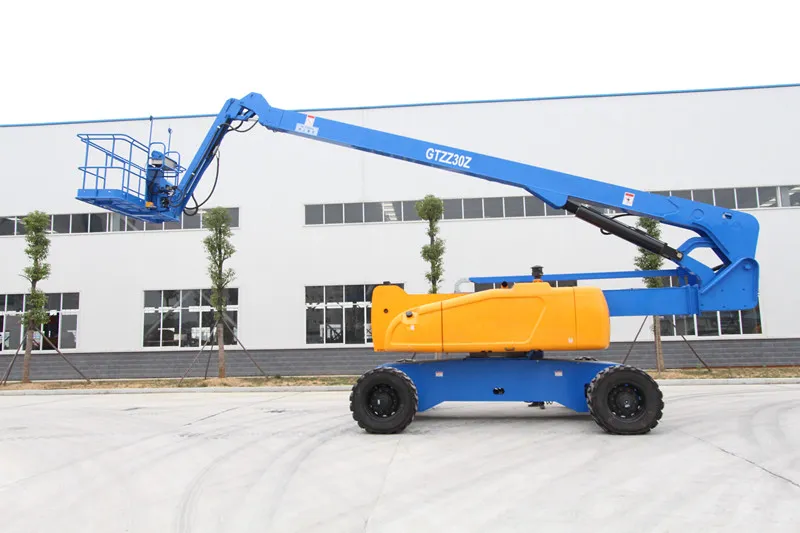

Boom Lift Side View

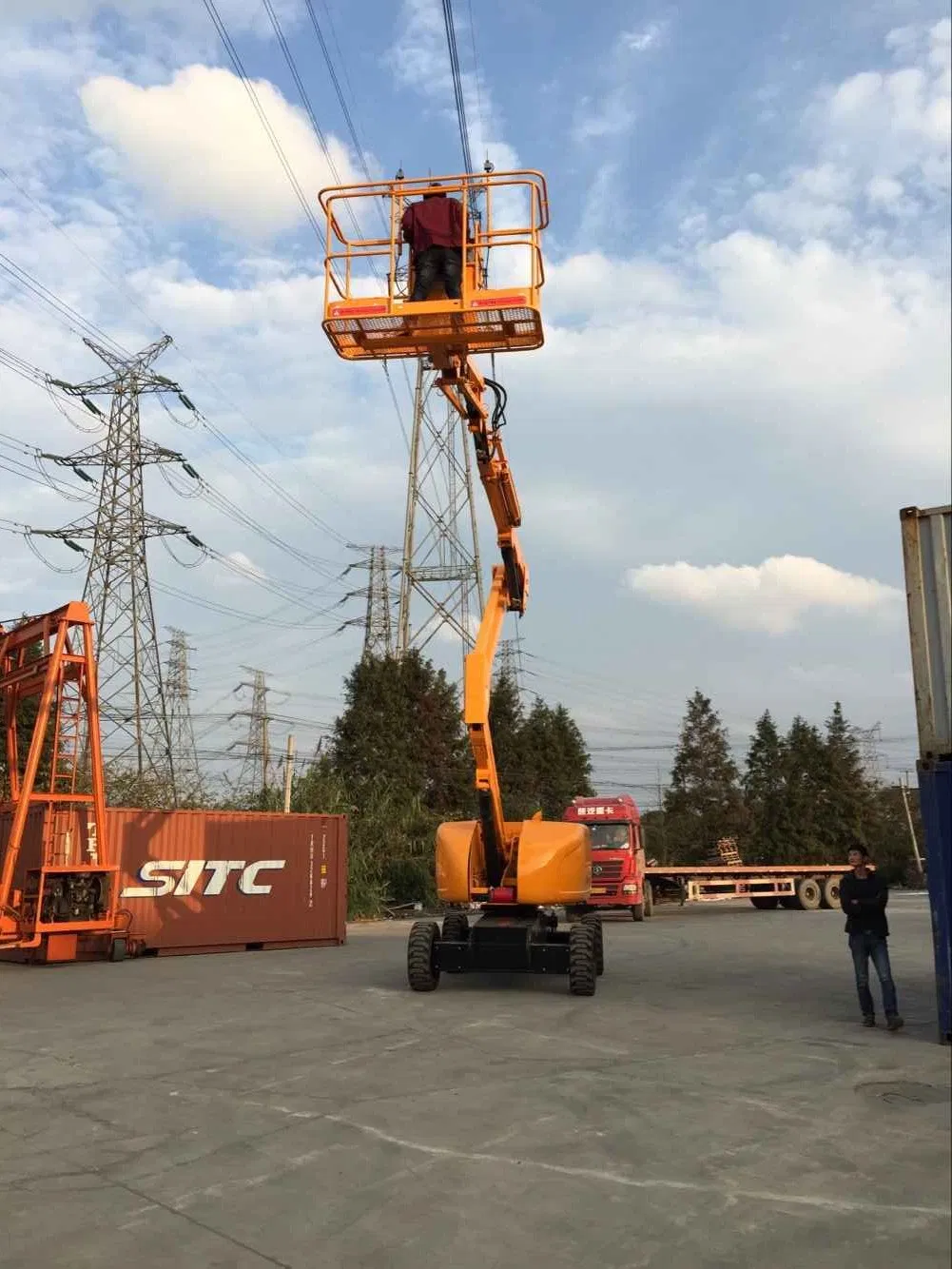

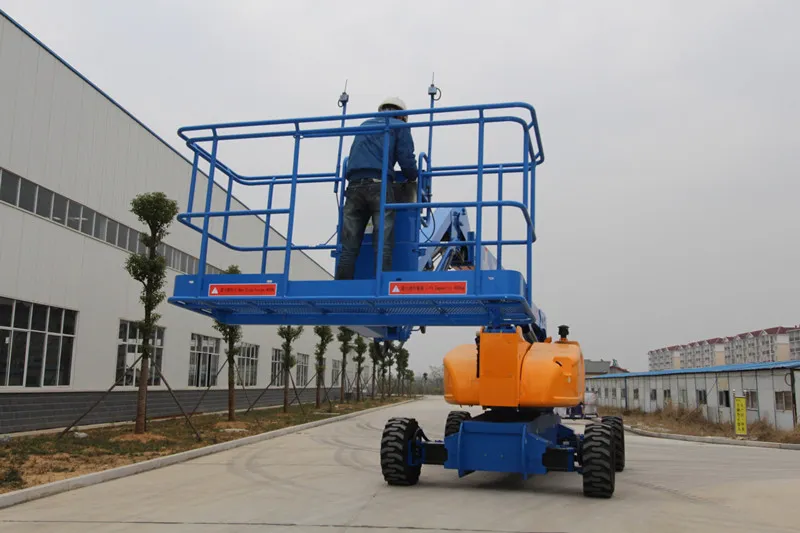

Boom Lift Operational

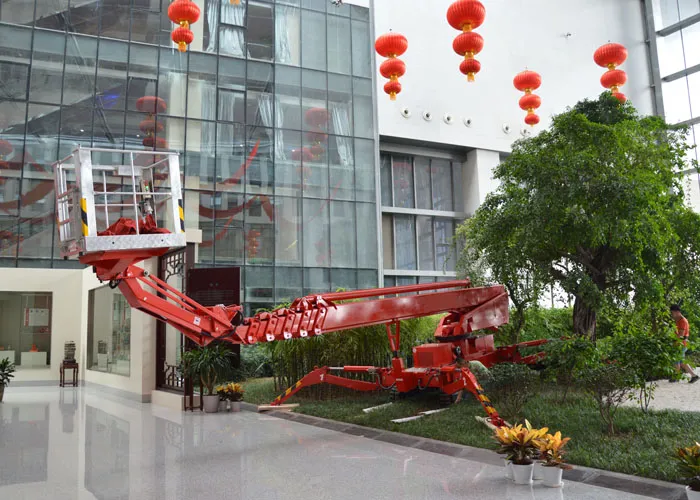

Lifting Mechanism

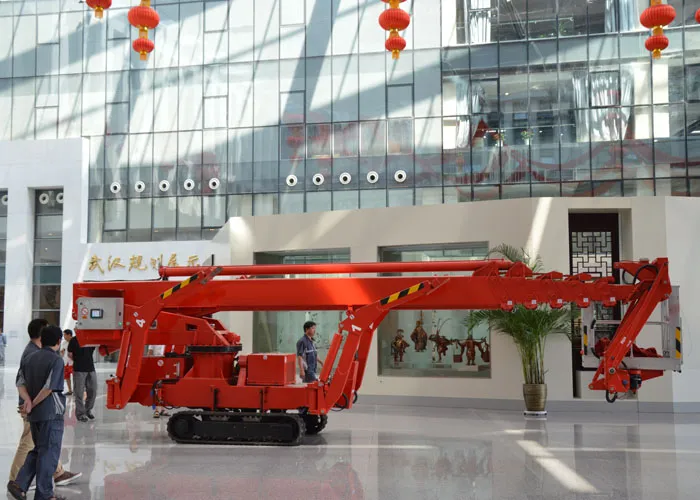

Compact Base

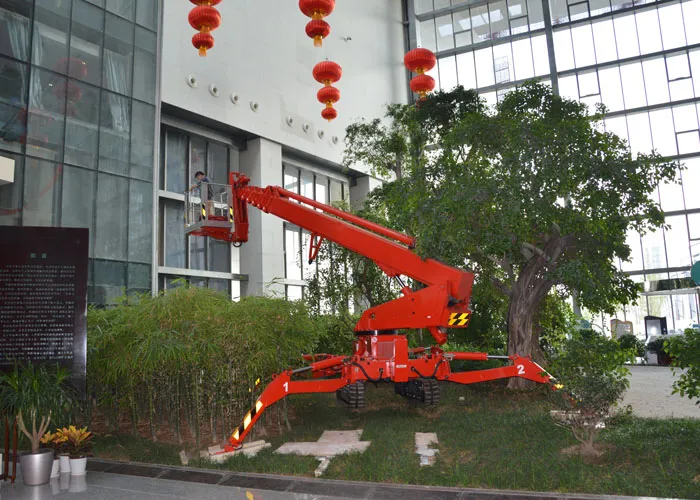

Control System

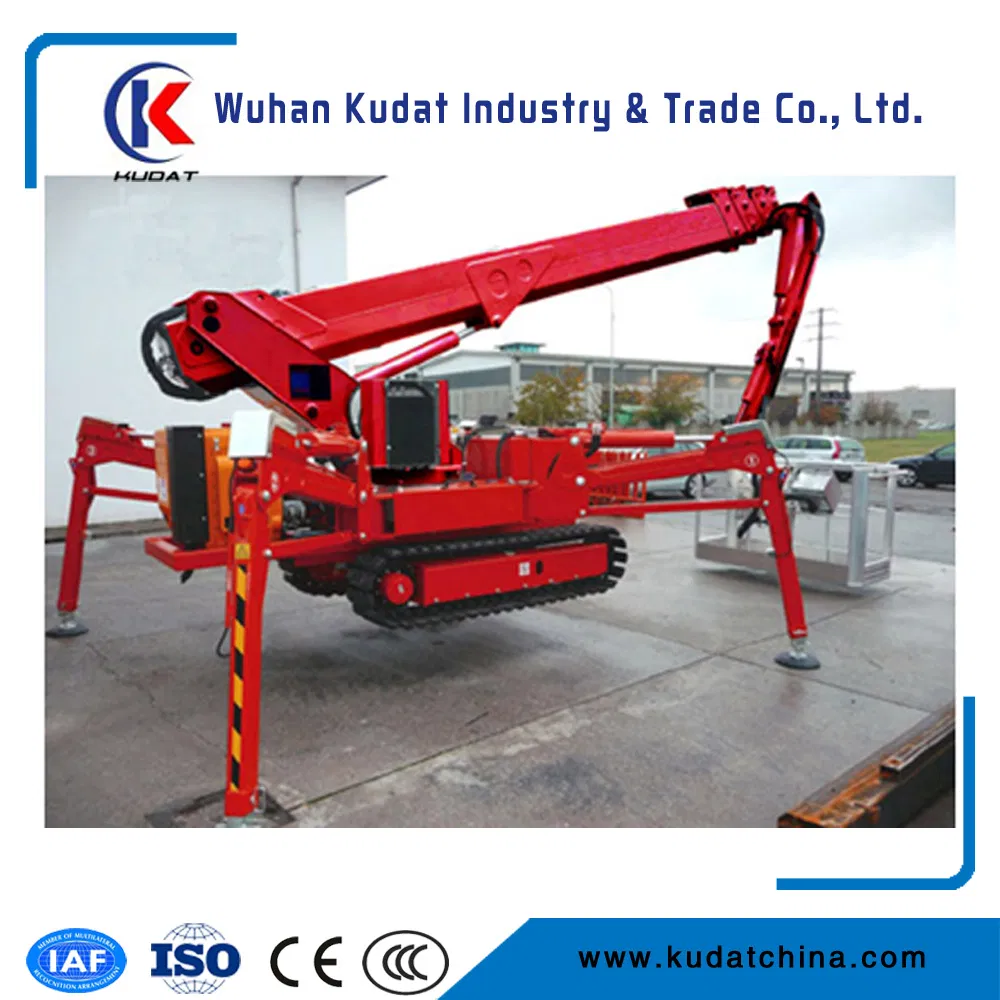

Hydraulic Detail

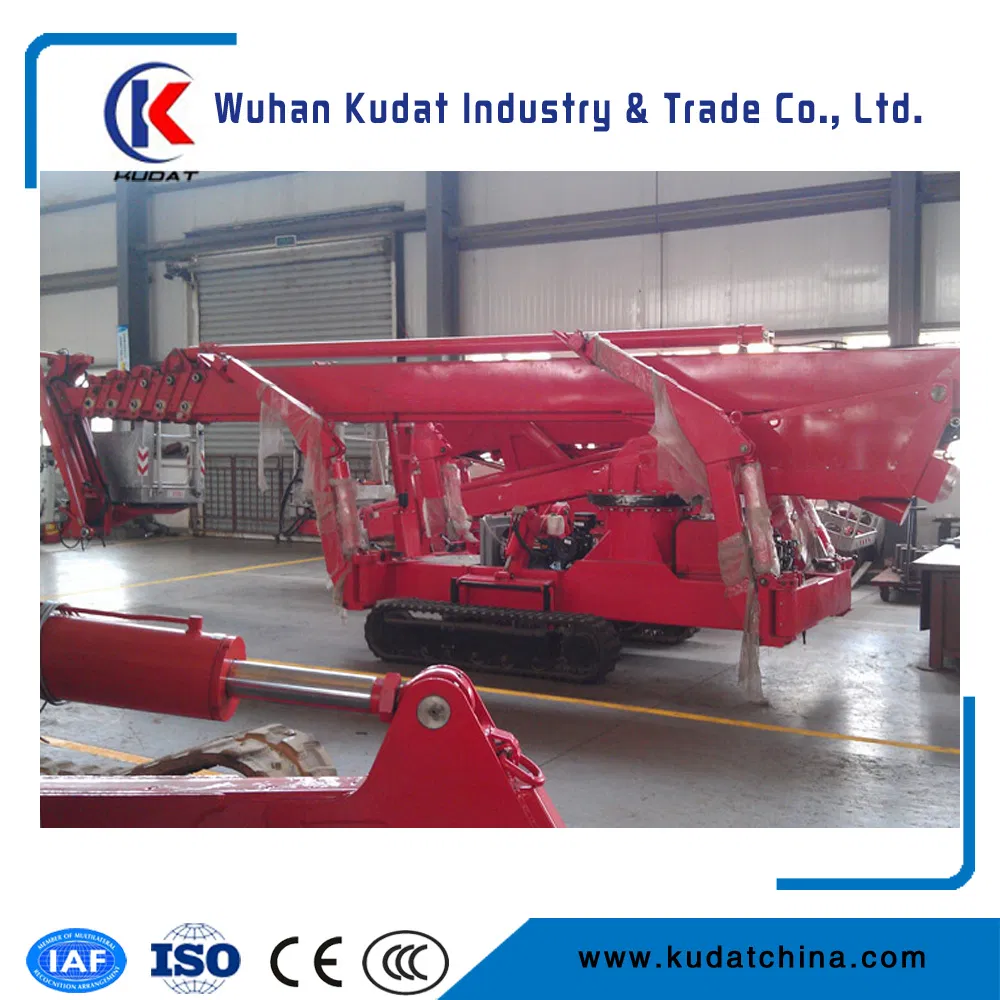

Safety Features

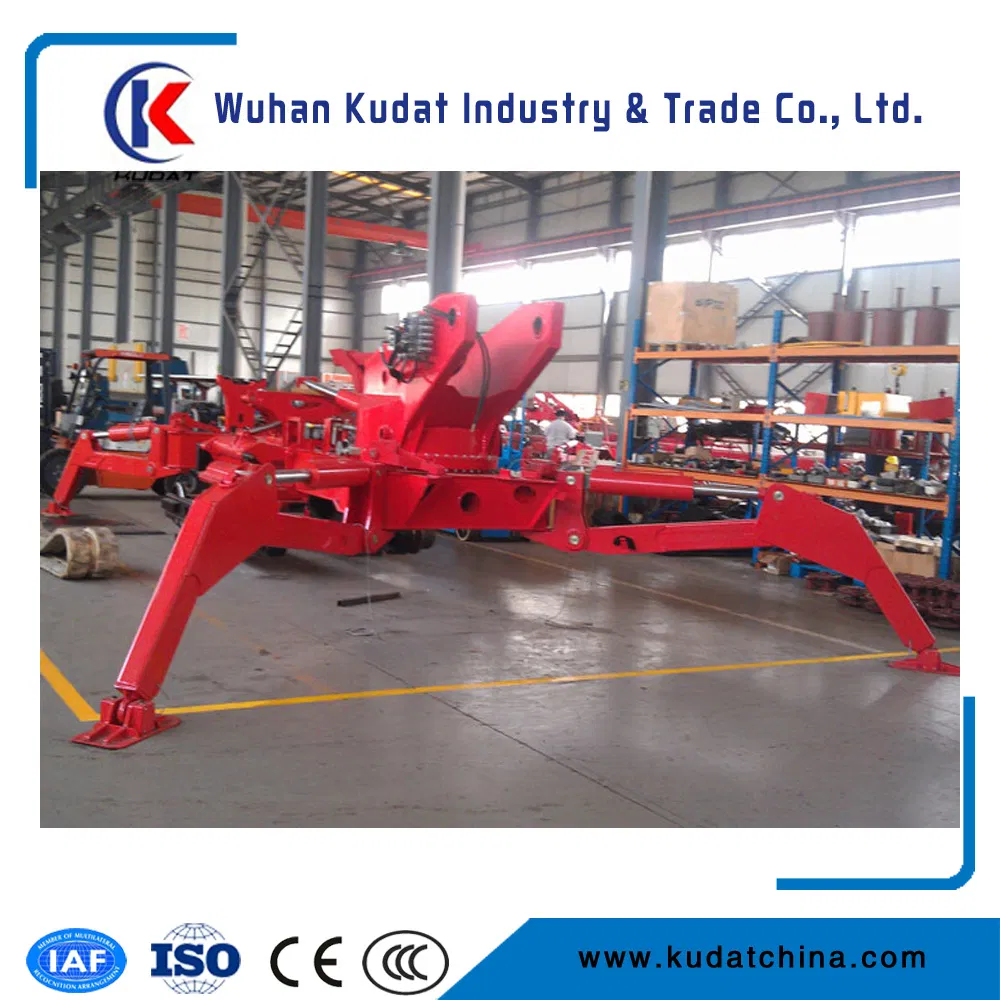

Track System

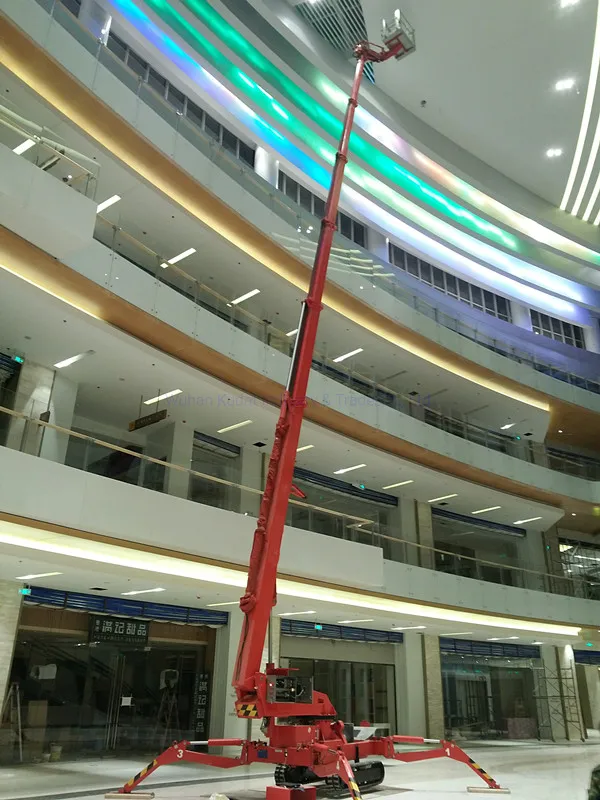

Height Scale
Technical Layout
Outrigger Dimensions
Chassis Detail
Reach Diagram
Internal Components

Frequently Asked Questions

What is the maximum working height of the RZ18E model?
The RZ18E model offers a maximum working height of 17.8 meters, with a platform height of 15.8 meters.
What is the safe load capacity for these articulating boom lifts?
The safe load capacity for most models in the series, including the RZ18E, is 230kg, suitable for up to 2 occupants and their tools.
Can this equipment be used on sensitive or uneven ground?
Yes, the machine features lightweight construction and low-pressure rubber tracks, allowing it to travel and work on almost any ground surface.
Is the lift easy to transport and maneuver?
Absolutely. The small, compact, and flexible design allows it to pass through limited spaces, while outriggers can be separately controlled to bypass obstacles.
What safety certifications do these lifts hold?
All lifts in this series are fully compliant with CE and ISO 9001 certifications, ensuring high safety and quality standards (Standard Compliance EN280:2013+A1:2015).
How is the boom lift powered?
These models are electric-driven, utilizing battery power (ranging from 48V to 80V depending on the model) and efficient hydraulic pump motors.
