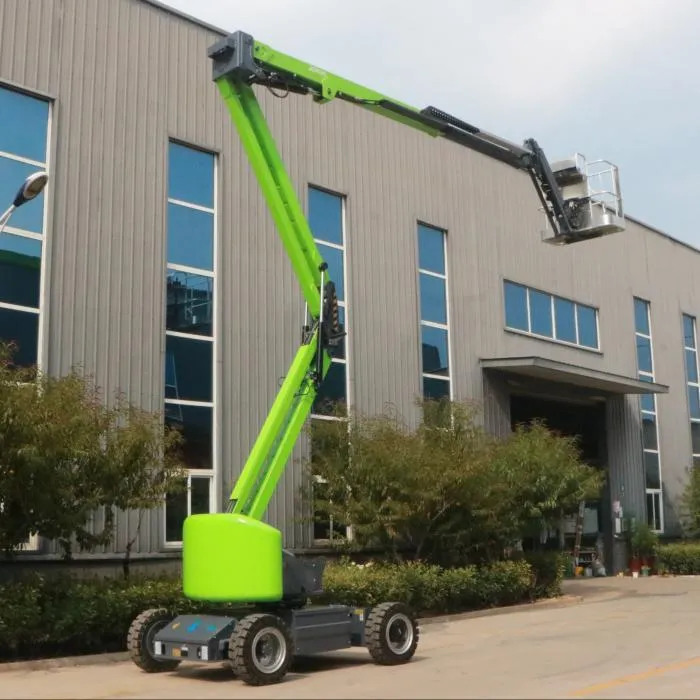

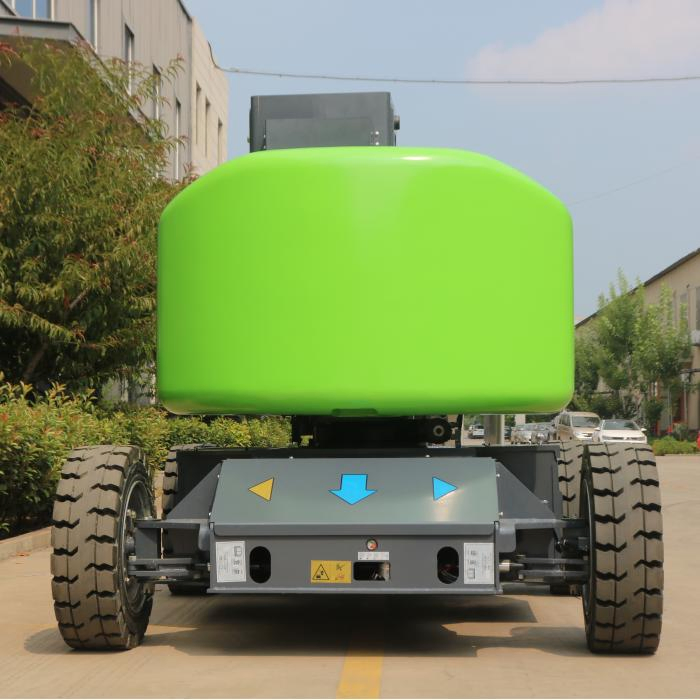

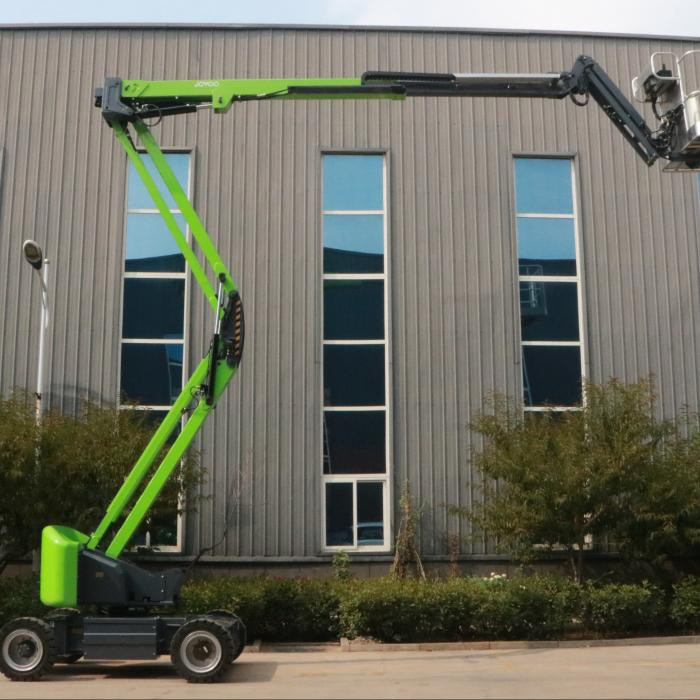

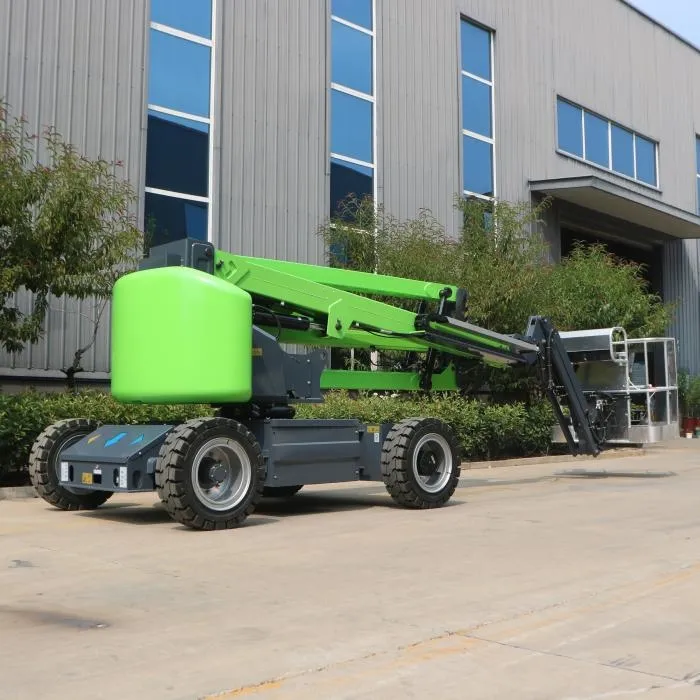

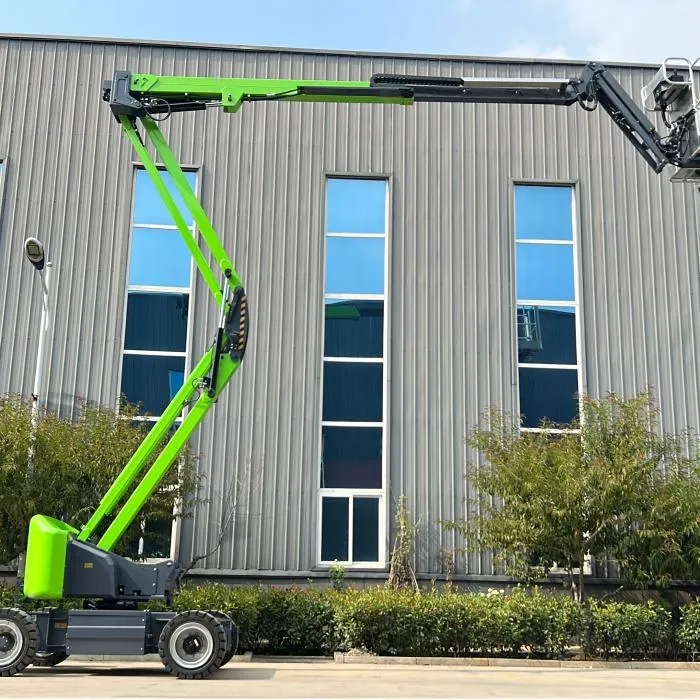

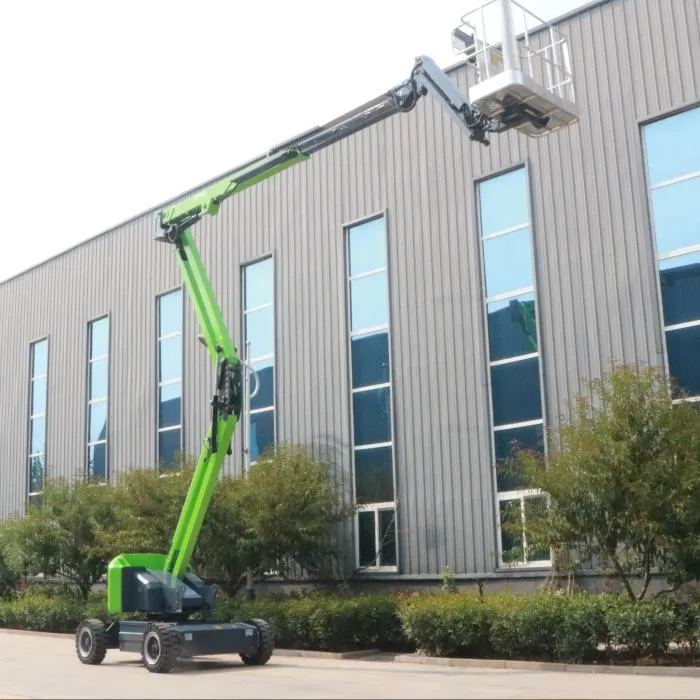

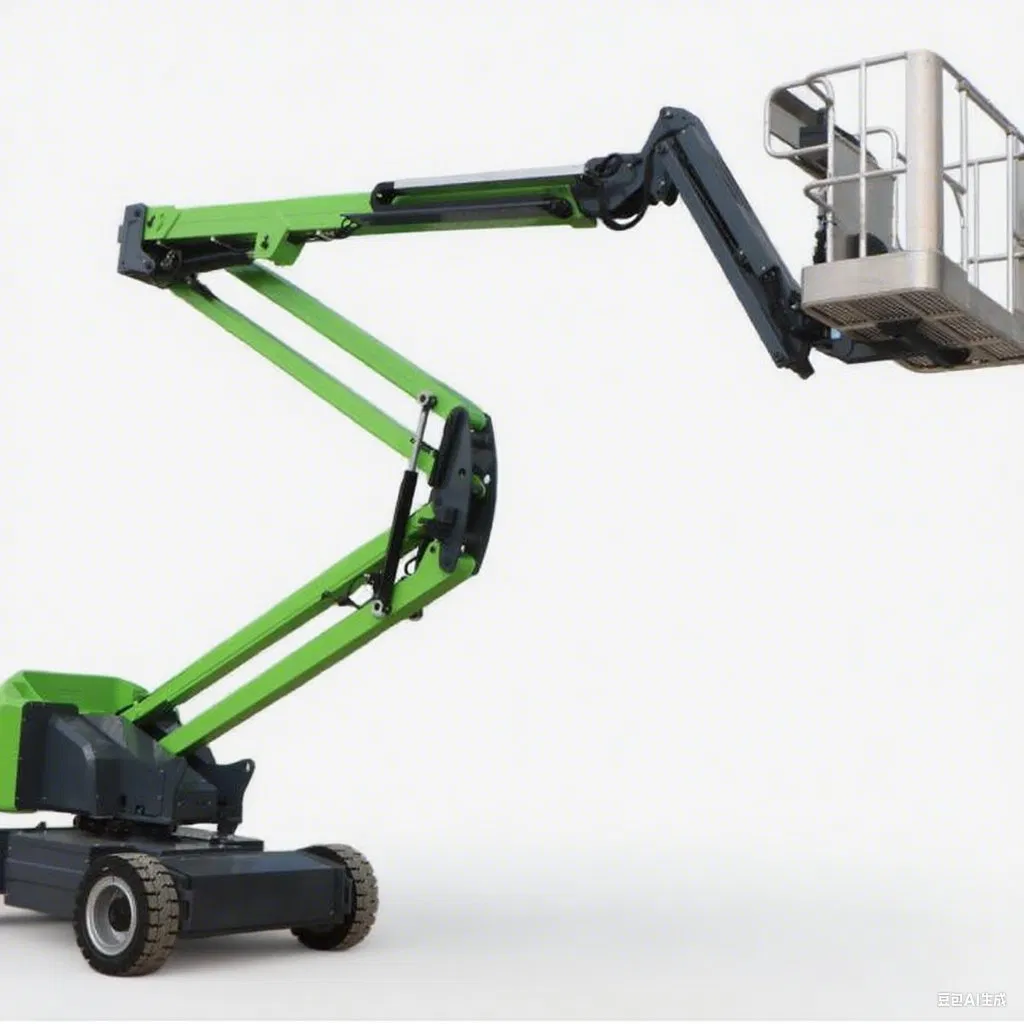

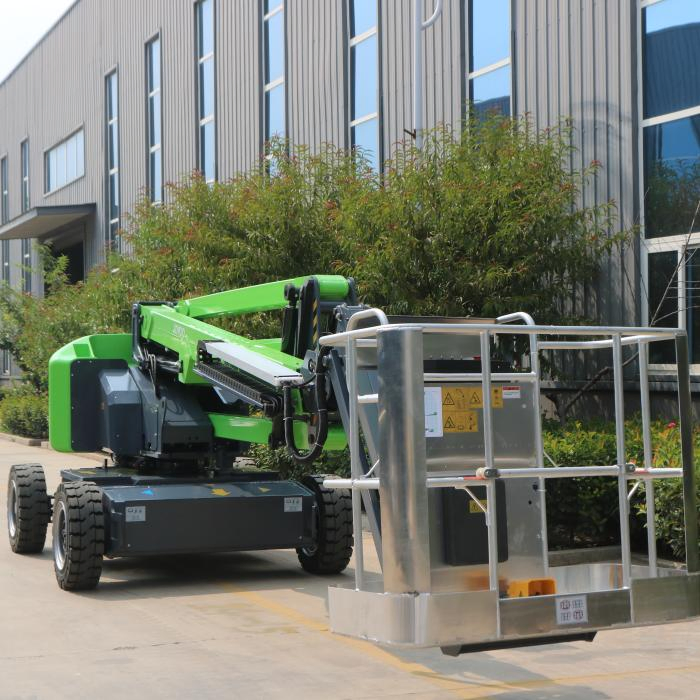

Articulated boom lift is an upgrade from towable boom lifts, making movement significantly more convenient. The operator can control the unit directly from the platform, making it ideal for outdoor construction and industrial applications.
Our current platform heights range from 10m to 18m for battery-powered models, and 14m to 20m for diesel-powered models. With a load capacity of 230kg, these lifts are available in both 2WD and 4WD configurations. The larger work envelope provides excellent access to hard-to-reach places.
| Max. Working Height | 17.7m |
| Max. Platform Height | 15.7m |
| Max. Up and Over Clearance | 7.3m |
| Max. Working Radius | 8.9m |
| Platform Dimensions (L*W) | 1.4m * 0.76m |
| Stowed Size (L*W*H) | 7.2m * 1.90m * 2.0m |
| Max Lift Capacity | 230kg |
| Platform Occupancy | 2 Persons |
| Platform Rotation | ±80° |
| Turntable Rotation | 355° |
| Gradeability-Stowed | 30% |
| Weight | 6630kg |
| Battery | 48V/320Ah |
| Drive Motor / Pump Power | 3.3kw / 4kw |
