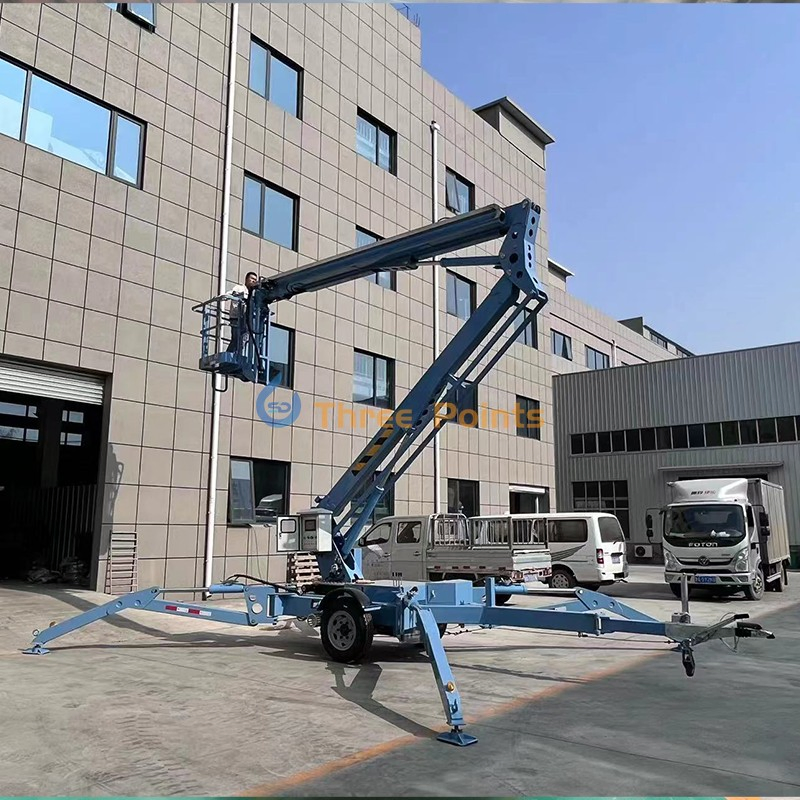

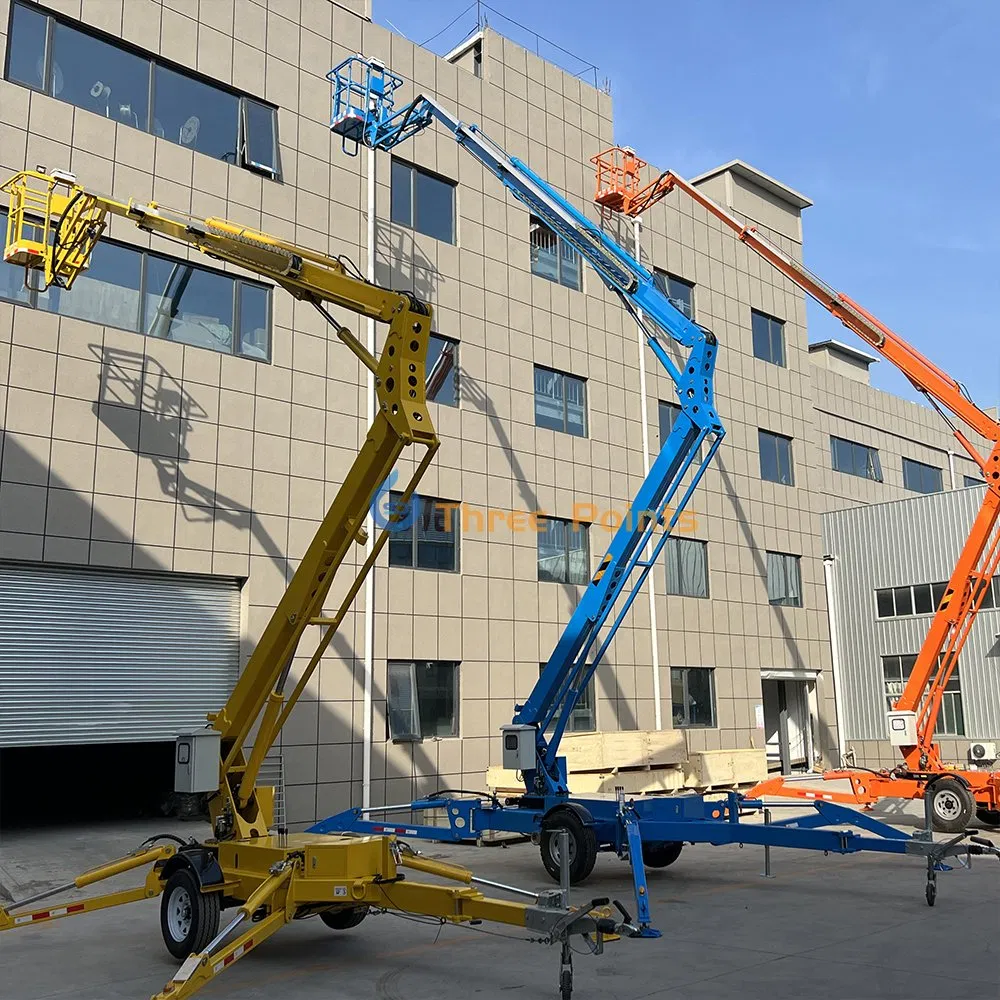

16m 20m Height Diesel Trailer Boom Lift Articulating Boom Lift Aerial Work Platform

1 / 5

16m 20m Height Diesel Trailer Boom Lift Articulating Boom Lift Aerial Work Platform

Customization:	Available
After-sales Service:	Free Spare Parts Will Be Provided for Any Quality-
Warranty:	12 Months for The Main Structure (Platform, Scisso

Send Inquiry

Product Description

Basic Specifications

Model NO.

TP-SL-01

Application

Workshop, Shipboard, Warehouse, Building Crane

Lift Mechanism

Scissor Lift

Carrying Capacity

Middle-Level

Moves

Self-propelled

Driven Type

Running Mode

Moving

Feature

Explosion-Proof, Insulating

Certification

GS, CE, RoHS, ISO 9001

Power Type

AC/Diesel/ DC/Gasoline

Max. Lifting Height

22m

Net Weight

1855kg-3290kg

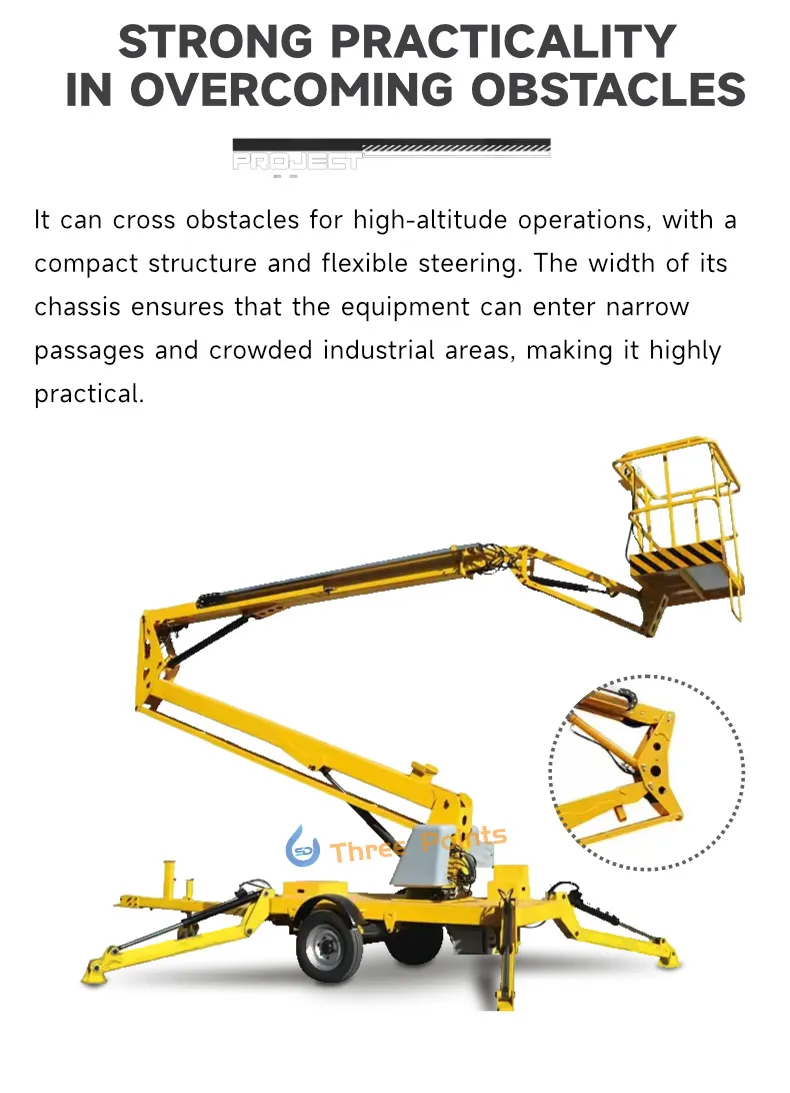

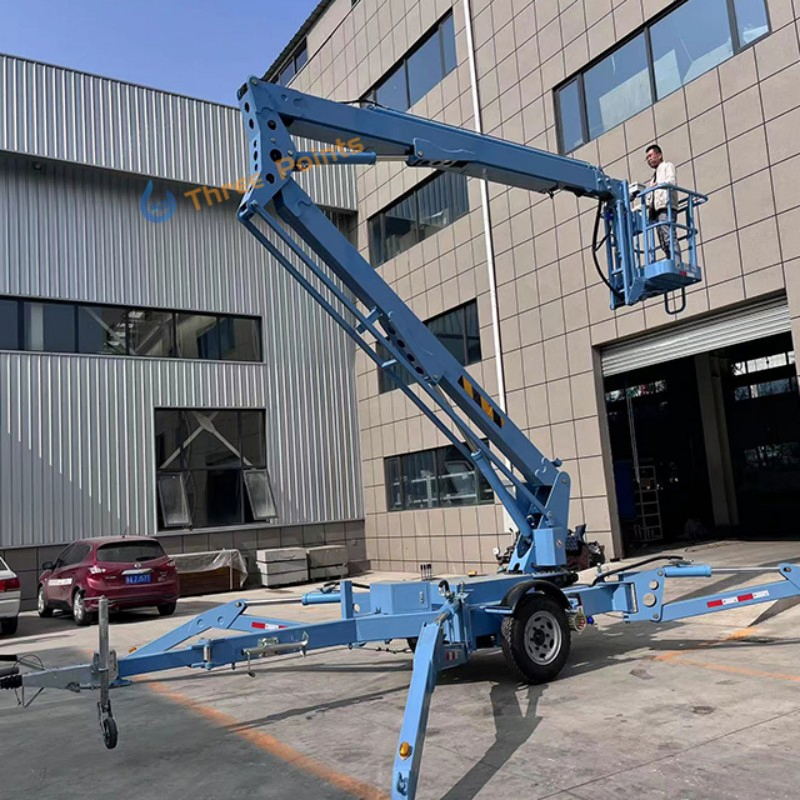

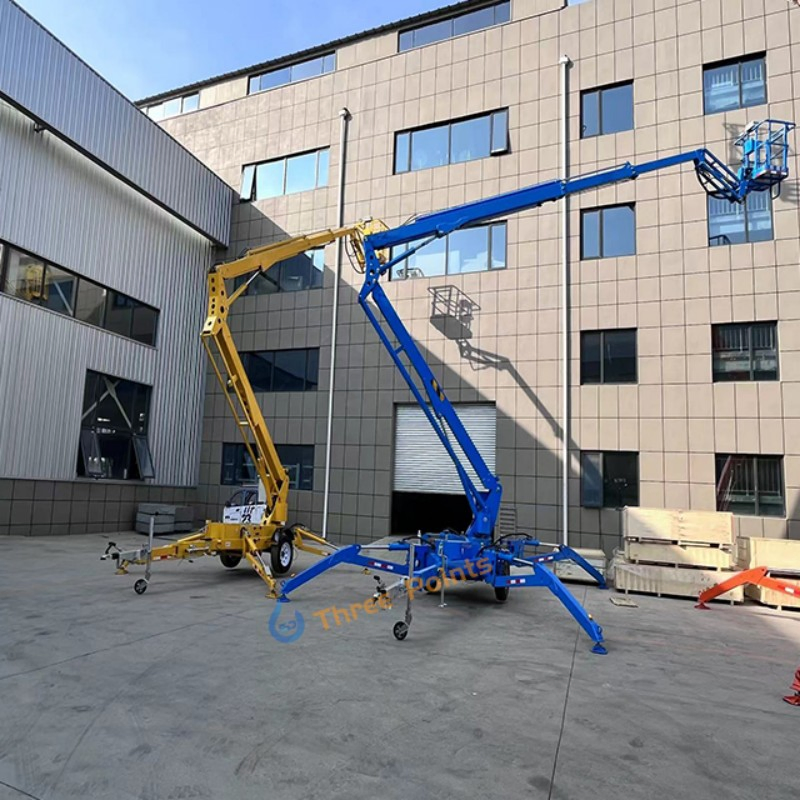

Towable Boom Lift Overview

The Towable Boom Lift is a lightweight and flexible aerial work platform that can be easily towed by vehicles such as pickup trucks or vans. With a working height of up to 22 meters and a load capacity of 200–230 kg, it features a 360-degree rotating boom, hydraulic outriggers for stability, and is powered by either battery or AC electricity.

This lift is ideal for building maintenance, tree trimming, lighting installation, and signage work. It's easy to transport, simple to operate, and perfect for both indoor and outdoor use, especially in places with limited access or uneven terrain.

Key Advantages:

✓ Highly Mobile – Easily towed for quick transport between job sites.

✓ Flexible Reach – 360° rotating boom for complex work areas.

✓ Fast Setup – Hydraulic outriggers and auto-leveling system.

✓ Versatile Terrain – Adjustable outriggers handle uneven ground.

✓ High Safety – Emergency lowering system and anti-tip protection.

✓ Cost-Effective – Lower maintenance compared to self-propelled units.

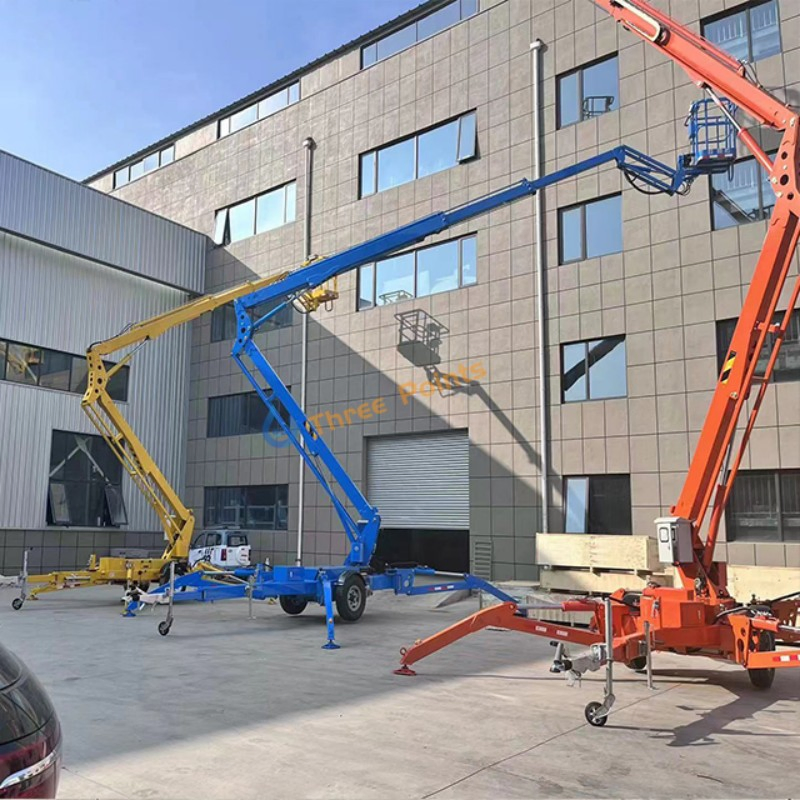

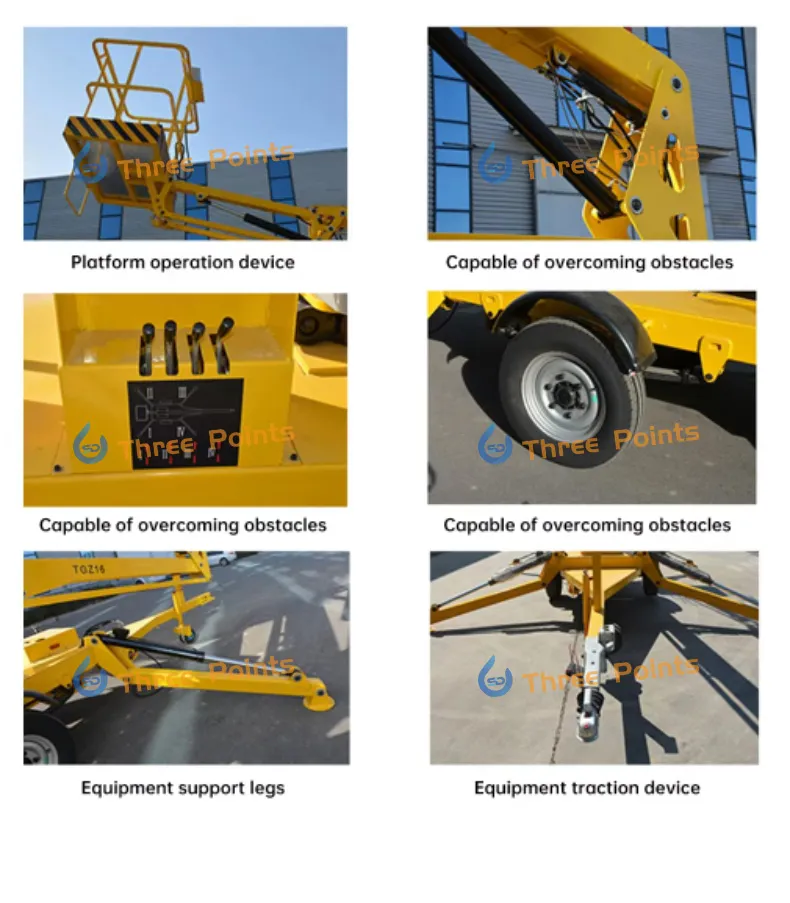

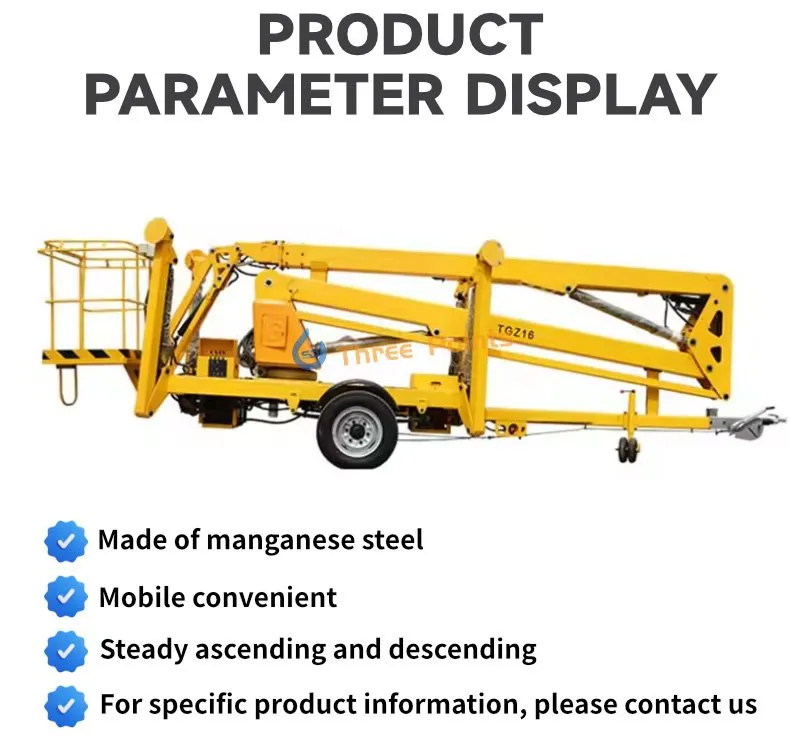

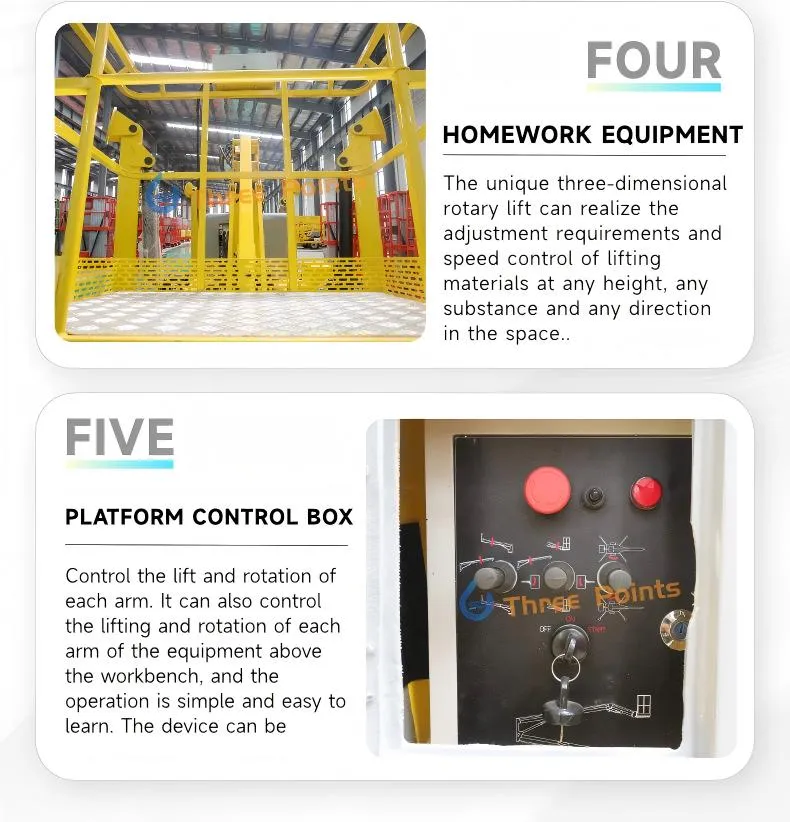

Product Presentation

Technical Data

Model	Working Height (m)	Overall Width (mm)	Stowed Height (mm)	Overall Length (mm)
TPTB-12	12	1700	2100	6300
TPTB-14	14	1700	2100	7300
TPTB-16	16	1700	2100	6650
TPTB-18	18	1700	2200	6800
TPTB-20	20	1800	2250	7600
TPTB-22	22	1900	2250	6900

Frequently Asked Questions

What is the maximum lifting height available?

The series offers various models with maximum lifting heights ranging up to 22 meters.

What power options are supported?

The lifts can be powered by AC electricity, Diesel engines, DC batteries, or Gasoline, with hybrid options available.

How is the equipment transported to job sites?

Its lightweight design allows it to be easily towed by standard vehicles like pickup trucks or vans.

Is it safe to use on uneven terrain?

Yes, it is equipped with hydraulic outriggers and an auto-leveling system specifically designed for stability on uneven ground.

What is the carrying capacity of the platform?

The typical carrying capacity for these towable boom lifts is between 200kg and 230kg.

Does the boom rotate?

Yes, the lift features a 360-degree rotating boom to provide a wide horizontal and vertical reach.
