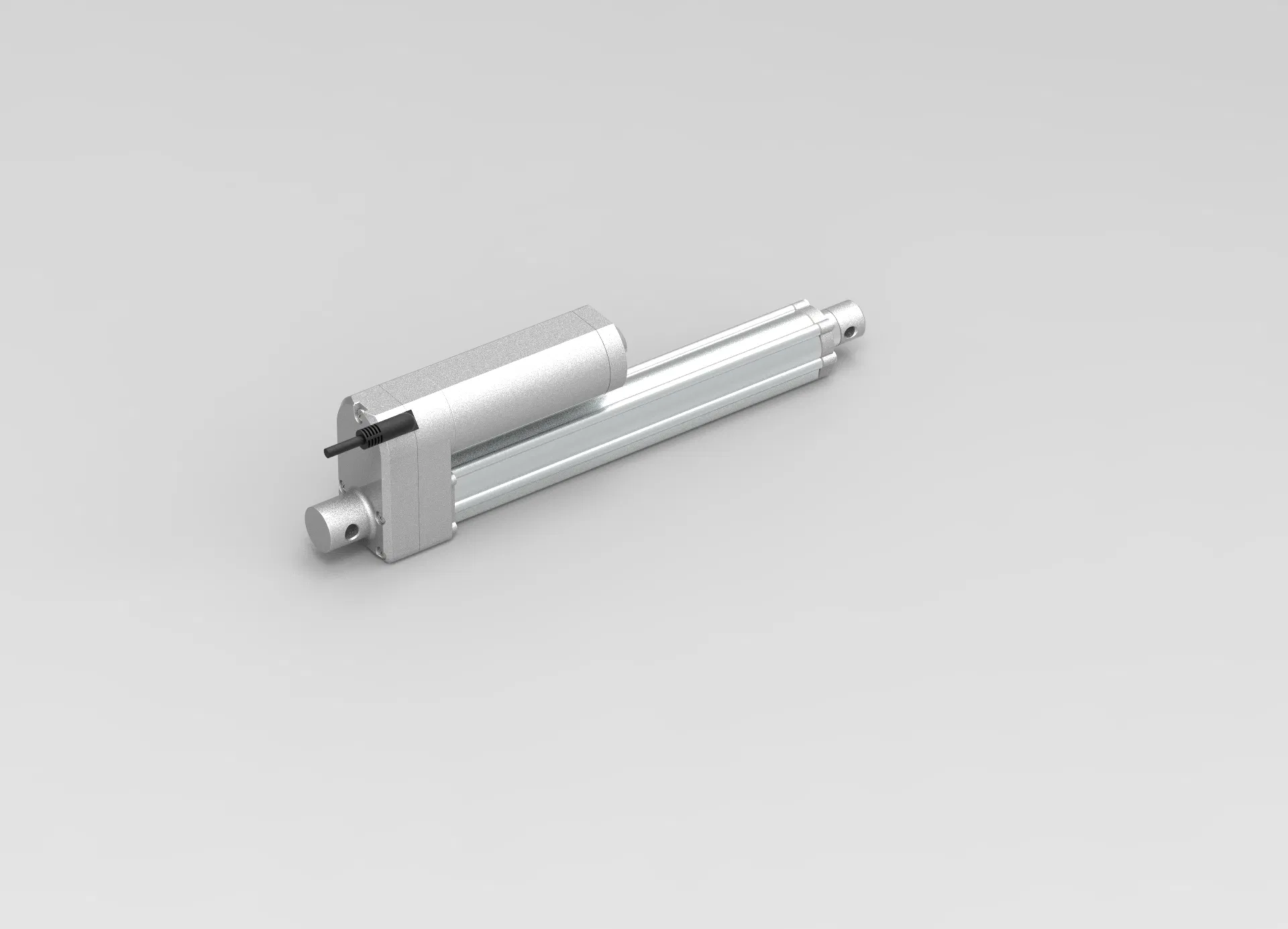

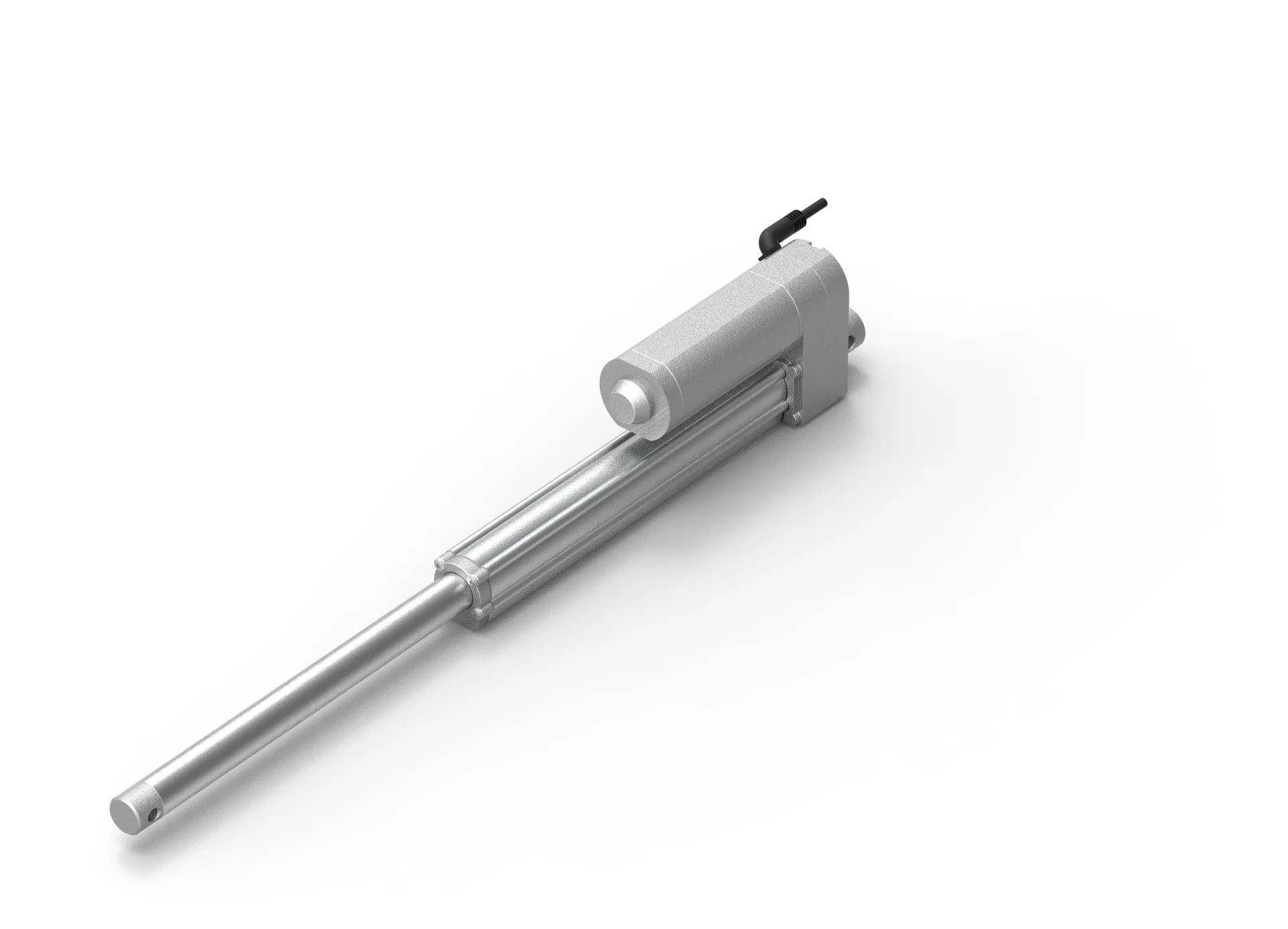

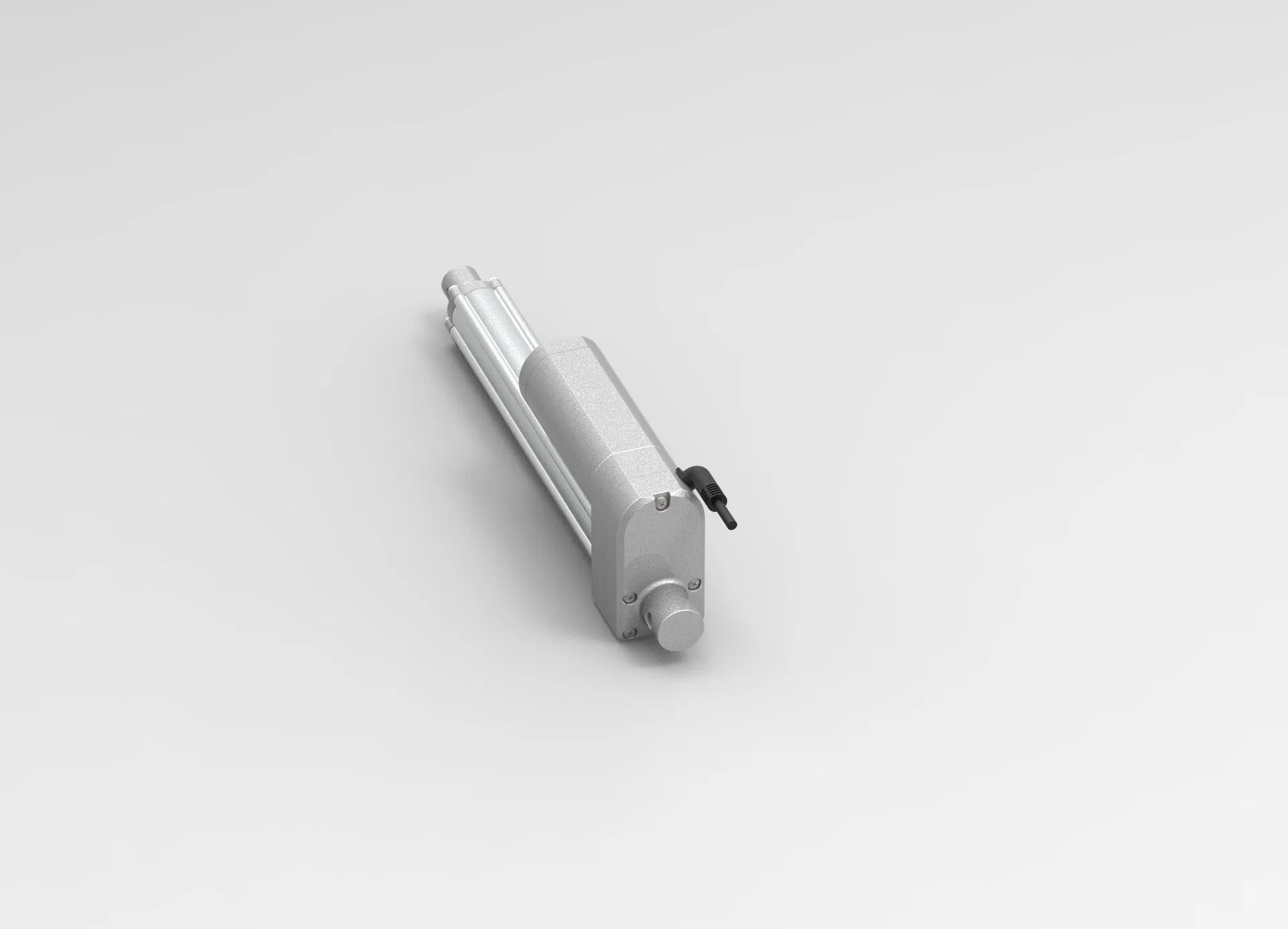

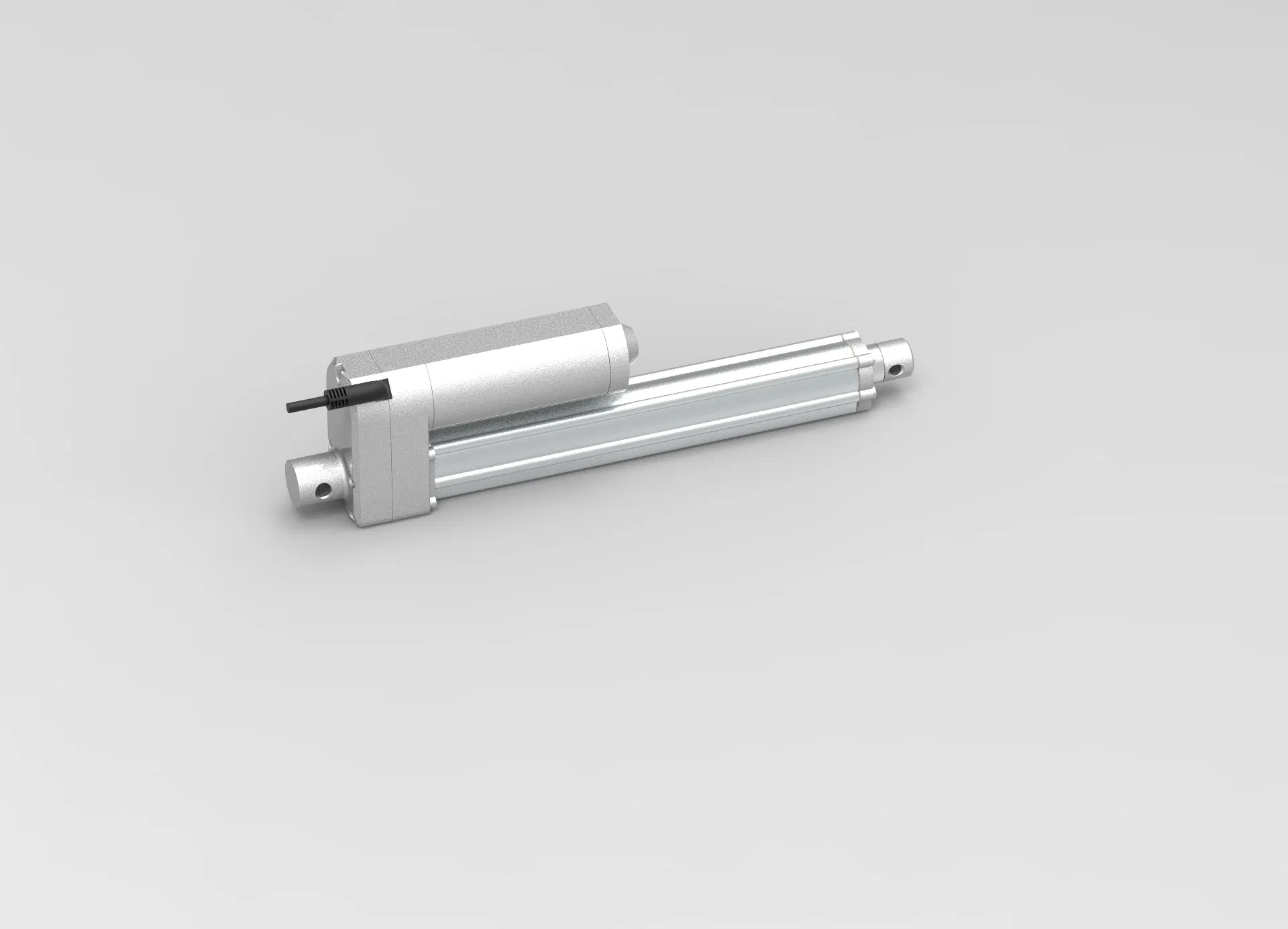

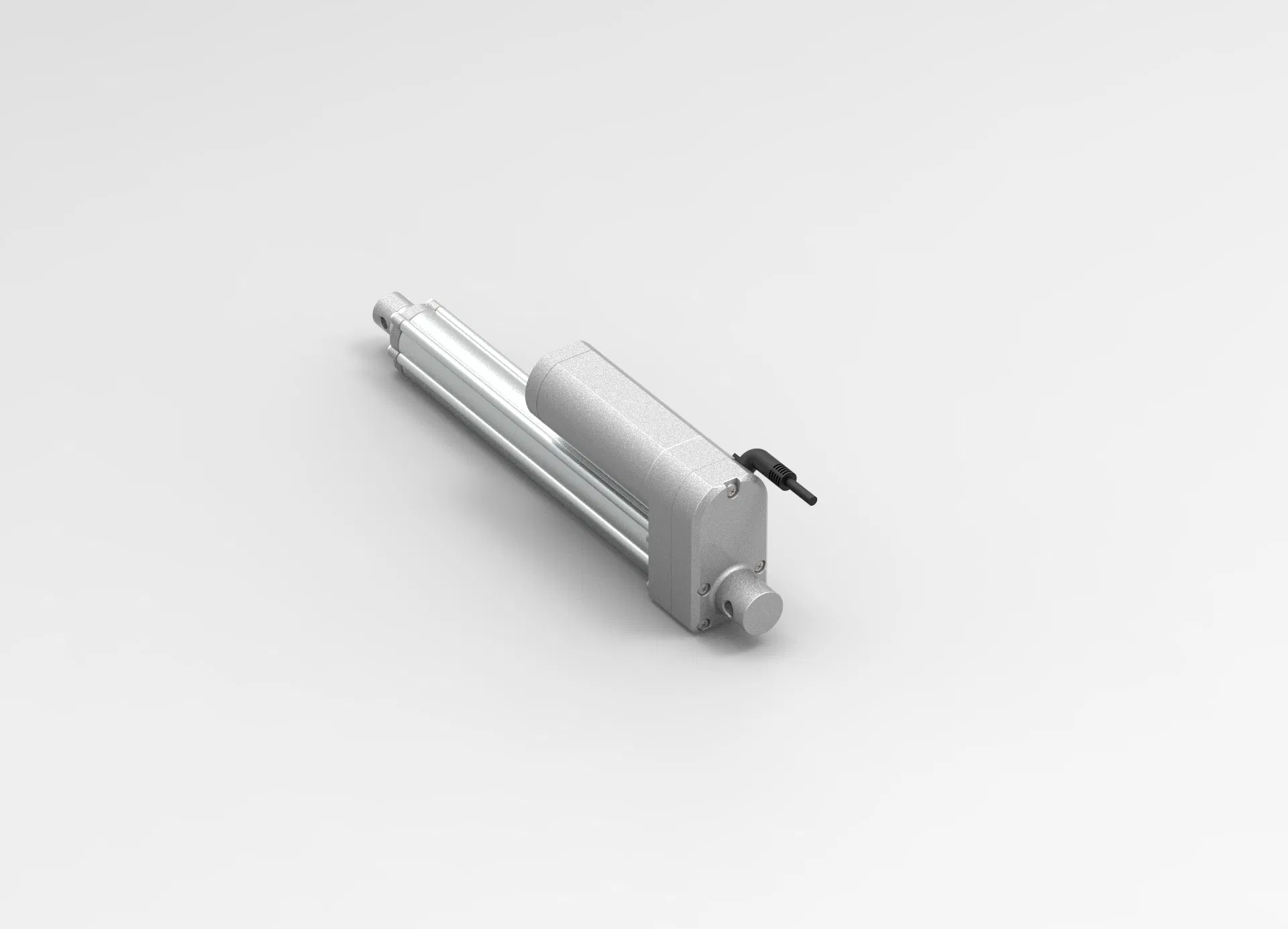

HTA23 miniature linear actuator is designed for industrial, agricultural machinery, construction, sweeping vehicles, ships, and automatic window control applications. Featuring a compact design with protection grades up to IP68, it serves as an ideal power-driven device to replace hydraulic and pneumatic systems, saving energy and enabling microcomputer-controlled automation.
Technical teams provide transmission solutions based on your specific parameters. Standard products can be customized for dimensions, motor types, and mounting requirements.
| Series | Load Capacity (N) ±10% / Speed (mm/S) ±2 | |||||
|---|---|---|---|---|---|---|
| Load (N) | 1,500 | 1,000 | 800 | 500 | 400 | 200 |
| Speed (mm/S) | 10 | 20 | 22 | 40 | 30 | 80 |
| Stroke (mm) | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
|---|---|---|---|---|---|---|---|---|---|

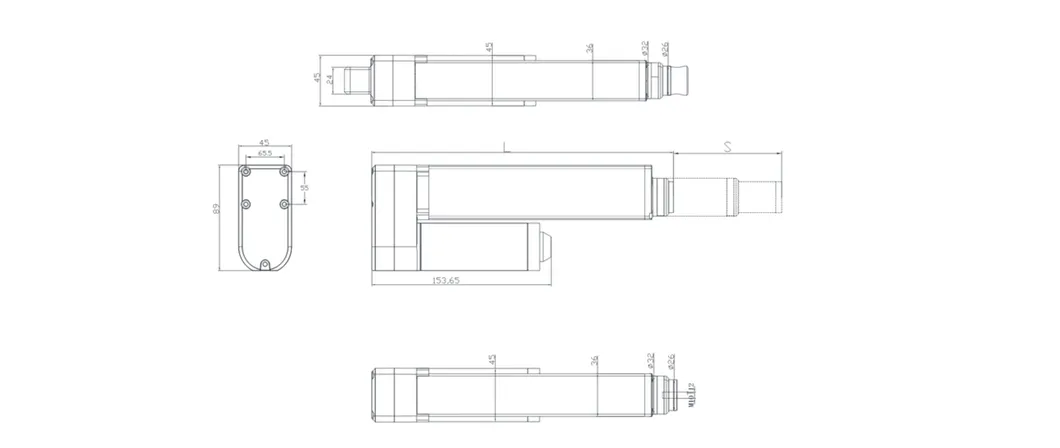

| Installation Size (mm) | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 |
*Note: Stroke length can be customized according to requirements.

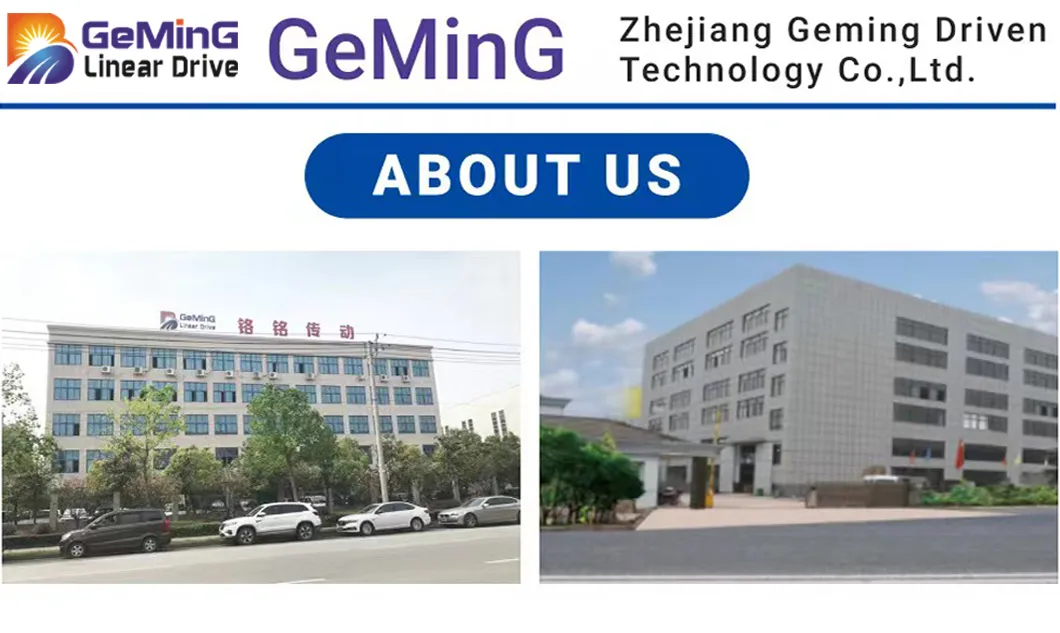

Specializing in the R&D and manufacturing of linear motion systems, our facilities produce high-quality electric linear actuators and lifting column control systems. We focus on providing long-life motion solutions and comprehensive engineering support to global partners.
