Used Articulating Boom Lift Brief Introduction:

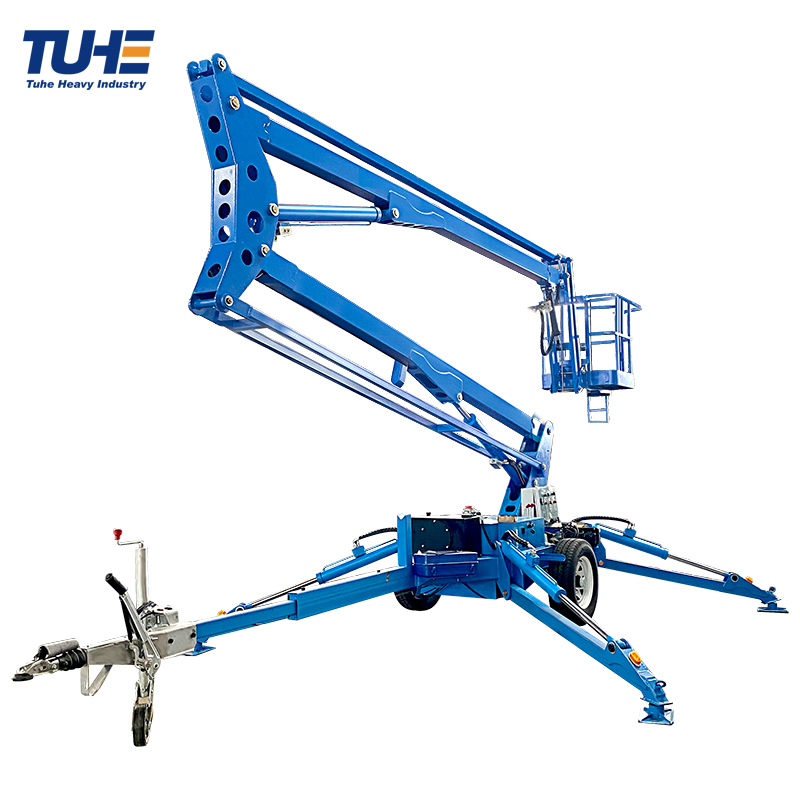

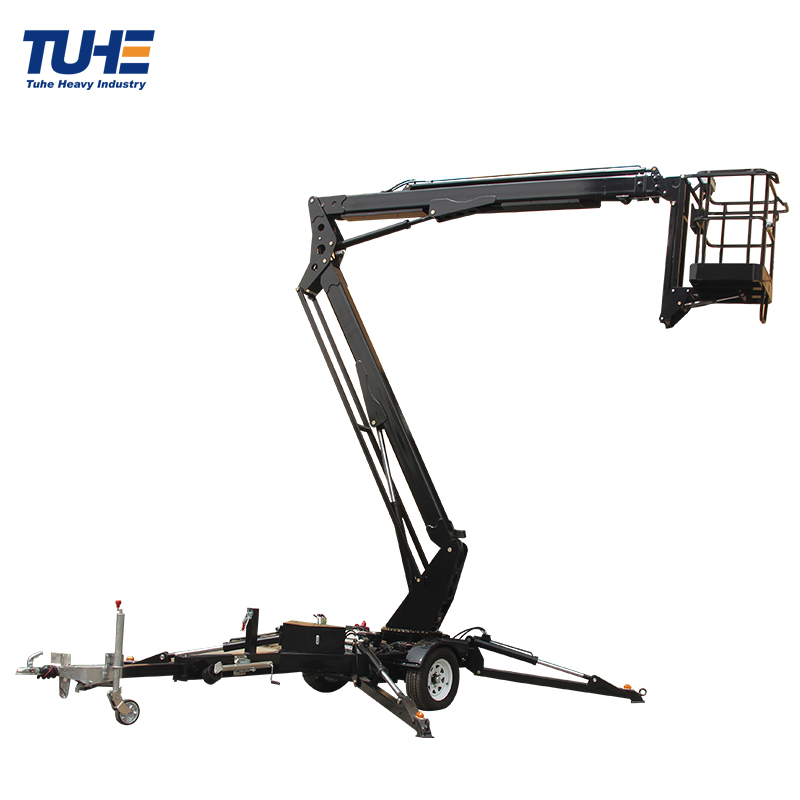

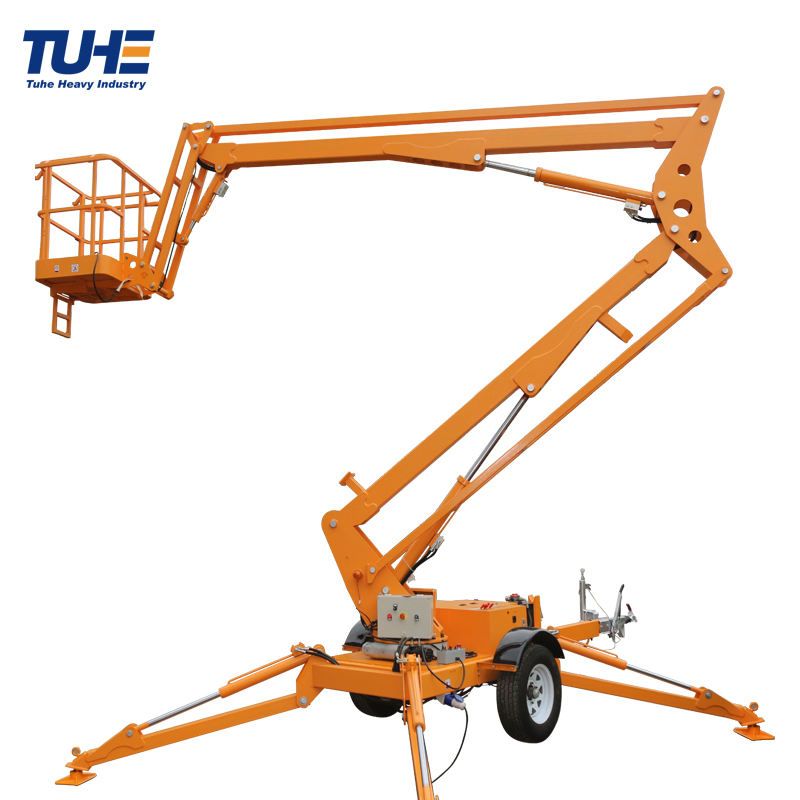

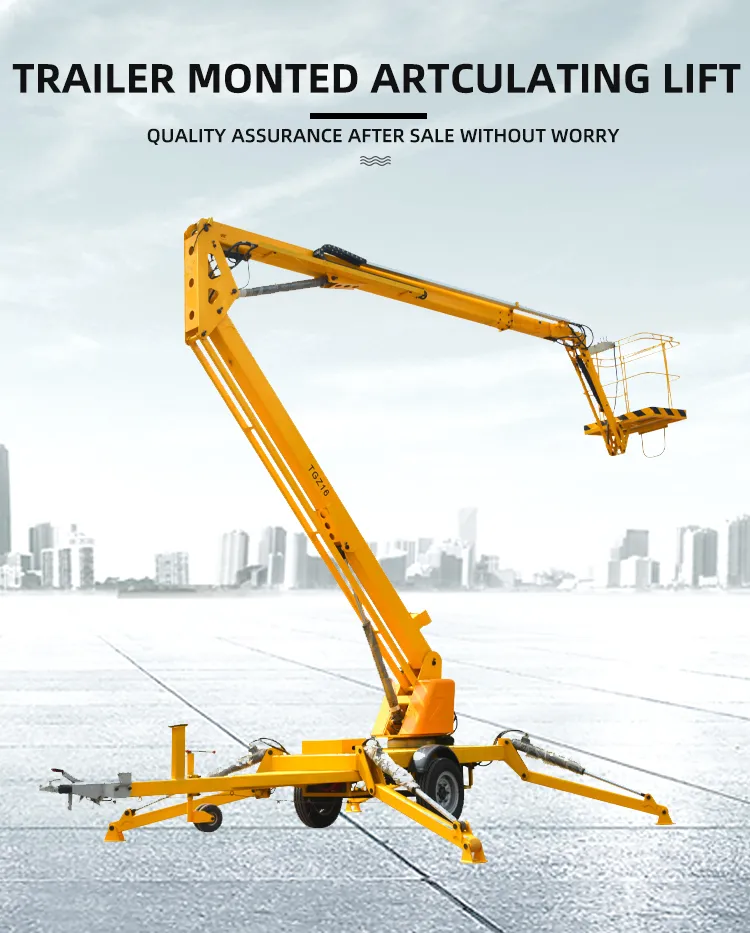

The Articulating Boom Lift, commonly referred to as a "spider boom lift," features a sophisticated cantilever structure supported by four outriggers. It includes an articulating arm, a staff-carrying work basket platform, and an integrated bottom control system. Equipped with heavy-duty tires and trailer hooks, it is highly mobile across various work sites and capable of stable operation on uneven terrain.
This equipment is exceptionally space-efficient. Whether in active use or folded for storage, its compact design allows it to navigate narrow passages with ease. The 360° rotation capability and automatic hydraulic legs ensure maximum stability and reach for high-altitude tasks.
We provide customizable power solutions to match different working environments:
| Model | Lifting Height (m) | Working Height (m) | Dimensions (mm) | Platform Size (mm) | Weight (kg) | Working Radius (m) | Load (kg) |
|---|---|---|---|---|---|---|---|
| THTCZB-10 | 10 | 12 | 5400*1665*1900 | 1200*800 | 1700 | 5 | 200 |
| THTCZB-12 | 12 | 14 | 6400*1665*1900 | 1200*800 | 2000 | 6 | 200 |
| THTCZB-14 | 14 | 16 | 6200*1730*2100 | 1200*800 | 2350 | 8.5 | 200 |
| THTCZB-16 | 16 | 18 | 7000*1730*2200 | 1200*800 | 2600 | 9 | 200 |
| THTCZB-18 | 18 | 20 | 7100*1850*2260 | 1200*800 | 4300 | 10 | 200 |
| THTCZB-20 | 19.8 | 22 | 7700*1850*2260 | 1200*800 | 4450 | 12 | 200 |
Efficient shipping configurations for global delivery:

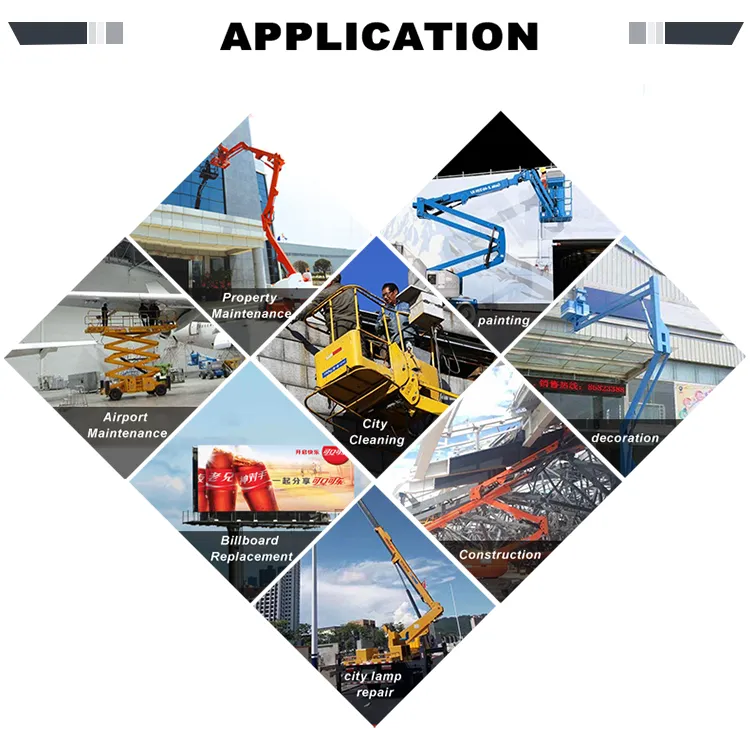

Our boom lifts are widely utilized across construction sites, factories, warehouses, stations, hotels, airports, and stadiums for high-altitude installation, maintenance, and cleaning services.
