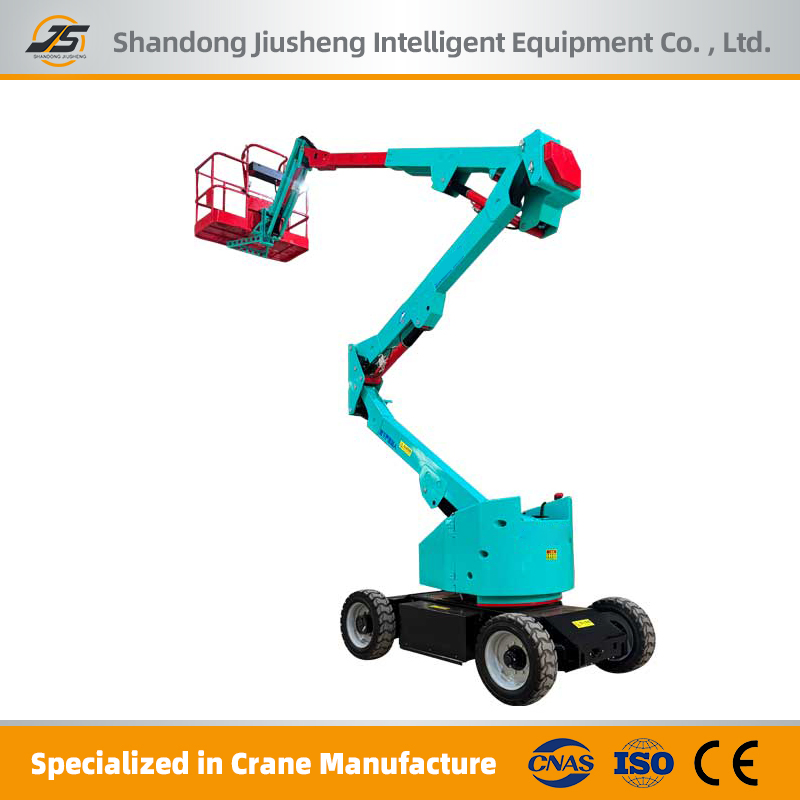

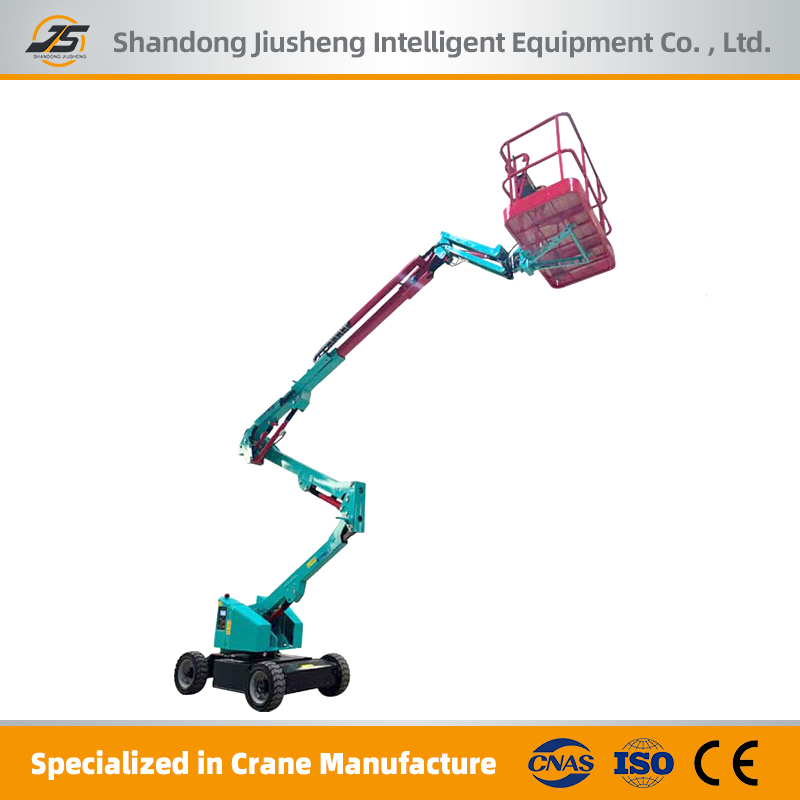

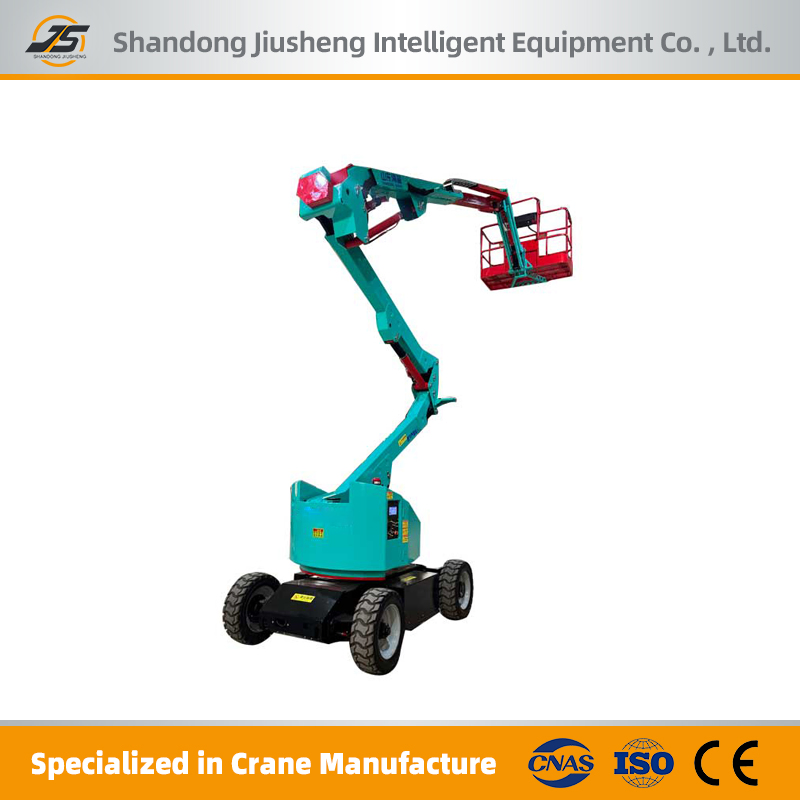

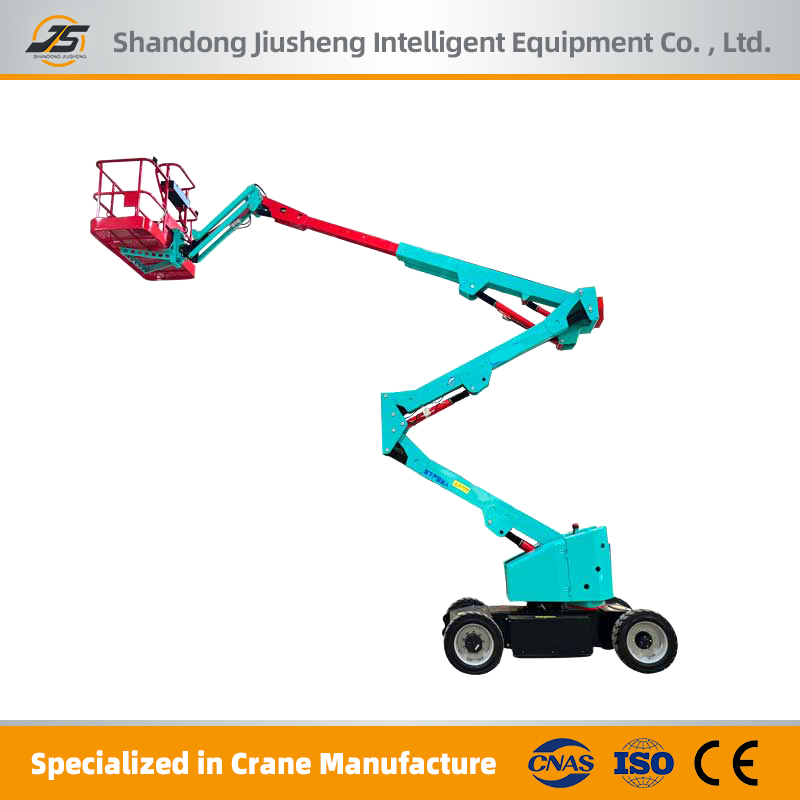

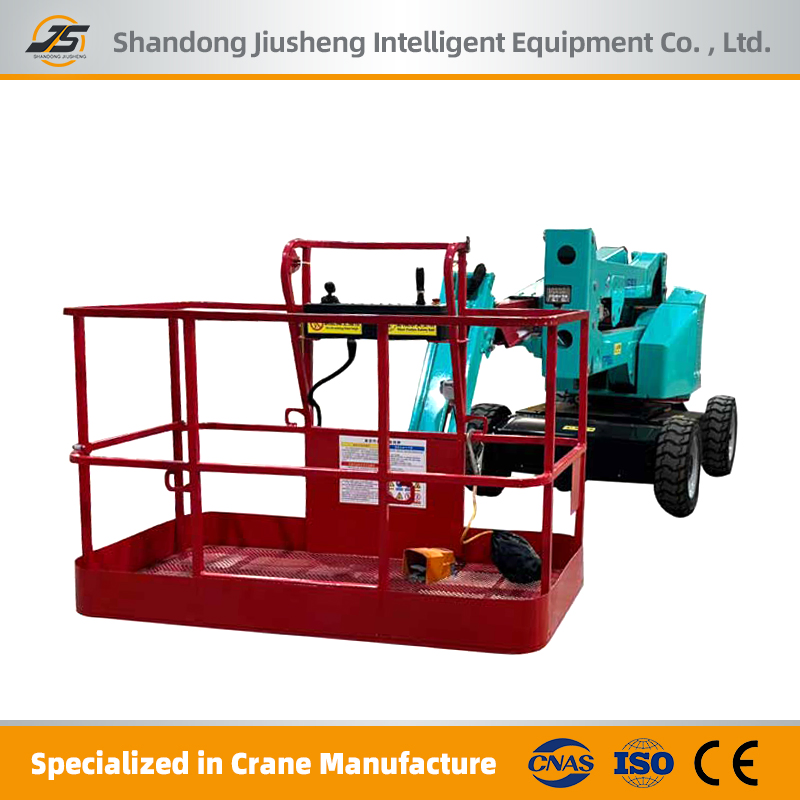

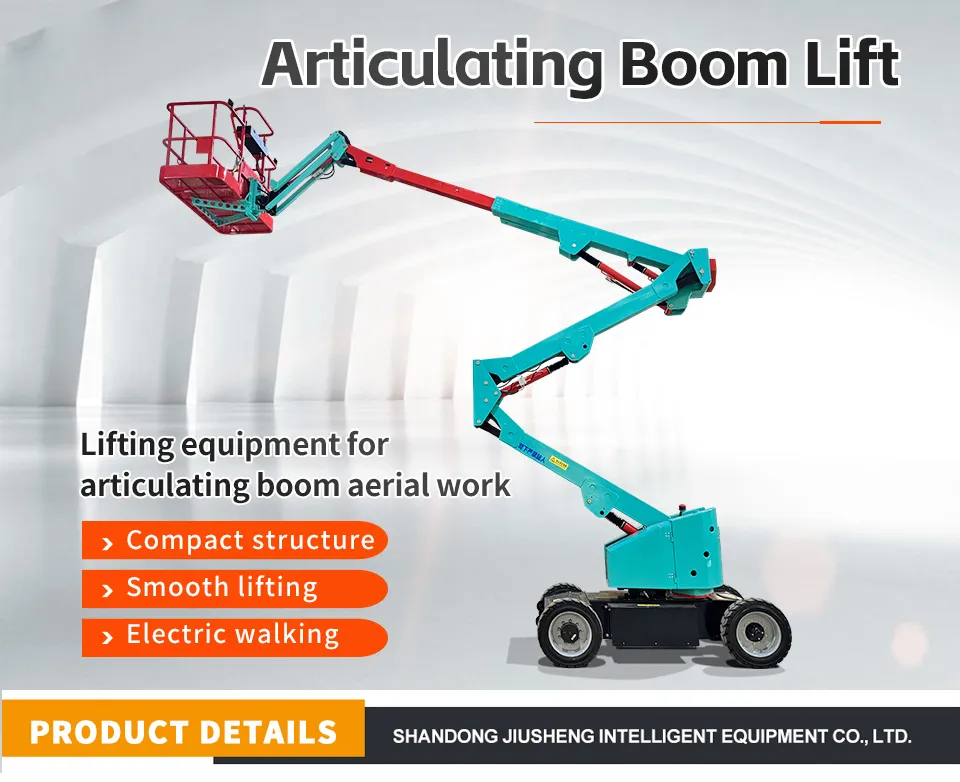

Articulating Boom Lift: The articulated boom aerial work platform truck is a kind of lifting equipment that realizes aerial work through the curved arm structure, which is composed of multiple retractable and folding arms, supports vertical lifting and horizontal extension, and can cross obstacles (such as buildings and trees) for operation.
1. Construction: Glass curtain wall installation, exterior wall spraying.
2. Roadwork: Maintenance of street lights, traffic signs.
3. Interior: Ceilings and light fixtures.
4. Fire rescue: Evacuation from high-rise buildings.
• Compact structure for narrow warehouses.
• Electric drive with large capacity lithium battery.
• Easy one-person operation.
• Intelligent control system with diagnostics.

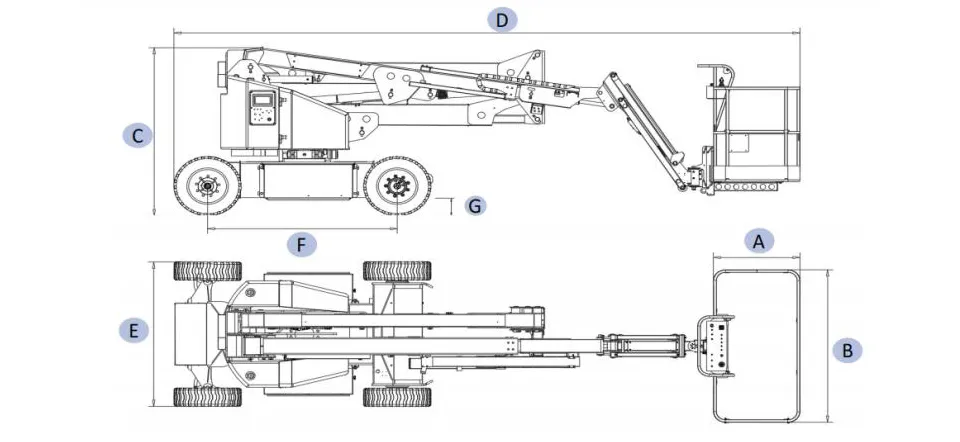

Right Elevation
Left Elevation
Front Elevation
| Self-propelled electric articulated arm aerial work platform | |||
|---|---|---|---|
| Working height | 16m | Stretch horizontally | 7.4m |
| Platform height | 14m | Platform length | 0.92m |
| Package size | 2*6.6*1.75m | Wheelbase | 2m |
| Bearing | 230kg | Platform rotates | ±90° |
| Travel speed | 5km/h | Tyre | 240/55D17.5 |
| Drive | 2WD | Voltage | 12V |
| Weight | 6650kg | Fuel tank | 20L |
Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
