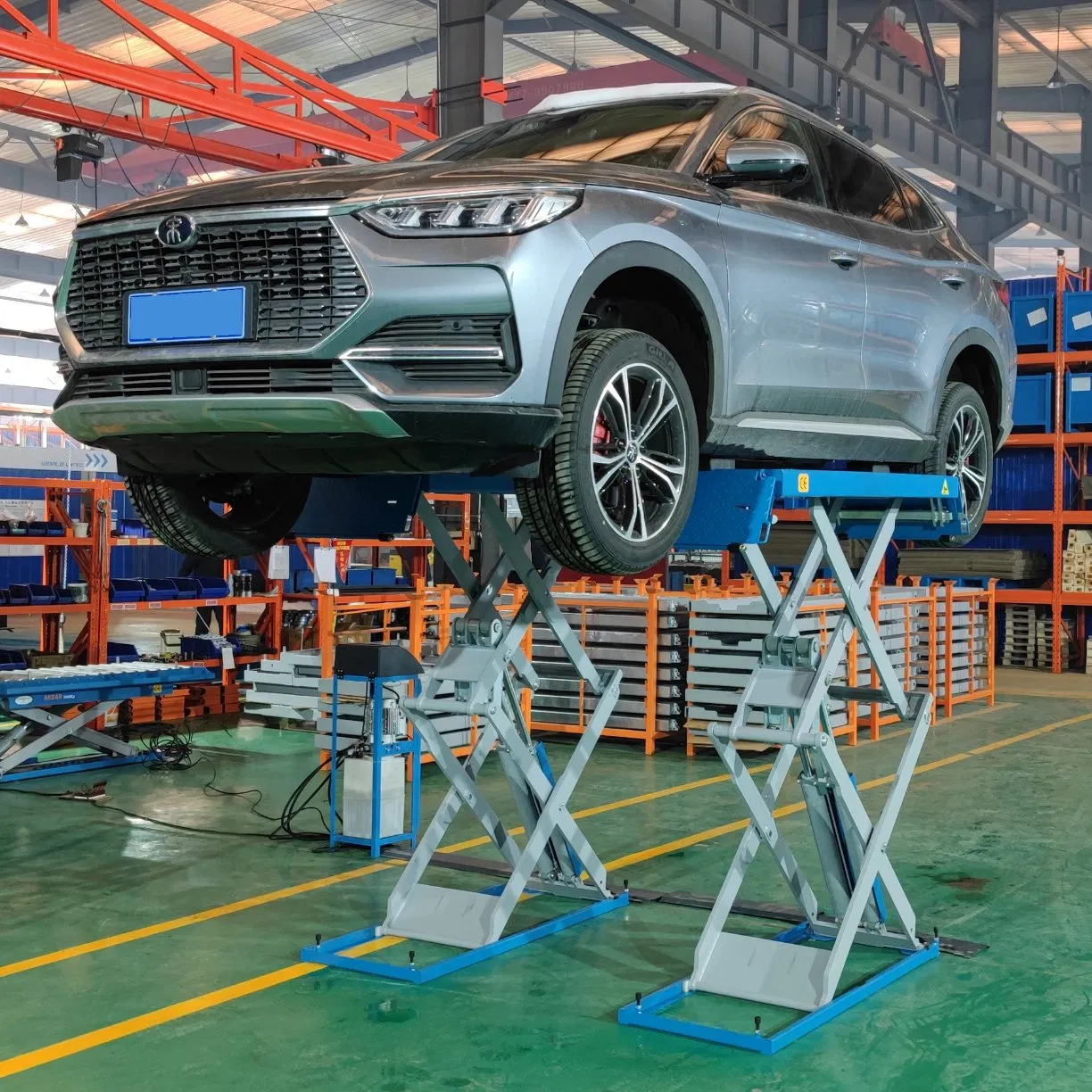

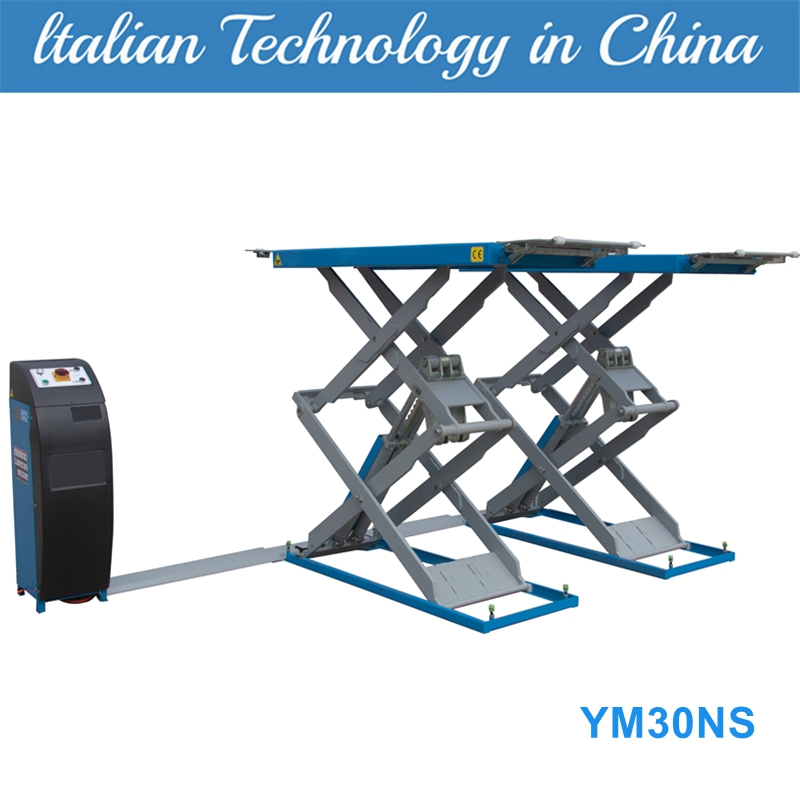

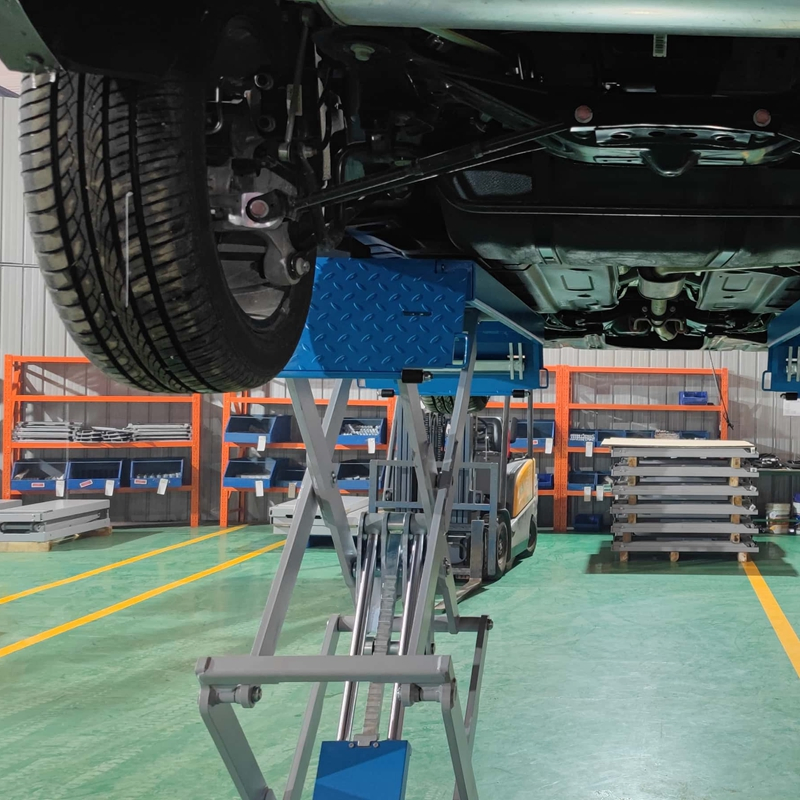

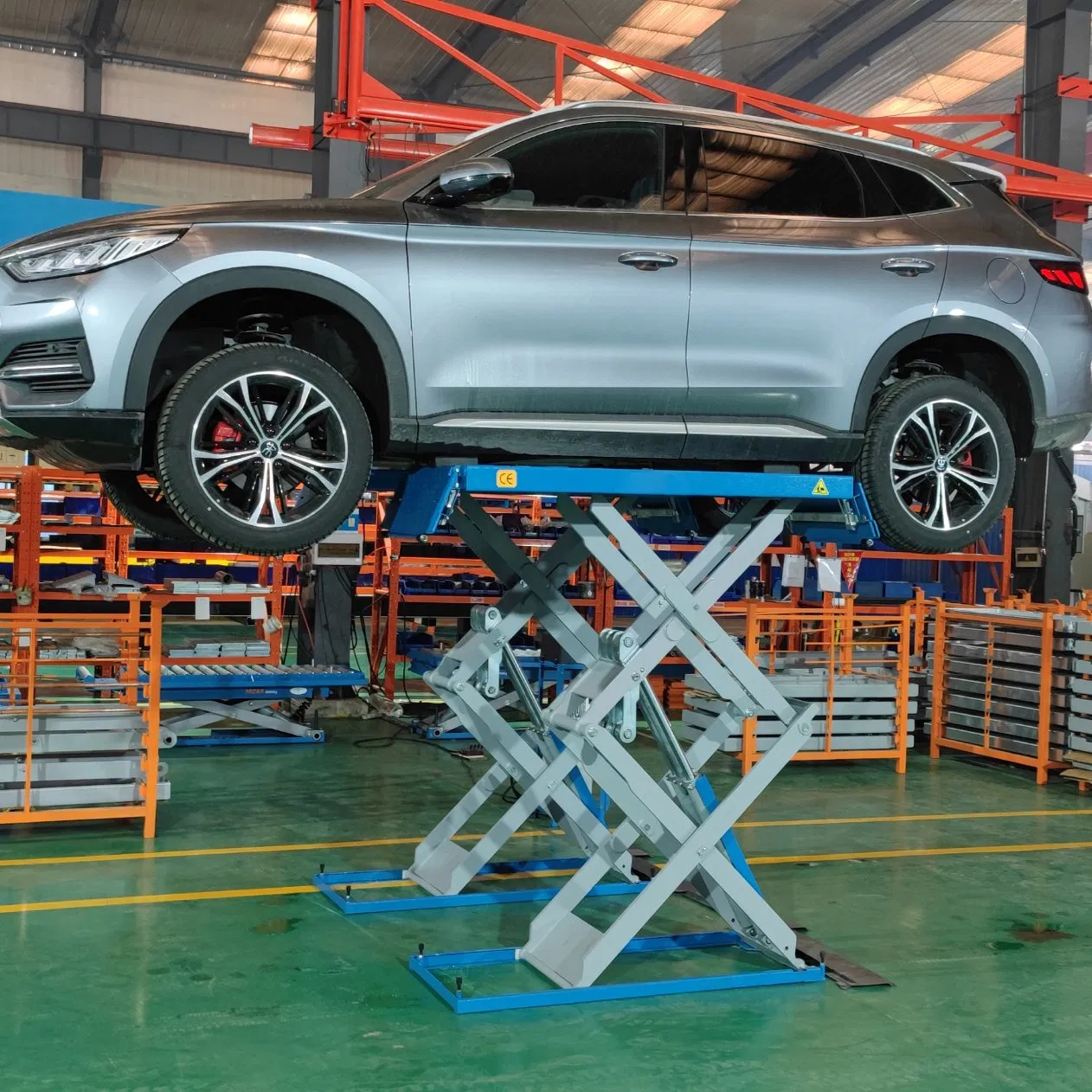

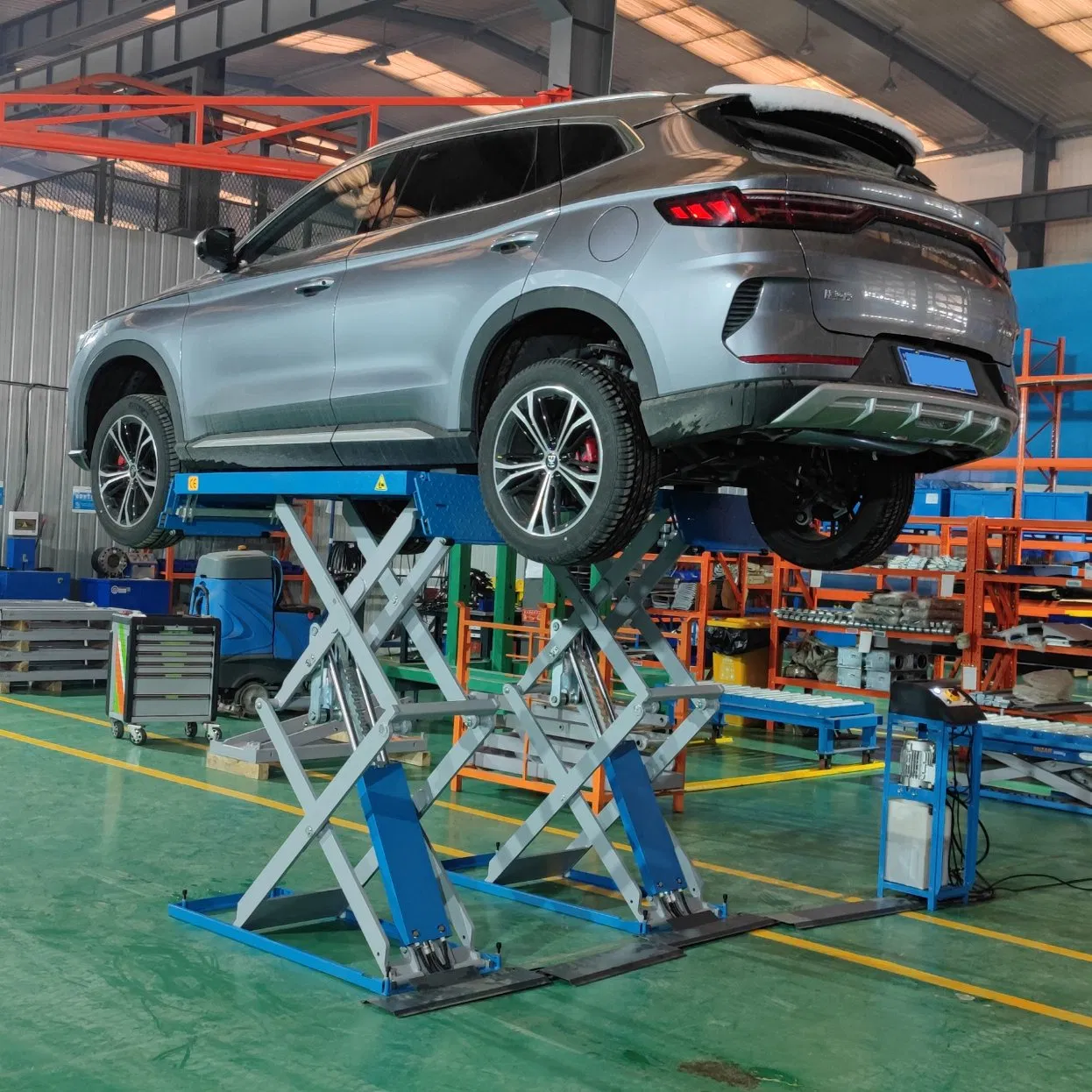

Low Profile Double Scissor Lift with Mechanical Safety Device
Latest design by professional Italian team with more than 40 years experience in the lifting industry. Manufactured in high-tech workshops using high-quality materials to meet the highest CE European requirements.
| No. | Item | Working Specifications |
|---|---|---|
| 1 | Power | 400V/230V 3 ph 2.2 Kw 50/60 Hz |
| 2 | Lifting Capacity | 3000 kg / 3500 kg |
| 3 | Max. Height | 1930mm |
| 4 | Min. Height | 103mm |
| 5 | Platform Length | 1540 / 1850 / 2130mm |
| 6 | Lifting/Lowering Time | 40s |
| 7 | Net Weight | 793kg |
| 8 | Gross Weight | 815kg |

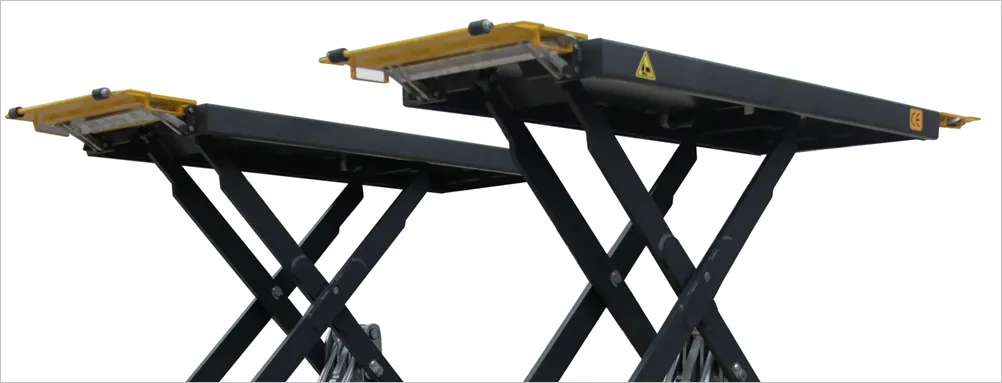

01. One-Key Leveling: Synchronize dual platforms with a single touch.

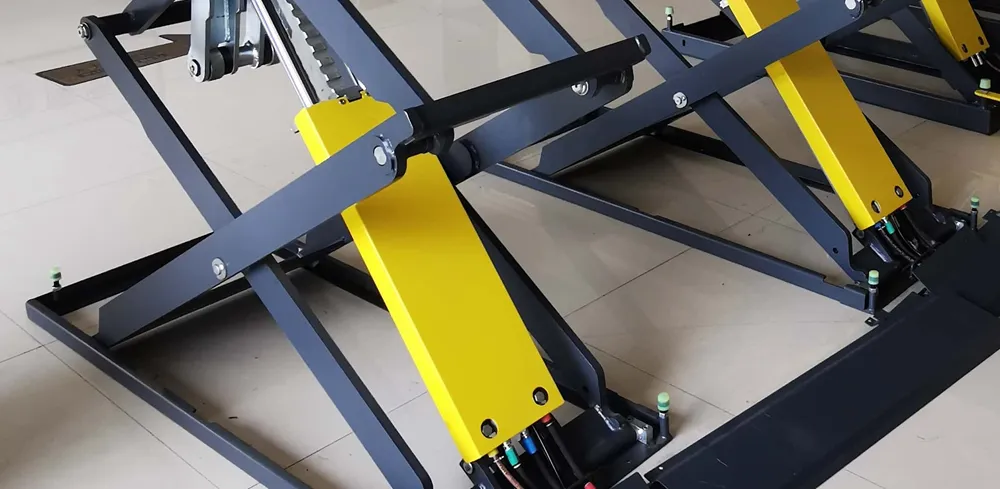

02. Double Oil Circuit: 4 oil cylinders with import sealers to prevent leakage.

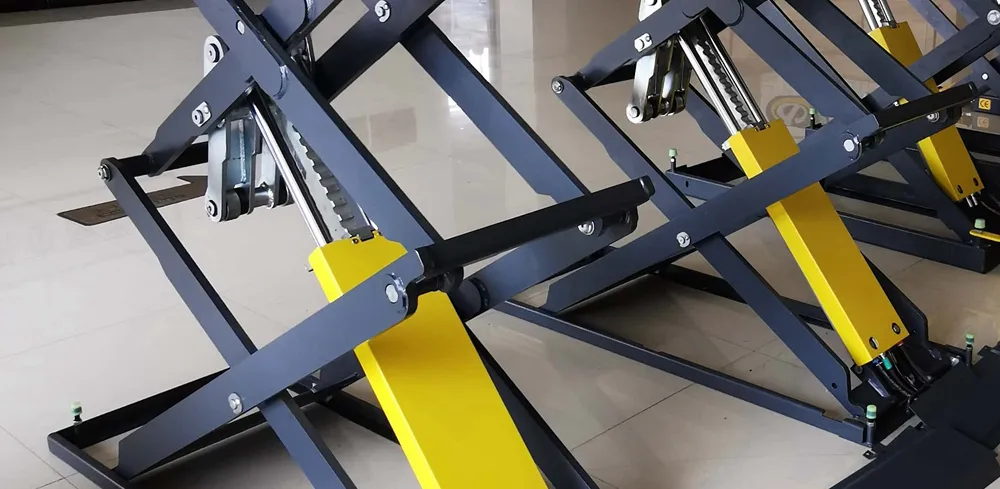

03. High Strength: 90% of arms and platforms made of 16 manganese material.

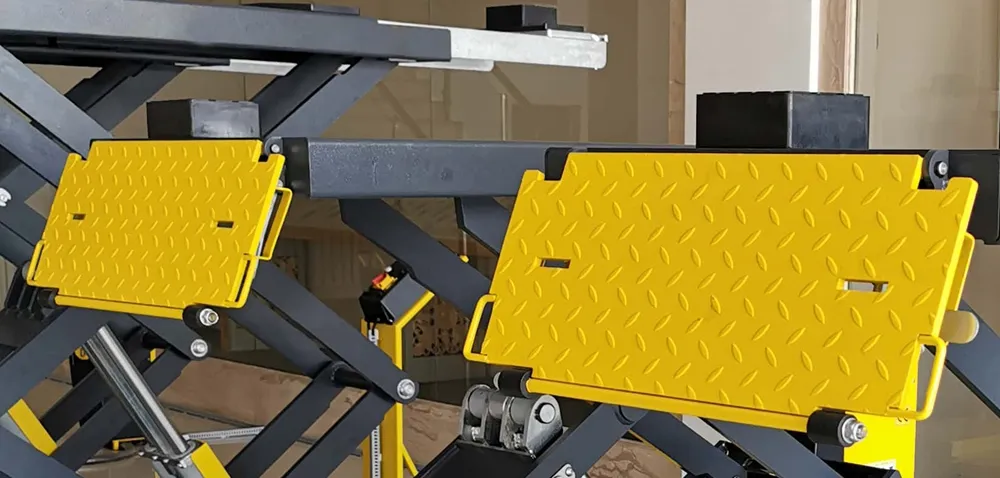

04. Ramp Extension: Extends platform by 590mm for diverse vehicle models.
Participating annually in major global exhibitions including trade fairs in Germany, Dubai, Colombia, and the USA. We focus on face-to-face communication to better understand customer requirements.
