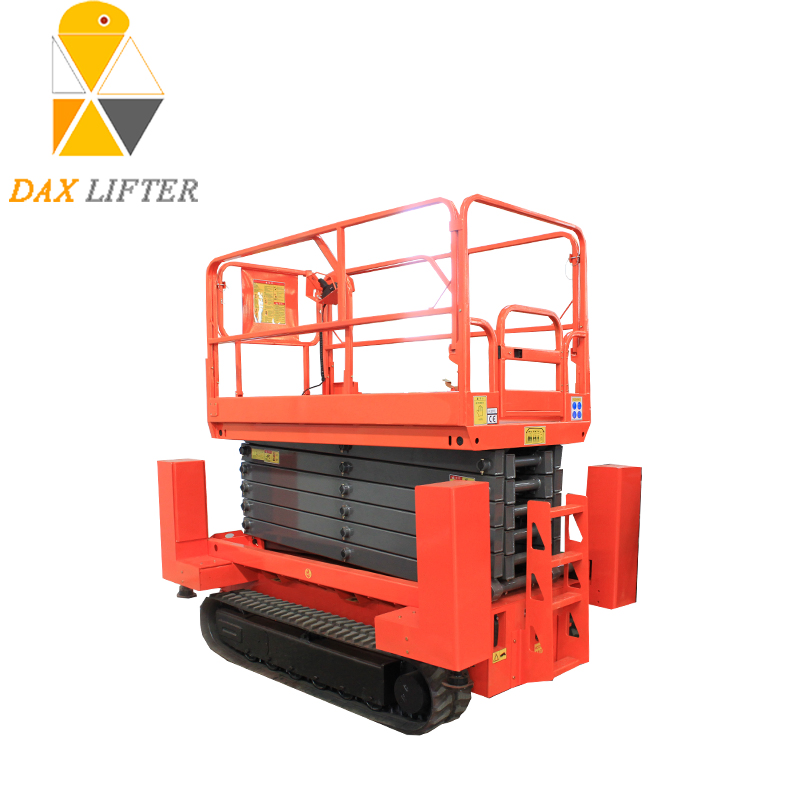

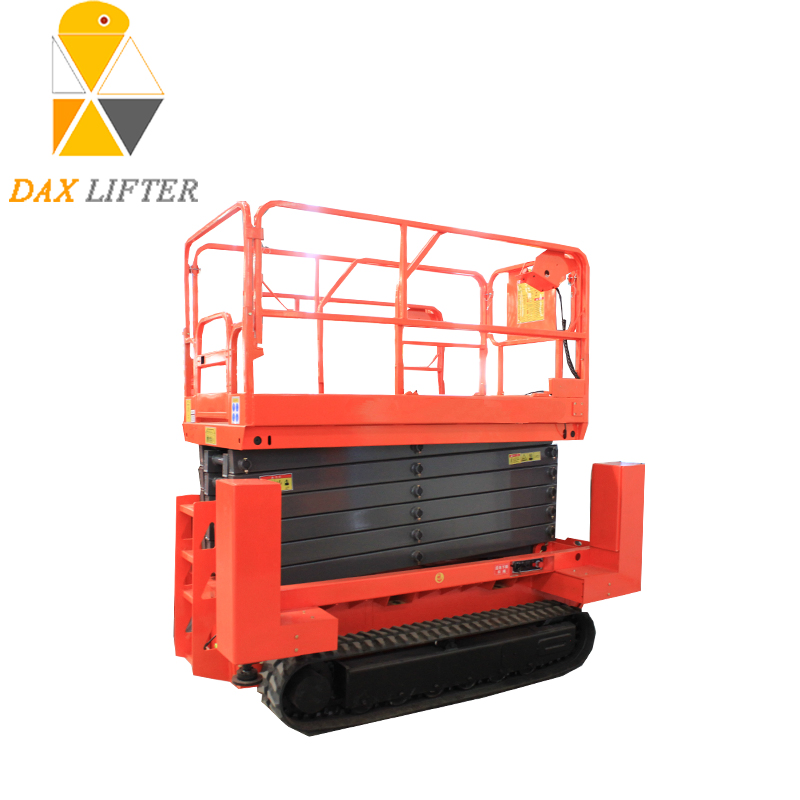

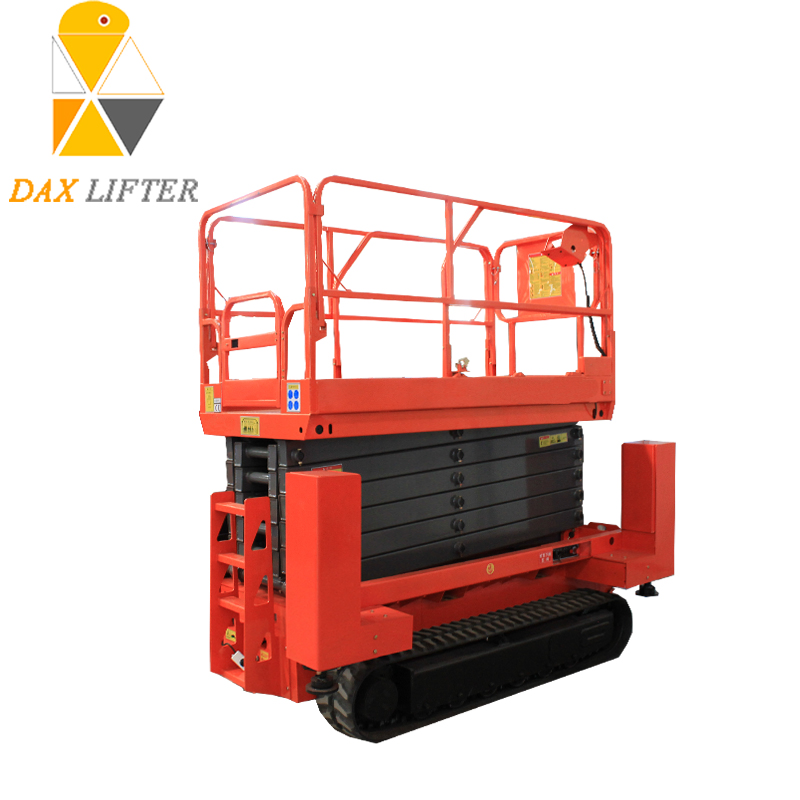

Good Standard Rough Terrain Crawler Type Scissor Lift Table for Construction

1 / 5

Good Standard Rough Terrain Crawler Type Scissor Lift Table for Construction

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

Application

Workshop, Shipboard, Warehouse, Building

Lift Mechanism

Scissor Lift

Moves

Self-propelled

Driven Type

Feature

Explosion-Proof, Insulating

Certification

CE, ISO 9001

Height Range

6-12m

Capacity

320-450kg

HS Code

8428909090

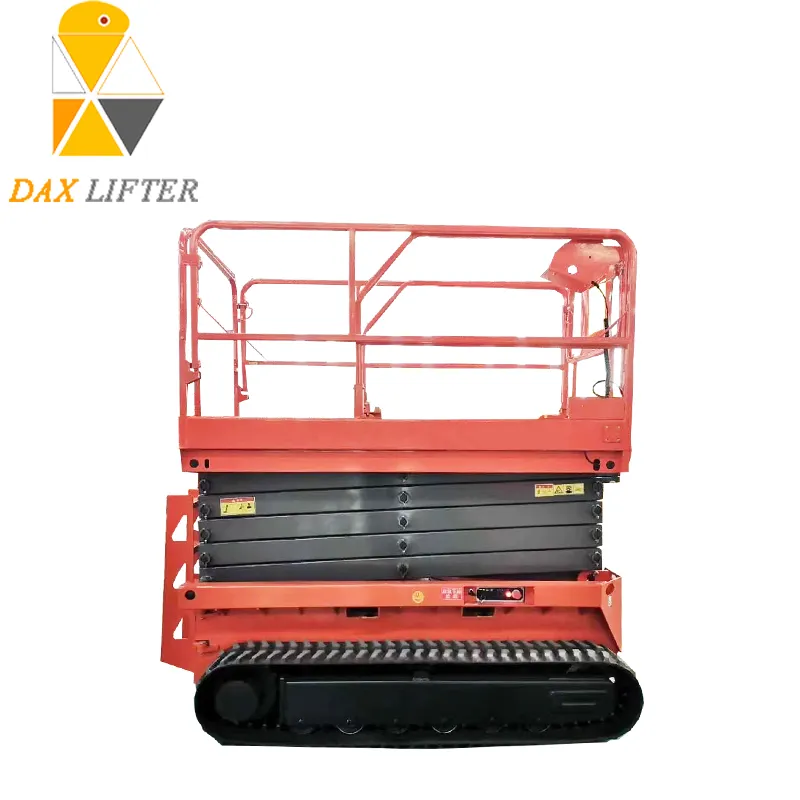

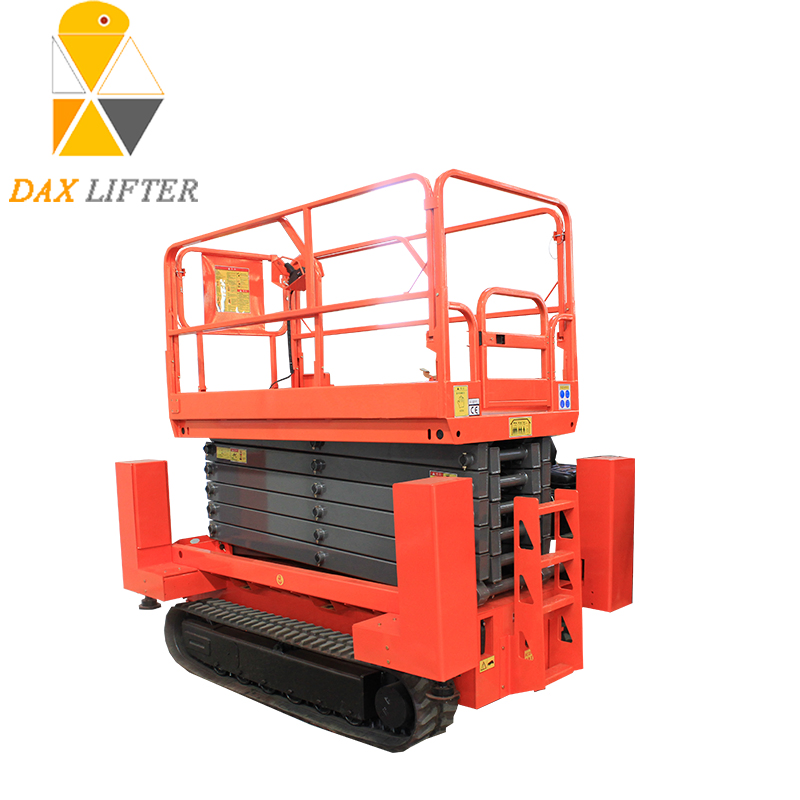

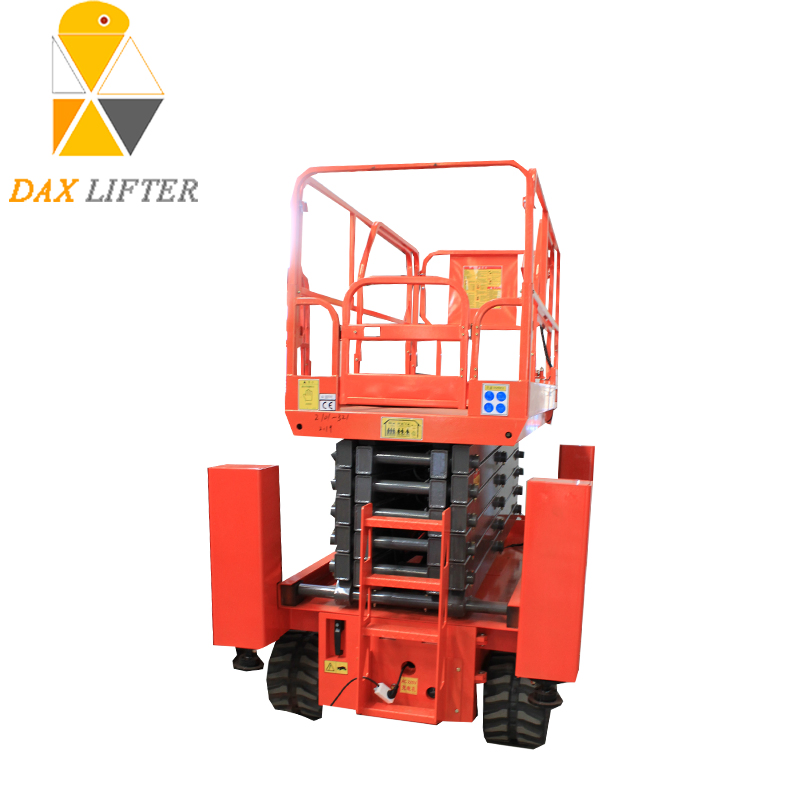

Crawler Type Self-Propelled Scissor Lift

The Rough Terrain Crawler Scissor Lift with Support Legs is an advanced model designed for challenging environments. Unlike standard crawler lifts, this model features automatic support legs, making it ideal for working on light slopes and areas with deep pits or uneven ground.

The smart automatic support legs adjust the horizontal level to ensure stability and prevent toppling. While it significantly enhances safety on sloped ground, there are specific limits to the incline it can handle.

Technical Specifications

Model	DX06LD	DX08LD	DX10LD	DX12LD
Capacity	450kg	450kg	320kg	320kg
Max Platform Height	6m	8m	9.75m	11.75m
Max Working Height	8m	10m	12m	14m
Overall Length	2470mm	2470mm	2470mm	2470mm
Overall Width	1390mm	1390mm	1390mm	1390mm
Platform Size	2270*1120mm	2270*1120mm	2270*1120mm	2270*1120mm
Drive Speed	2.4km/h	2.4km/h	2.4km/h	2.4km/h
Net Weight	2400kg	2550kg	2840kg	3000kg

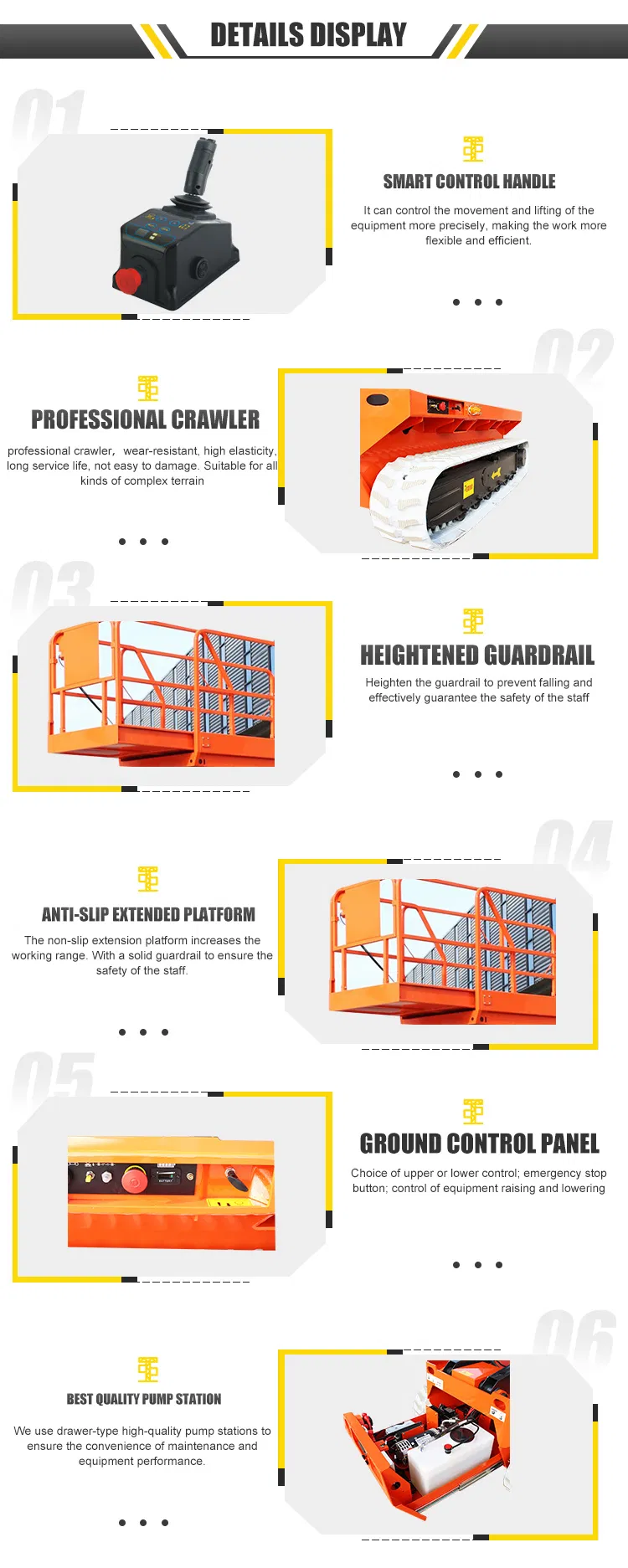

Key Features & Advantages

Extendable Platform: Expands the workspace for workers.
Crawler Belt Design: Provides strong passing ability on rough terrain.
Dual Control Panels: Operation panels located both on the platform and at the bottom.
Built-in Battery: DC power supply for free movement without external cables.

Safety & Operation

Flexible Operation: One-person control for steering, forward, and backward movements.

Stable Structure: More stable than wheeled lifts during movement and lifting.

Emergency Lowering: Valve allows platform descent during power failure.

Safety Valves: Explosion-proof valves prevent falling in case of tubing bursts.

Frequently Asked Questions

What are the benefits of the automatic support legs?

The automatic support legs allow the scissor lift to work safely on light slopes and uneven ground by automatically leveling the platform to prevent toppling.

What is the maximum working height of this crawler lift?

Depending on the model, the maximum working height ranges from 8 meters up to 14 meters.

Can the platform be extended for more space?

Yes, the platform includes an extendable section of 900mm, providing additional workspace for operators and tools.

How is the equipment powered?

It is powered by a built-in 48V DC battery system, making it completely self-propelled without the need for external power sources during operation.

Is it easy for a single person to operate?

Yes, the entire operation and steering can be handled by one person using the control handle on the platform.

What safety features are included for emergencies?

The lift is equipped with an emergency lowering valve, safety explosion-proof valves, and an overload protection system to ensure operator safety.
