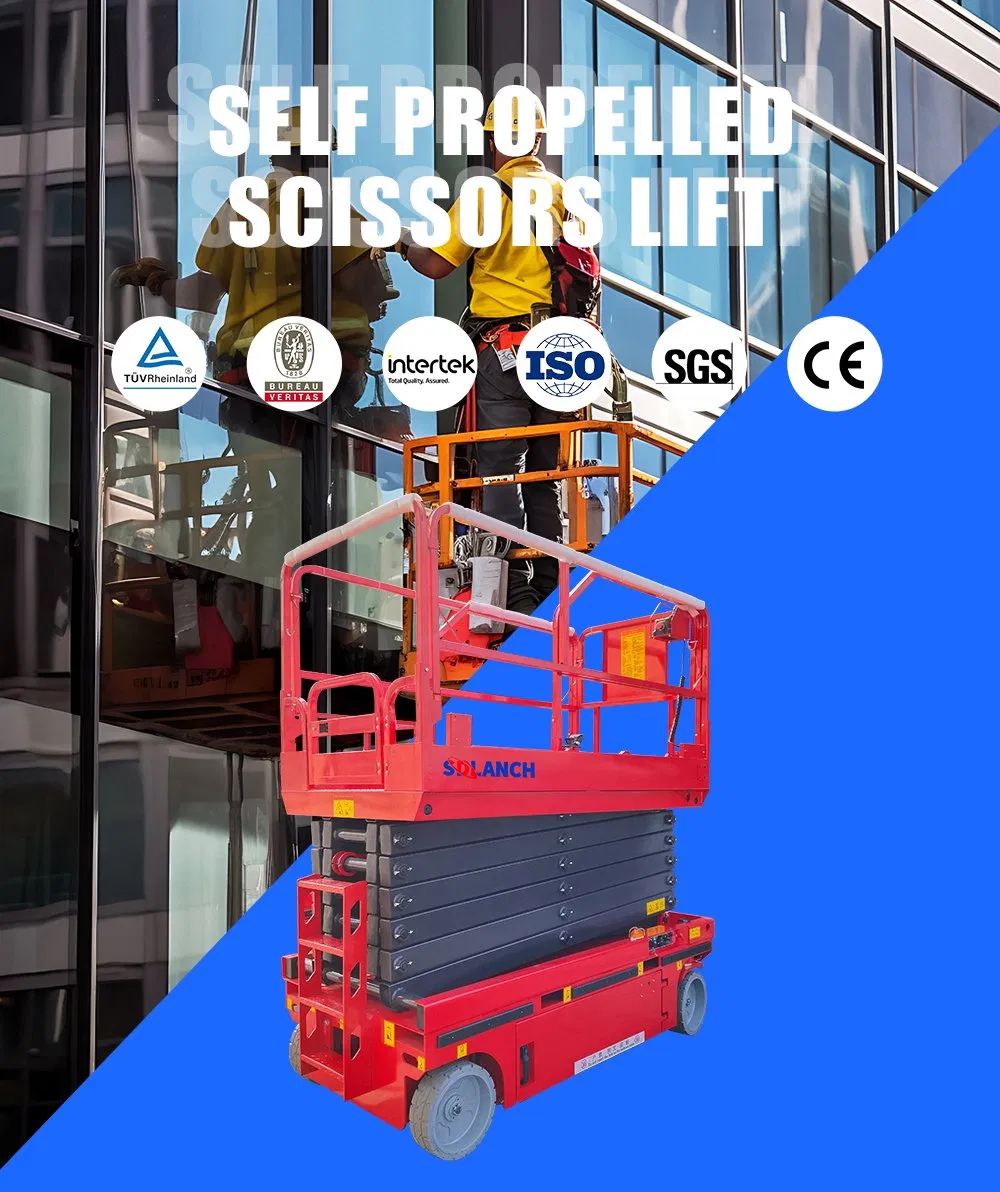

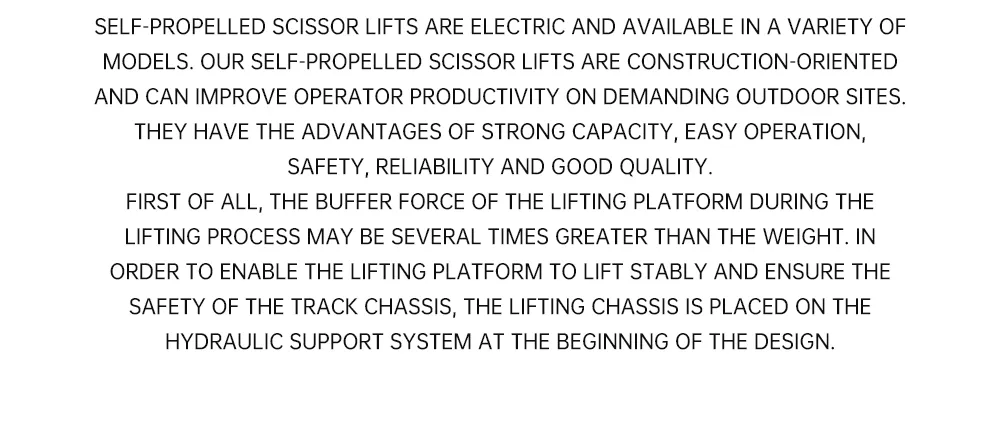

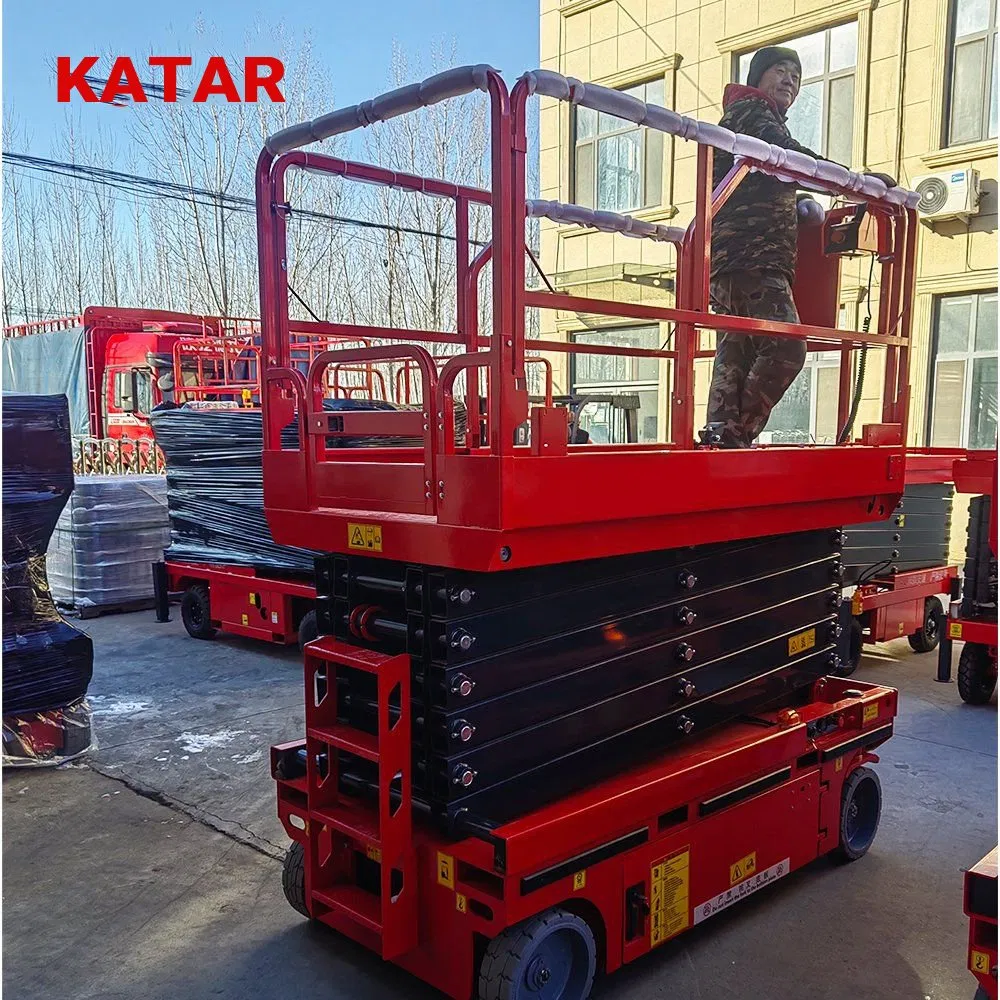

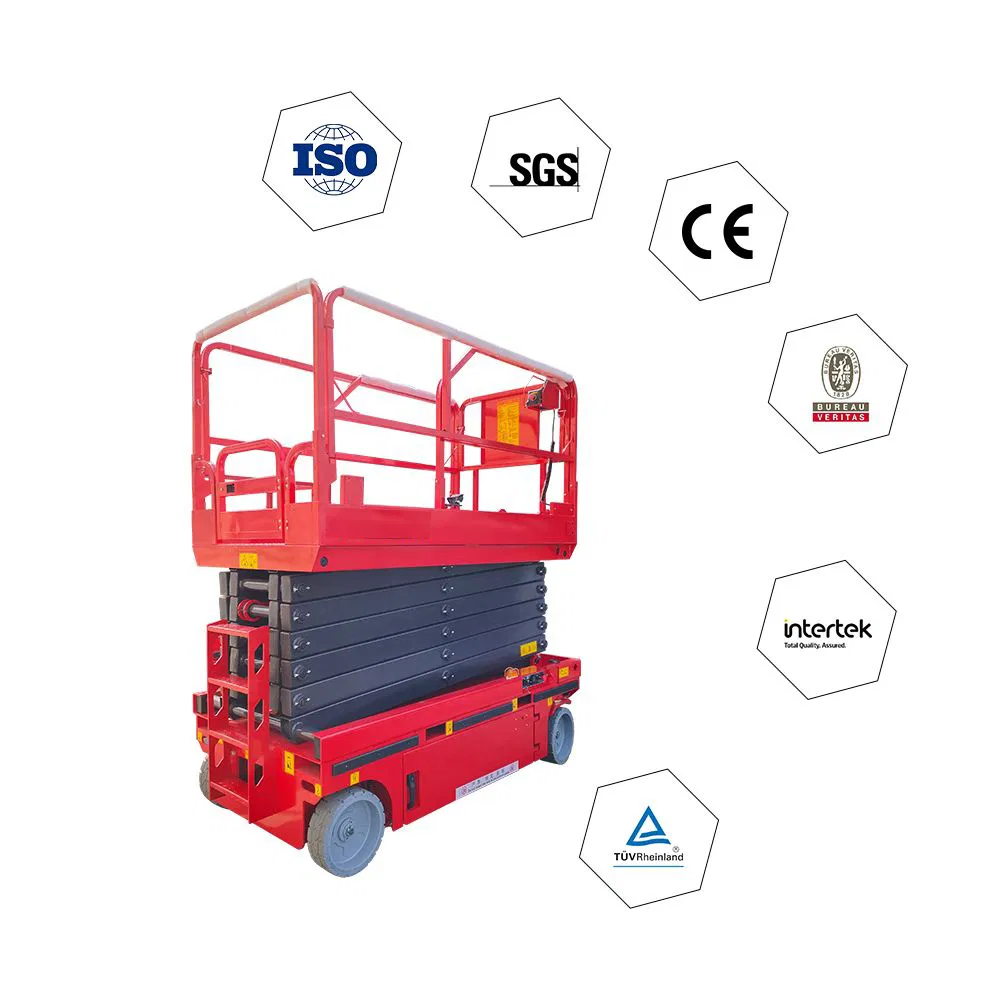

Self-propelled scissor lifts are electric and available in a variety of models. Our self-propelled scissor lifts are construction-oriented and can improve operator productivity on demanding outdoor sites. They have the advantages of strong capacity, easy operation, safety, reliability and good quality. The buffer force of the lifting platform during the lifting process is carefully managed to ensure stability. The lifting chassis is integrated with a hydraulic support system for maximum safety during operation.

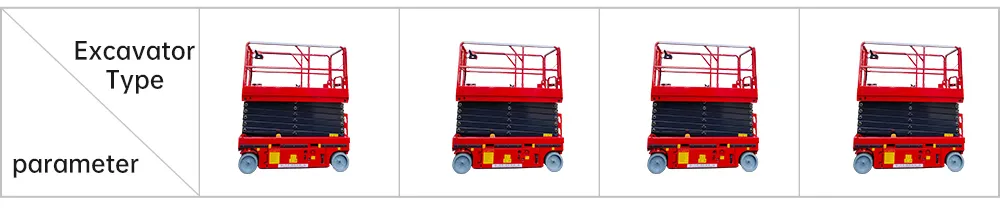

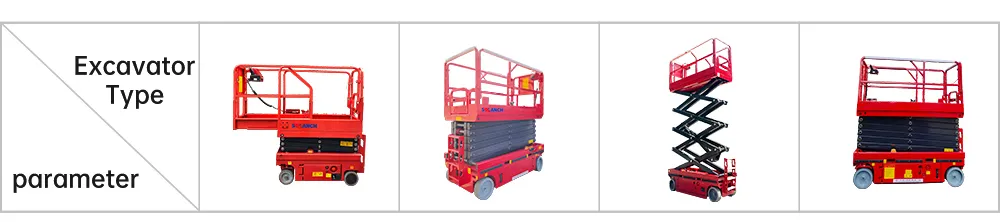

| Model | SDLS-08 | SDLS-10 | SDLS-12 | SDLS-14 |
|---|---|---|---|---|
| Safe working load | 450kg | 320kg | 320kg | 230kg |
| Max working height | 9.8m | 11.8m | 13.8m | 15.8m |
| Max platform height | 7.8m | 9.8m | 11.8m | 13.8m |
| Platform size (LxW) | 2270×1130mm | 2270×1130mm | 2270×1130mm | 2630×1130mm |
| Overall size (LxWxH) | 2390×1160×2340mm | 2390×1160×2470mm | 2390×1160×2600mm | 2760×1250×2600mm |
| Total Weight | 2250kg | 2550kg | 2960kg | 3300kg |
| Model | SDLS-06 | SDLSM-06 | SDLSM-04 | SDLSN-08 |
|---|---|---|---|---|
| Safe working load | 450kg | 230kg | 230kg | 320kg |
| Max working height | 7.8m | 7.8m | 5.8m | 9.8m |
| Platform size (LxW) | 2270×1130mm | 1680×780mm | 1300×680mm | 2270×810mm |
| Battery | 4×6V/200Ah | 4×6V/200Ah | 2×12V/80Ah | 4×6V/200Ah |
| Total Weight | 2100kg | 1200kg | 860kg | 2050kg |
