Oil-Free Pump Glass and Steel Plate Lifting Equipment

1 / 5

Oil-Free Pump Glass and Steel Plate Lifting Equipment

Customization:	Available
After-sales Service:	Video Technical Support
Warranty:	1year

Send Inquiry

Product Description

Basic Information

Model NO.

GL-SC

Cup Quantity

Max Loading

300-1000kg (Customizable)

Application

Moving Metal, Glass, Steel, Stone

Vacuum Source

Oil-Free Vacuum Pump

Safety Guarantee

Pressure Holding

Rocker Arm Rotation

0~360 Degree

Input Air Pressure

0.6-0.85MPa

Power Supply

AC 200V/380V or DC 12V/24V

Production Capacity

5000 PCS/Year

Product Overview

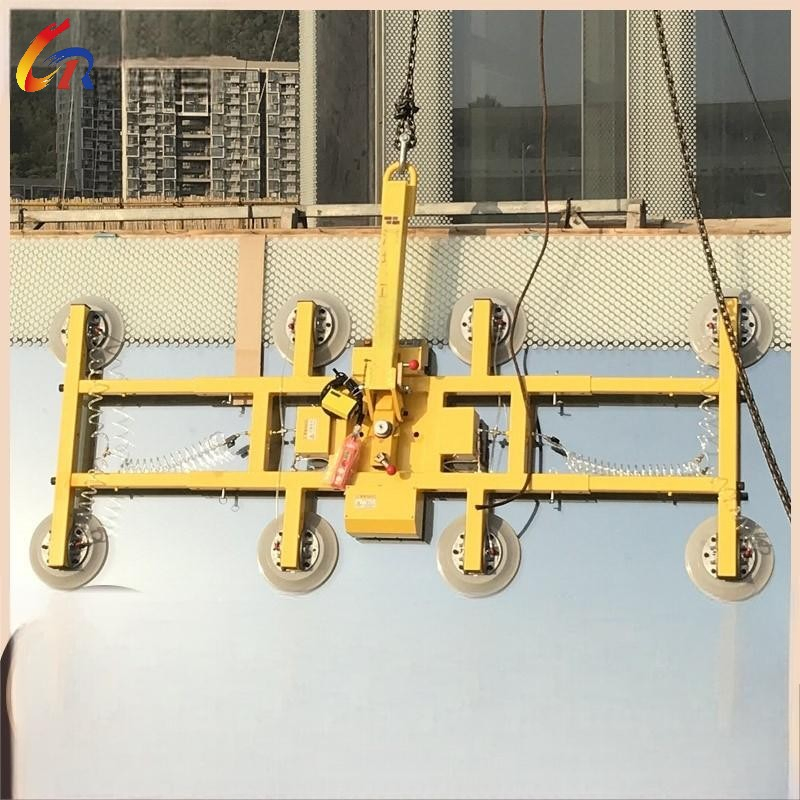

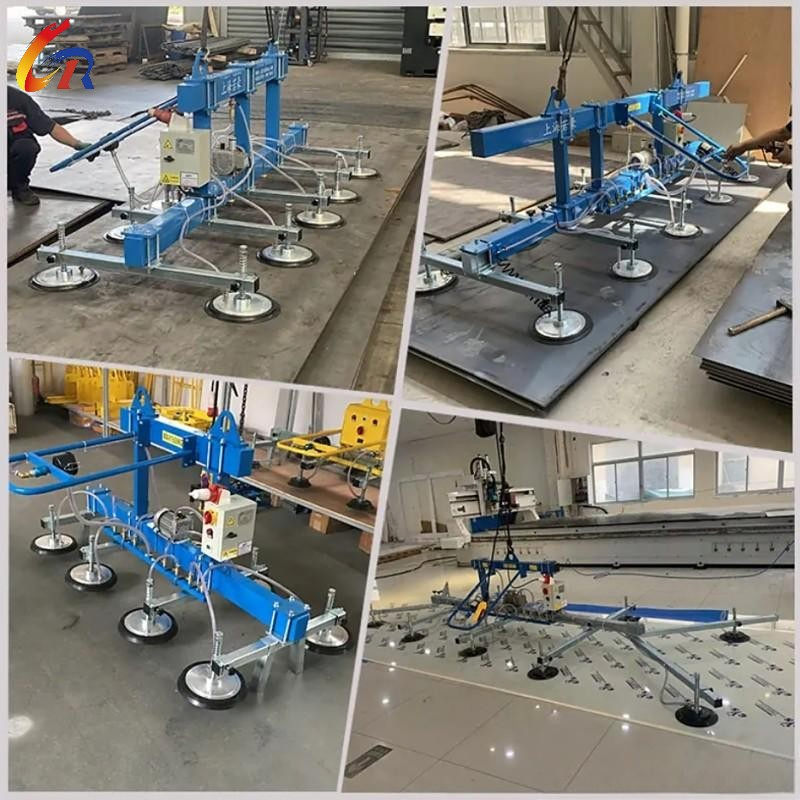

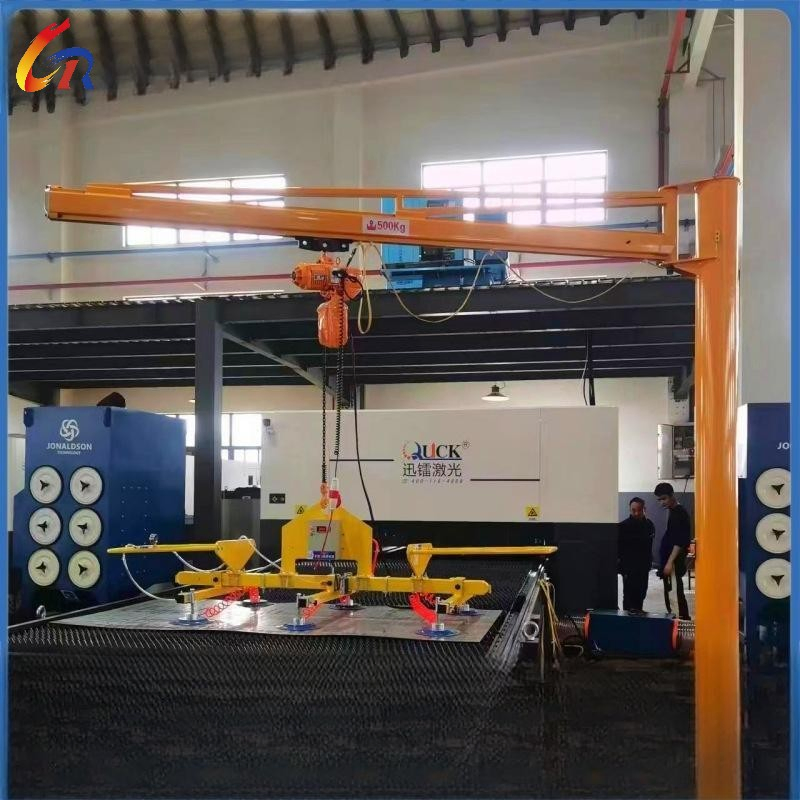

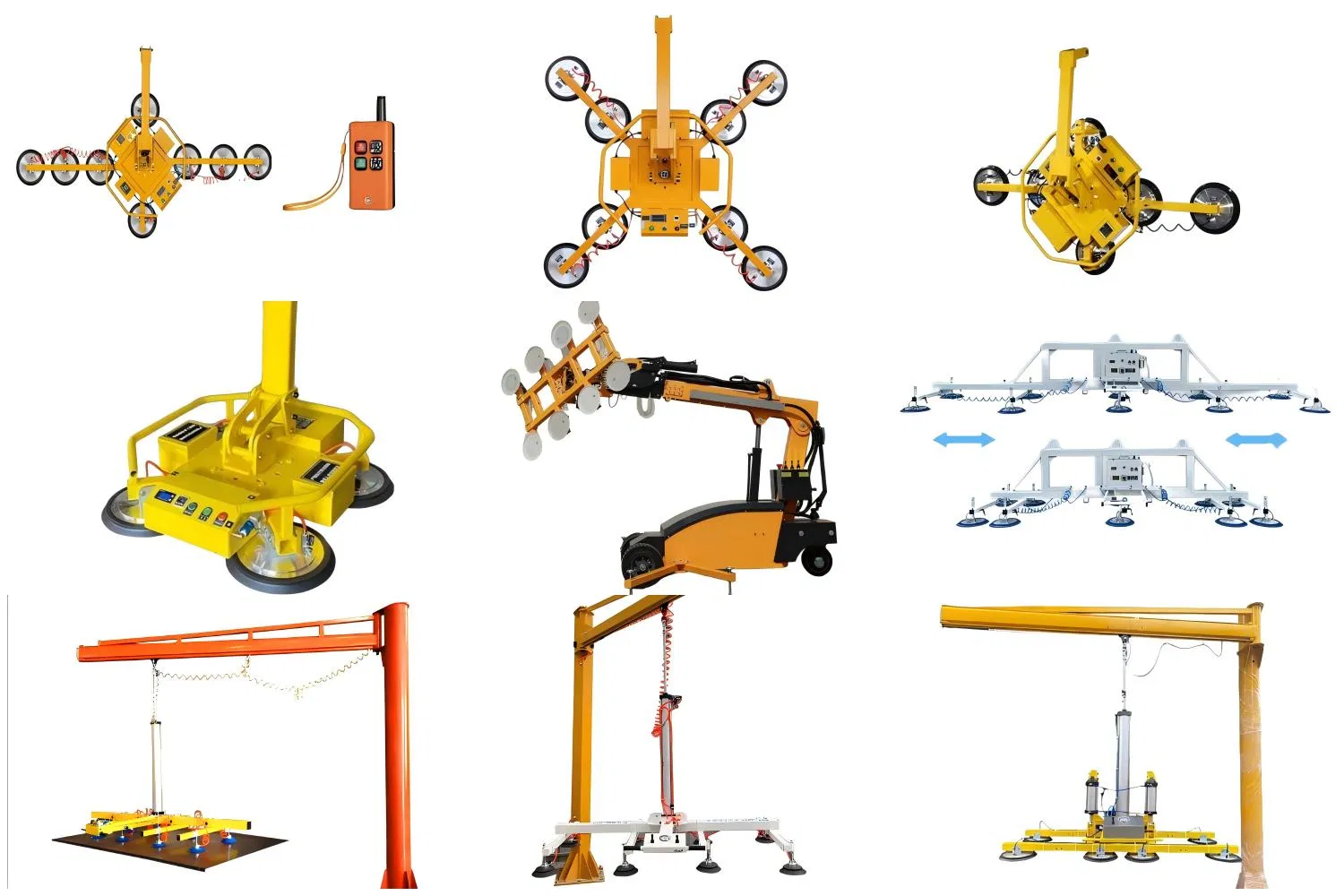

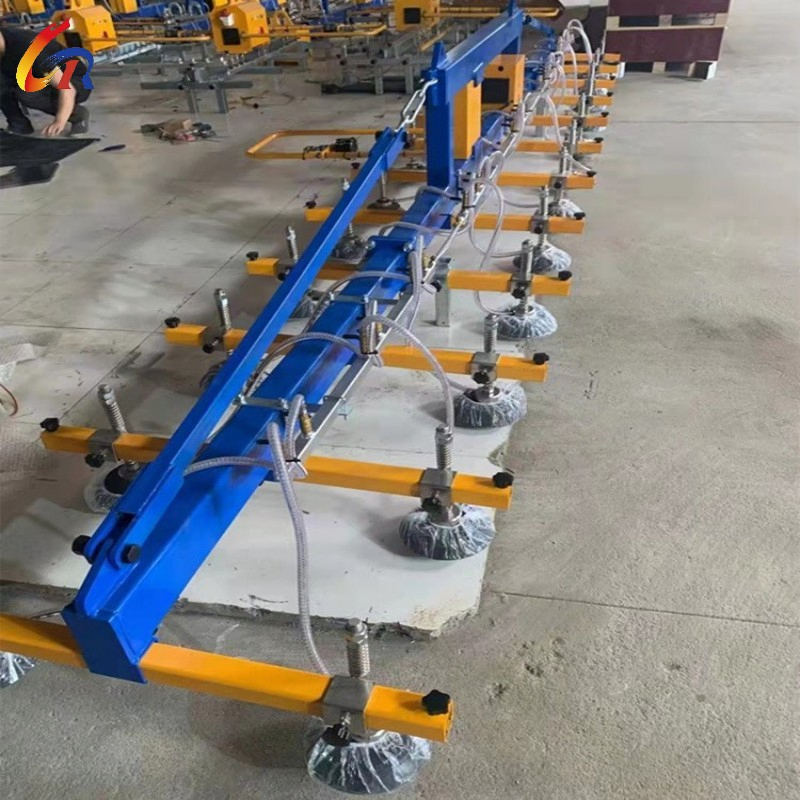

Versatile Vacuum Lifting Device: This vacuum lifter provides an efficient and reliable solution for handling flat and smooth materials in both indoor and outdoor environments. Constructed with a high-strength frame and equipped with powerful suction cups, it ensures secure gripping and safe lifting.

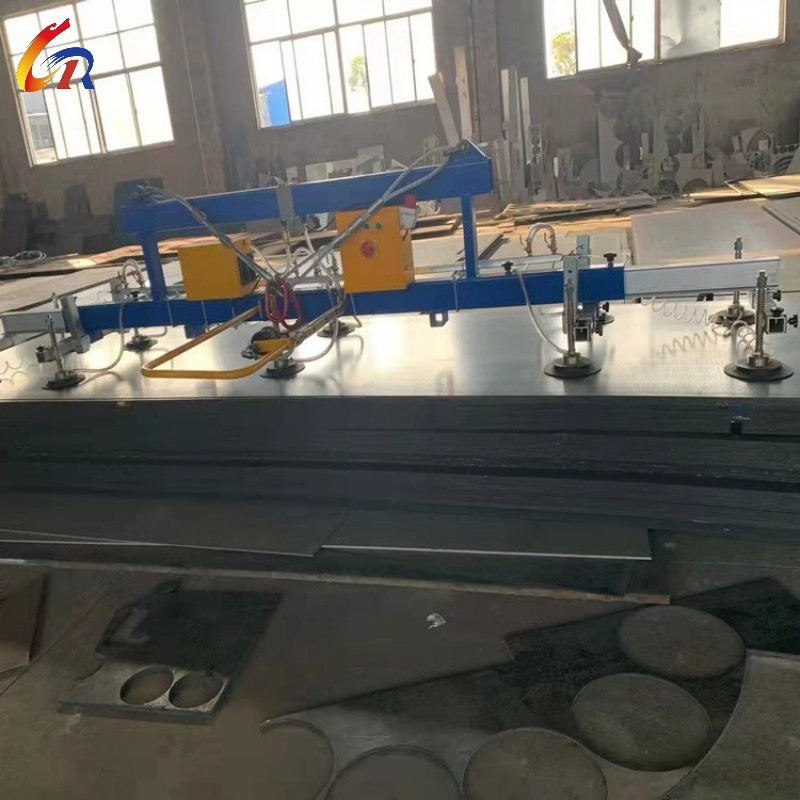

The system can be tailored with manual or electric tilting, rotating, and flipping functions to meet diverse application needs. Ideal for glass, steel plates, panels, and stone slabs, it offers precise, damage-free handling for various material handling operations.

Key Configurations & Features

✓

Strong Suction: High-performance vacuum pump ensures reliable grip.

✓

Multi-Direction: Supports 90° tilting and 360° rotation.

✓

Built-in Safety: Vacuum gauge and alarm system for secure operation.

✓

Adjustable Arms: Fit different load sizes and material shapes.

✓

Durable Pads: High-quality replaceable suction cups.

✓

Weather Resistant: Anti-corrosion finish suitable for outdoor use.

Technical Specifications

Item	Specification Range	Remarks
Lifting Capacity	100 kg ~ 8000 kg	Based on suction pad quantity
Suction Pad Diameter	150 mm ~ 400 mm	Optional sizes available
Power Supply	12V / 24V DC / AC / Battery	Customizable
Control Method	Pendant / Wireless Remote	Manual or electric
Tilting Function	0° ~ 90°	Manual or motorized
Vacuum Holding Time	≥ 30 min (after power loss)	Safety protection
Operating Temperature	-10°C ~ +50°C	Indoor and outdoor use

Frequently Asked Questions (FAQ)

Q1: What materials can this vacuum lifter handle? A: It is suitable for glass, metal sheets, stone slabs, plastic panels, and other flat or smooth surfaces.

Q2: Can the lifter be used outdoors? A: Yes. The unit is weather-resistant and comes with anti-corrosion treatment for outdoor use.

Q3: What happens if the power cuts off during lifting? A: The system is equipped with a non-return valve and vacuum reservoir to maintain suction for at least 30 minutes to ensure safety.

Q4: Can I adjust the number or position of suction cups? A: Yes. The suction pads are modular and can be repositioned or added according to the load size.

Q5: Is remote control operation available? A: Yes. Both pendant and wireless remote control options are available for ease of use.

Q6: What power supply options are available? A: You can choose from 12V/24V battery, 220V/380V AC, or pneumatic systems depending on your working site requirements.
