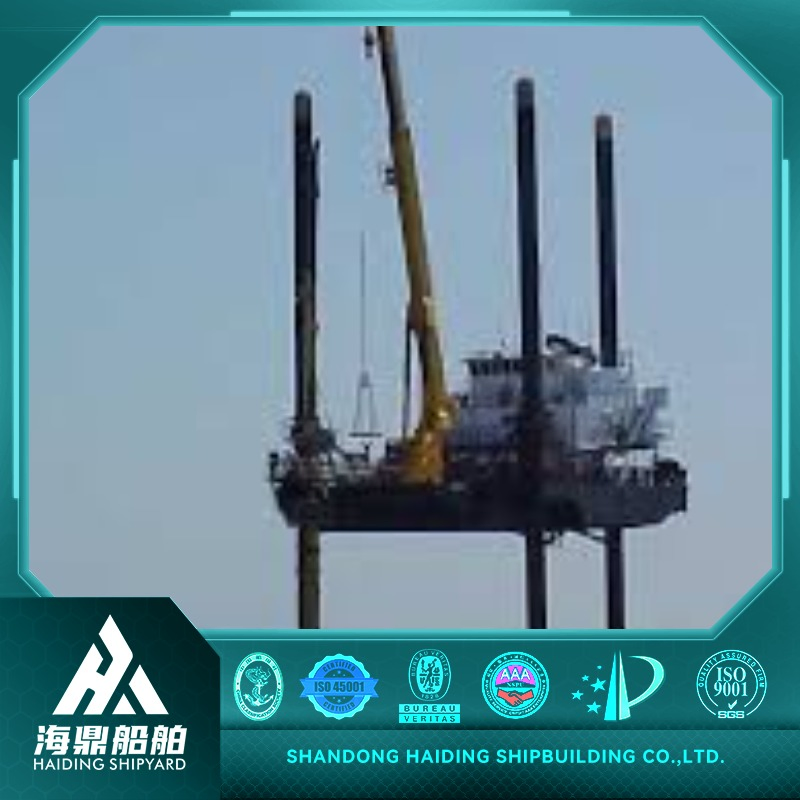

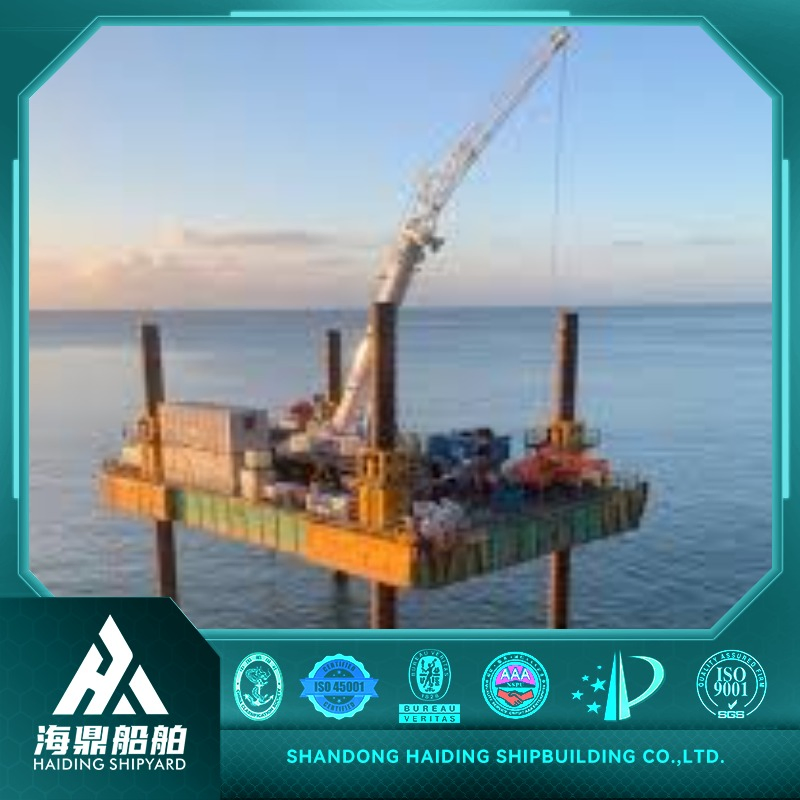

Modular Living Facilities Offshore Jack-up Production Platform Personnel Living Support Lifting Device Jack up Barge

1 / 5

Modular Living Facilities Offshore Jack-up Production Platform Personnel Living Support Lifting Device Jack up Barge

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

HD-PT12

Hull Material

Steel

Type

Jack up Barge

Condition

New

Length

11.80m

Width

11.80m

Mold Depth

1.5m

Max Load

30t

Deck Strength

3t/M²

Lifting Method

Hydraulic/ Mechanical Locking

Jacking Speed

22m/H

Certification

ISO

Product Description

⚓ Offshore Lifting Platform

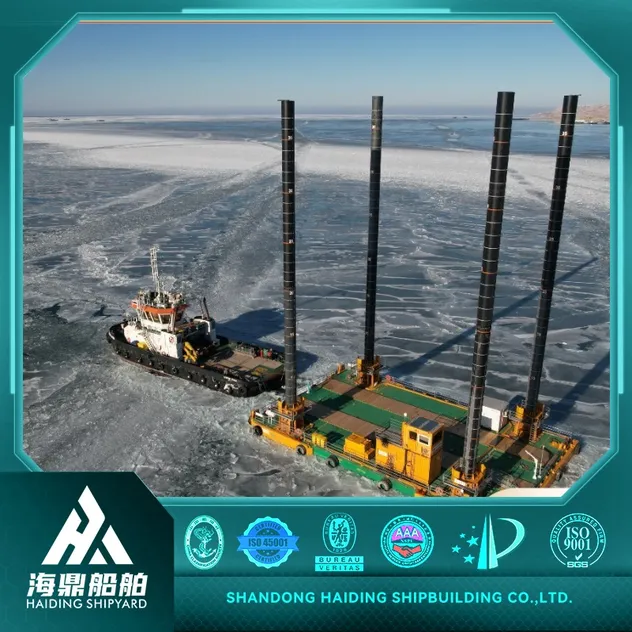

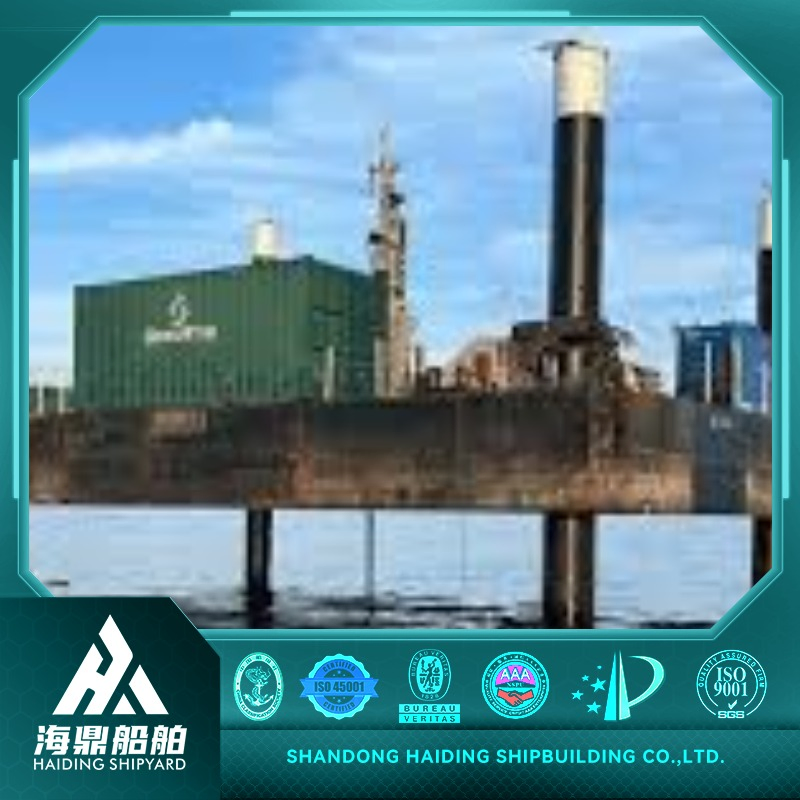

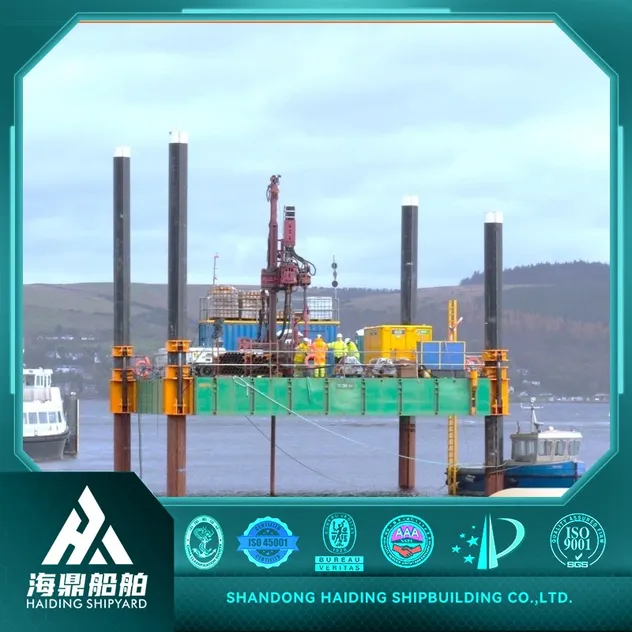

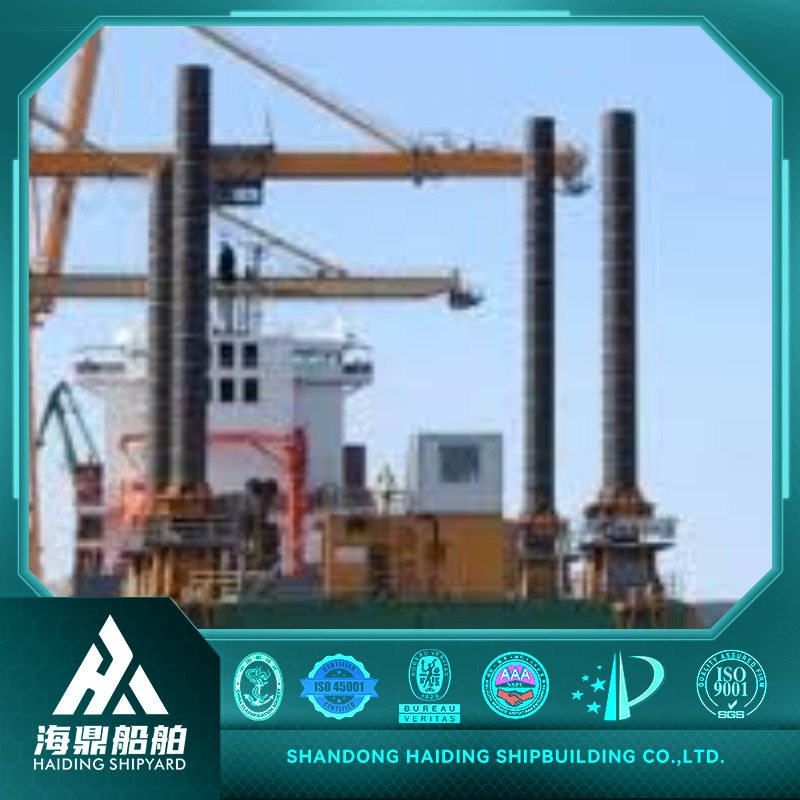

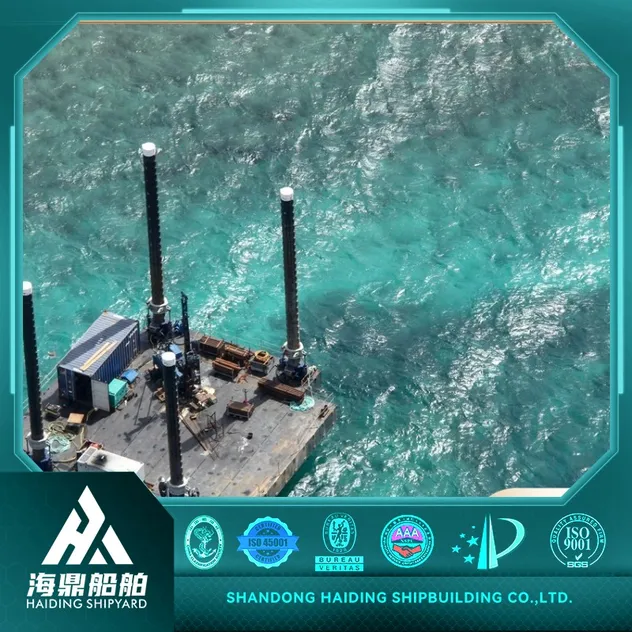

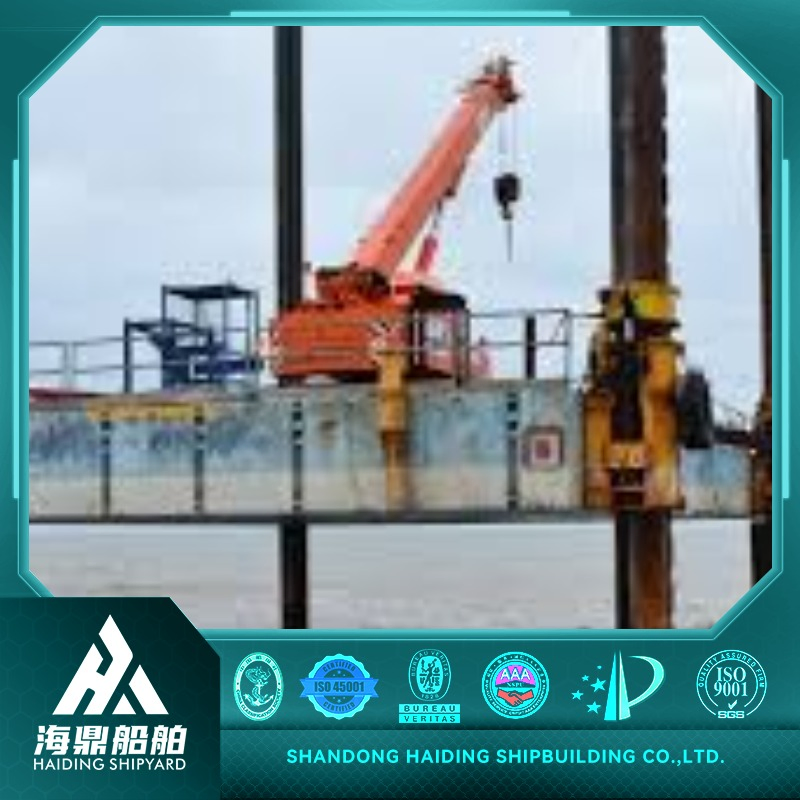

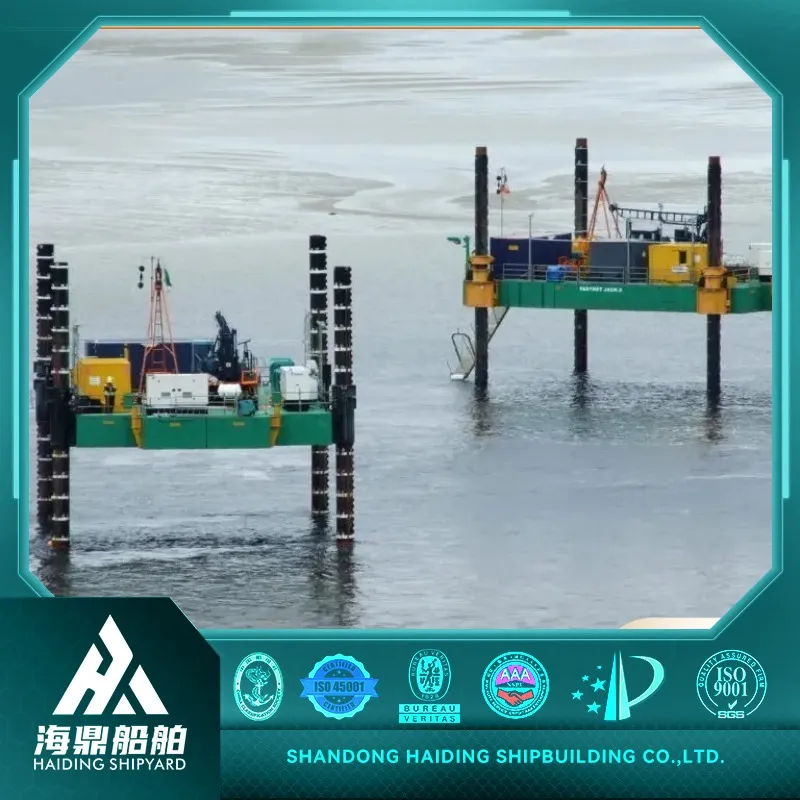

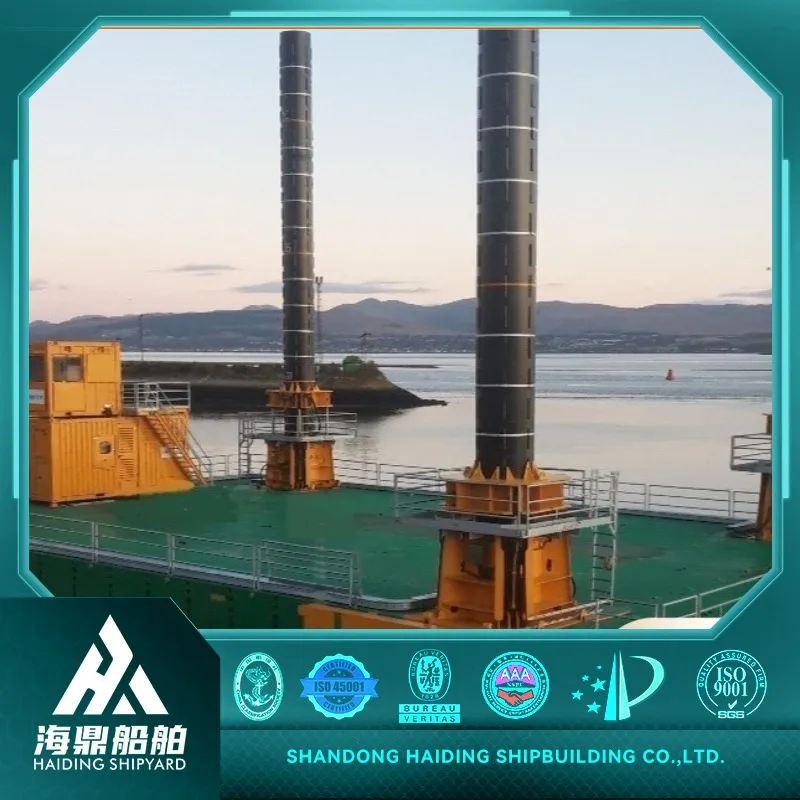

The Offshore Lifting Platform is equipped with lifting pile legs and an optional propulsion system. During operation, the pile legs are inserted or seated into the seabed, allowing the ship to climb up the legs and leave the sea surface. This maintains a specific air gap, protecting the operation from seawater impact. Once tasks are complete, the legs retract, and the ship returns to a floating state. The integrated propulsion system allows for self-navigation to new work areas, eliminating the need for sea towing. This platform is ideal for carrying drilling equipment, heavy-duty cranes, and excavation tools.

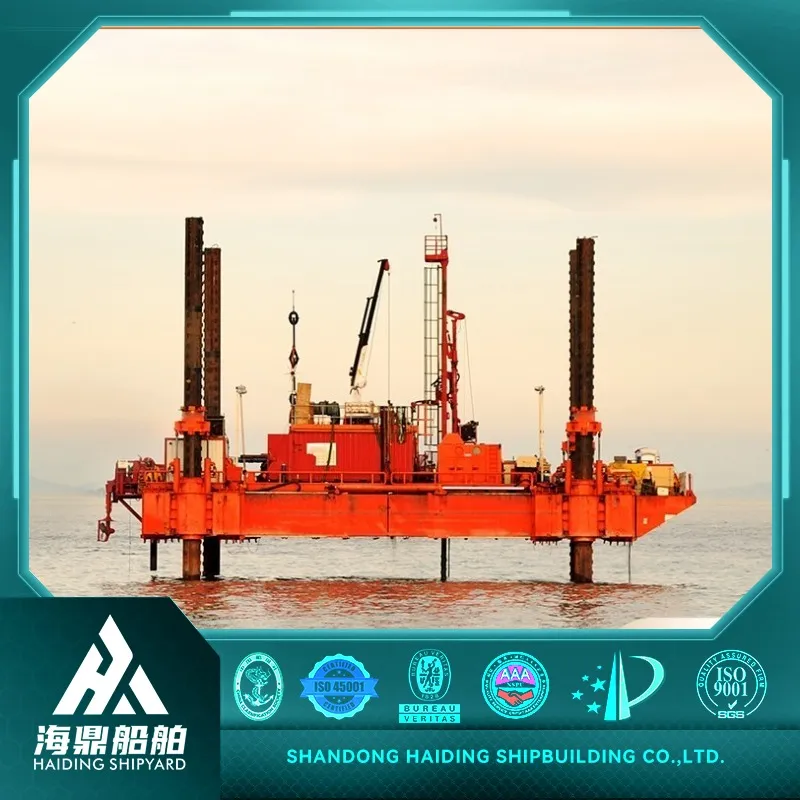

Primary Applications

Energy Development: Supports offshore oil drilling, natural gas extraction, and wind farm construction.

Marine Engineering: Essential for port construction, submarine pipeline laying, and bridge building.

Scientific Research: Facilitates geological exploration, ecological monitoring, and deep-sea studies.

Resource Exploitation: Supports mineral exploration and deep-sea sampling for gas hydrates.

Emergency Rescue: Acts as a temporary command platform for maritime rescues and oil spill responses.

Key Advantages

✓ High homework stability with stable pile leg support for harsh sea conditions.

✓ Fast lifting function for high operational efficiency in various water depths.

✓ Modular production for convenient container loading and rapid assembly.

✓ Large deck space and efficient lifting capability for versatile use.

✓ Superior safety performance with excellent positioning and emergency avoidance.

Technical Specifications

Model	HD-PT12	HD-PT22	HD-PT30	HD-PT36
Length	11.80m	22.0m	30.5m	36.6m
Width	11.80m	18.0m	18.3m	27.4m
Mold Depth	1.5m	2.0m	2.2m	2.8m
Free Deck Area	80m²	322m²	520m²	910m²
Max Load	30T	100T	150T	350T
Deck Strength	3T/m²	15T/m²	15T/m²	15T/m²
Jacking Speed	22m/h	22m/h	12m/h	18m/h
Lifting Capacity	40T/spud	40T/spud	300T/spud	600T/spud

Model	HD-PT55	HD-PT60
Length Overall	55.5m	60.0m
Width/Breath	32.2m	45.0m
Free Deck Area	1000m²	2200m²
Max Load	800T	1000T
Positioning Pile Height	78.85m	80.0m
Lifting Speed	0.4m/min	1m/min

After-Sales Service

🛠 On-Site Installation: We dispatch specialized technicians for hands-on installation guidance and operational training.

🛡 Warranty: 12-month comprehensive warranty on all new components, engines, and hull structures.

📞 24/7 Support: Our technical and sales teams deliver round-the-clock service to ensure operational success.

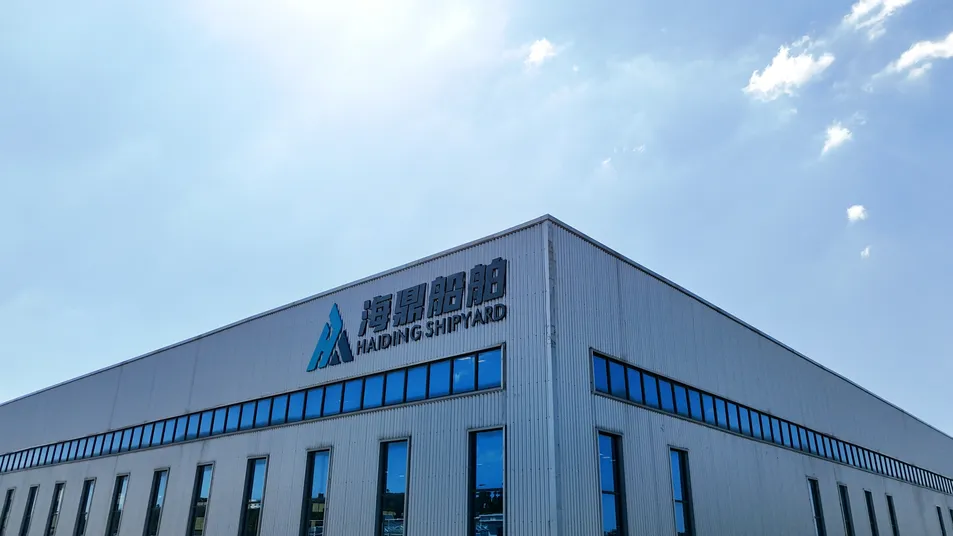

Professional Ship Manufacturing

We are a specialized manufacturer of engineering ships, focusing on modular transportation solutions. Our expert team tailors every vessel to meet specific project needs, ensuring high quality and cost-efficiency.

Frequently Asked Questions

Q1: What types of engineering ships do you manufacture?

We specialize in cutter suction dredgers, multi-purpose service ships, deck barges, offshore jack-up platforms, transport ships, and various special-shaped engineering vessels for sand excavation, river dredging, and port construction.

Q2: Why is modular design important for these platforms?

Modular design allows for easy transportation in standard containers, significantly reducing shipping costs and enabling rapid assembly and dismantling at the project site.

Q3: What are the standard payment terms for an order?

Typically, payment is made via T/T: 30% in advance, 40% after engine installation, and the remaining 30% before shipment.

Q4: How are the platforms delivered to international clients?

Delivery is handled either in standard containers or as bulk cargo, depending on the specific size and configuration of the platform.

Q5: What does the 12-month warranty cover?

The warranty covers all newly installed components, including the engine, hull structure, and all fabricated parts against manufacturing defects.

Q6: Can the platforms be customized for specific water depths?

Yes, the height of the positioning piles can be increased or customized to meet the specific depth requirements of your offshore project.
