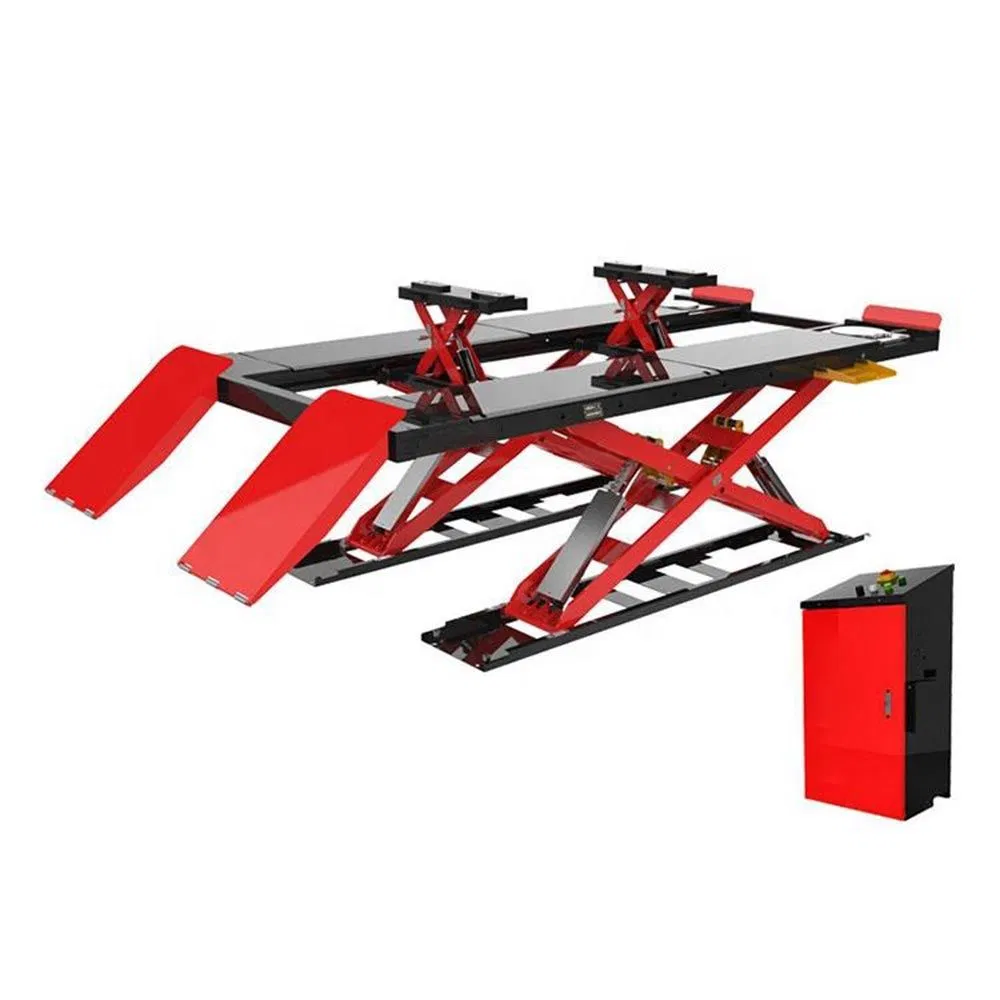

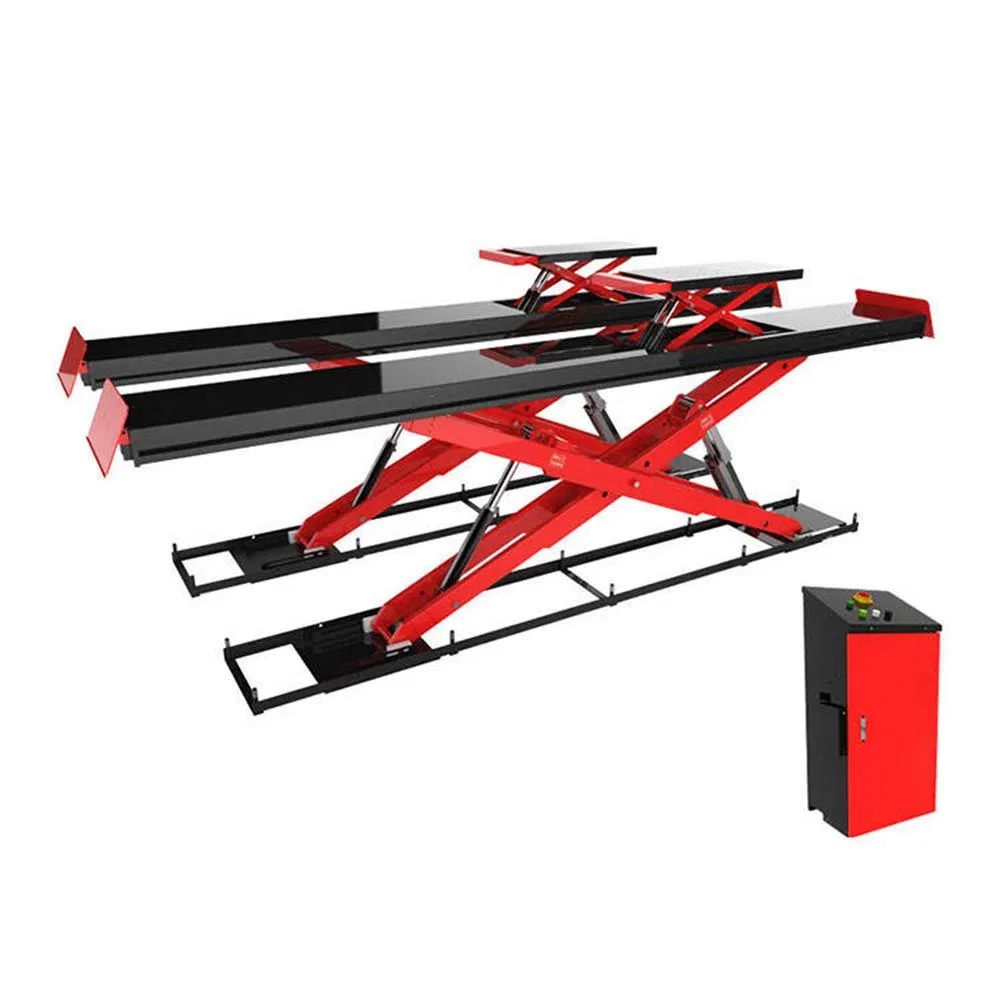

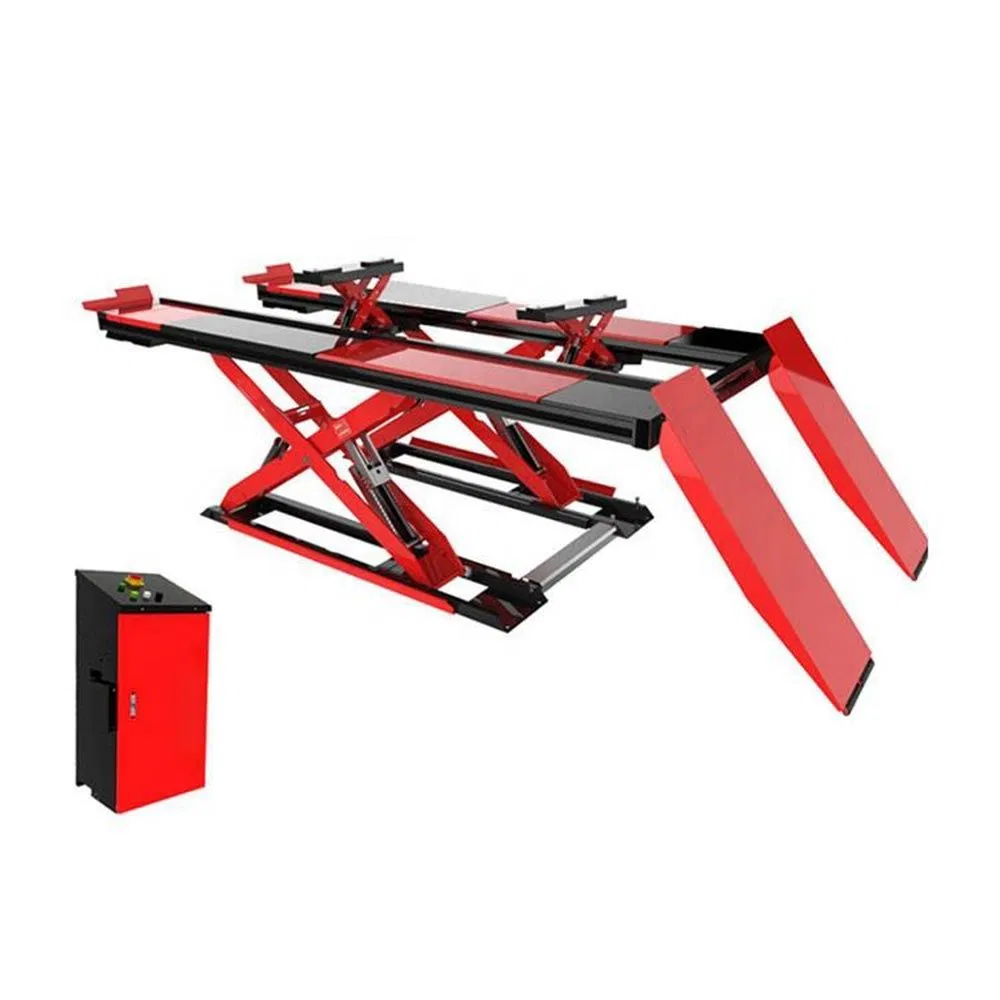

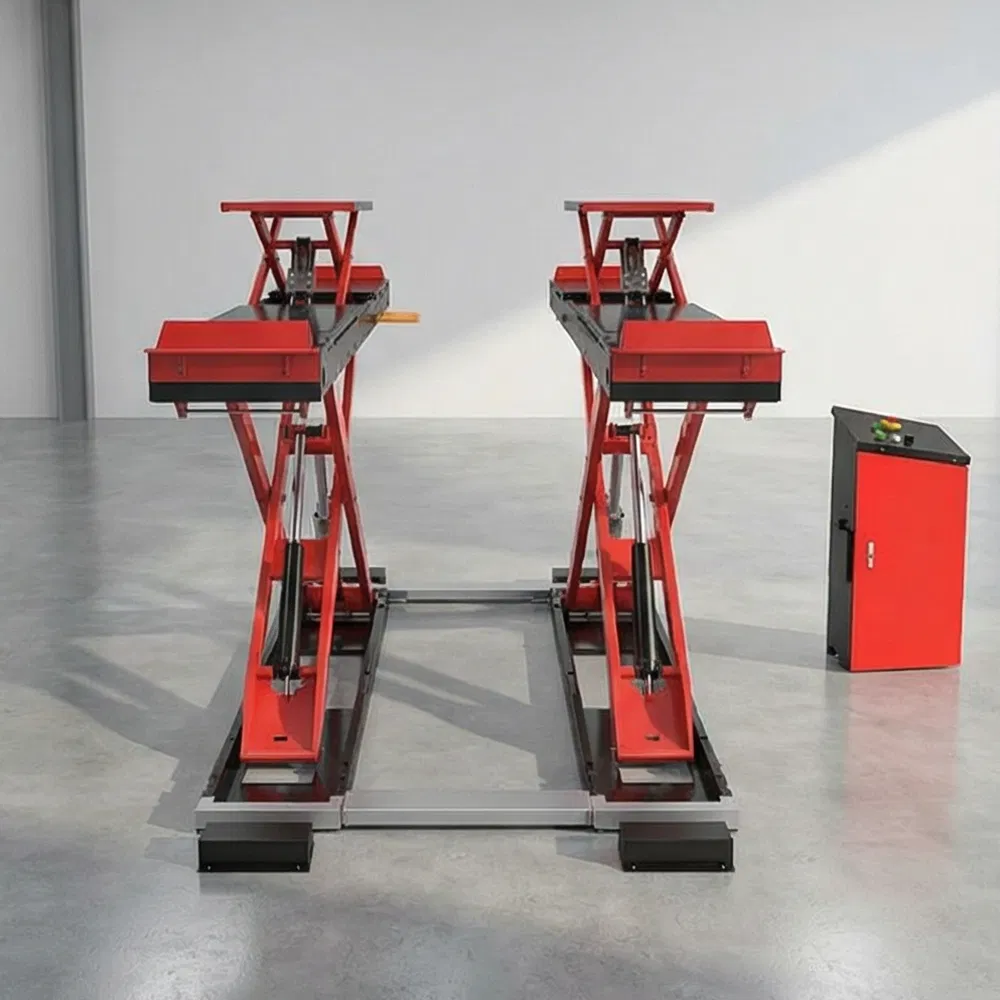

Mobile 3.5t Scissor Alignment Car Lift Scissor Hydraulic Alignment Car Lift

Customization:	Available
After-sales Service:	--
Warranty:	15 Months

📋 Basic Information

Model NO.

Alignment Scissor Lift

Type

Four Cylinder Hydraulic Lift

Lifting Capacity

≥5T

Certification

CE, ISO

Usage

Garage Equipment

Max Lifting Height

1000mm - 2010mm(Optional)

Motor Power

2.2 Kw

Power Supply

110/220/240/380/415V(Optional)

🛠️ Product Description

If you do wheel alignment work, you need an alignment lift for raising vehicles off the ground. It is essential because you have to get under the vehicle to inspect the steering and suspension before you check the alignment.

Alignment lifts incorporate a number of special features. These include built-in turn plates and skid plates. Turn plates are used to check toe-out and caster when the wheels are steered to either side. Slip plates are necessary with independent rear suspensions so the suspension can settle to its normal ride height.

Types of Systems Available

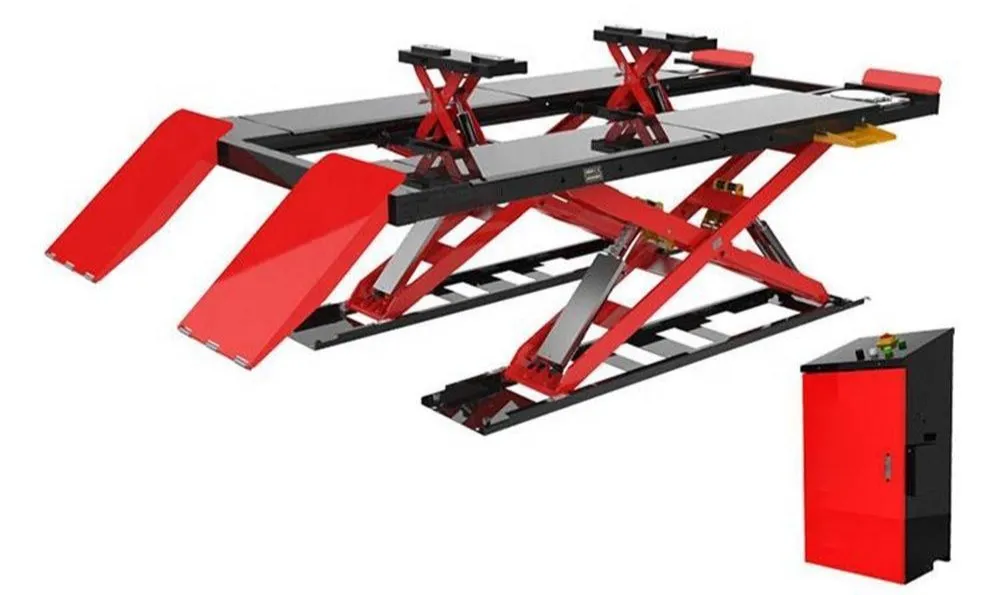

Rolling Jack: Unique roller system that allows the rolling hydraulic jack to glide easily under the entire length of the vehicle.

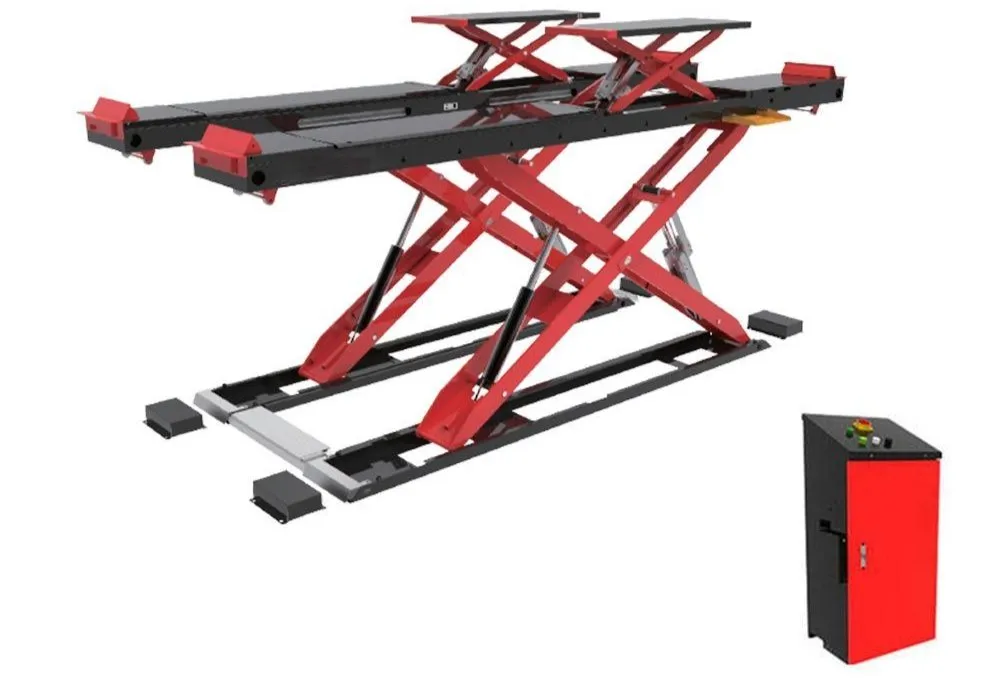

Wheels Free Lift: Built-in lifting system that raises the vehicle by the frame, lifting wheels off the runways.

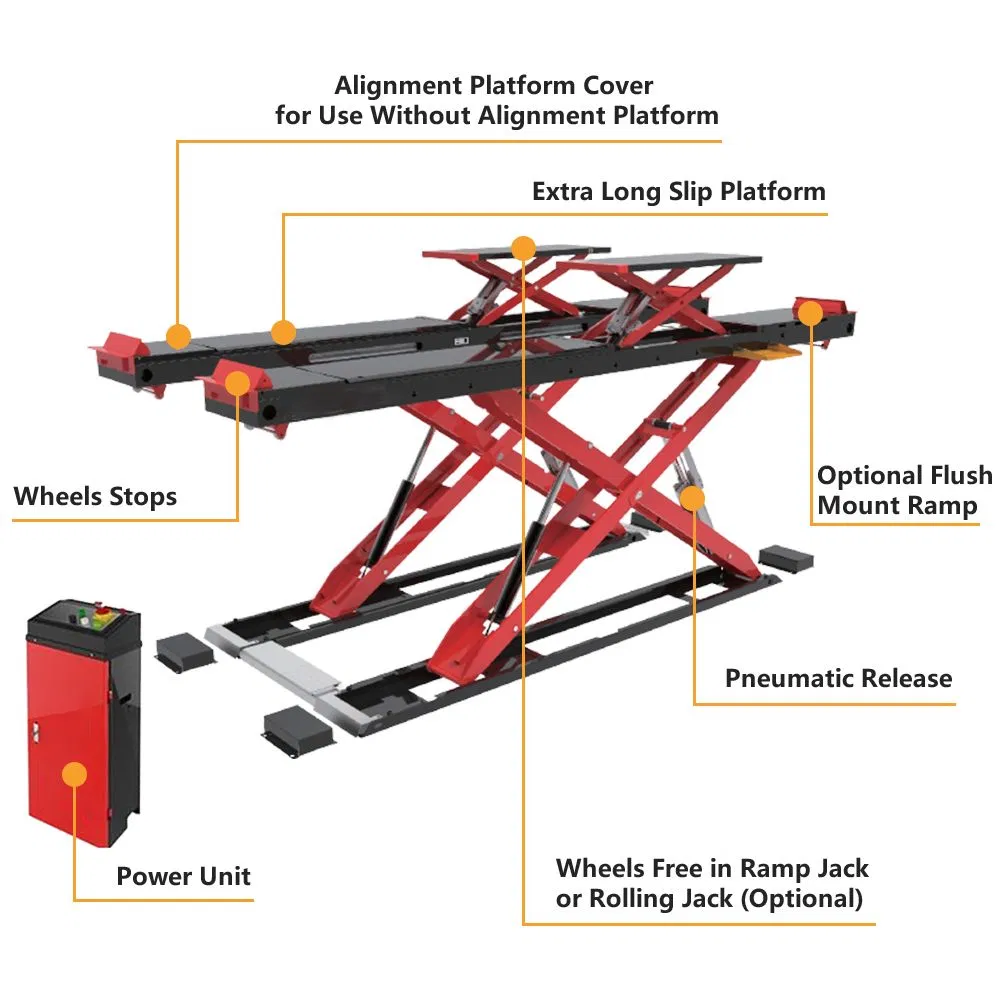

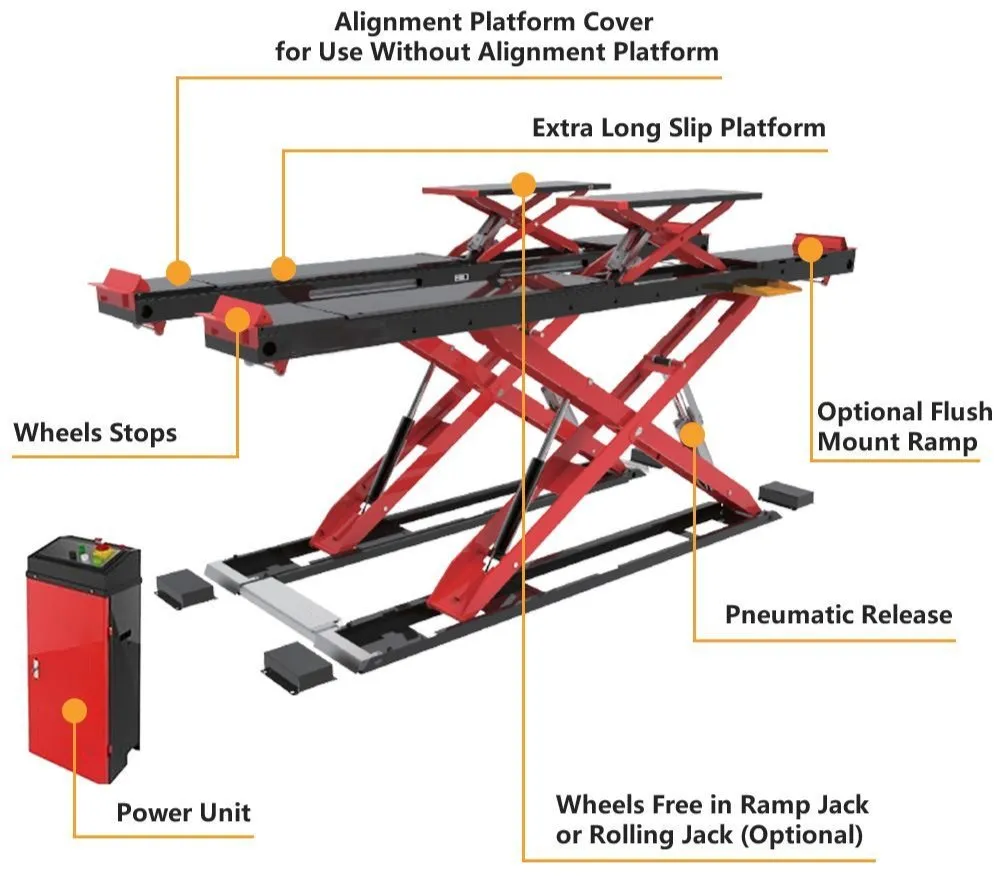

🌟 Key Features

Alignment scissor lift-pneumatic release.
In-ground and above-ground installation options.
Built in "Wheels Free" lifting system or rolling jack (Optional).
Built in slip plates and alignment turntables.
Open center design for easy access.

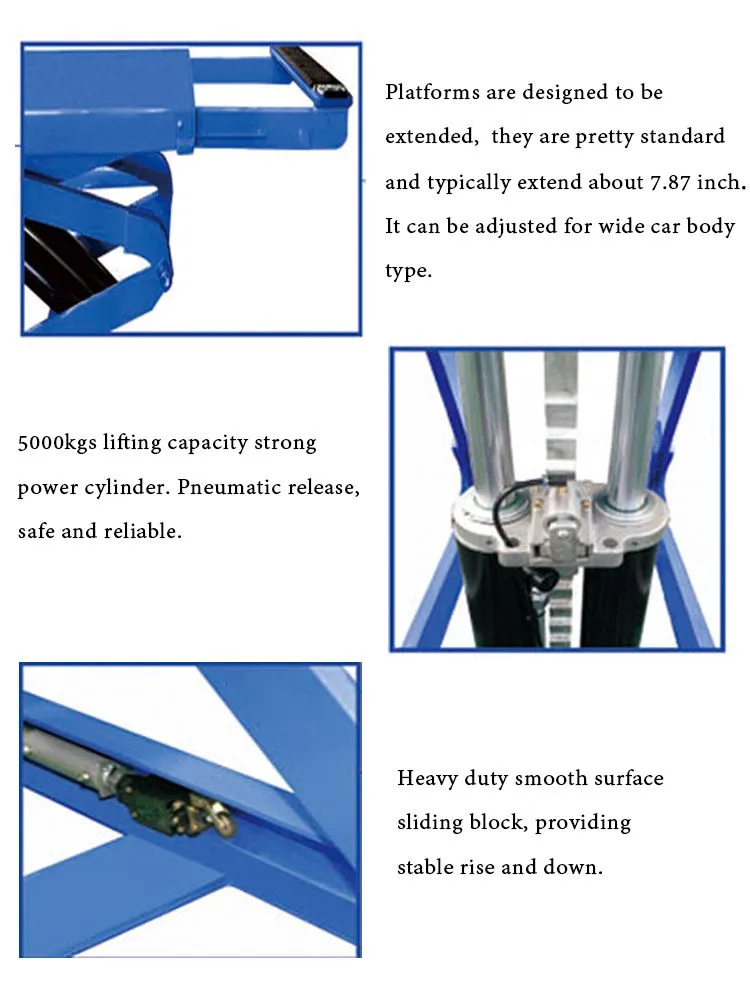

Four cylinder drive and dual safety structure design.
Self-lubricated bushing and bearing for extended service life.
115% dynamic load capacity and 150% static load capacity tested.
CE certificated for safety and quality.

📊 Specifications

Parameter	Details
Max Lifting Capacity	5000KG (Optional)
Max Lifting Height	1000mm - 2010mm (Optional)
Min Lifting Height	100mm (Optional)
Lifting Time	About 40 - 50s (Adjustable)
Motor Power	2.2KW / 3KW
Power Supply	110V/220V/240V/380V/415V
Locking System	Pneumatic Release
Warranty	15 Months

🏭 Factory & Delivery

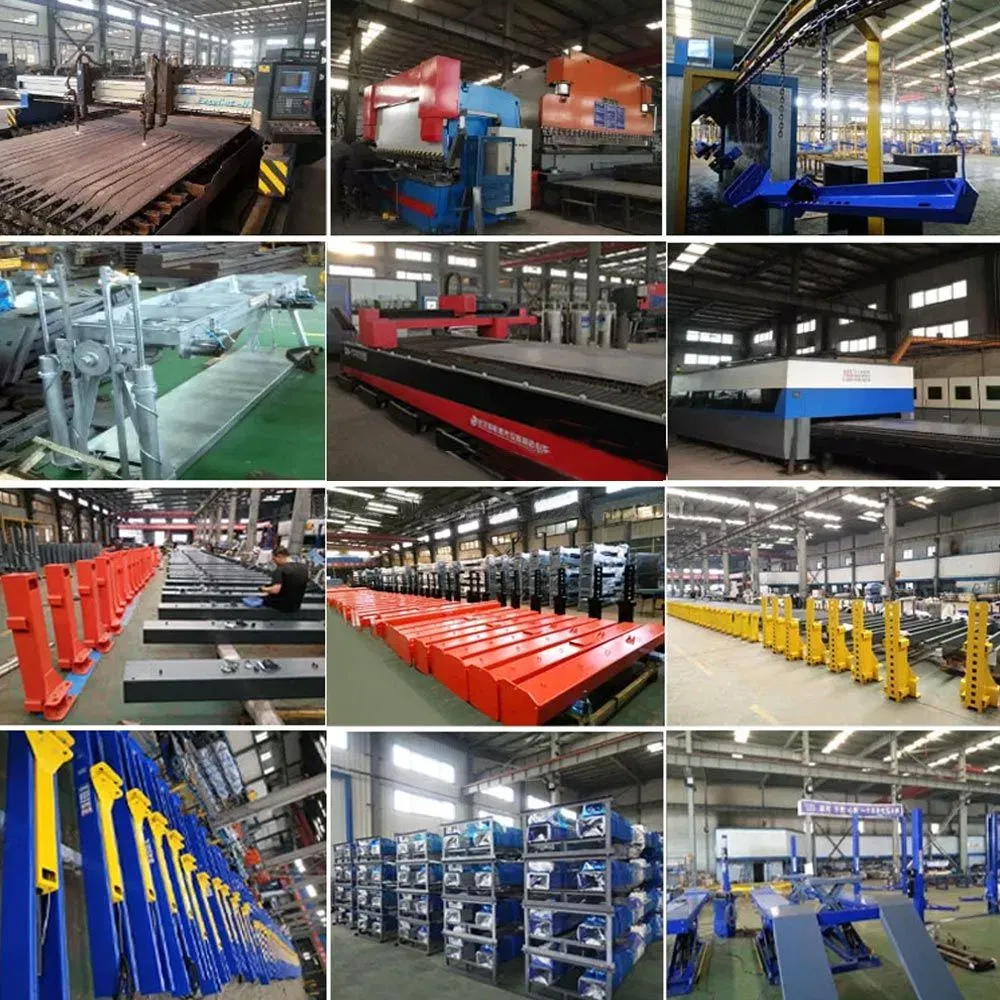

Our production facility is committed to high-quality vehicle equipment manufacturing, covering a wide range of semi-trailers and specialized car lifts, including scissor, single-post, 2-post, and 4-post models.

❓ Frequently Asked Questions

Q1: What is the lead time for an order?

The delivery time is usually determined by the order quantity, typically around 30 days.

Q2: What is the Minimum Order Quantity (MOQ)?

The MOQ for our car lift products is 1 unit.

Q3: Do the lifts come with mounting hardware?

Yes, all car lifts are shipped with the necessary anchor bolts and hardware required for floor mounting.

Q4: What kind of hydraulic fluid is required?

The lifts are designed to operate using standard 10-weight, non-foaming, non-detergent hydraulic oil or Dexron-II ATF fluid.

Q5: Do I need a special floor foundation?

Most commercial or residential concrete foundations are sufficient. A level floor is suggested for proper installation and balanced lifting.

Q6: Are customized OEM services available?

Yes, we offer customized services and OEM production according to your specific requests.
