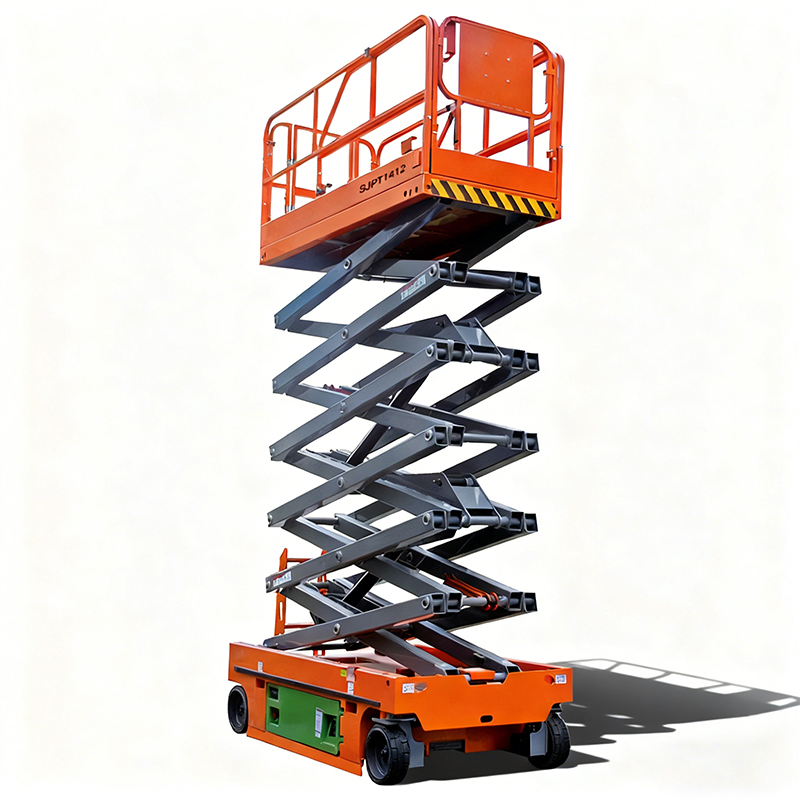

4m 6m 8m 10m 12m Small Compact Mobile Hydraulic Rough Terrain Genie Aerial Elevating Work Platform Self-Propelled off-Road Electric Wheeled Man Scissor Lift

📋 Basic Information

Model NO.

SJPT1012

Lift Mechanism

Scissor Lift

Driven Type

DC Electric

Max. Working Height

12m

Rated Load

450kg

Platform Size

227*113cm

Certification

CE, ISO 9001

Production Capacity

100 Sets/Month

🏗️ Product Description

Maintenance Aerial Work Machine Electric Hydraulic Scissor Lift

This high-reach electric scissor lift is designed for demanding aerial work tasks, offering exceptional lifting height, smooth electric travel, and multi-layer safety protection. Ideal for 12–16m working height requirements.

Emergency lowering system
Automatic pothole protection
Tilt protection system
Automatic braking system
Fault diagnosis system
Non-marking solid rubber tires

📊 Technical Specifications

Model	SJPT0812	SJPT1012	SJPT1212	SJPT1412
Dimensions
Max. Working Height	9.8m	11.8m	13.8m	15.8m
Max. Platform Height	7.8m	9.8m	11.8m	13.8m
Platform Length/Width	2270x1130mm	2270x1130mm	2270x1130mm	2730x1130mm
Overall Length	2490mm	2490mm	2490mm	2870mm
Performance
Rated Load Capacity	450kg	450kg	450kg	450kg
Travel Speed (Stowed)	3.5Km/h	3.5Km/h	3.5Km/h	3.5Km/h
Lift Motor	24V/4.5KW	24V/4.5KW	24V/4.5KW	24V/4.5KW
Gradeability	25%	25%	25%	25%
Power & Weight
Battery	4×12V/120Ah	4×12V/120Ah	4×12V/120Ah	4×12V/120Ah
Machine Weight	2430kg	2740kg	2910kg	3900kg

⭐ Key Features

⚡

Electric Travel & Electric Lift Efficient electric drive system ensures smooth lifting and stable movement, reducing operator fatigue and improving efficiency.

🛡️

Enhanced Safety System Equipped with tilt protection, pothole protection, emergency stop, fault diagnosis, and auto braking for maximum security.

↔️

Extendable Platform Deck The platform deck extends horizontally, increasing the working range and allowing easier access to overhead obstacles.

🏢

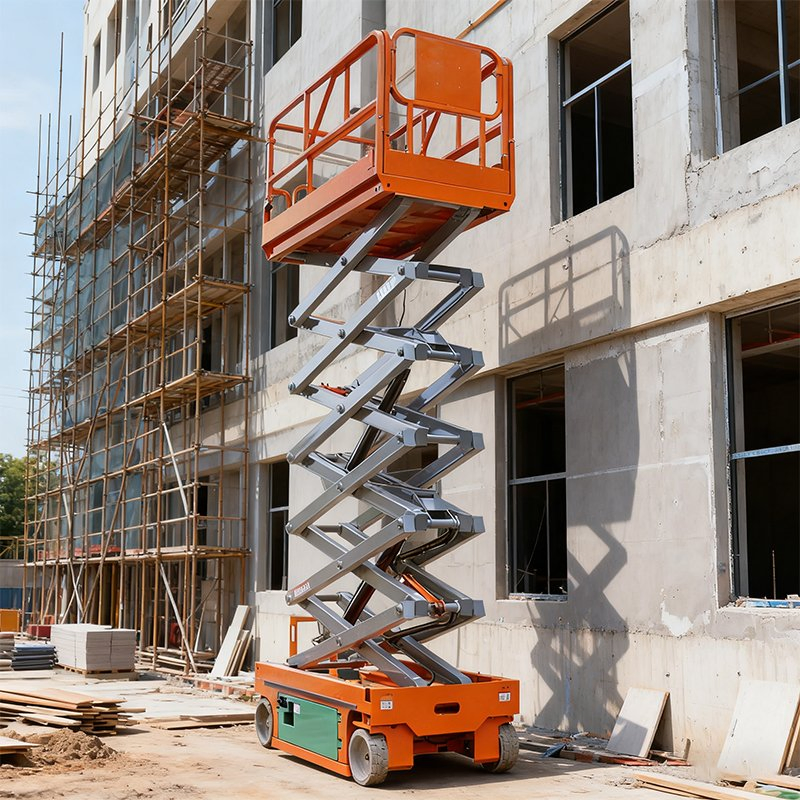

Versatile Scenarios Ideal for factories, airports, hotels, shopping malls, and construction projects for both indoor and outdoor maintenance.

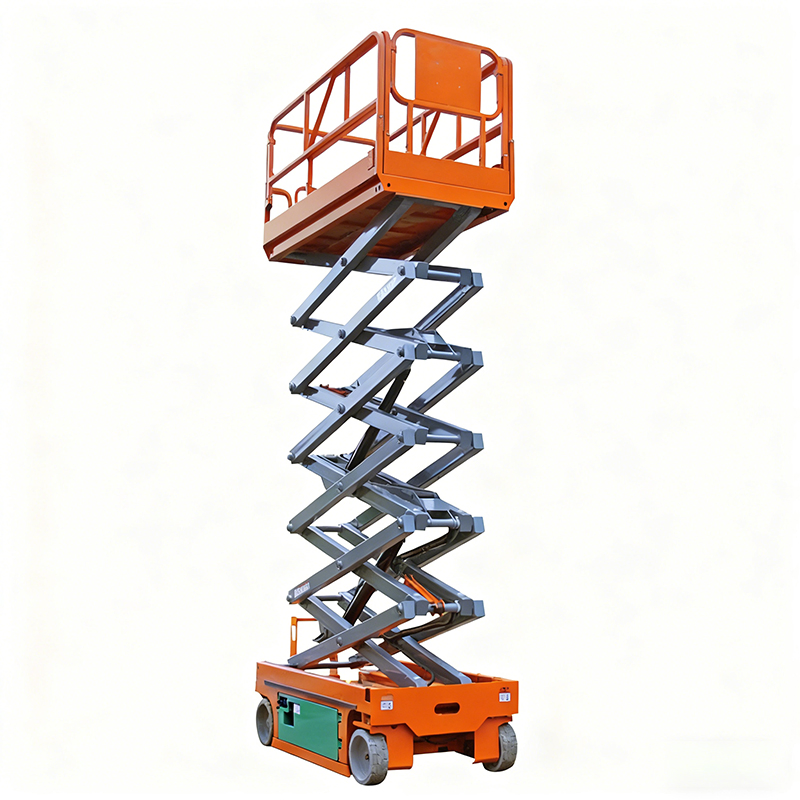

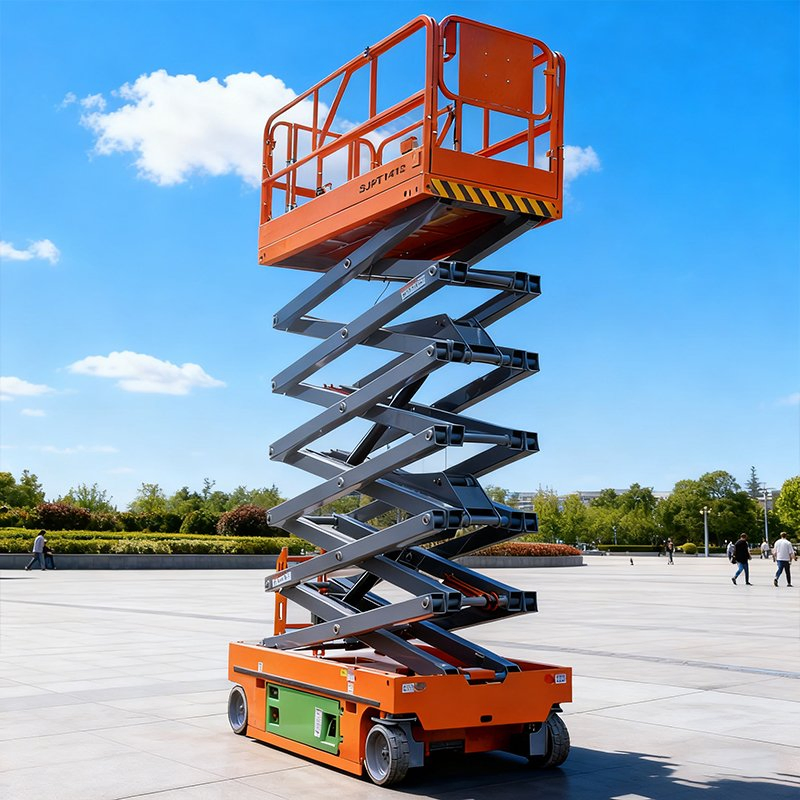

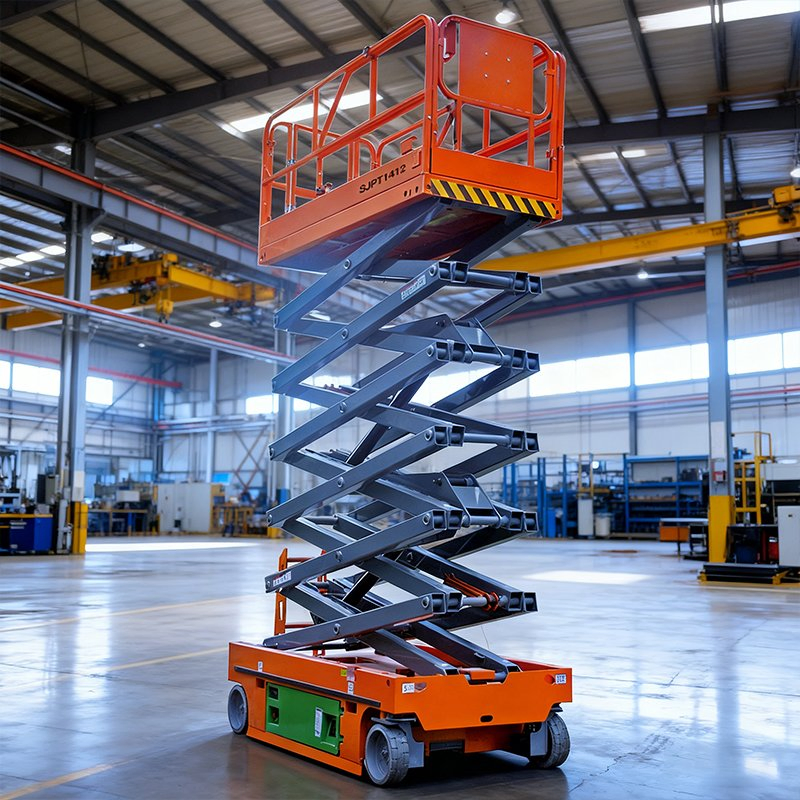

🖼️ Product Display

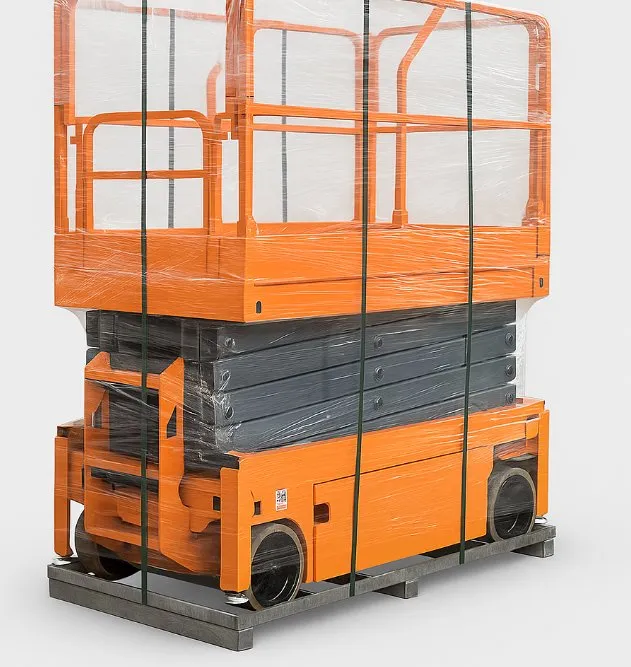

📦 Packing & Delivery

Standard export pallet for stability.
Waterproof protective film wrapping to prevent moisture.
Edge guard and anti-rust treatment for long-distance sea shipping.
Secured with steel straps for safety.
Suitable for 20GP and 40HQ container shipping.

🏭 Production Facility

❓ Frequently Asked Questions

1. Can this scissor lift be used on uneven ground?

The lift is designed primarily for flat surfaces. It includes pothole protection and tilt sensing that stops operation if unsafe angles are detected. For rough terrain, specific rough-terrain models are recommended.

2. How long does the battery last on a full charge?

Under standard working conditions, the 4×12V/120Ah battery provides approximately 6–8 hours of continuous operation.

3. Is customization for height or color available?

Yes, we support full customization including custom working heights, colors, branding/logo printing, and optional safety configuration upgrades.

4. What is the standard warranty period?

We provide a 12-month warranty for the entire machine (excluding wearing parts), along with free technical support and spare parts for non-human damage.

5. Are the tires suitable for indoor gym floors?

Yes, the machine is equipped with non-marking solid rubber tires specifically designed to protect indoor floors from scratches or marks.

6. How many people can work on the platform simultaneously?

The platform is rated for a maximum of 3 workers, with a total rated load capacity of up to 450kg.
