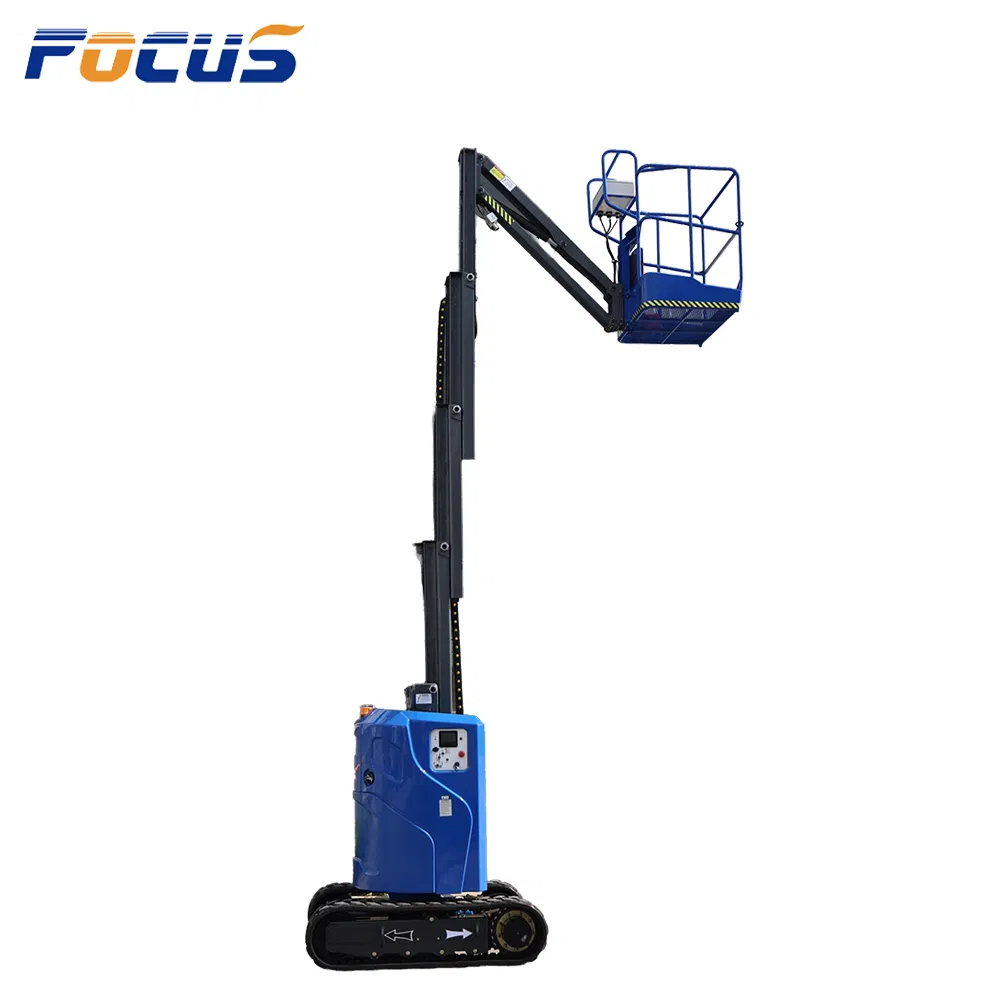

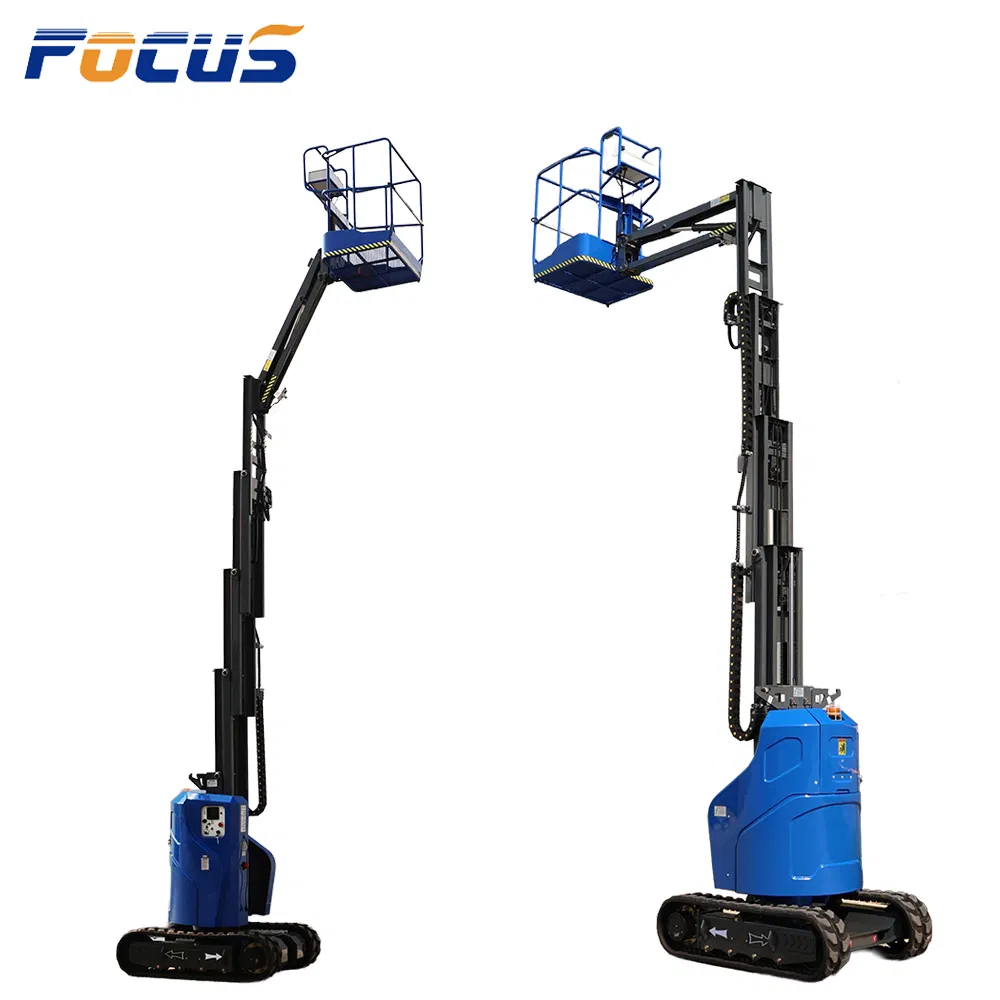

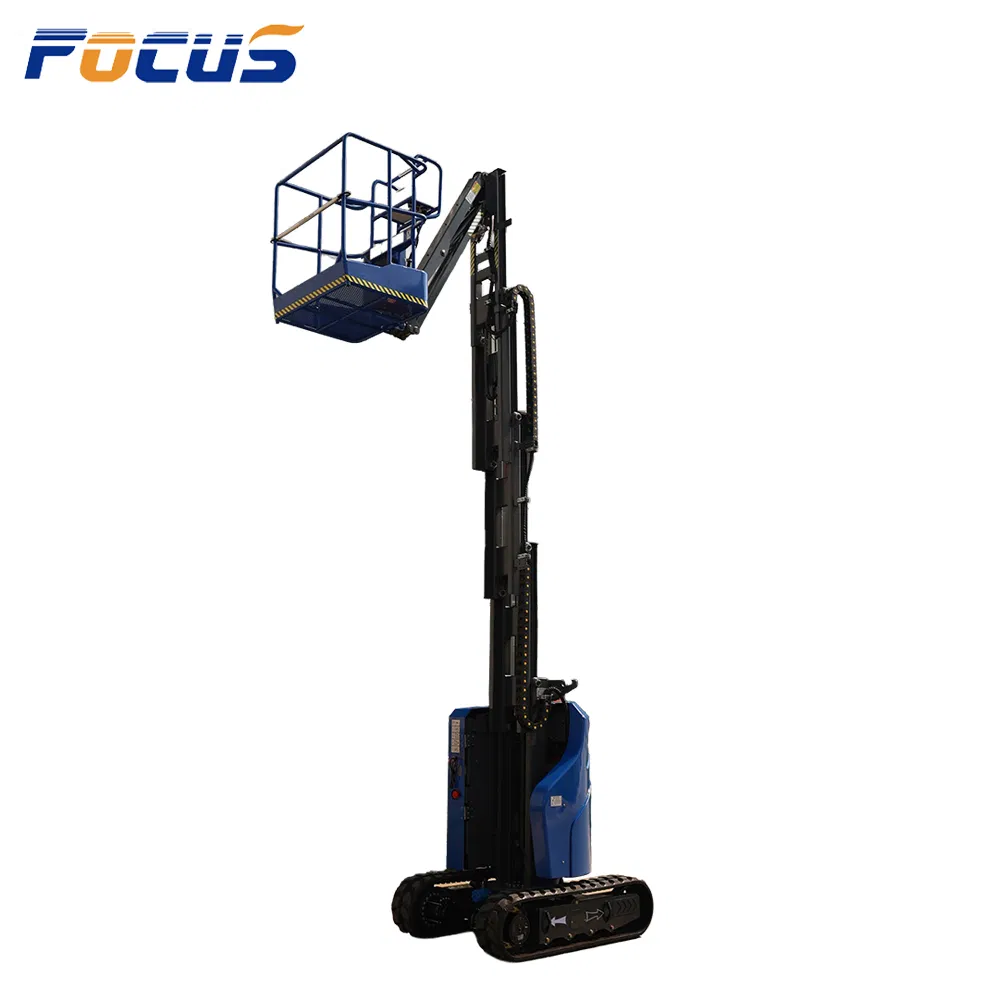

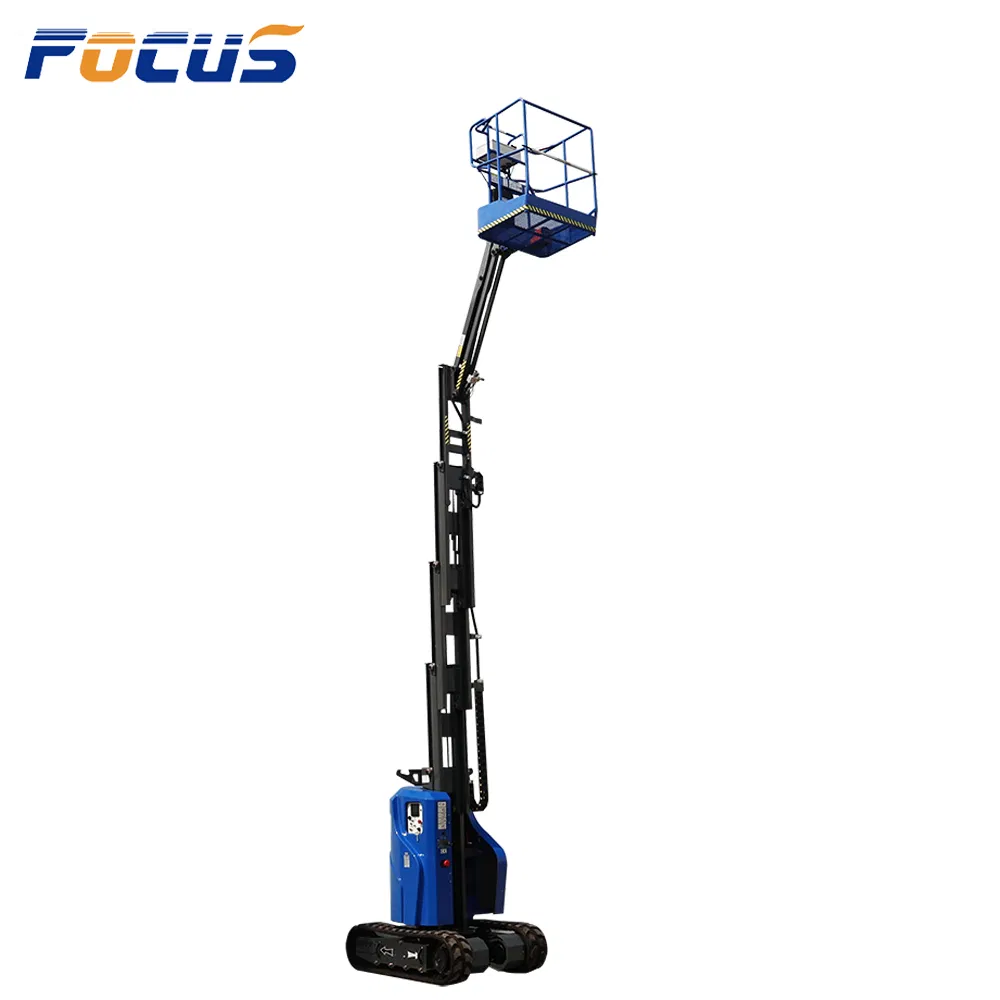

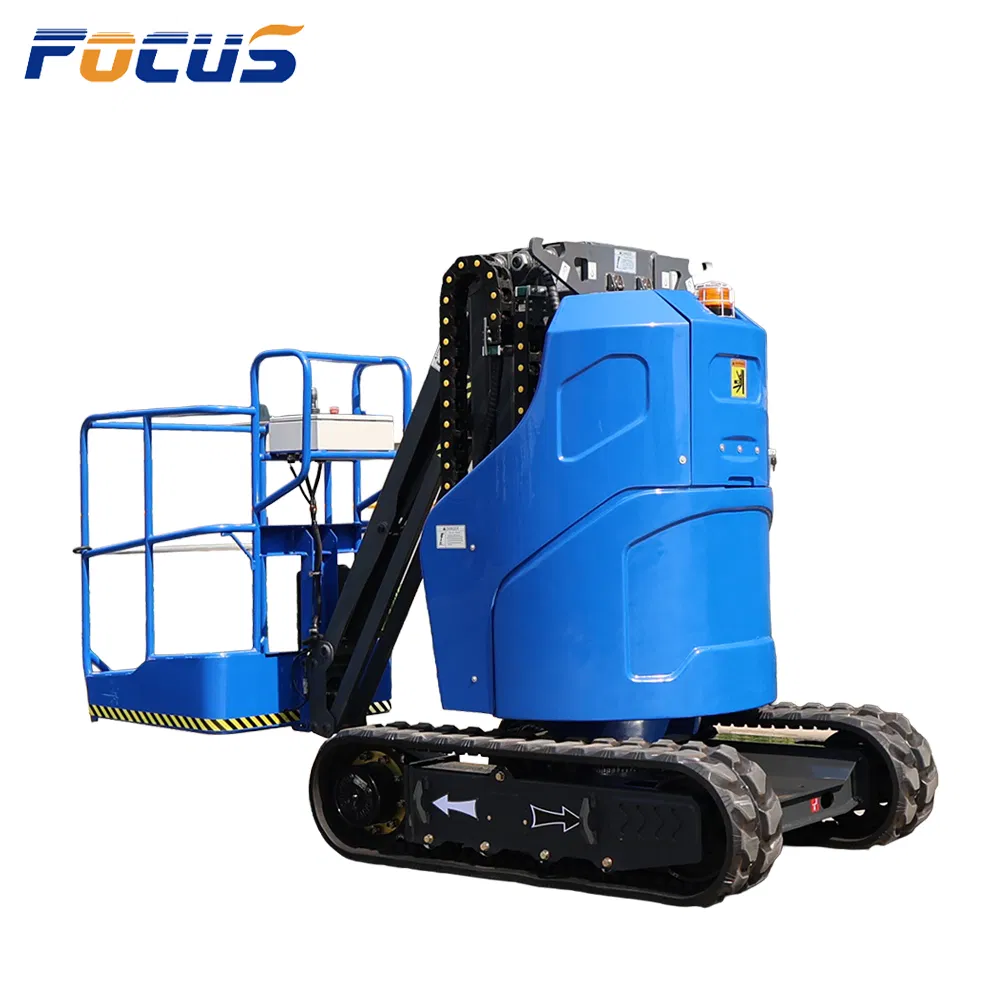

Hydraulic Self Propelled Single Personnel Lifts Vertical Mast Lift with Tubing Explosion-Proof System
Hydraulic Self Propelled Single Personnel Lifts Vertical Mast Lift with Tubing Explosion-Proof System
Hydraulic Self Propelled Single Personnel Lifts Vertical Mast Lift with Tubing Explosion-Proof System
Hydraulic Self Propelled Single Personnel Lifts Vertical Mast Lift with Tubing Explosion-Proof System
Hydraulic Self Propelled Single Personnel Lifts Vertical Mast Lift with Tubing Explosion-Proof System
1 / 5
Hydraulic Self Propelled Single Personnel Lifts Vertical Mast Lift with Tubing Explosion-Proof System
Hydraulic Self Propelled Single Personnel Lifts Vertical Mast Lift with Tubing Explosion-Proof System
Hydraulic Self Propelled Single Personnel Lifts Vertical Mast Lift with Tubing Explosion-Proof System
Hydraulic Self Propelled Single Personnel Lifts Vertical Mast Lift with Tubing Explosion-Proof System
Hydraulic Self Propelled Single Personnel Lifts Vertical Mast Lift with Tubing Explosion-Proof System

Hydraulic Self Propelled Single Personnel Lifts Vertical Mast Lift with Tubing Explosion-Proof System

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

📋 Product Overview
SELF-PROPELLED VERTICAL MAST WITH JIB

Self-propelled vertical mast aerial work platform redefines the new standard of aerial work with excellent performance and ultimate safety. The whole machine adopts a lightweight and high-strength structural design with outstanding stability to ensure smooth aerial work. High-performance lithium battery drive, green and environmentally friendly, low noise and energy saving, easily adapt to various indoor and outdoor aerial work scenes.

⚙ Basic Specifications
Model
FCS-AMWP9C-7100
Mechanism
Lift Chain
Capacity
200kg
Driven Type
Electric
Certification
GS, CE, RoHS, ISO 9001
Platform Size
1.28m * 0.7m
Total Mass
230kg
HS Code
84271090

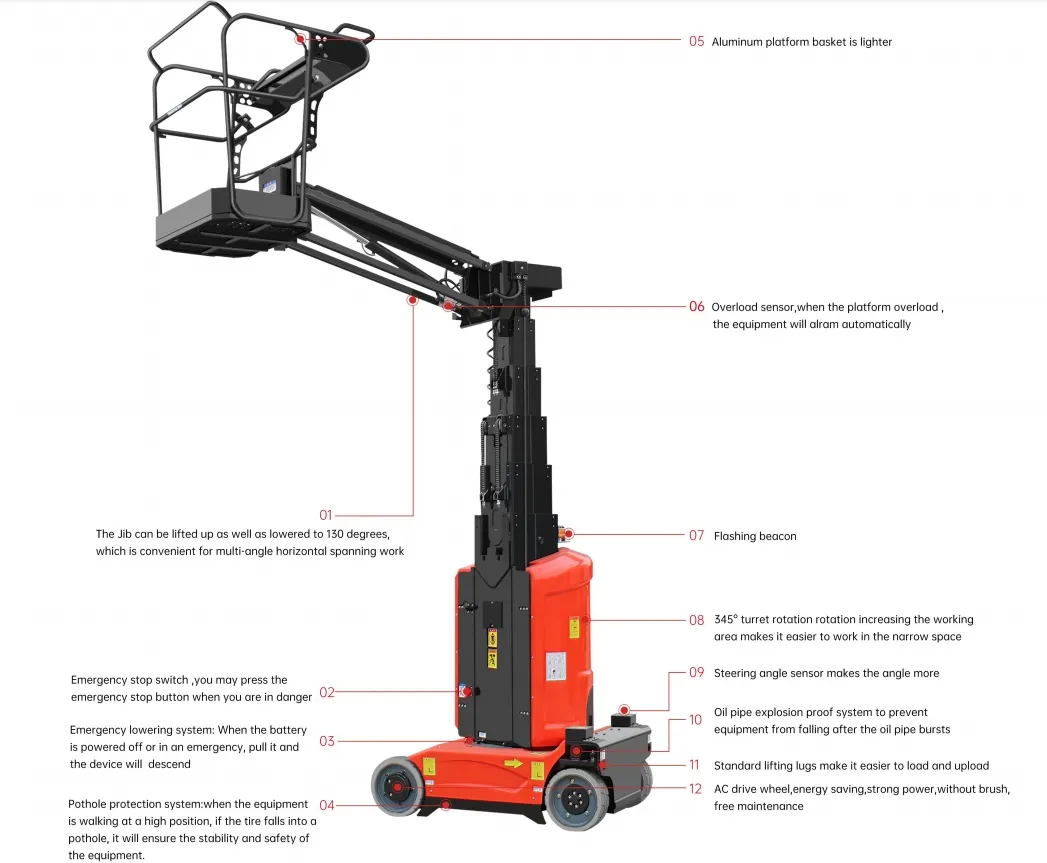

Vertical Mast Lift View 1

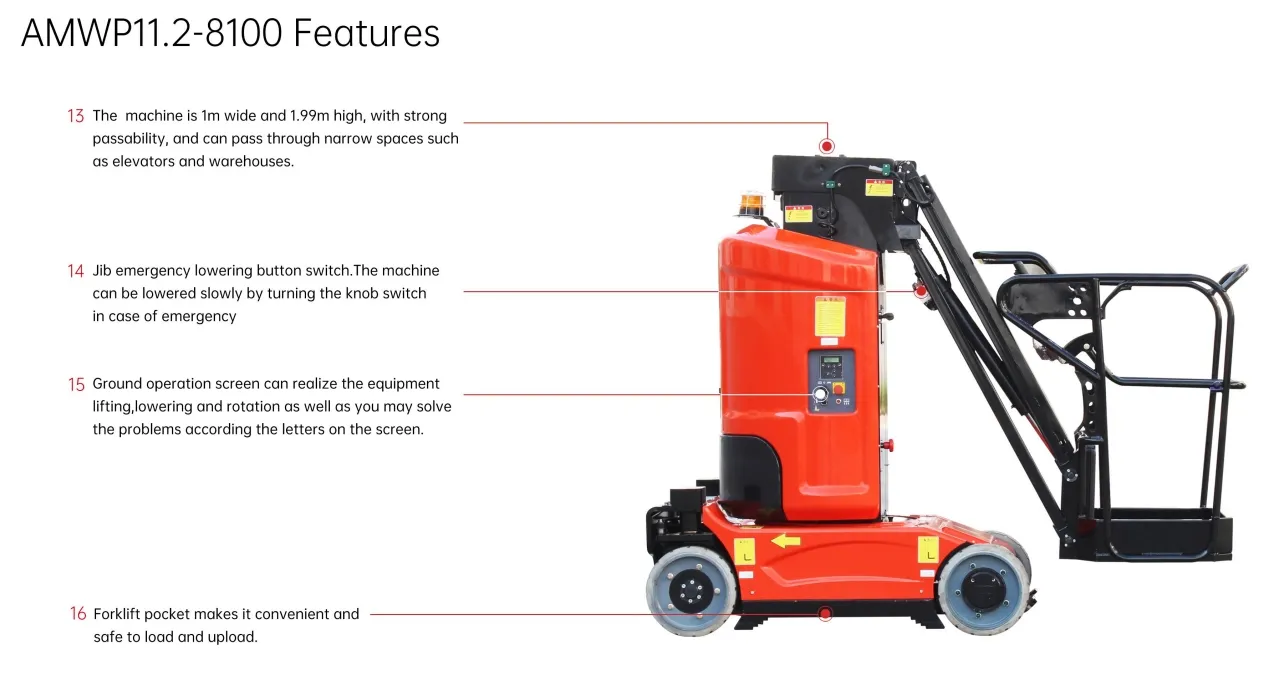

Vertical Mast Lift View 2

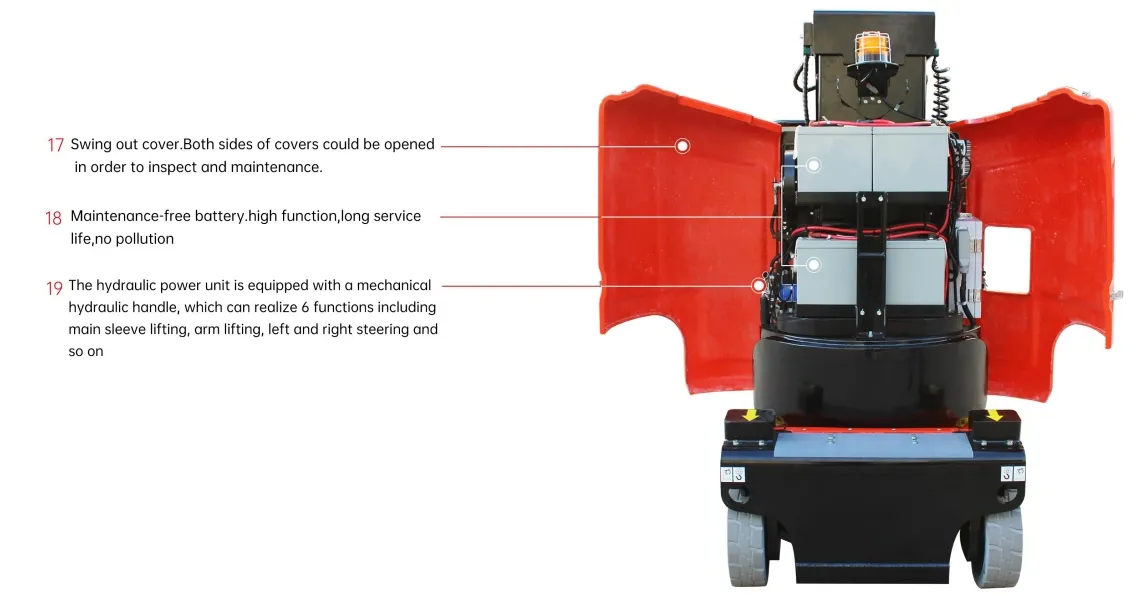

Vertical Mast Lift View 3
📊 Technical Specifications
MODEL AMWP9C-7100 AMWP10C-7100
Max. Working Height9m10m
Max. Platform Height7m8m
Max. Horizontal Reach3.38m3.63m
Overall Width1.2m1.2m
Loading Capacity200kg200kg
Occupants22
Travel Speed (Stowed)1.8km/h1.8km/h
Battery48V/220Ah48V/220Ah
Weight2970kg3300kg
✔ Key Features
Series Features
01 130° Jib lifting and lowering
02 Emergency stop switch & lowering system
03 Pothole protection system
04 Overload sensor & Flashing beacon
05 AC driving wheel
Safety & Control
06 Tilt sensor system
07 220° Turret rotation
08 Cylinder holding valve
09 Heavy-duty forklift-style mast
10 25% Gradeability

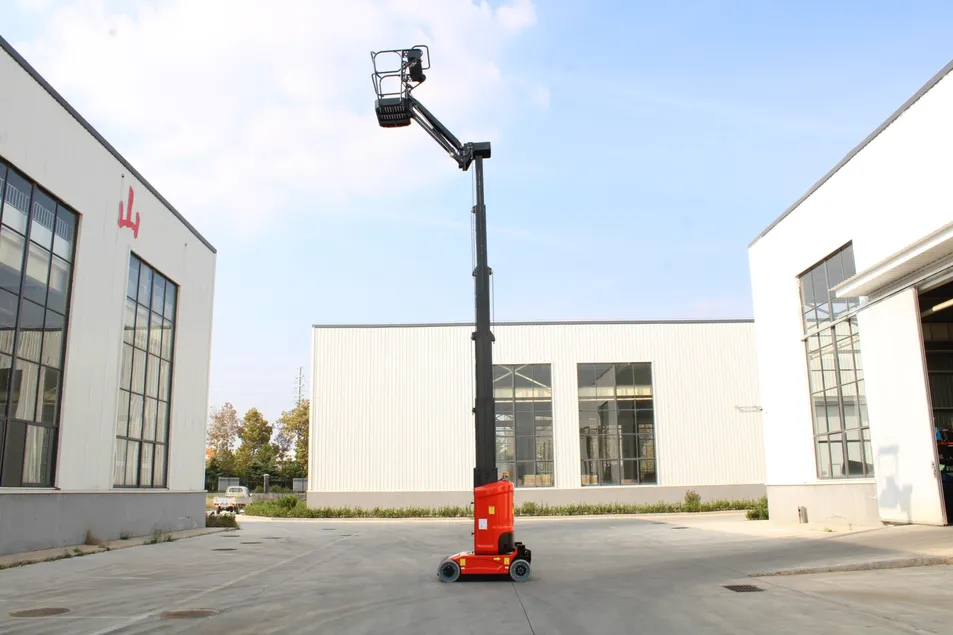

Detail 01

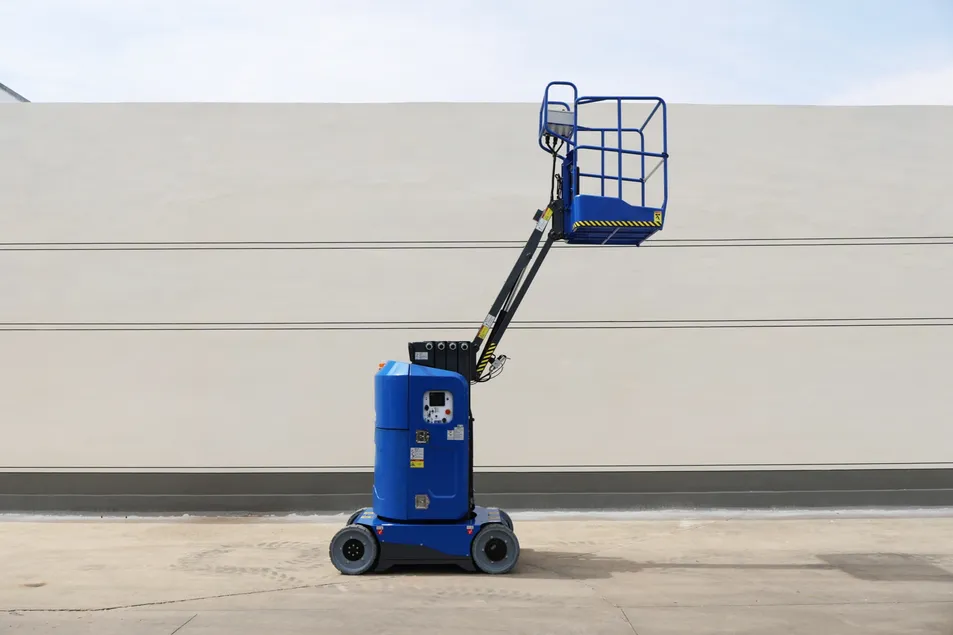

Detail 02

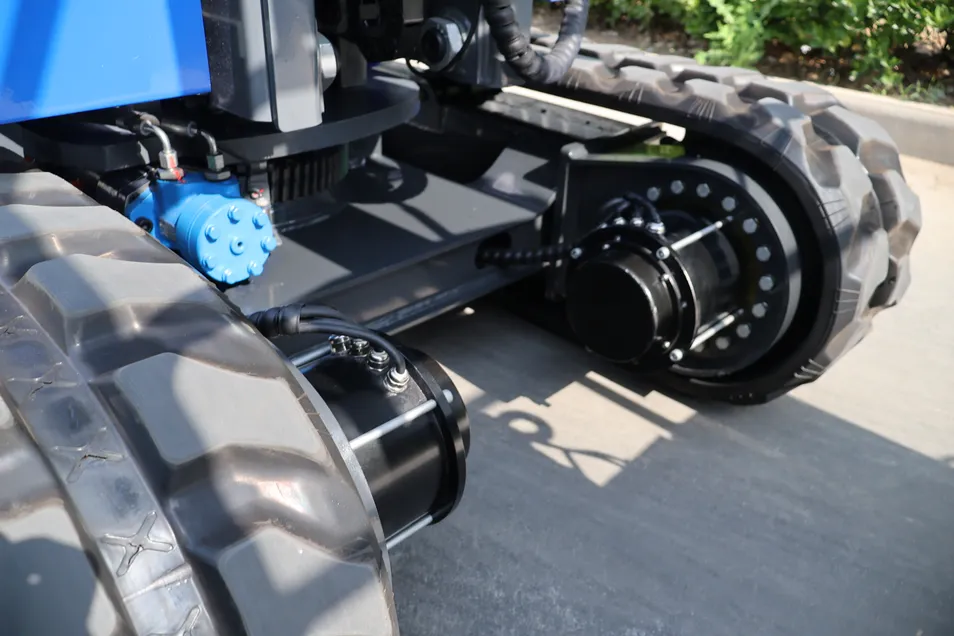

Detail 03

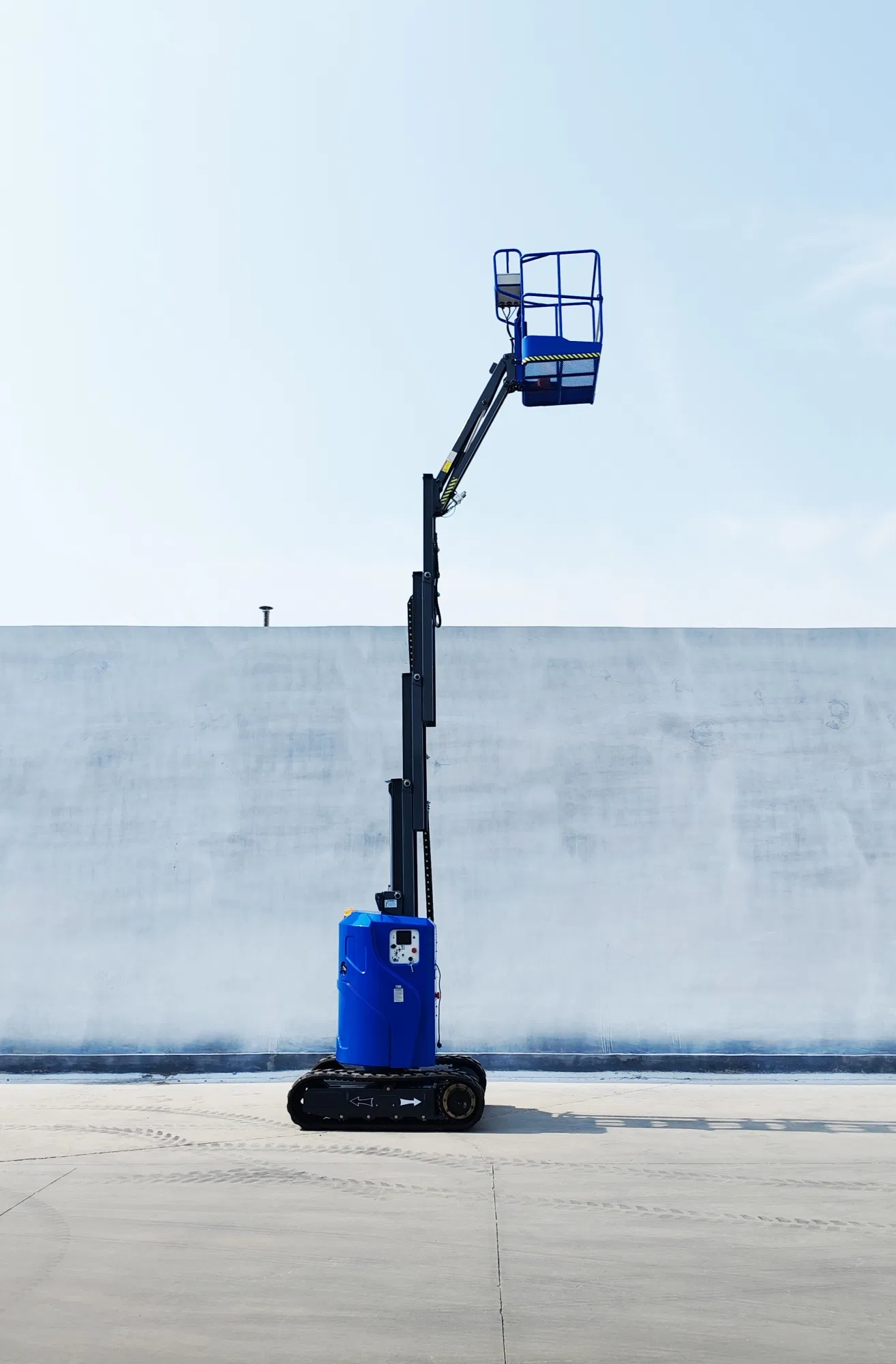

Technical Diagram 1

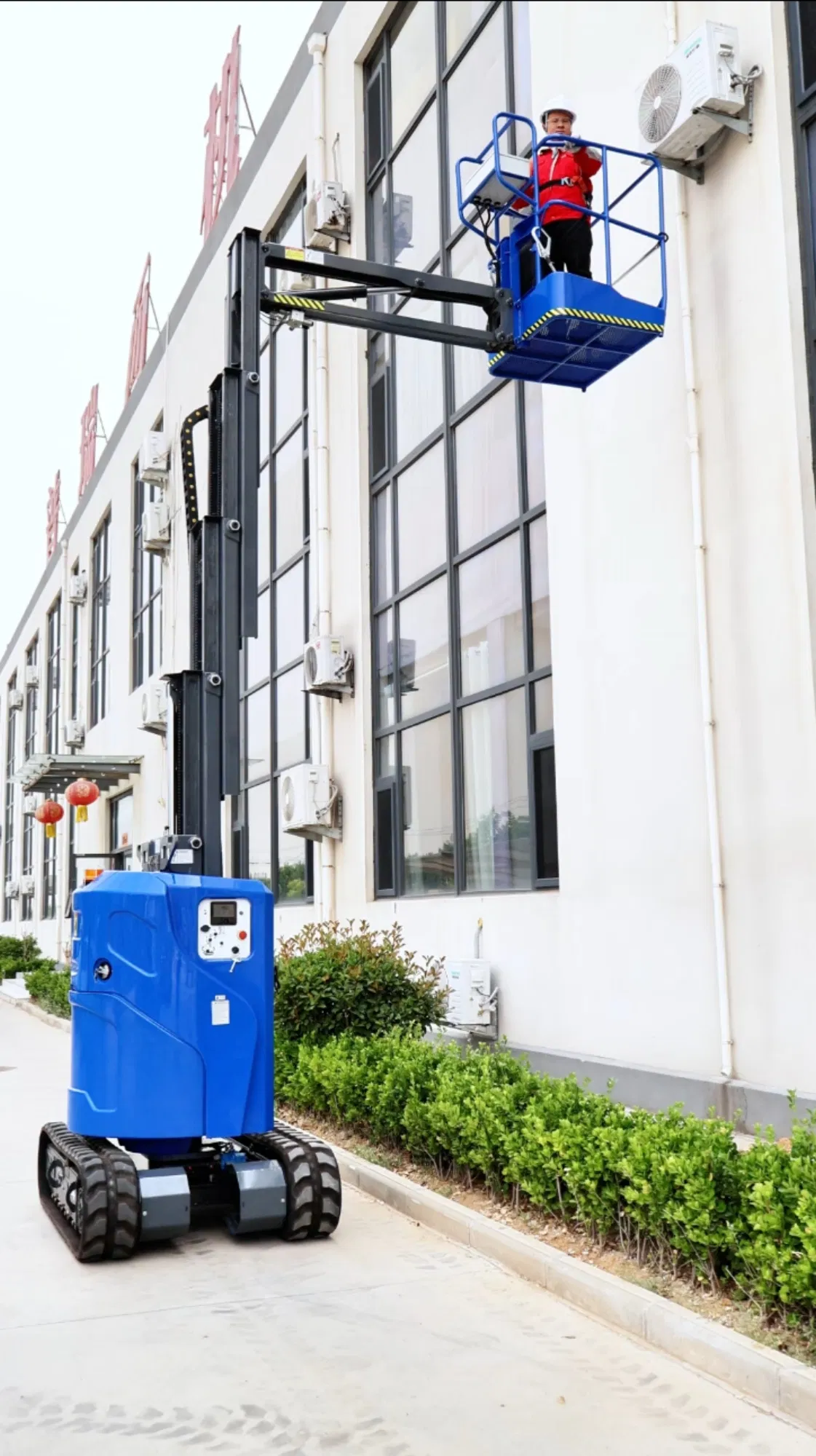

Technical Diagram 2

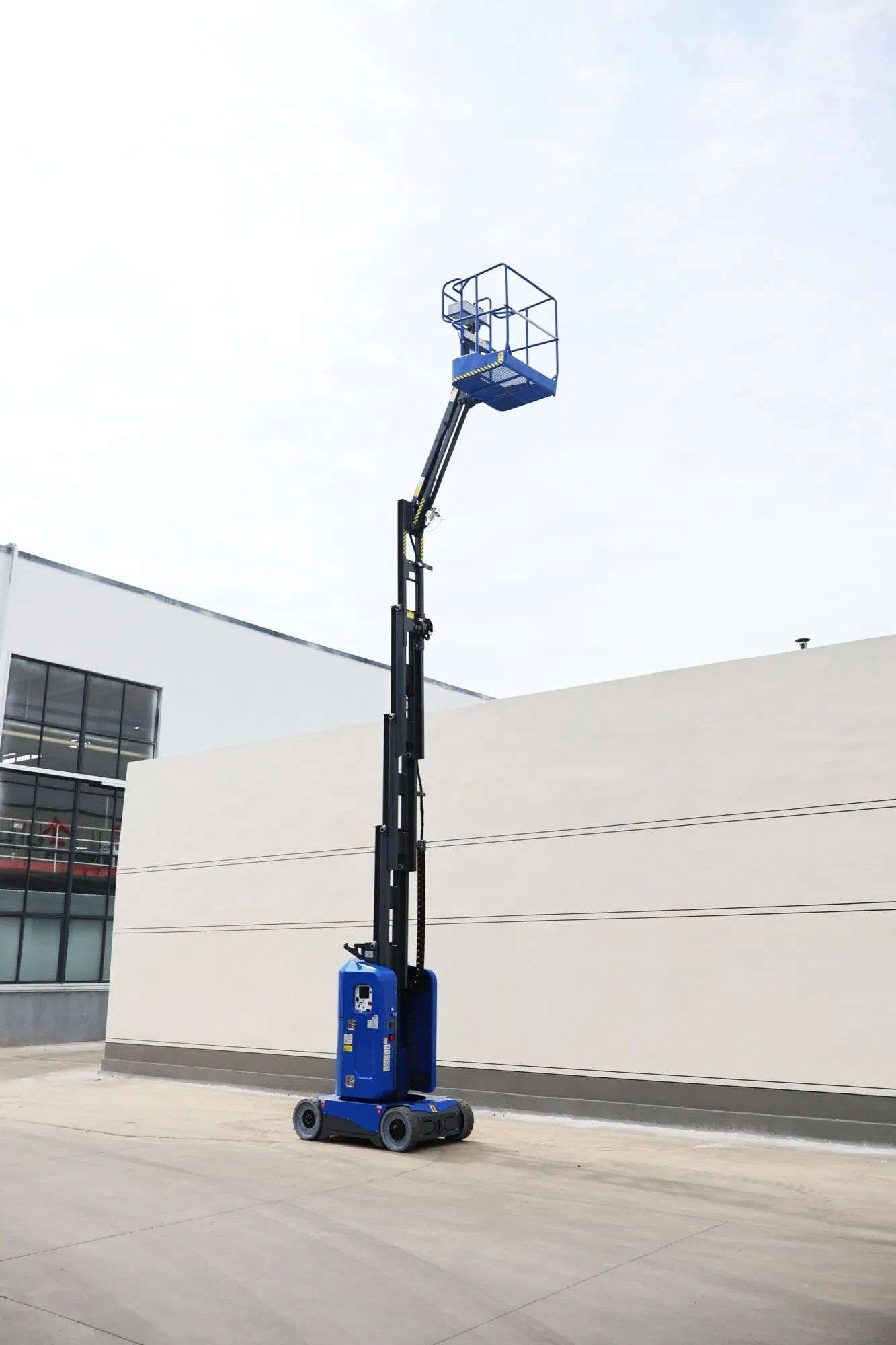

Technical Diagram 3
🚗 Service & Maintenance
Service Promise
  • Lifelong free technical guidance service.
  • 24-hour response for quality and extending services.
  • Free technical training for correct operation and maintenance.
Maintenance Tips
  • Do not exceed the 200kg load capacity.
  • Check wheels, axles, and lifting controls every six months.
  • Unload and lower forks to the lowest position after work.
❓ Frequently Asked Questions
What is the maximum working height of this series?
The maximum working height ranges from 9 meters to 10 meters depending on the specific model (AMWP9C-7100 or AMWP10C-7100).
What is the loading capacity and occupant limit?
The platform has a loading capacity of 200kg and is designed to accommodate up to 2 occupants safely.
What kind of power system does the lift use?
It uses a high-performance 48V/220Ah lithium battery drive with a 3kw driving motor, making it environmentally friendly and suitable for indoor use.
Are there safety mechanisms for abnormal situations?
Yes, it is equipped with an emergency stop switch, an emergency lowering system, tilt sensors, and an overload sensor to monitor operations in real time.
Can it operate on sloped ground?
The machine features a 20-25% gradeability and include a tilt sensor system to ensure safety during operation.
How often should the machine be serviced?
It is recommended to perform a thorough check every six months, focusing on oil levels, lubrication, wheels, axles, and controls.
