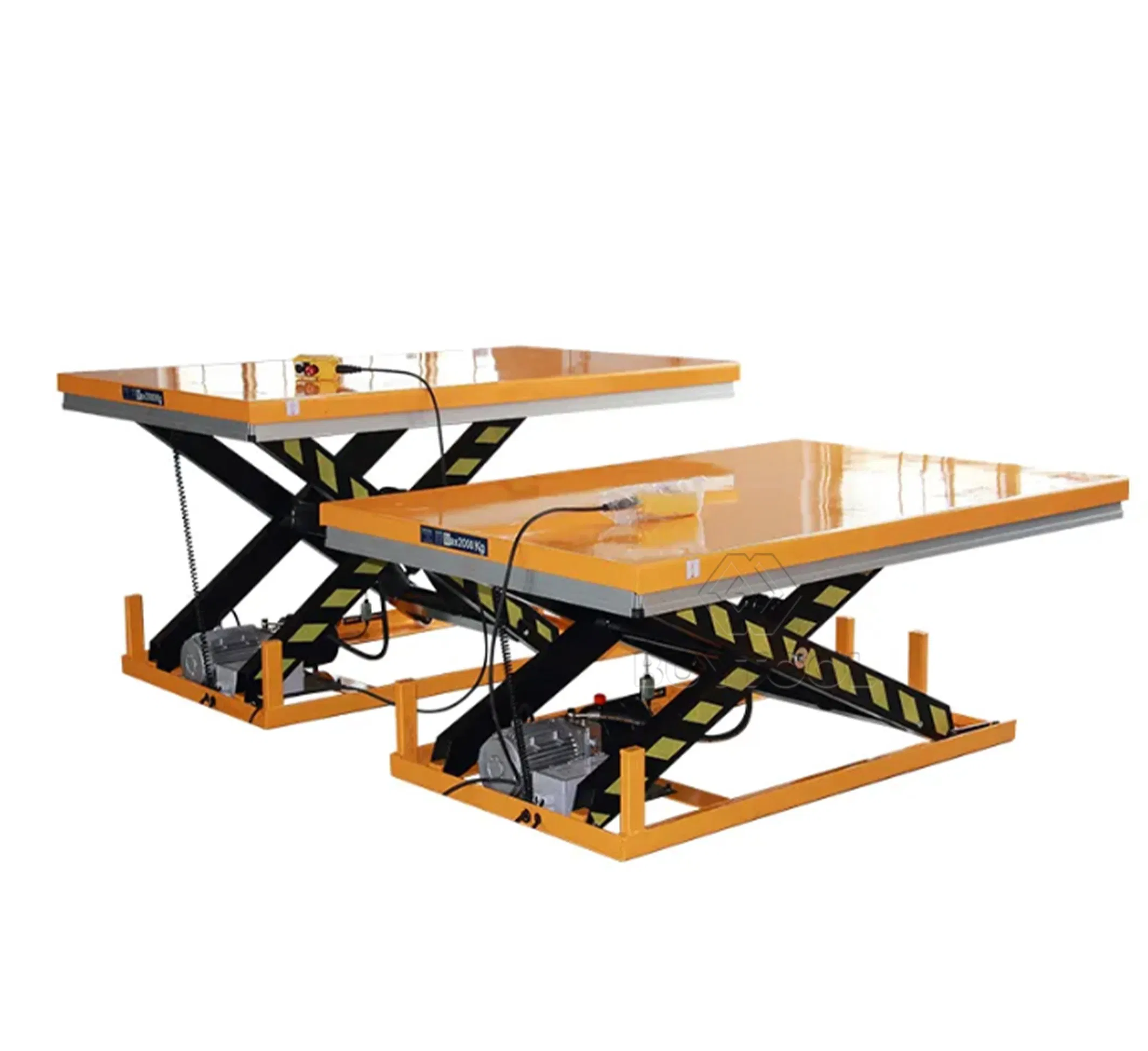

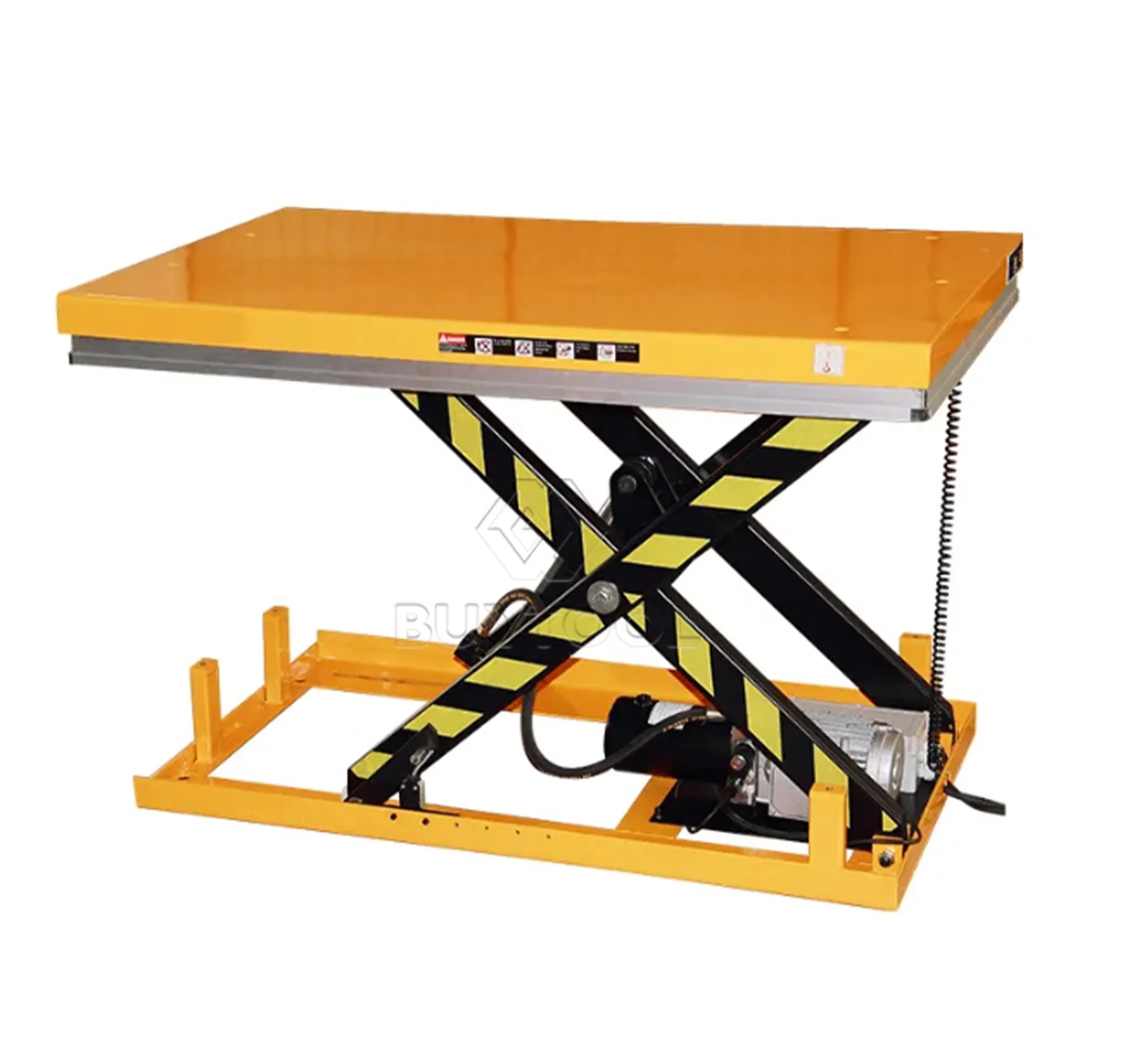

Heavy Duty Hydraulic Scissor Lift Table 1000kg 2000kg Cargo Handling

1 / 5

Heavy Duty Hydraulic Scissor Lift Table 1000kg 2000kg Cargo Handling

Customization:	Available
After-sales Service:	24-Hour Online Service
Warranty:	One Year

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

HW1001, HW2001, HW4001

Lift Mechanism

Scissor Lift

Driven Type

AC (380V/50Hz)

Capacity

1000kg, 2000kg, 4000kg

Min. Height

205-240mm

Max. Height

990-1300mm

Table Size

820*1300mm

Certification

CE, ISO 9001

Type

Stationary Lift Table

Usage

Material Handling

⚙️

Product Description

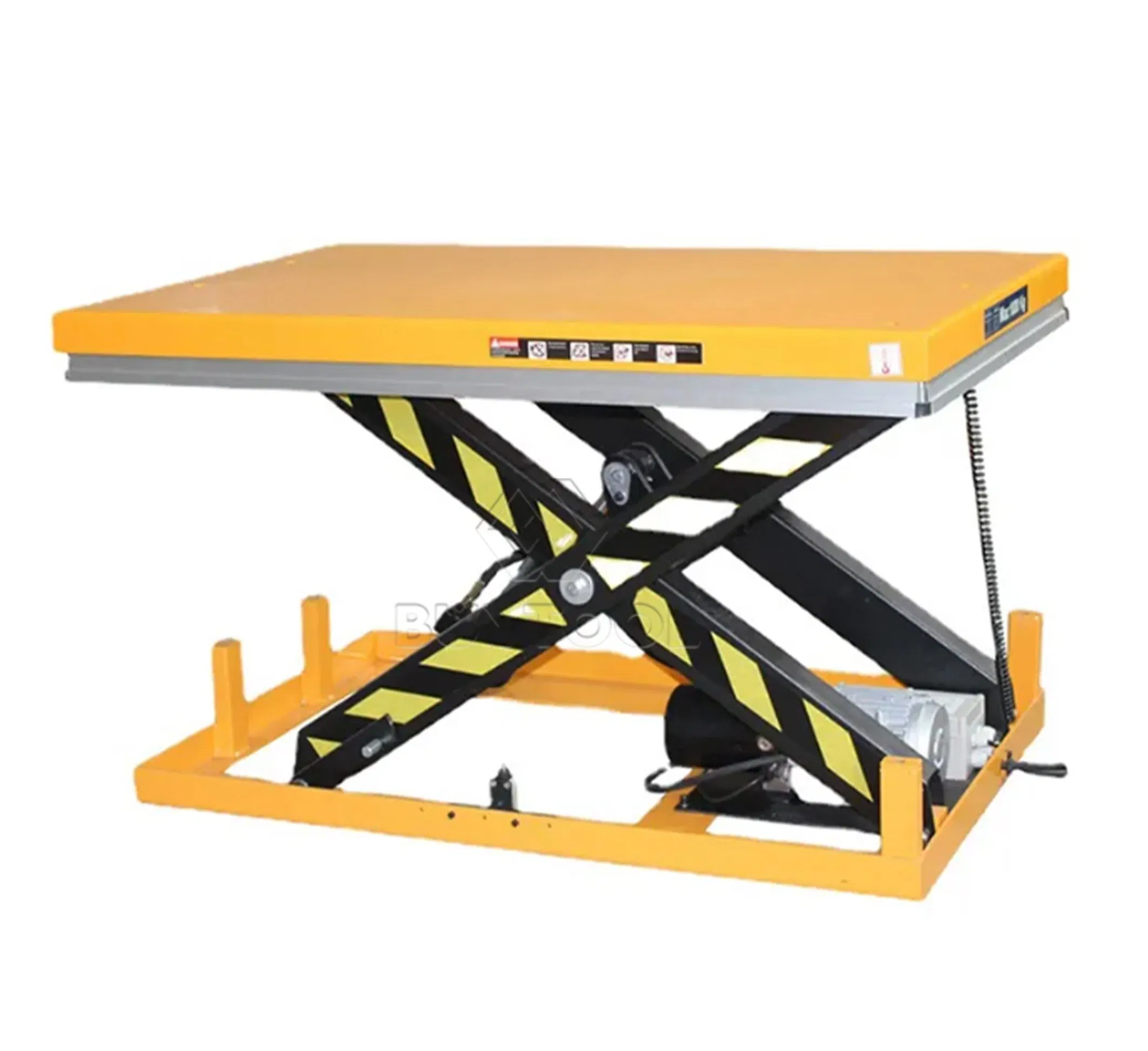

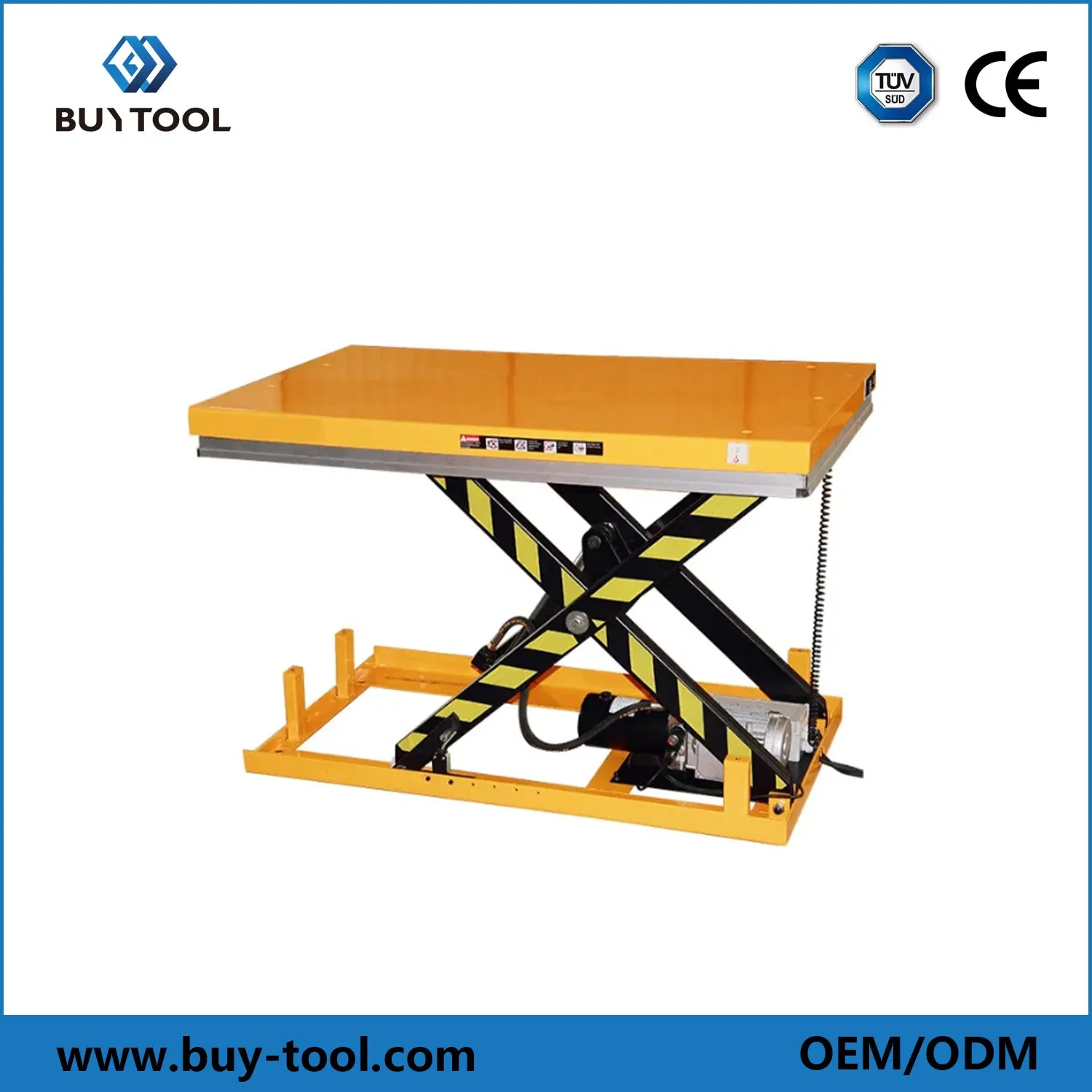

Heavy Duty Hydraulic Scissor Lift Table (1 Ton / 2 Ton)

Heavy duty design for industrial applications.
Equipped with safety guard for operator protection.
Integrated anti-explosion valve for hydraulic safety.
Complies with EN norm and ANSI/ASME safety standards.
Versatile installation: suitable for above-floor or in-floor pit applications.

🛡️

Standard Safety Features

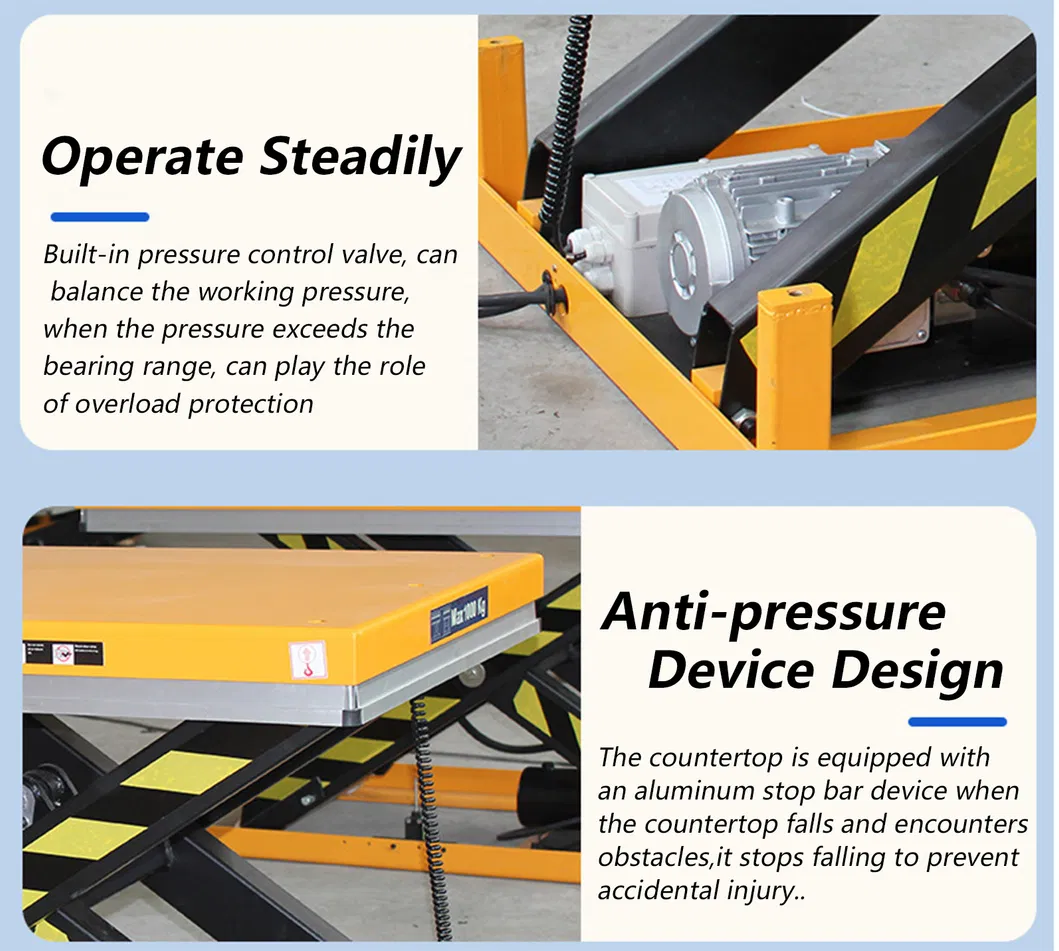

Aluminum Safety Bar: Prevents descent upon contact with obstructions.
24V Control Box: Low-tension control with simple up-down buttons.
Overload Protection: Internal power pack with relief valve and compensated flow valve.

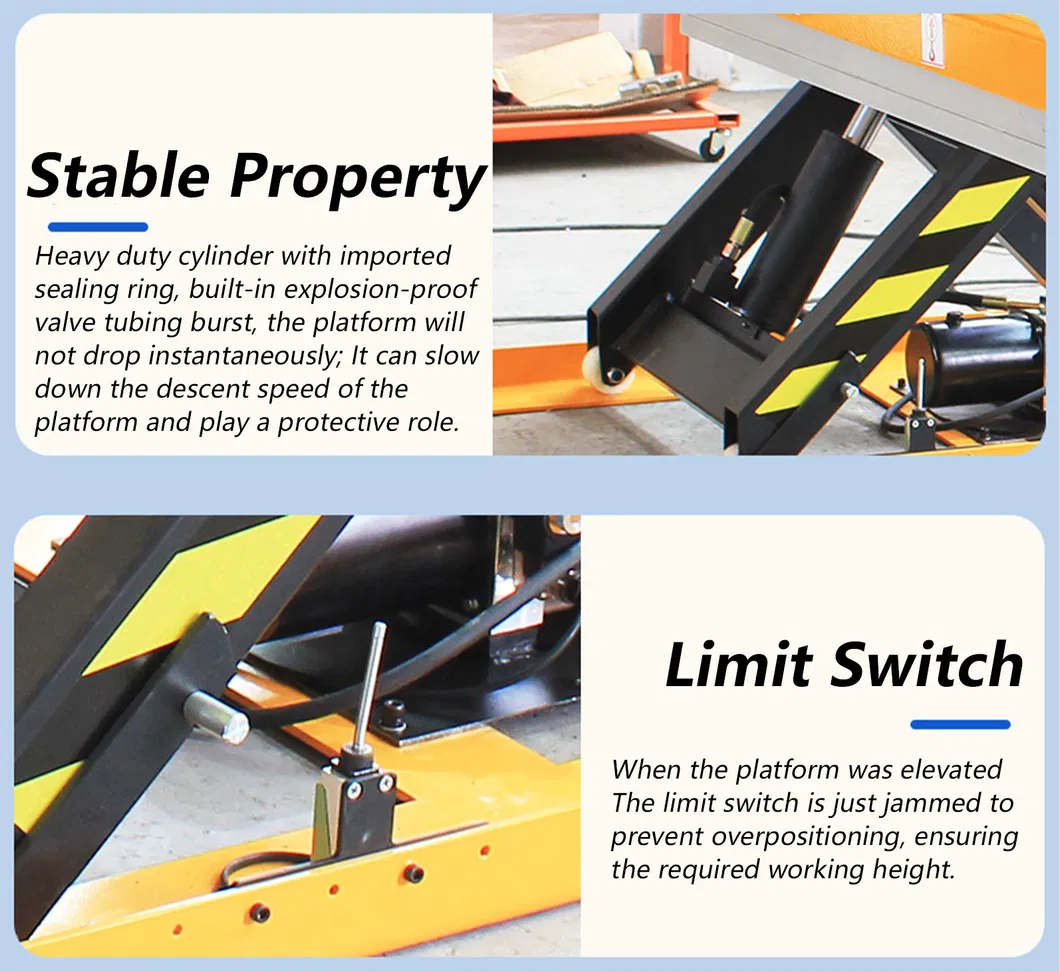

Hose Burst Safety: Heavy duty cylinders with check valves to prevent sudden lowering.

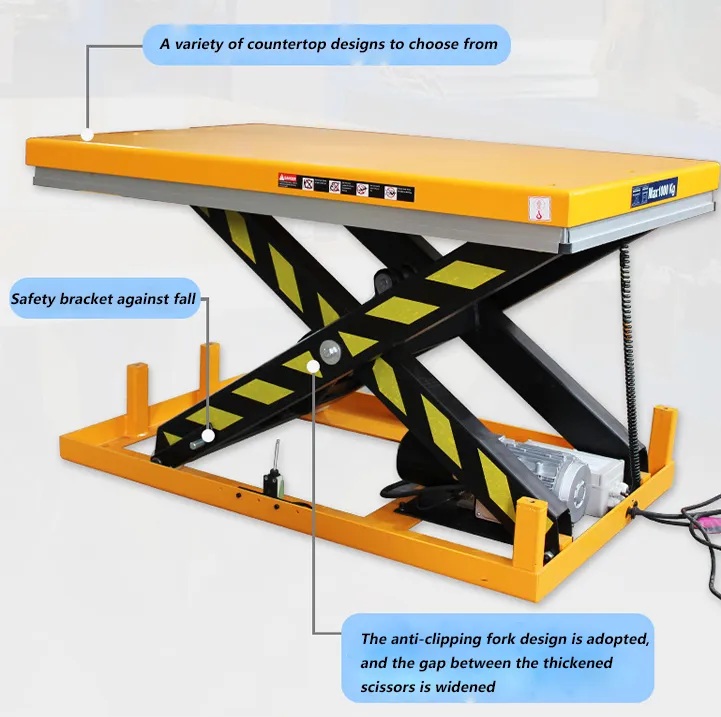

Trapping Prevention: Safety clearance maintained between scissors during operation.
Self-Lubricating: Bushings on all pivot points for smooth operation.

📊

Technical Parameters

Model	Capacity (kg)	Lowered Height (mm)	Raised Height (mm)	Platform Size (mm)	Lift Time (s)	Power Pack	Net Weight (kg)
HW1001	1000	205	990	820×1300	20-25	1.1kw	160
HW1003	1000	240	1300	850×1700	30-35	1.1kw	200
HW2001	2000	230	1000	850×1300	20-25	1.5kw	235
HW2004	2000	250	1300	1000×1700	25-35	1.5kw	300
HW4001	4000	240	1050	1200×1700	30-40	2.2kw	375
HW4008	4000	350	1300	2200×1800	35-45	2.2kw	655

📸

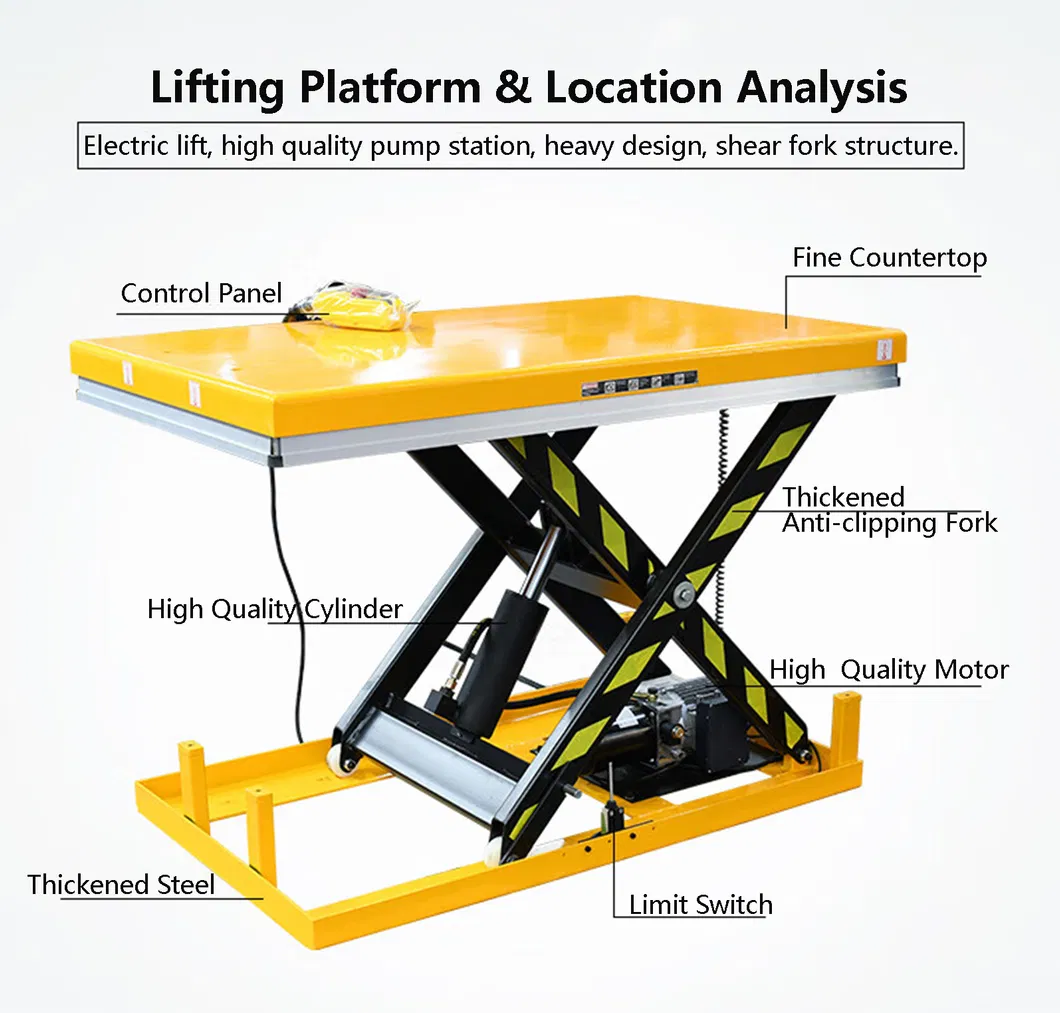

Detailed Photos

🛠️

Customization & Options

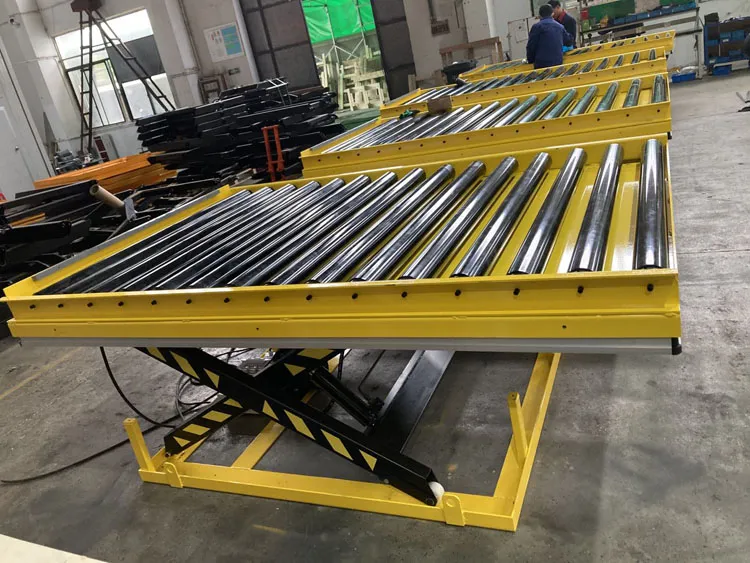

Lift Tables With Rollers: Improves transportation efficiency and operational flexibility. Ideal for warehouses and factories where quick movement is required.

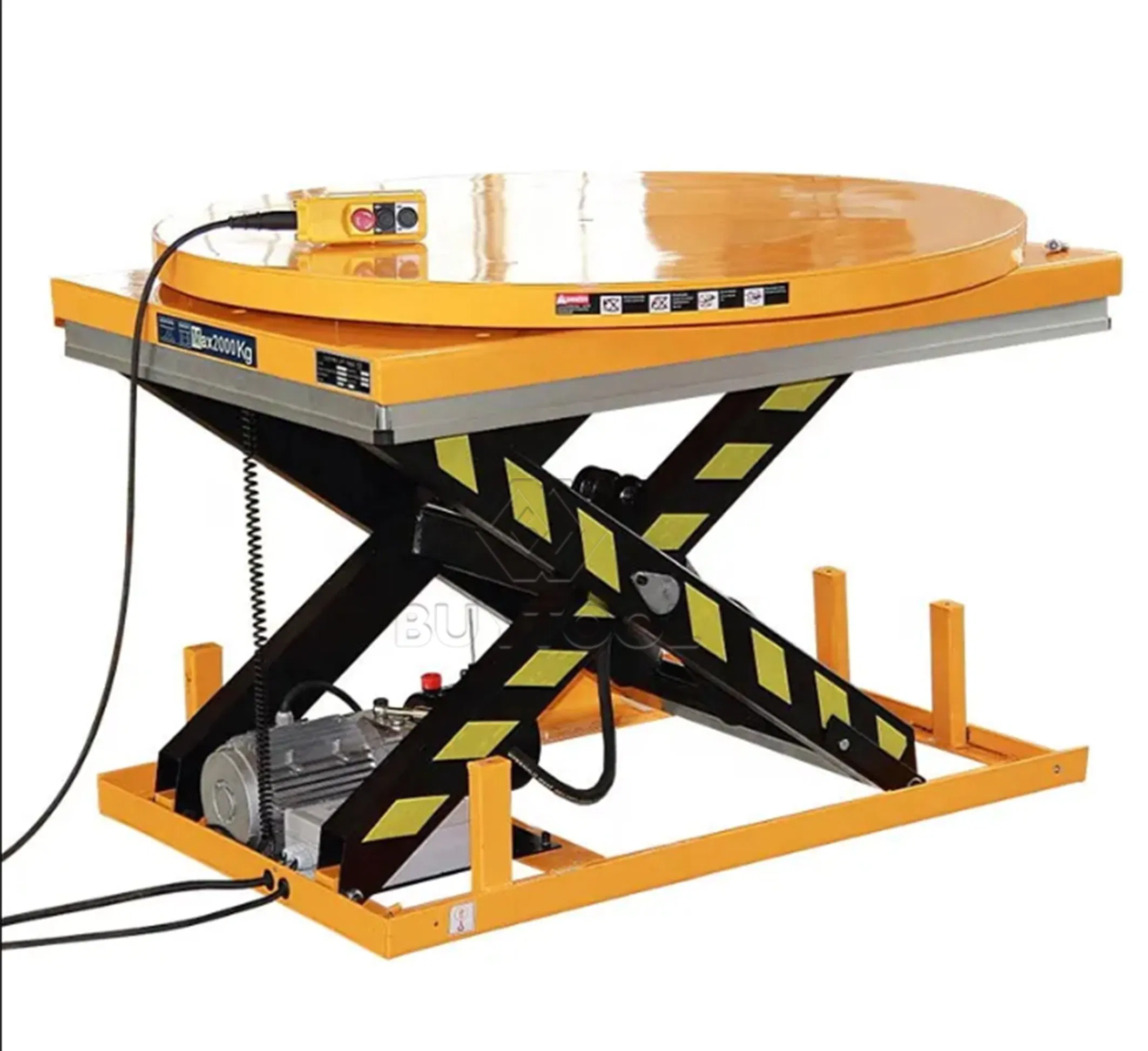

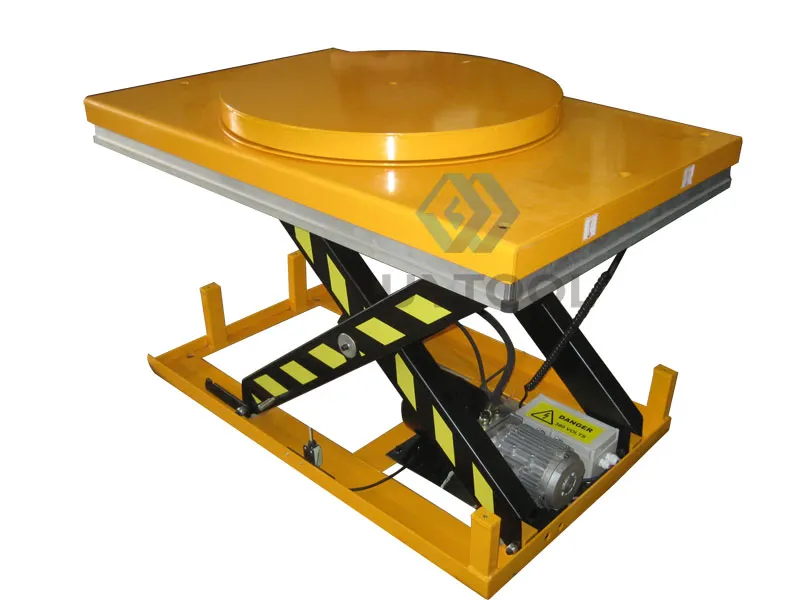

Turnable Top Platform: Allows 360-degree rotation for multi-directional work without moving the entire unit. Perfect for limited spaces.

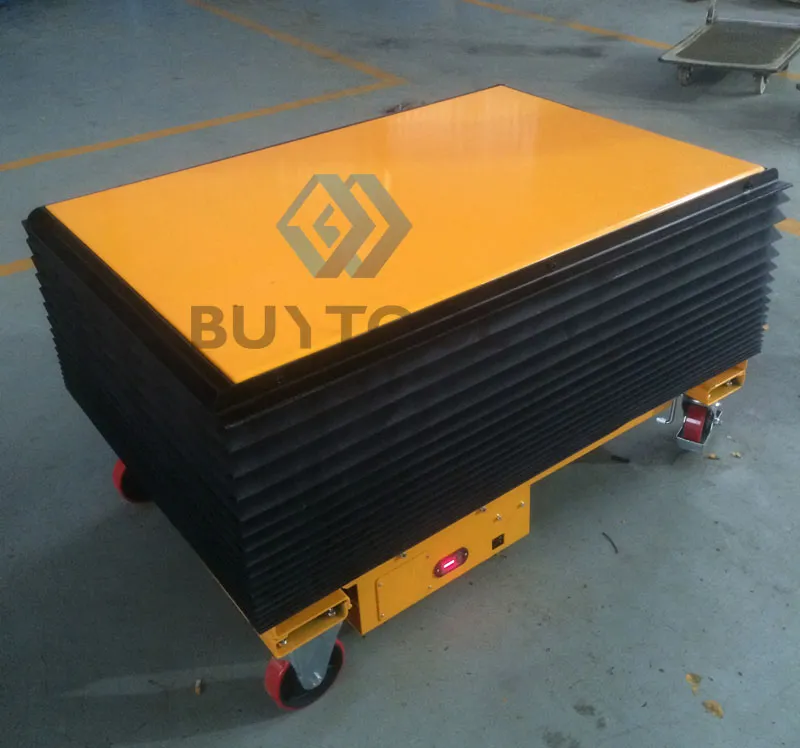

Protection Skirt & Wheels: Enhanced safety with a protective bellows skirt and mobile wheels for versatile usage across different workshops.

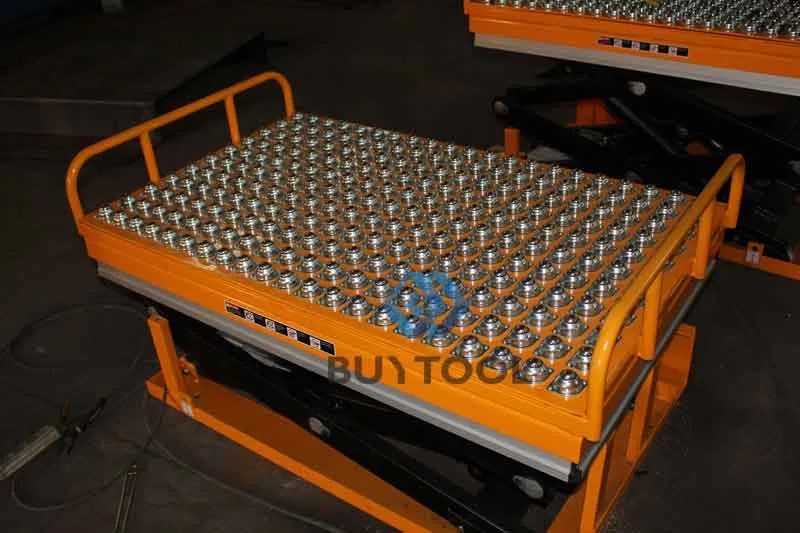

Ball Table Top: Spherical alloy steel balls reduce friction, allowing heavy goods to slide easily, saving energy and labor intensity.

🏭

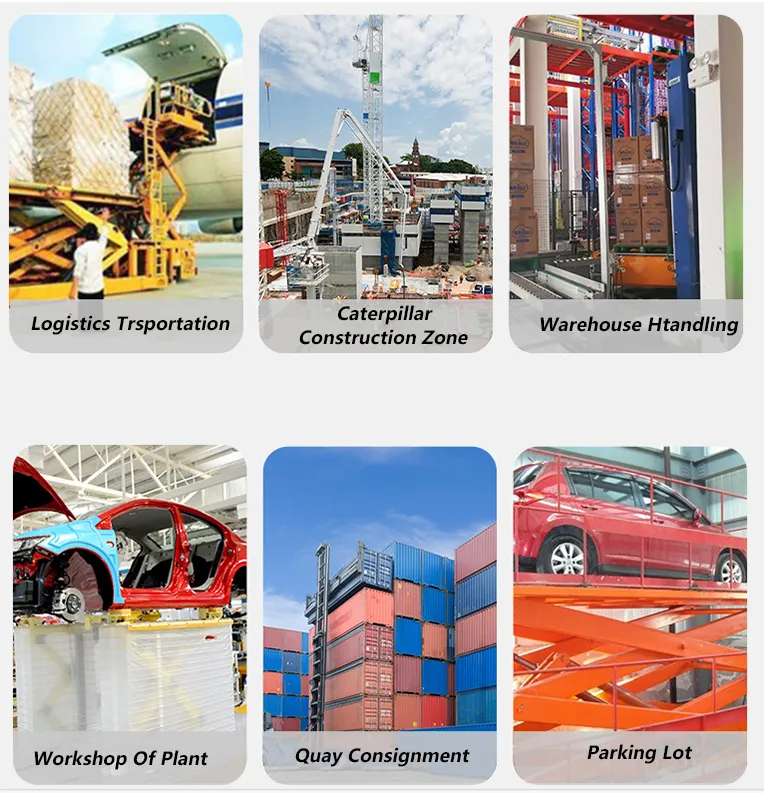

Range of Application

❓

Frequently Asked Questions

What quality standards do your lift tables meet?

Our lift tables are CE approved and manufactured under ISO9001 standards. We perform a 5-step inspection process, including raw material checks, production monitoring, load limit tests, and a 100% final inspection before shipment.

How long is the warranty period?

All of our hydraulic lift tables come with a standard one-year quality guarantee.

What is the typical lead time for an order?

The standard lead time is approximately 30 days. For single-item container orders, it can be as fast as 20 days, while mixed container orders may take up to 45 days.

Can the lift tables be customized for specific needs?

Yes, we support extensive customization including adding rollers, turnable platforms, ball transfer tops, protective skirts, and guardrails to suit your specific material handling requirements.

What safety mechanisms are included?

Standard safety features include an aluminum safety bar to stop descent on obstruction, anti-explosion valves for the hydraulic system, and a 24V low-tension control box for operator safety.

How is the lift table installed?

The tables feature removable lifting eyes to facilitate easy handling and installation. They can be mounted directly on the floor or installed in a pit for flush-to-floor operation.
