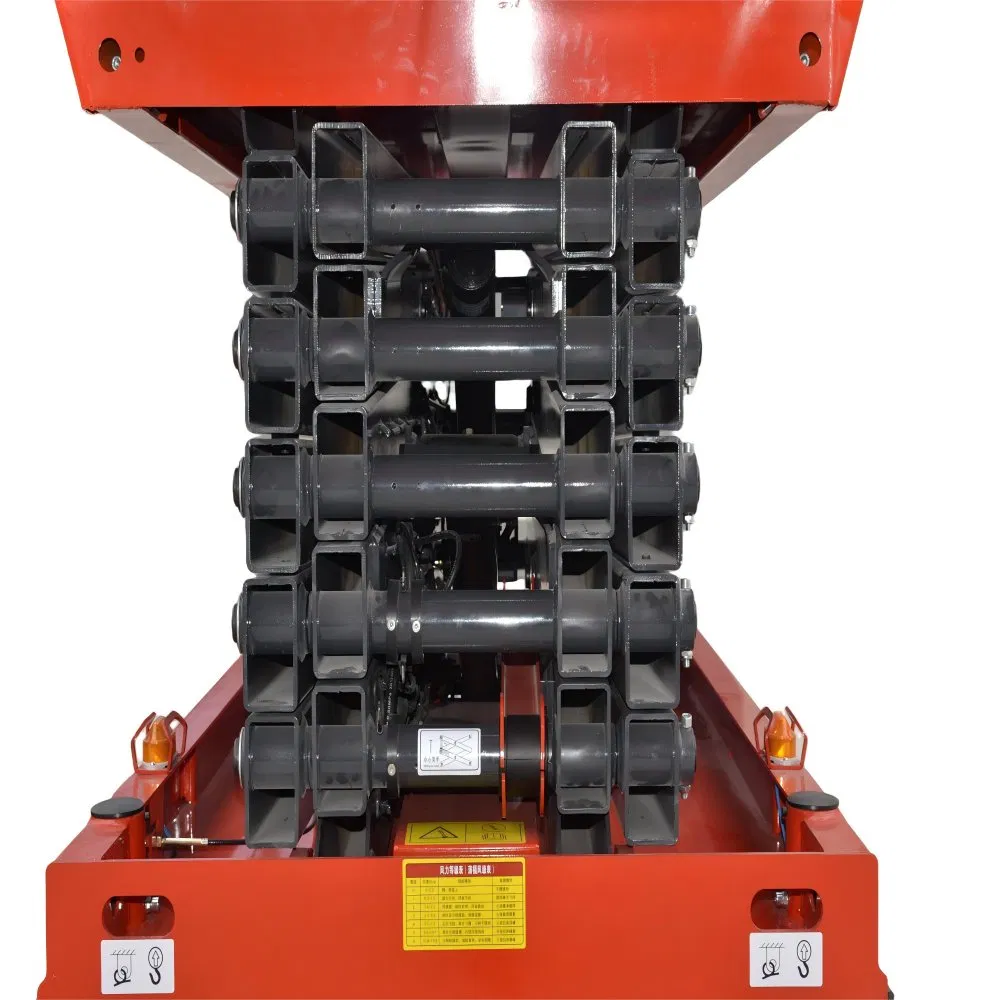

Anugenix Lift
1 / 5
| Model NO. | GTJZ14S |
| Application | Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane |
| Lift Mechanism | Scissor Lift |
| Carrying Capacity | Middle-Level |
| Moves | Self-propelled |
| Driven Type | Hydraulic |
| Running Mode | Moving |
| Feature | Explosion-Proof, Insulating |
| Certification | CE, ISO 9001 |
| Maximum Working Height (M) | 15.8 |
| Maximum Platform Height (M) | 13.8 |

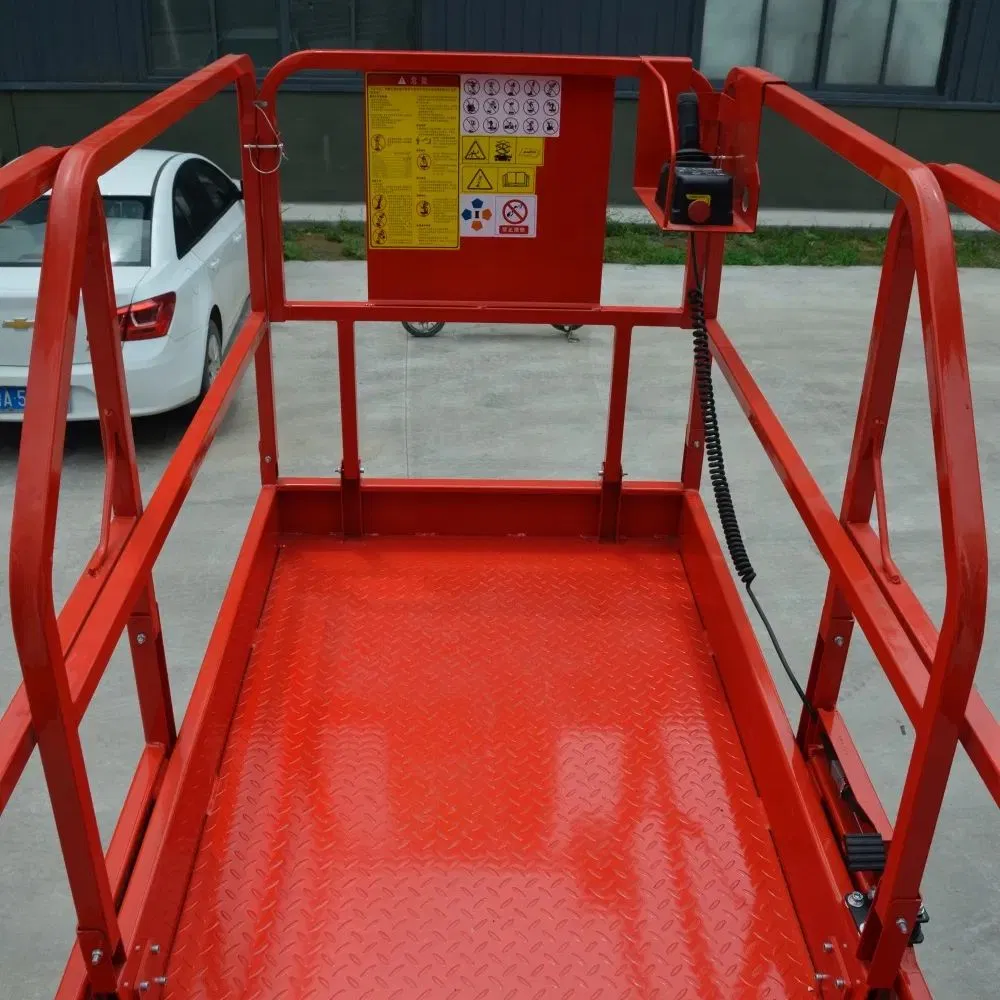

| Platform Size (M) | 2.7*1.11 |
| Extend Platform (M) | 0.9 |
| Transport Package | Wood Pallet |
| Specification | 3670kg |
| HS Code | 8428909090 |
| Production Capacity | 200 Units Per Month |
| Package Size | 286.00cm * 132.00cm * 206.00cm |
| Package Gross Weight | 3685.000kg |
| Platform height maximum | 13.80m |
| Platform size outside(m) | 2.7*1.11 |
| Extend platform | 0.9m |
| Overall size(fold) (m) | 2.85*1.31*2.06 |
| Overall size(unfold) (m) | 2.85*1.31*2.6 |
| Ground clearance | 0.1/0.015m |
| Wheelbase | 2.28m |
| Capacity | 230kg |
| Drive height | Full height |
| Drive speed - stowed | 3.5km/h |
| Drive speed - raised | 0.8km/h |
| Gradeability-stowed | 25% |
| Outside Turning Radius | 2.7m |
| Raise / lower speed | 100 / 80 sec |
| Tyres - solid non-marking | Φ381×127mm |
| Power source | 24V/4.5kw |
| Battery | 4×6V/200ah |

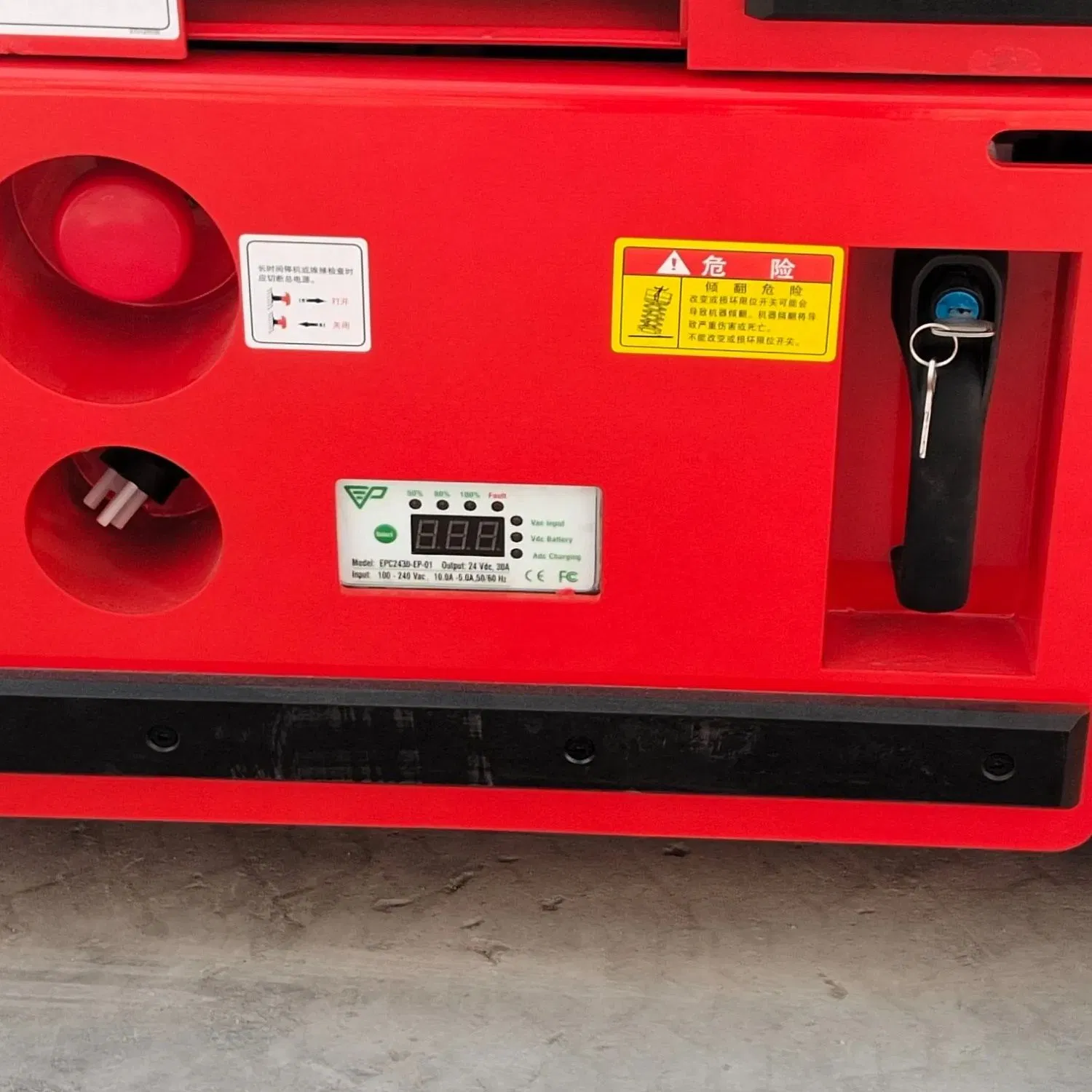

| Charger | 24V/30A |
As a modern manufacturing enterprise specialized in aerial work platforms, we provide comprehensive services for design, production, sales, and after-sales support.
Our experienced team manages every process of design and quality control, dedicated to providing clients with excellent equipment performance. With a business philosophy of "Quality First, Client Oriented", we strive for innovation and process improvement, pursuing perfection in every detail.
Main products include: masts aerial work platforms, scissor lifts, fixed lift tables, car lifts, material pickers, and electrical aerial work platforms, serving fields such as machinery, aviation, and logistics.
