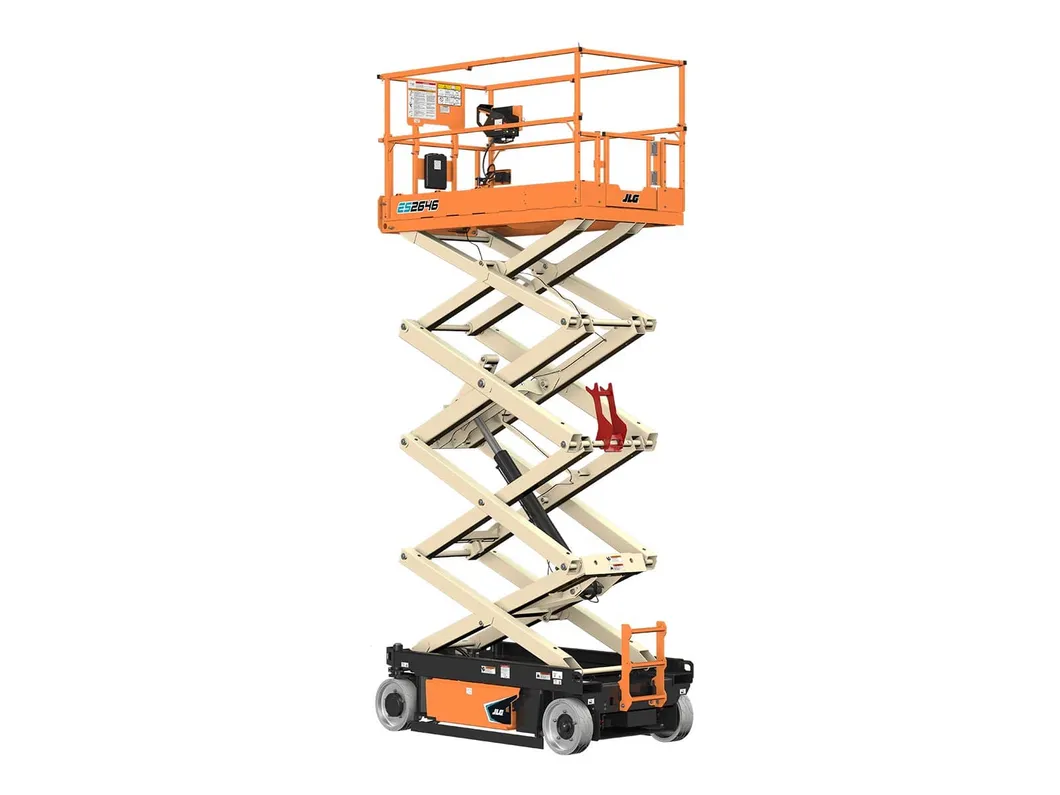

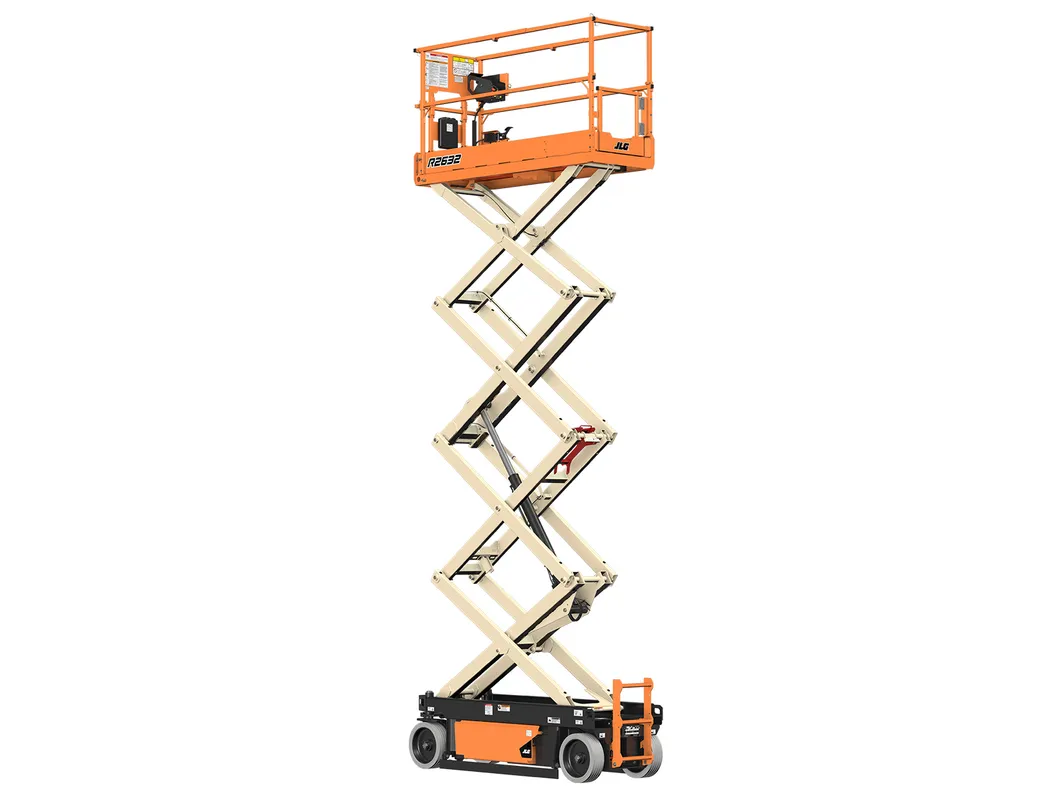

The R series scissor aerial work platform has been completely redesigned from both the chassis and platform. Including active dent protection system, simple arm design, thick tires and other configurations to ensure a scissor aerial work platform that is more durable, easier to maintain, and more suitable for rental.
Technical Parameters
Value
Power Supply (Battery)
4 x 12v 150 amp-hr
Charger
27 amp High Frequency
Brake Type
Multi-Disc Friction (Hydraulic)
Hydraulic Tank Capacity
29.90 L / 7.9 gal.
Vehicle Weight
3175.15 kg / 7000 lb
Travel Speed (Raised)
0.80 km/h / 0.5 mph
Travel Speed (Lowered)
3.38 km/h / 2.1 mph
Gradeability
25%
Platform Load Capacity
349.27 kg / 770 lb
Machine Height
2.54 m / 8 ft 4 in.
Platform Height (Max)
11.96 m / 39 ft 3 in.
Working Height
13.79 m / 45 ft 3 in.
Wheelbase
2.03 m / 6 ft 8 in.
Key Features & Advantages
Unique and wide tilt angle, different heights correspond to different tilt angles, suitable for multiple working conditions.

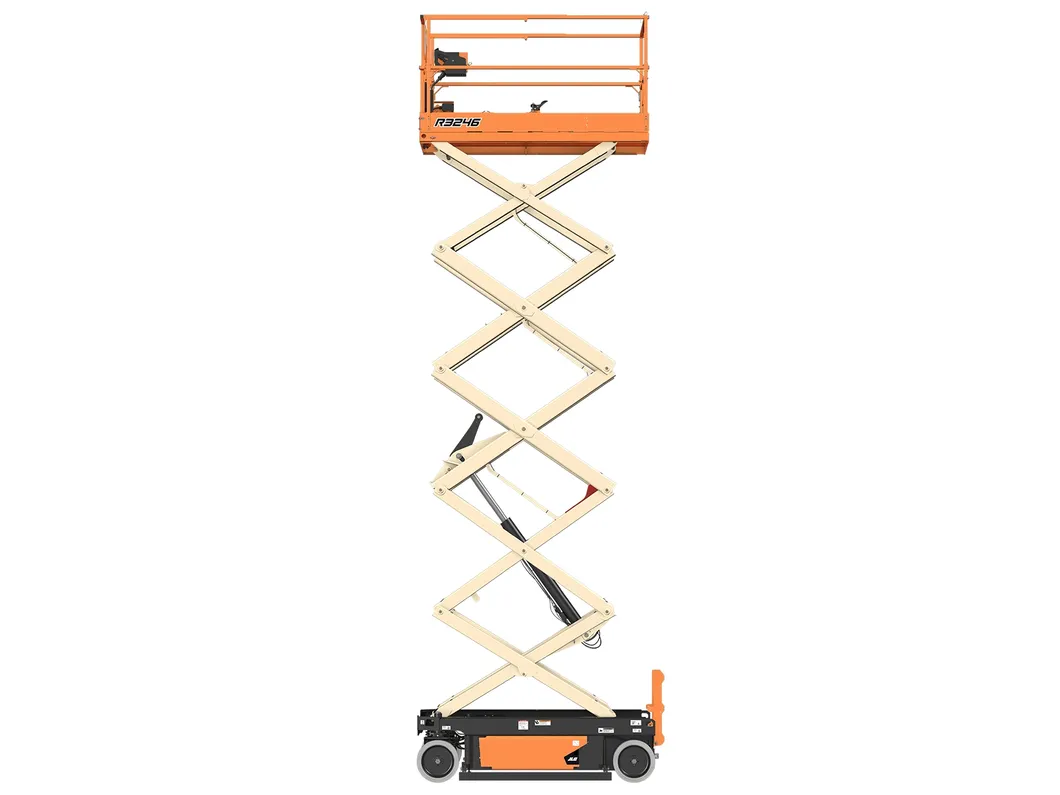

R3246 has the lightest total weight among products with the same operating height.
Unique single-lift oil cylinder design with fewer hydraulic oil pipes and joints, reducing leakage points.
Swing-out component compartment for easy maintenance.
Low total cost of ownership thanks to lubrication-free parts.

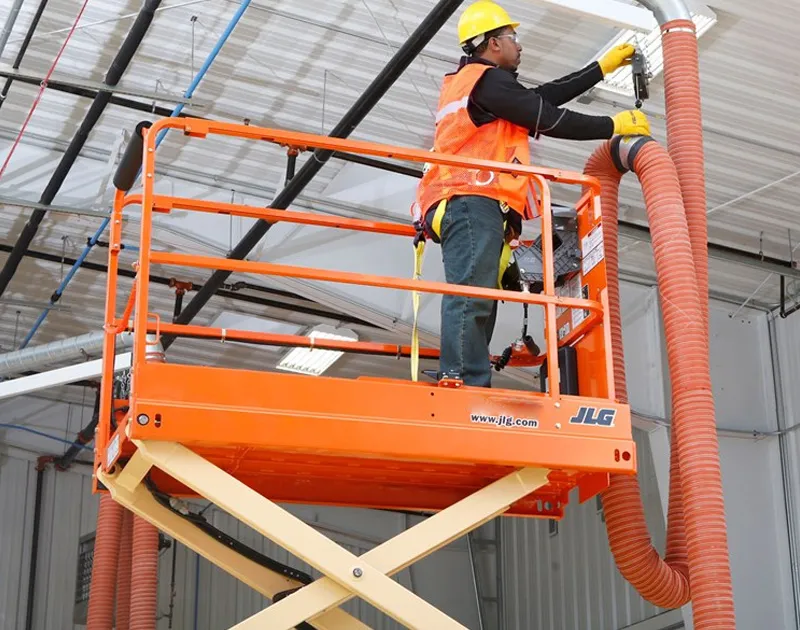

All-steel platforms and "parallel" fence designs for maximum durability.
Large 16x5-inch tires with strong spanning ability for construction site applications.
Frequently Asked Questions

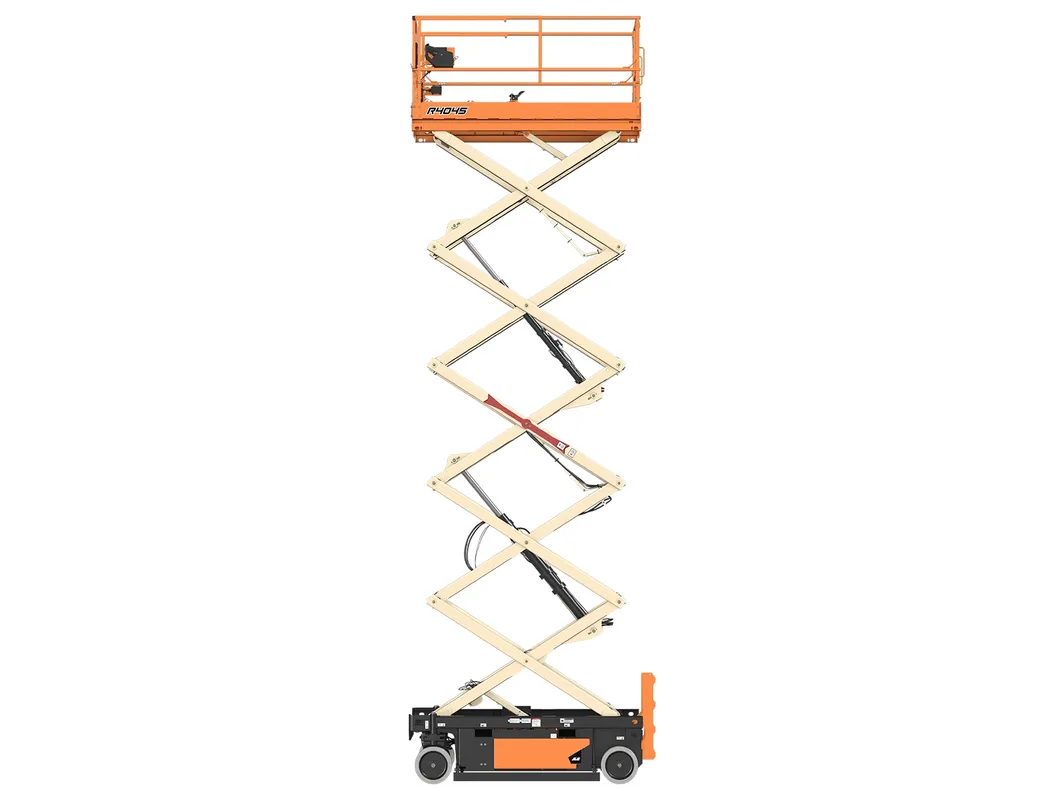

1. What is the maximum working height of the R4045 model?
The R4045 model offers a maximum platform height of 11.96 meters, which translates to a working height of approximately 13.79 meters (45 ft 3 in).
2. Can this scissor lift be used for both indoor and outdoor applications?
Yes, the R4045 is designed for both indoor and outdoor use. It features high stability and large 16x5-inch tires suitable for construction site applications.
3. What is the power source for the JLG-R4045?
It is powered by a high-capacity battery system consisting of 4 x 12V 150 amp-hr batteries, supported by a 27 amp high-frequency charger.
4. What is the weight capacity of the platform?
The main platform load capacity is 349.27 kg (770 lb), while the extension portion can support up to 113.40 kg (250 lb).
5. Why is this model considered low maintenance?
The design incorporates lubrication-free parts, a single-piston rod, and a simple centerline arm concept that reduces the number of hydraulic pipes and joints, minimizing potential leakage points.
6. How does the active dent protection system work?
The active dent protection system and the all-steel platform are part of a redesigned chassis meant to protect the vehicle from impacts and wear in rugged rental or construction environments.
