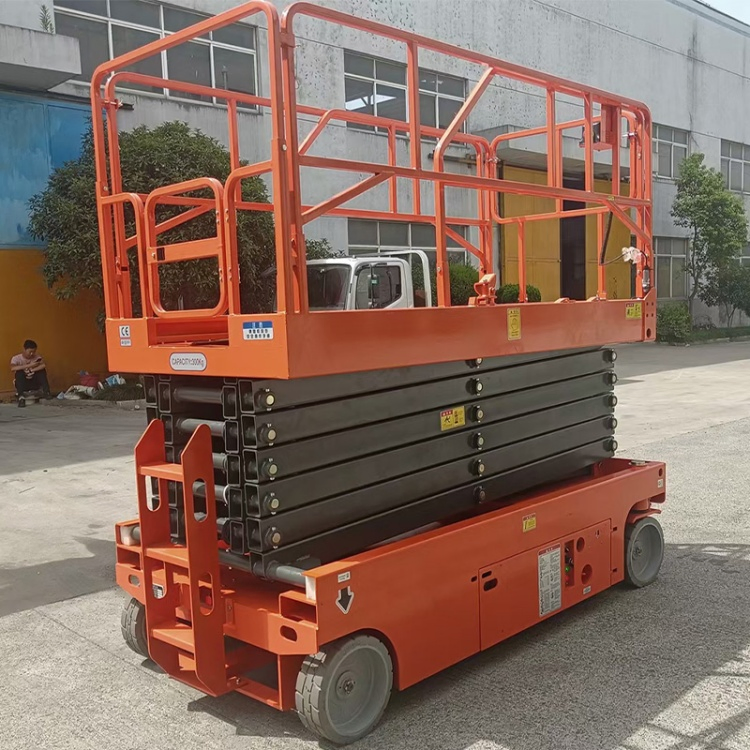

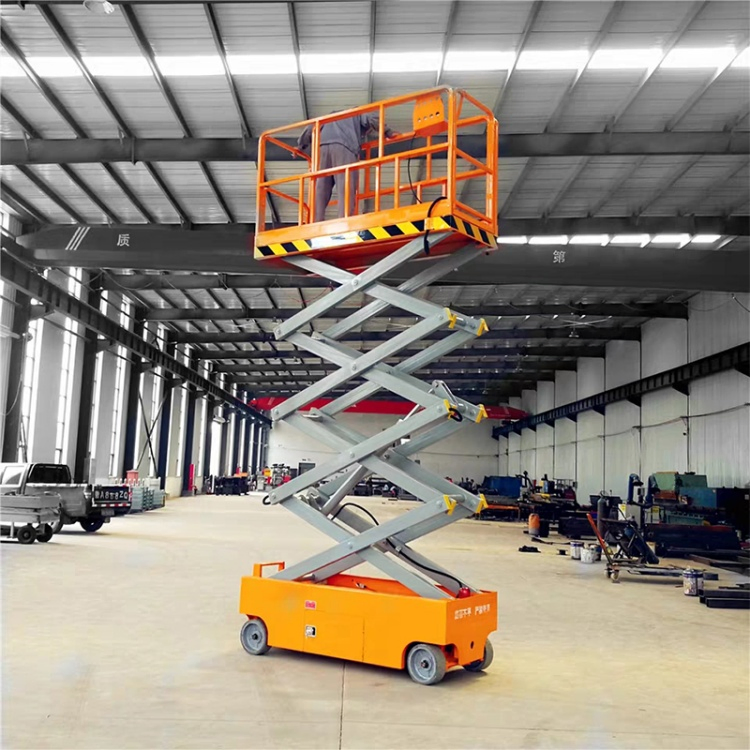

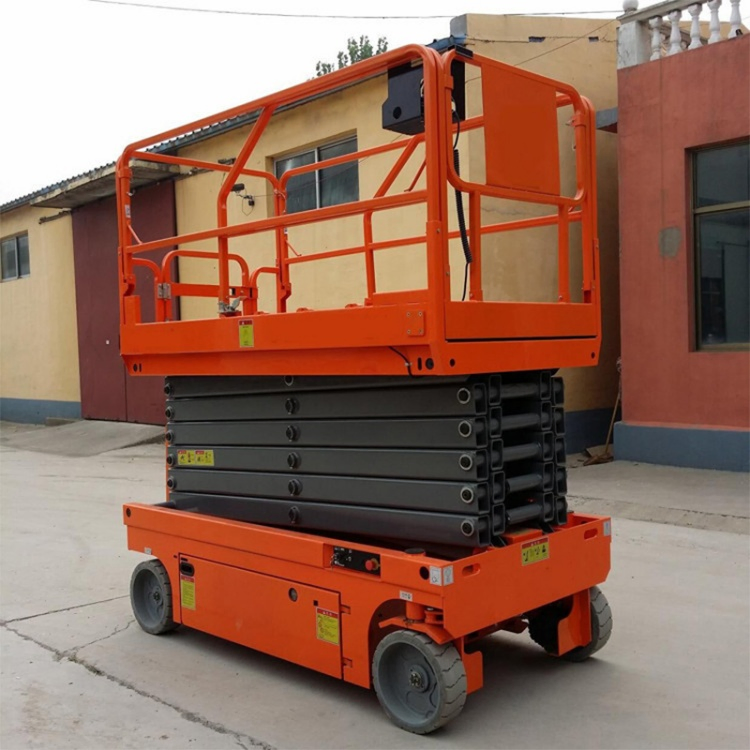

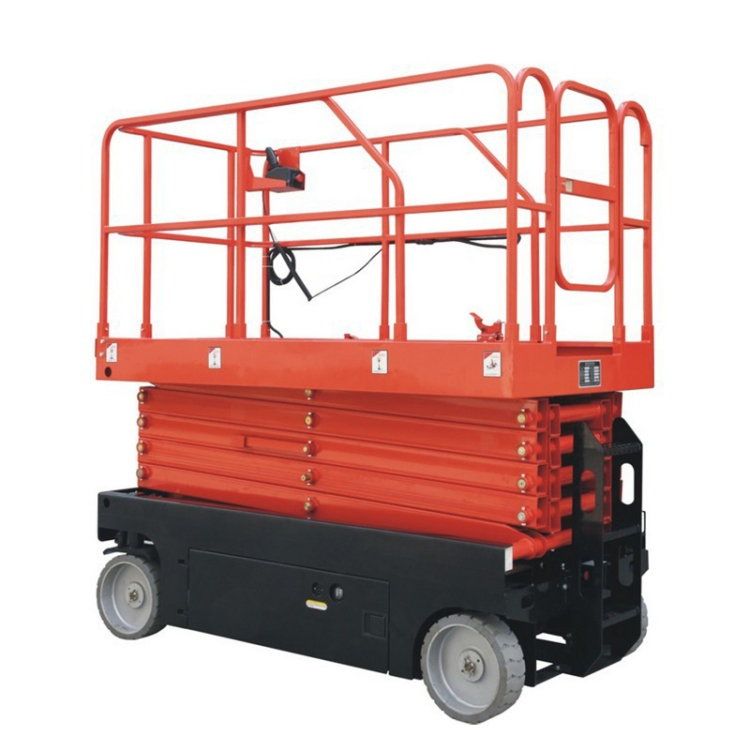

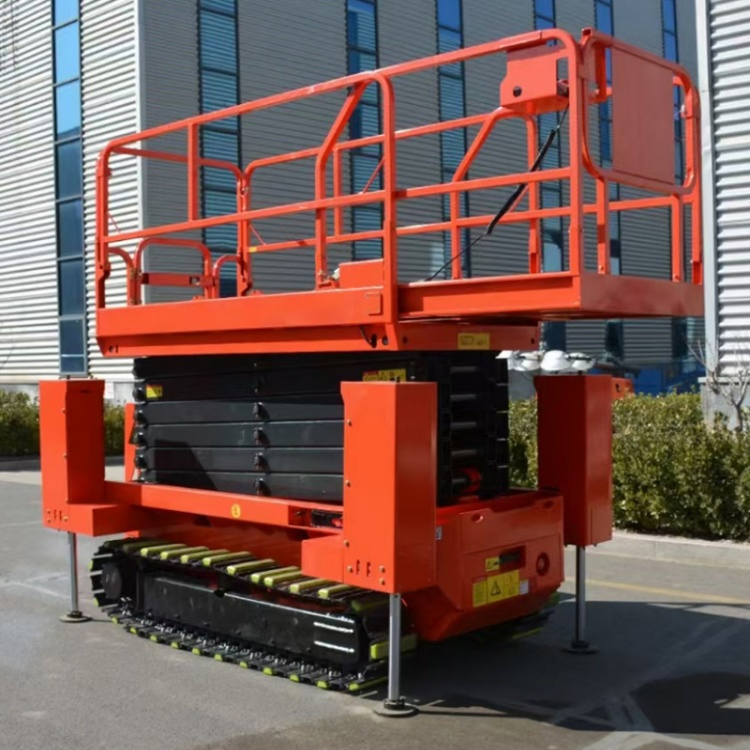

Compact Electric Hydraulic Scissor Lift for Rough Terrain

Customization: Available
After-sales Service: Online
Warranty: 1year

Product Description

Basic Information
Model NO.
MSL6
Lift Mechanism
Scissor Lift
Carrying Capacity
Special Weight Level
Driven Type
DC
Certification
GS, CE, RoHS, ISO 9001
Lifting Height
3m - 11.8m
Loading Weight
200kg - 1000kg
Battery Powered
Yes
Technical Specifications
Model Number Unit MSL06 MSL08 MSL10 MSL12
Max platform heightmm600080001000011800
Max working heightmm8000100001200013800
Load capacitykg300300300300
Total lengthmm2400240024002400
Total widthmm1150115011501150
Platform sizemm2270x11502270x11502270x11502270x1150
Net weightkg1900208024902760
Scissor Lift Overview Scissor Lift Detailed View
Product Overview

Mobile scissor lifts are multi-functional aerial work platforms designed to safely and efficiently lift personnel, tools, and materials to elevated work areas. They utilize a vertically telescopic scissor-lift mechanism, driven by a hydraulic or electric system, and mounted on a mobile chassis equipped with wheels or a self-propelled system. These lifts are widely used in maintenance, installation, construction, and warehousing operations where high flexibility and mobility are required.

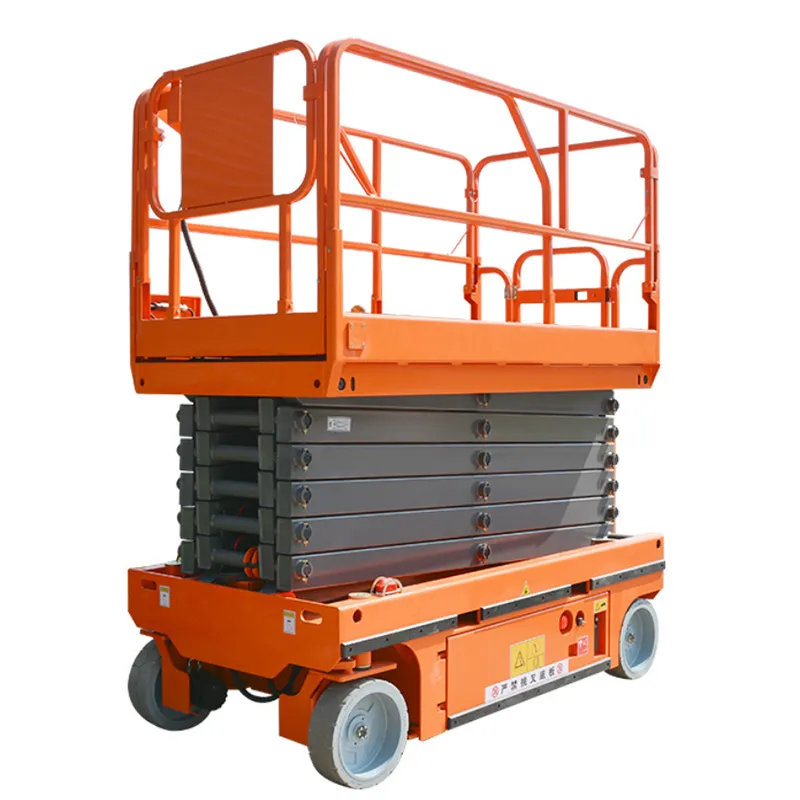

Mobile Scissor Lift
Key Features
  • Rugged high-strength steel scissor mechanism.
  • Stable hydraulic or electric drive system.
  • Wheeled mobile chassis for easy transit.
  • Spacious work platform with expandable extension.
  • Advanced safety systems (Emergency descent, overload protection).

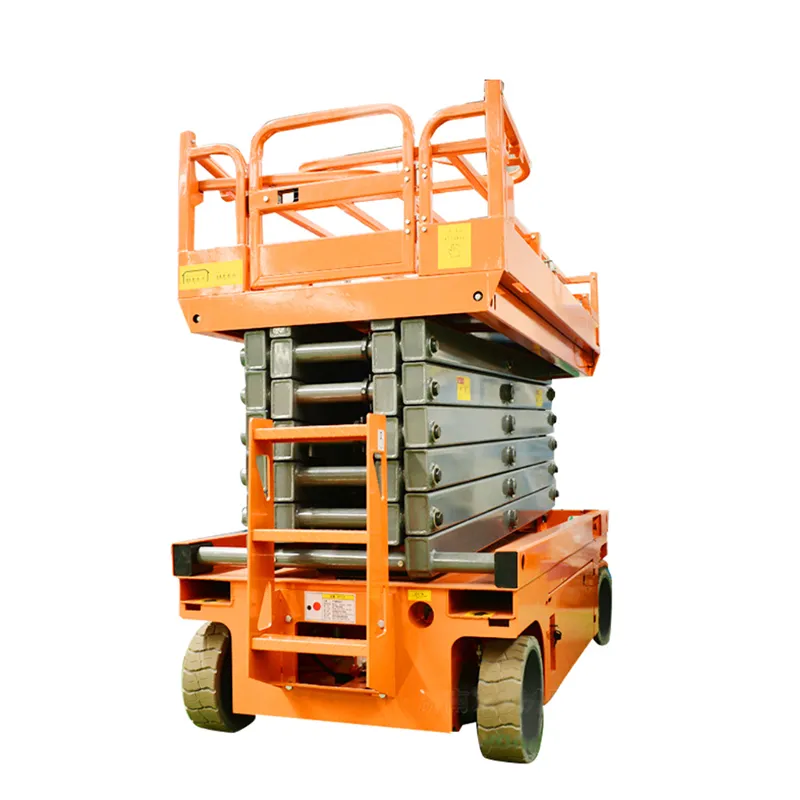

Features

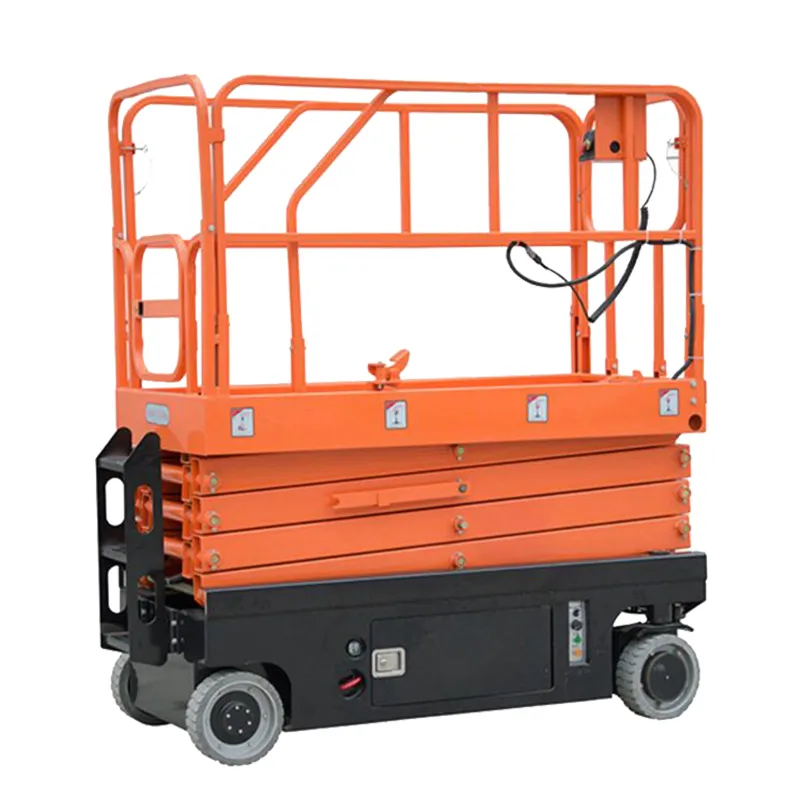

Functions
Primary Functions
  • Safe working at varying heights.
  • Material and tool transport to elevated stations.
  • Flexible operations across flat surfaces.
  • Precise and stable positioning for repair tasks.

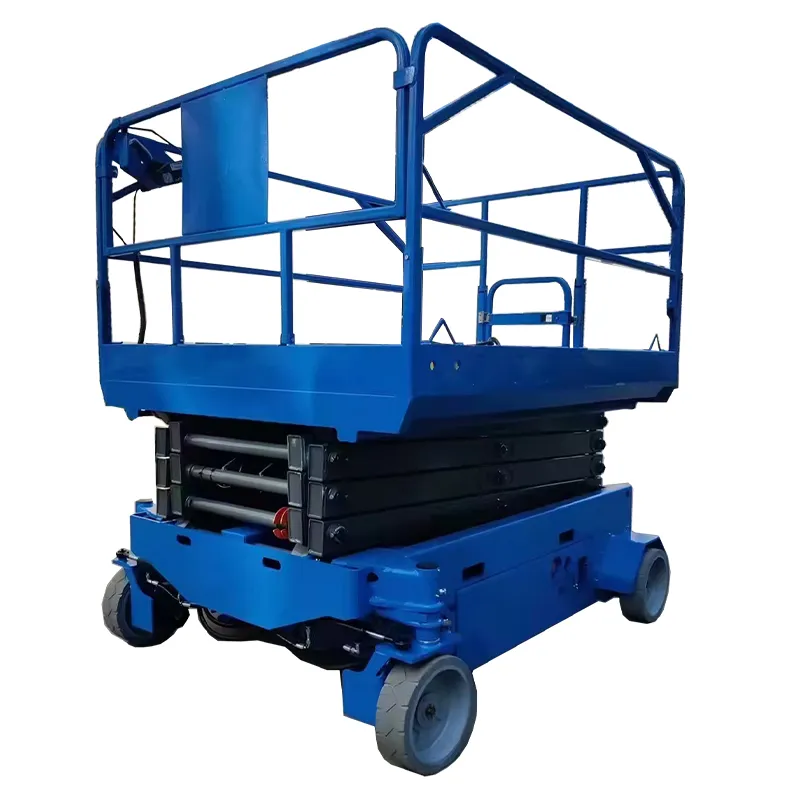

Application 1

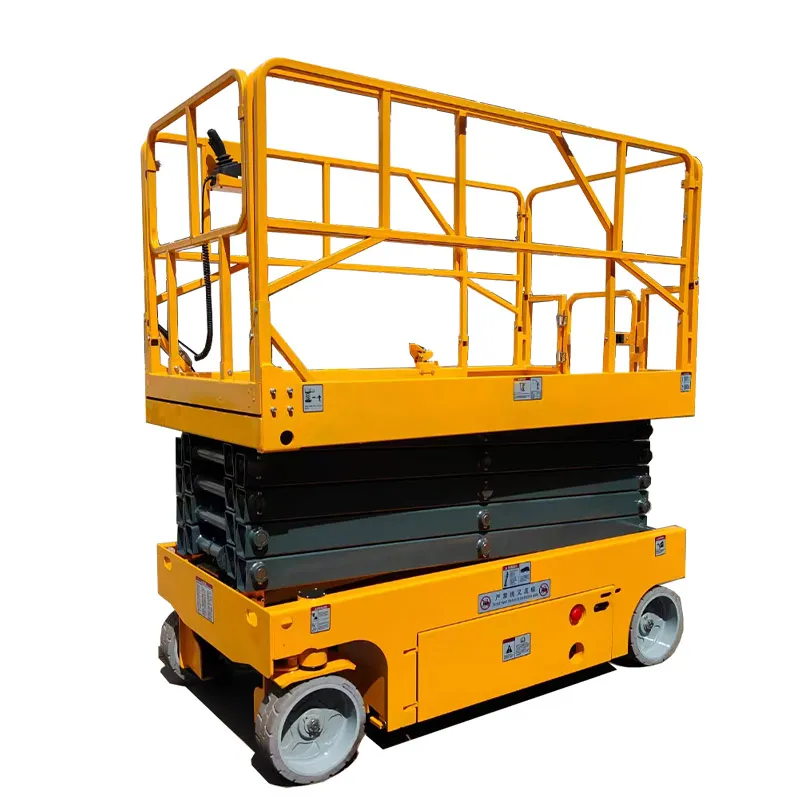

Application 2
Common Applications

• Building and Facility Maintenance
• Electrical and Lighting Installation
• Warehouse and Inventory Management
• Interior and Exterior Construction
• Cleaning and Decoration Work

Core Advantages

• High Mobility between work areas
• Labor savings compared to scaffolding
• Cost-effective aerial solutions
• Versatile indoor and outdoor use
• Minimal maintenance requirements

Product Showcase

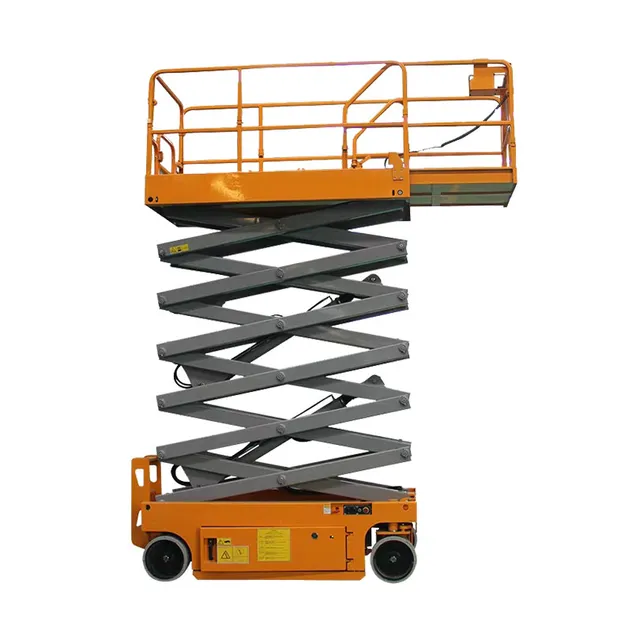

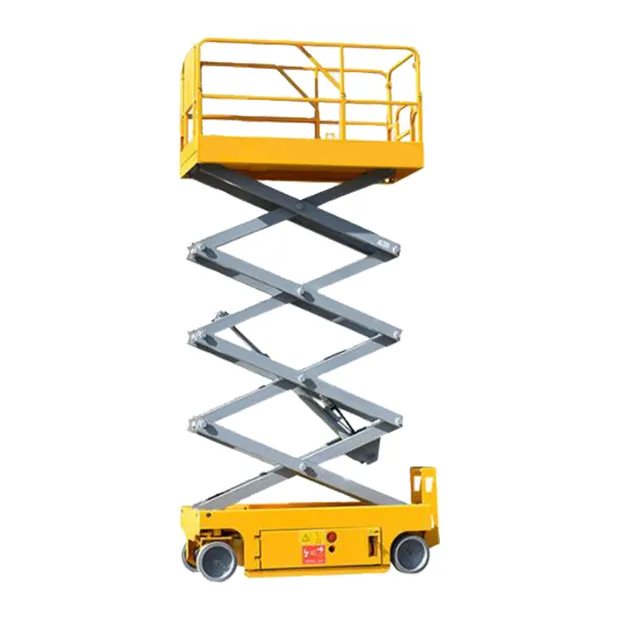

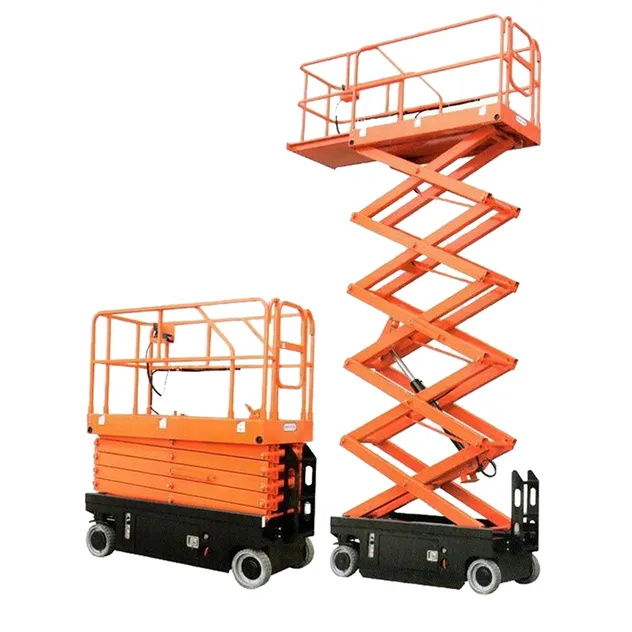

Product 1 Product 2 Product 3

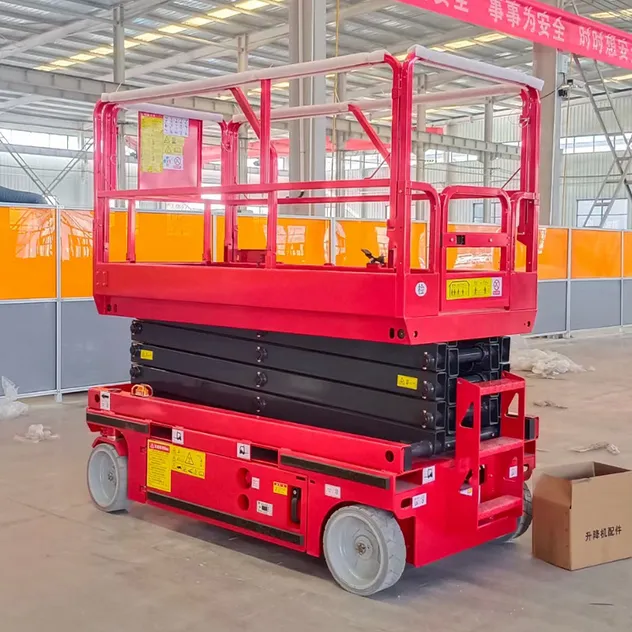

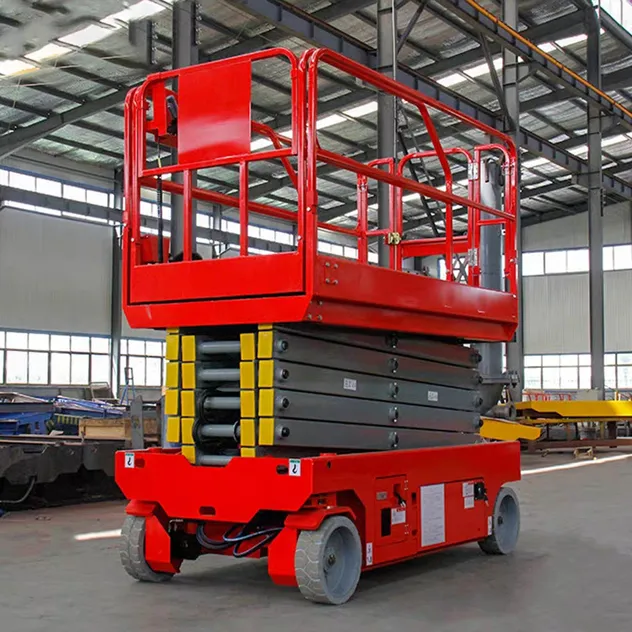

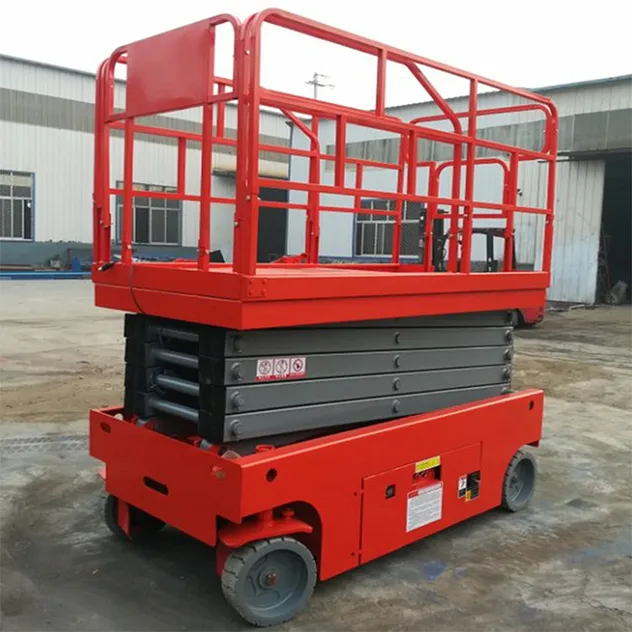

Product 4 Product 5 Product 6
Production & Quality
Production Process Certifications Packaging
Frequently Asked Questions
Q1: Are these scissor lifts currently in stock?
A: These lifts are typically custom-made to meet specific requirements. Production usually takes 10 to 15 working days.
Q2: How long does shipping take?
A: Shipping times vary by method: Air freight takes 3-8 days, while sea freight generally takes 25-45 days depending on the destination.
Q3: What shipping terms are supported?
A: We support standard international shipping terms including EXW, FOB, and CIF.
Q4: How is the equipment packaged for transport?
A: Standard packaging uses cardboard and stretch film. Optional wooden crate packaging is available for additional protection during transit.
Q5: What safety features are included in the lift?
A: Our lifts include guardrails, safety locking valves, emergency descent devices, and overload protection systems as standard.
Q6: Are the lifts easy to operate?
A: Yes, they come with an intuitive control panel and joystick for precise height adjustment and movement control.
