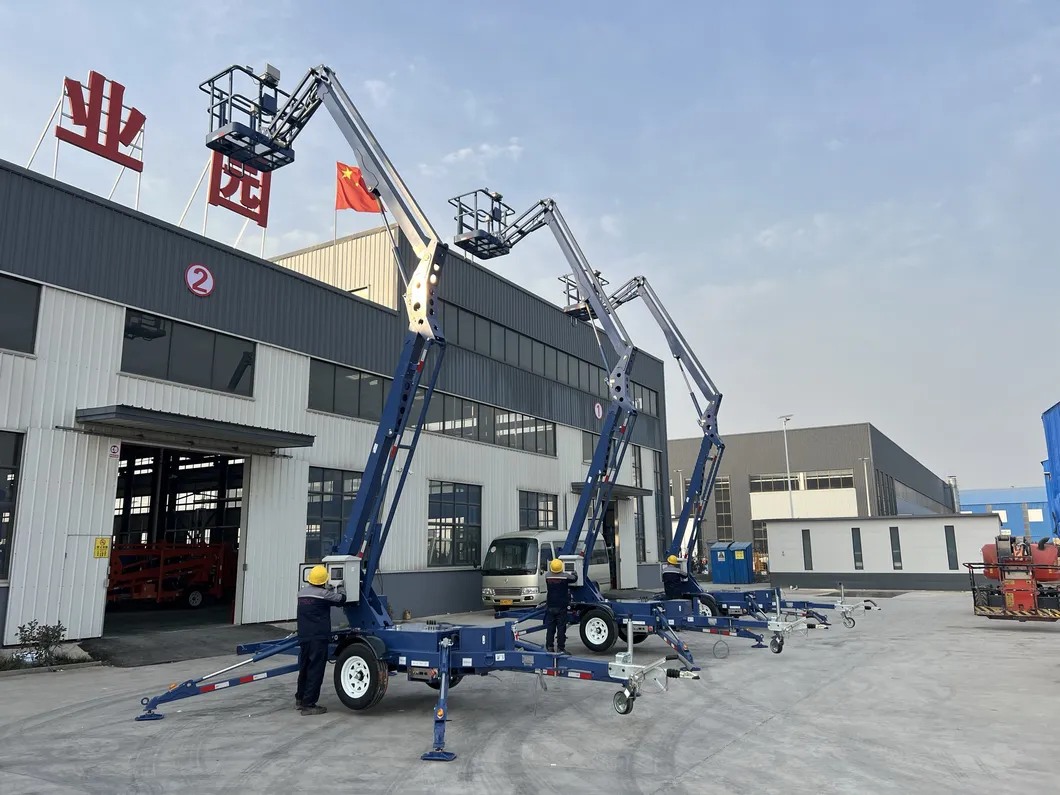

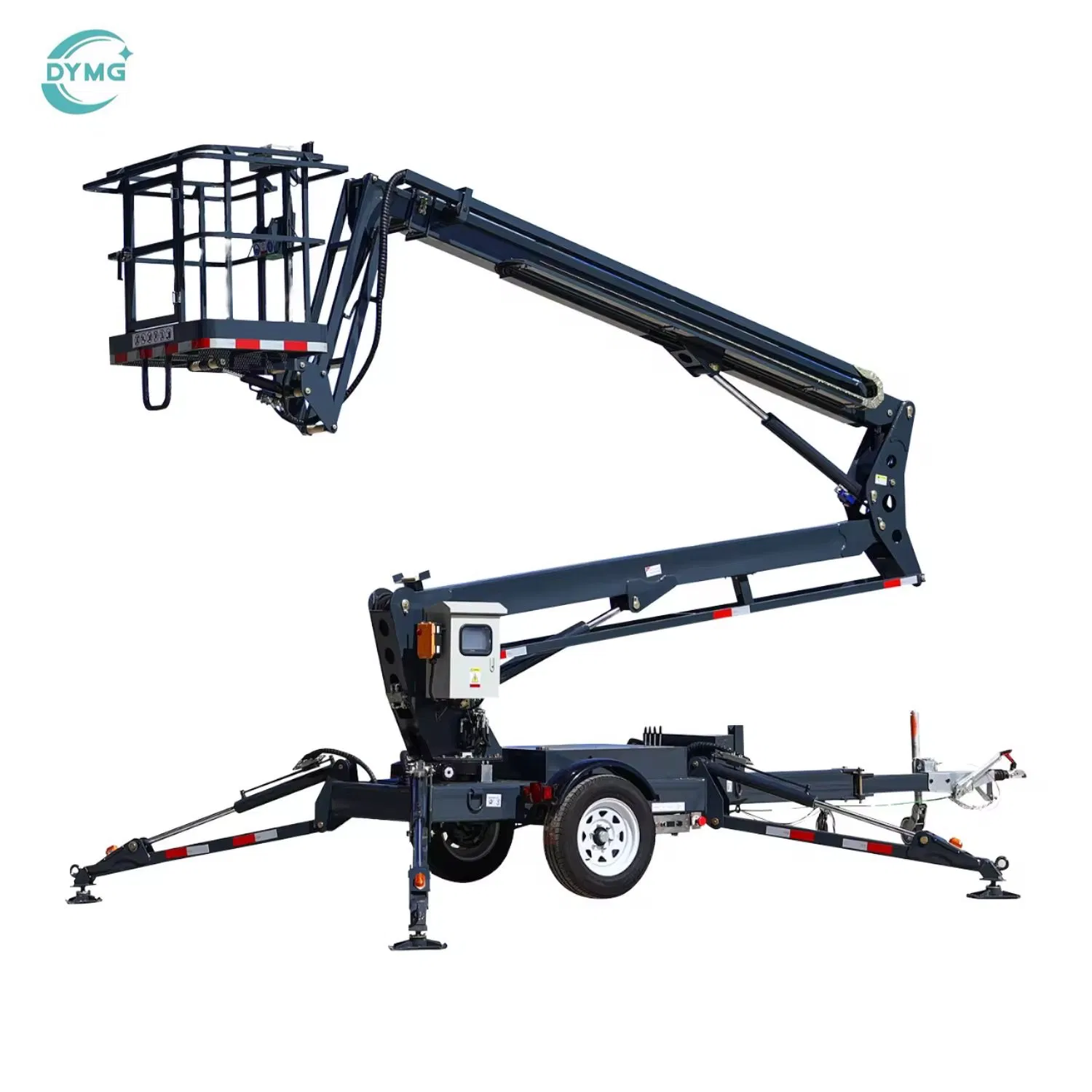

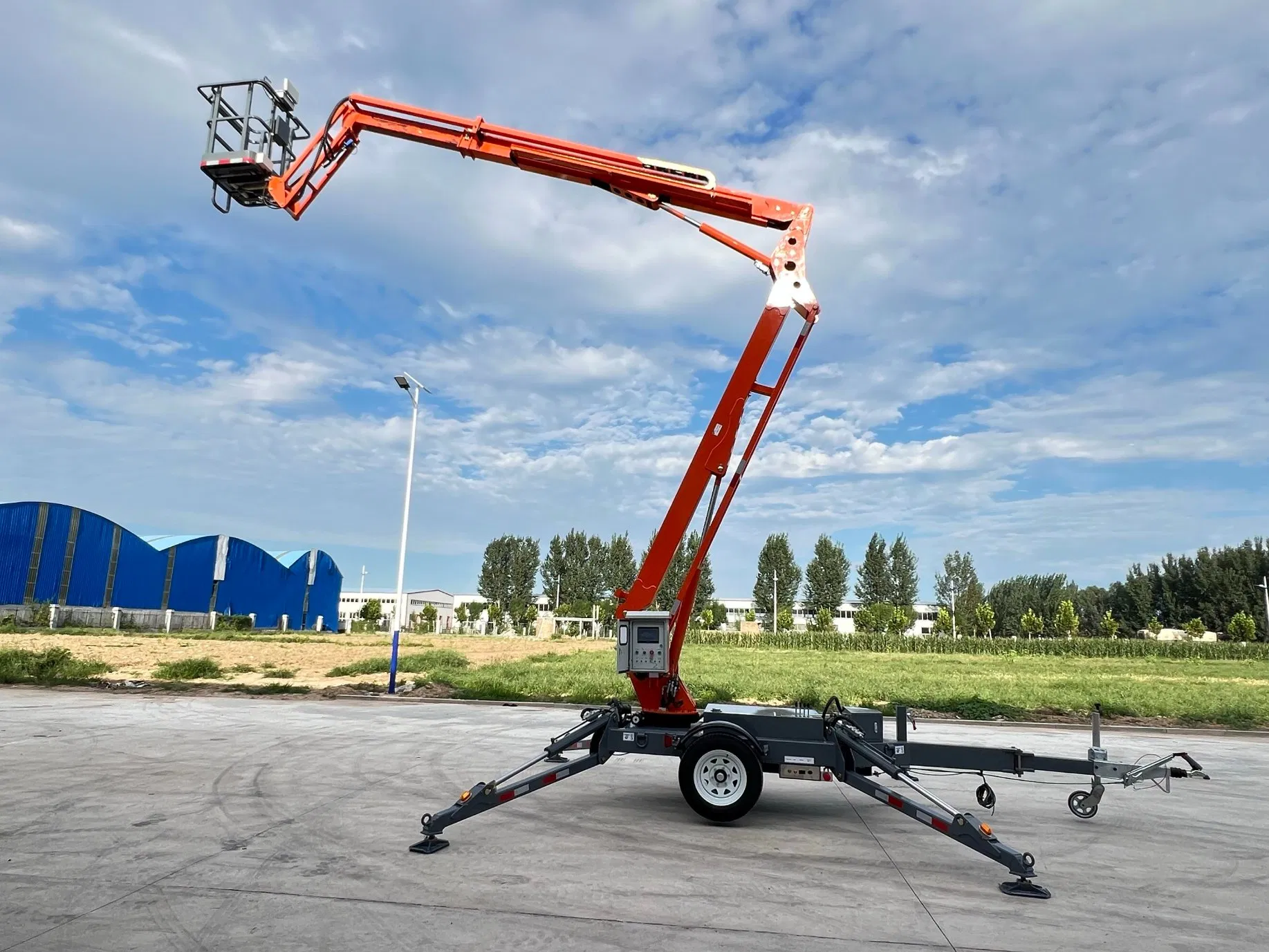

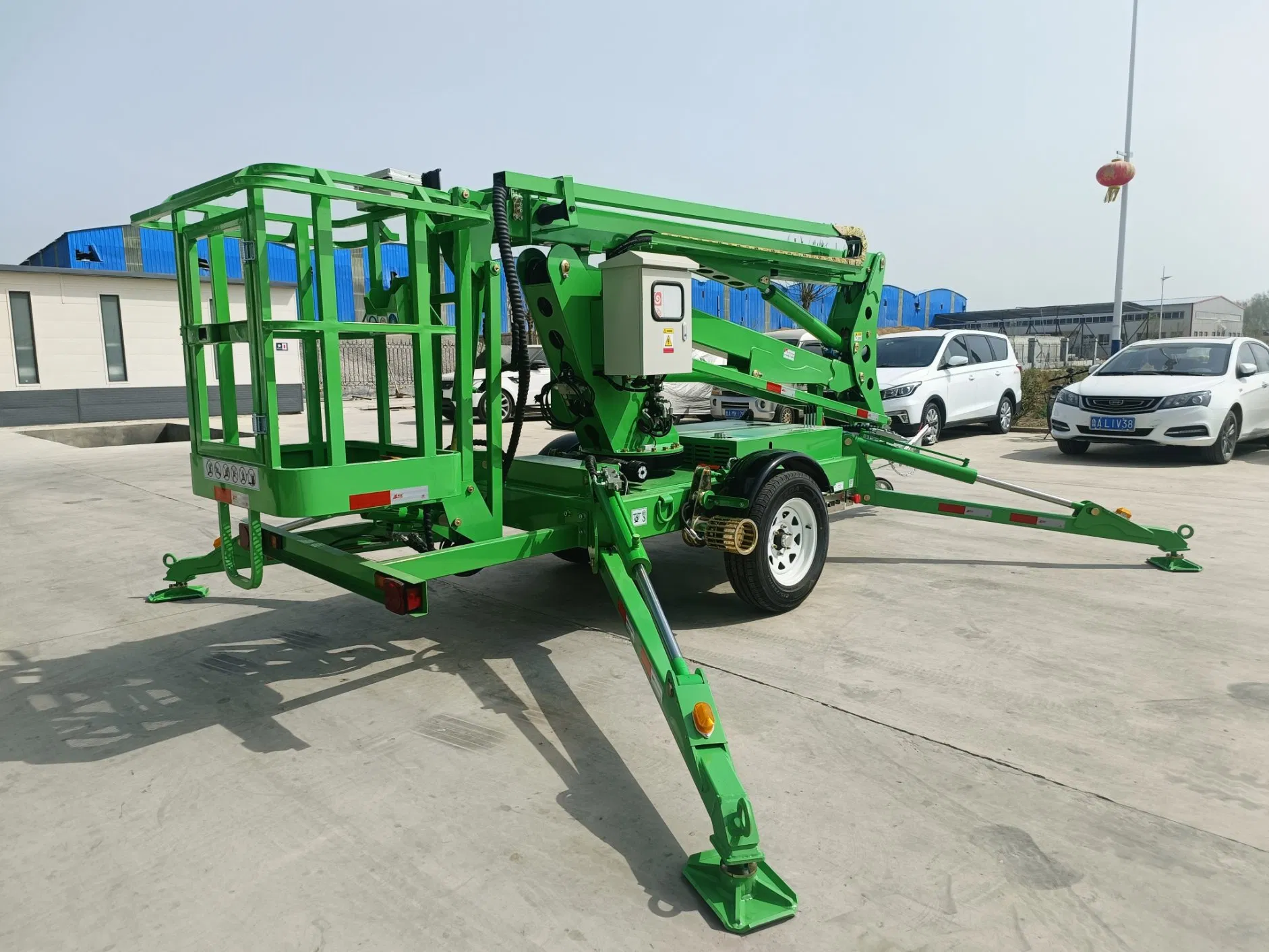

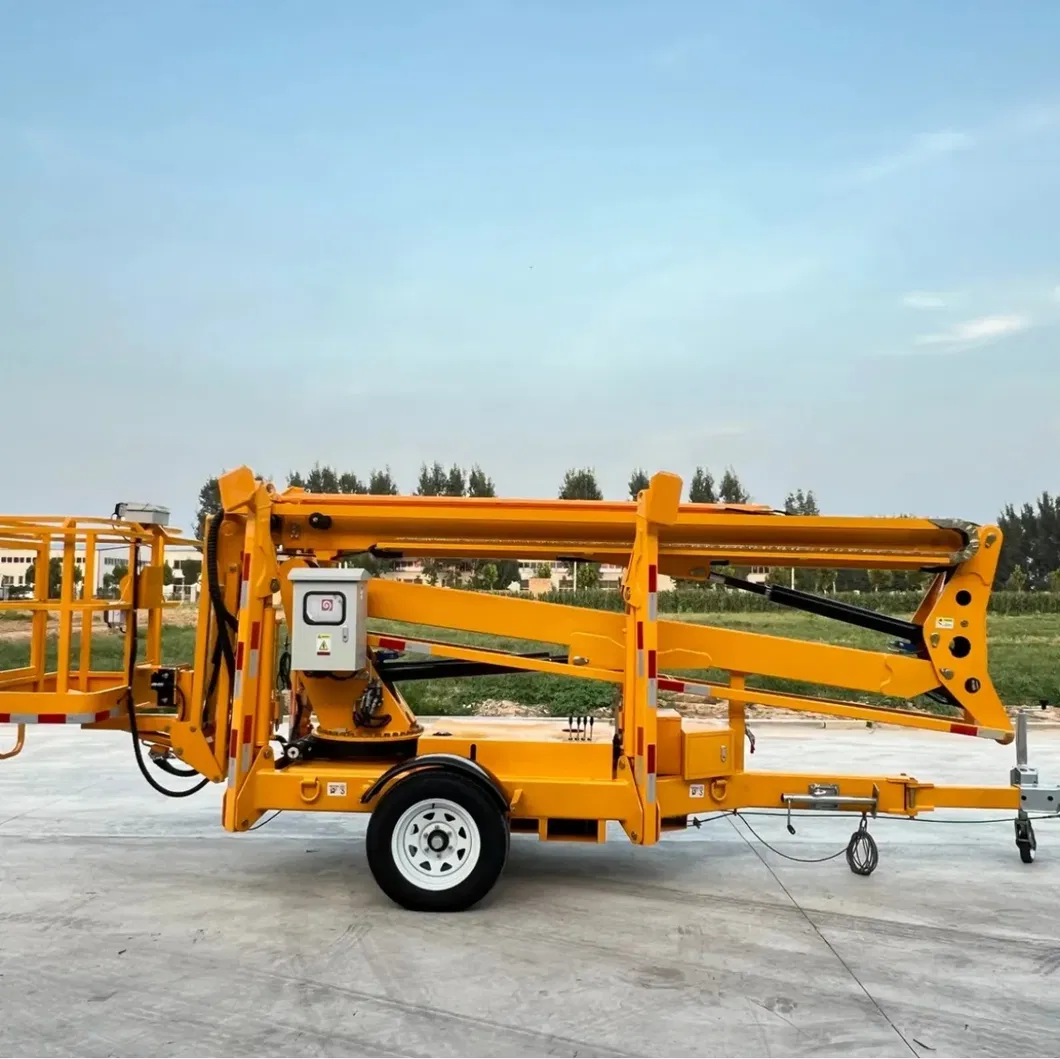

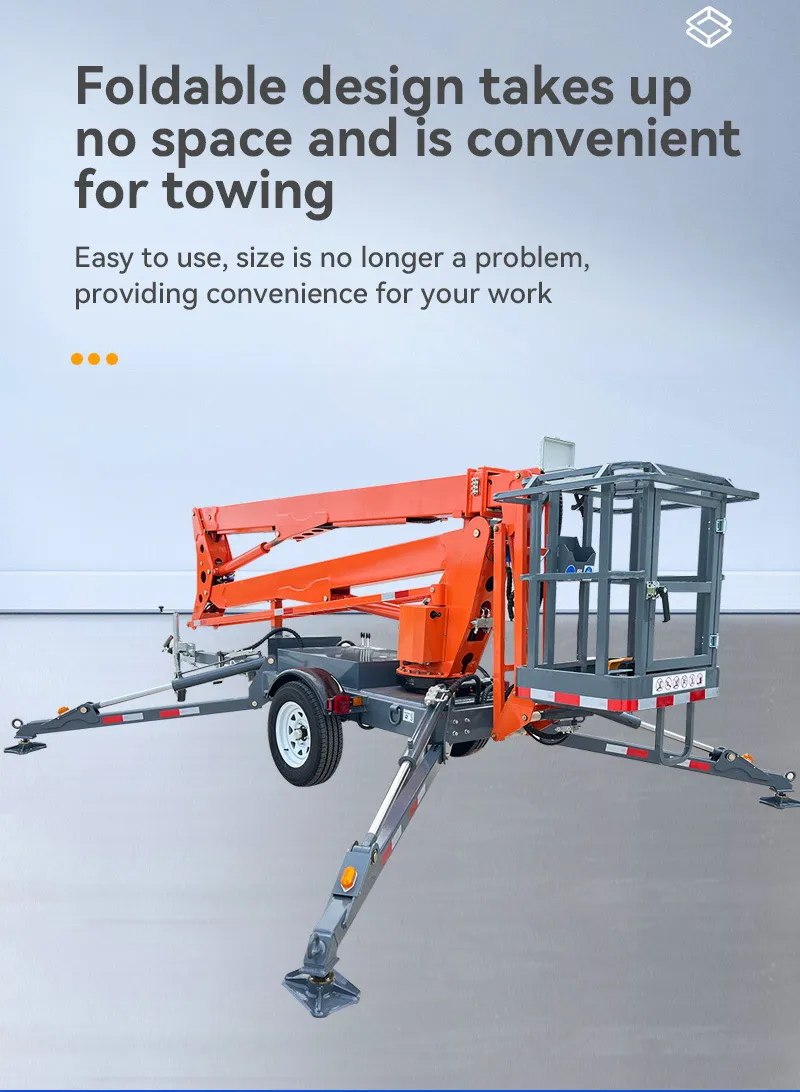

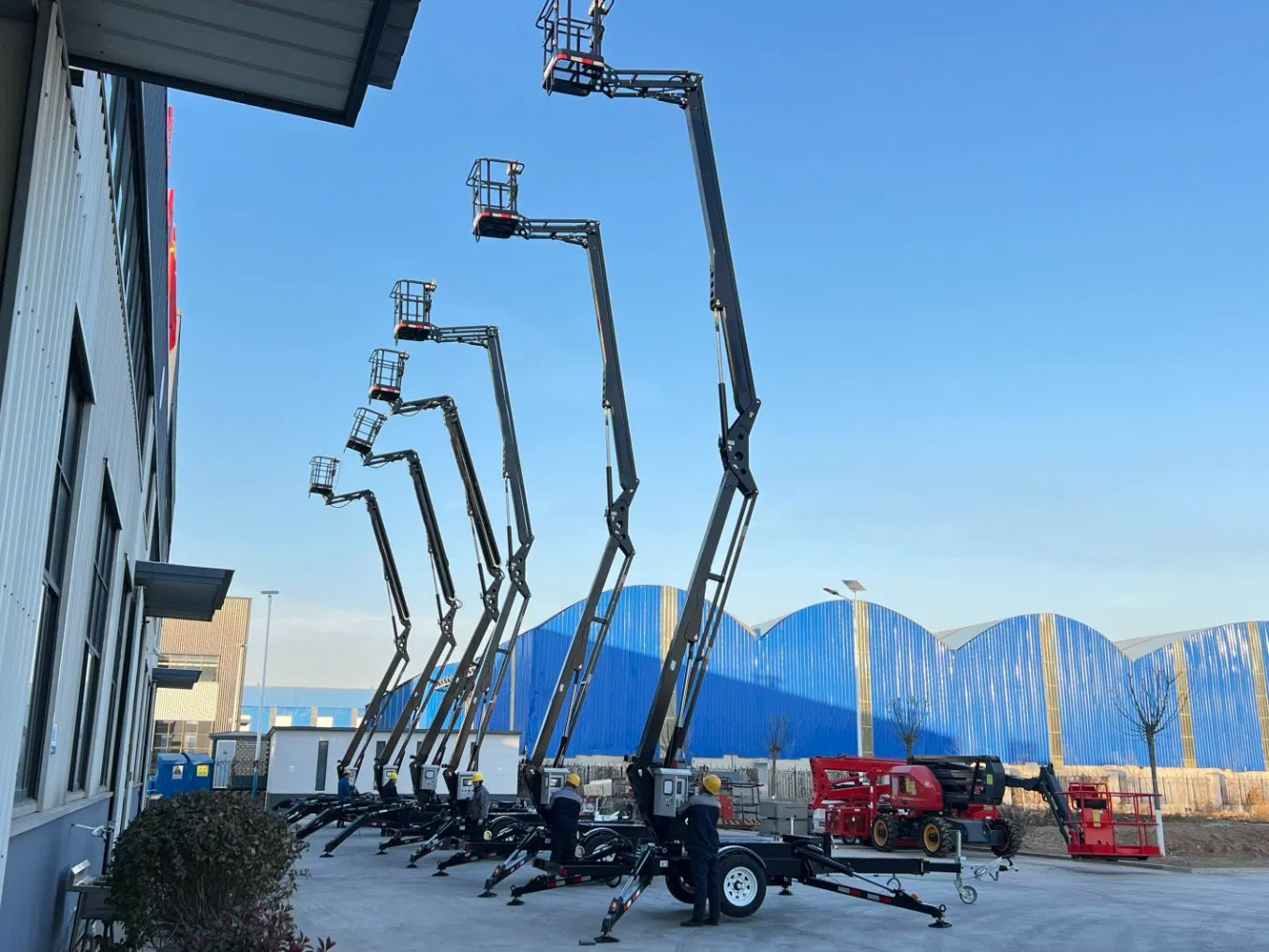

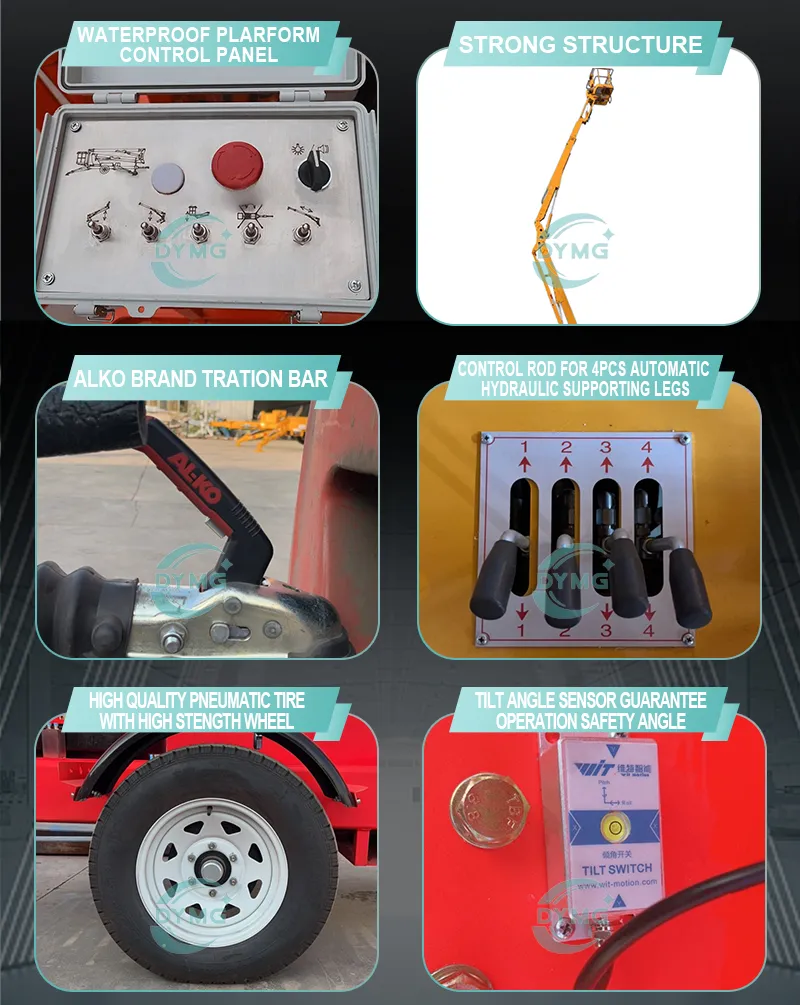

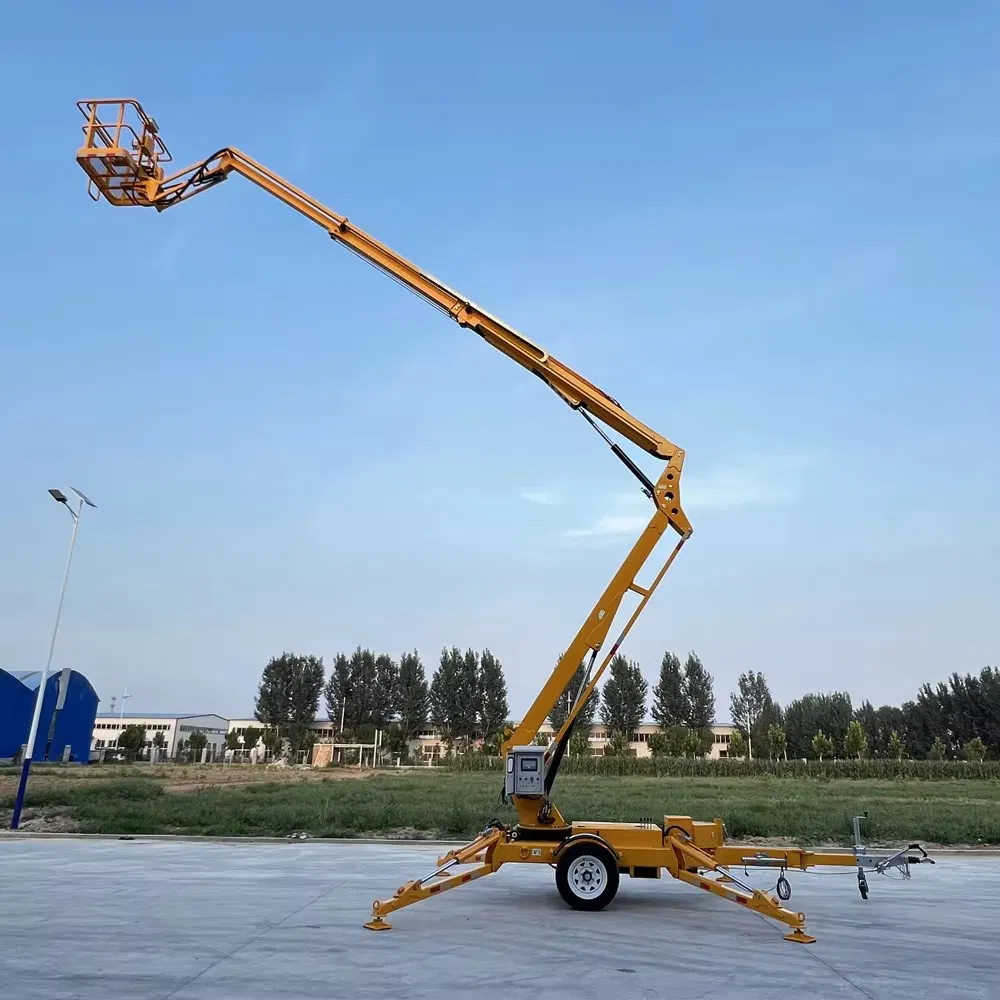

The Trailer Boom Lift is specifically engineered for those tricky, high-up, hard-to-squeeze-into jobs. They're space efficient, both when in use and folded up for storage, as it's able to move around in narrow spaces easily, and be folded up for compact storage. It can be towed everywhere by car, and the four automatic hydraulic legs provide high stability. Widely used in roads, street light maintenance, shopping malls, and other working places.
| Model Type | DYMG-10 | DYMG-12 | DYMG-14 | DYMG-16 | DYMG-18 | DYMG-20 | DYMG-22 |
|---|---|---|---|---|---|---|---|
| Lifting height | 10M | 12M | 14M | 16M | 18M | 20M | 22M |
| Working height | 12M | 14M | 16M | 18M | 20M | 22M | 24M |
| Load capacity | 200KG | 200KG | 200KG | 200KG | 200KG | 200KG | 200KG |
| Platform size | 0.9*0.7M | 0.9*0.7M | 0.9*0.7M | 0.9*0.7M | 0.9*0.7M | 0.9*0.7M | 0.9*0.7M |
| Working radius | 5.5M | 6.5M | 8.5M | 10M | 11M | 11M | 11M |
| Net Weight | 1855kg | 2050kg | 2300kg | 2500kg | 3000kg | 3100kg | 3500kg |
| Overall Size (L*W*H) | 5.2*1.35*2.4m | 6.2*1.7*2.4m | 5.5*1.7*2.4m | 5.5*1.7*2.4m | 6.5*1.8*2.3m | 5.8*1.9*2.3m | 5.9*2*2.3m |
