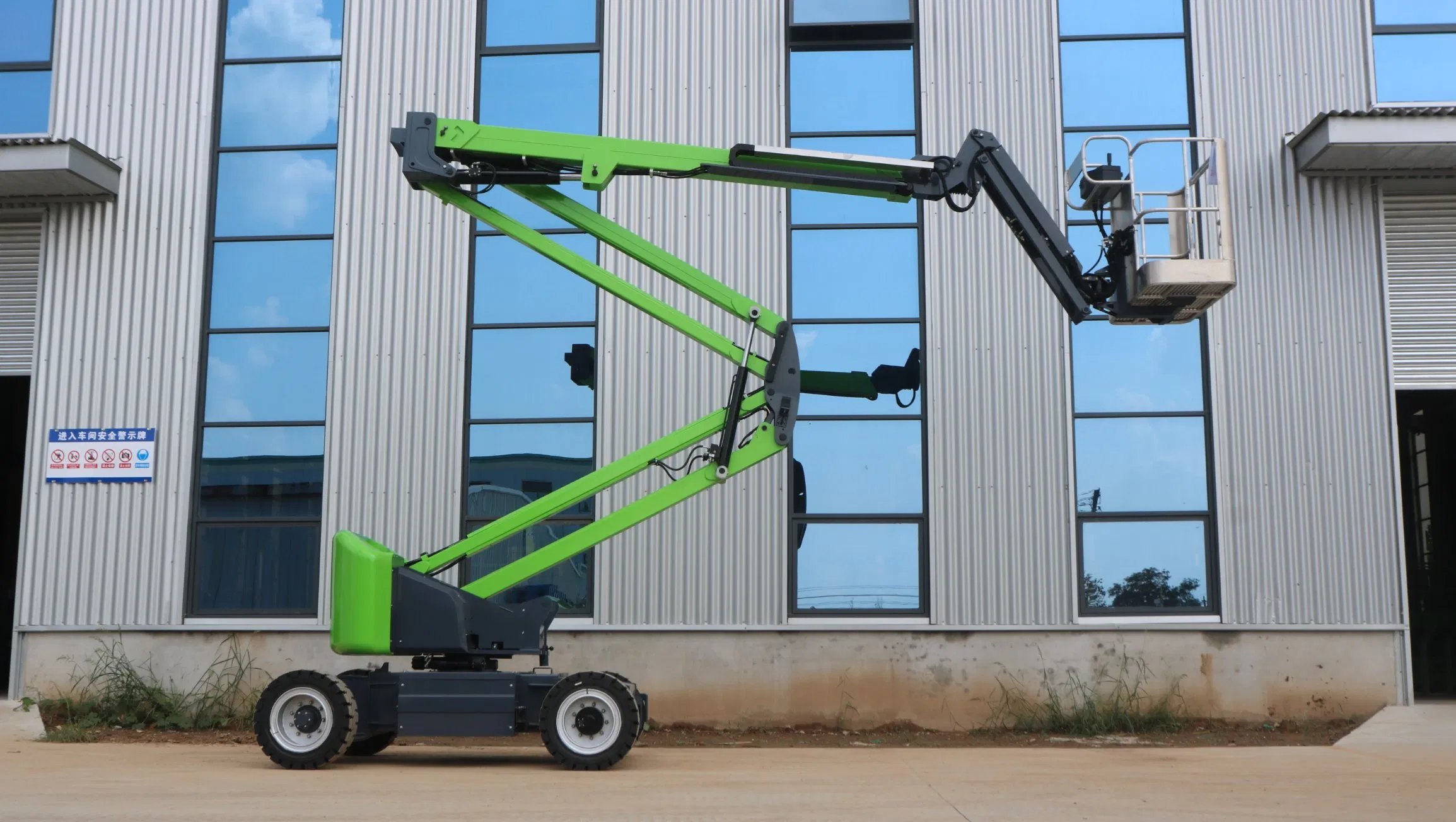

Electric SAE14e Articulated Boom Lift Aerial Work Platform Compact Flexible Zero-Tail

Customization: Available
After-sales Service: 24/7
Warranty: 24months for Core Components

Product Description

Electric Articulated Boom Lift - 14m Self-Propelled

Engineered with advanced safety features, including overload protection, emergency descent, and tilt alarms, ensuring maximum operator security. Its articulated boom design allows precise, stable positioning, while insulated components and 360° safety sensors prevent accidents. Combined with dual-control operation and non-marking tires, this eco-friendly lift delivers safe, reliable access for construction, maintenance, and industrial tasks.

Basic Specifications

Model NO.SAB14E
ApplicationConstruction Sites/Municipal/Industrial
Lift MechanismArticulated Lift
Carrying Capacity200kg
Working Height15.8m
Platform Height13.8m
Working Radius7.5m
BatteryLFP Battery 48V/320ah
Driven TypeAC Electric
Gradeability35%
Platform Rotation±80°
CertificationCE, ISO 9001

Primary Applications

🏗️ Construction

Facade installation, steel structure assembly, and high-rise maintenance.

🏭 Industrial

Equipment repair, pipeline inspection, and warehouse management.

Utilities

Power line maintenance, antenna installation, and streetlight servicing.

🏢 Retail & Facility

Mall repairs, hotel exterior cleaning, and window maintenance.

Product Gallery

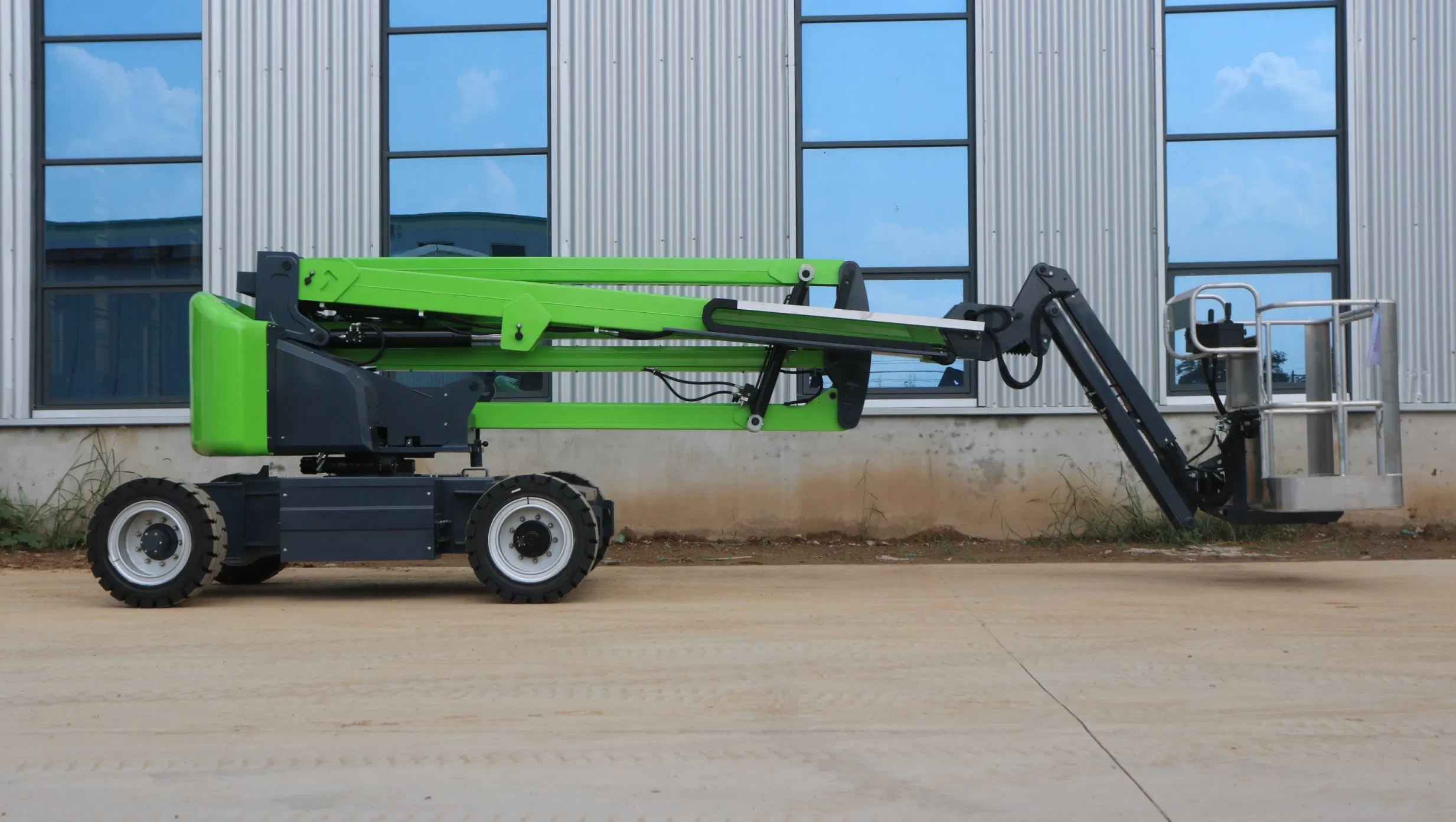

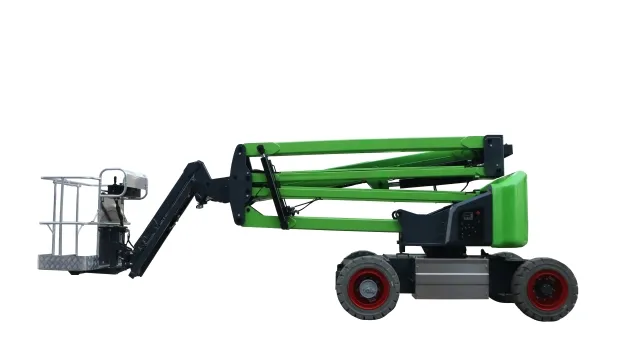

Electric Articulated Boom Lift Side View

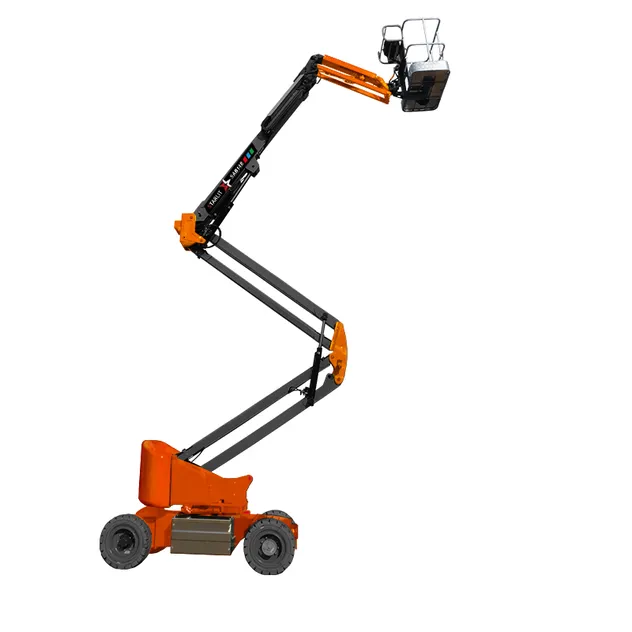

Compact Articulated Lift Detail 1

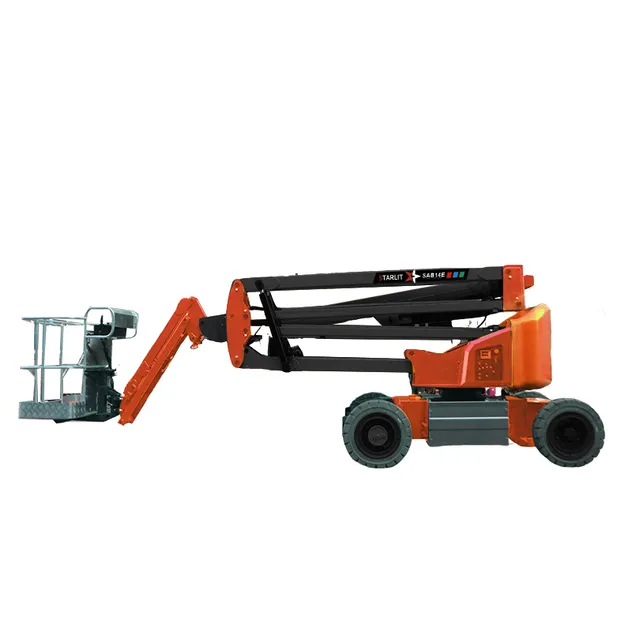

Compact Articulated Lift Detail 2

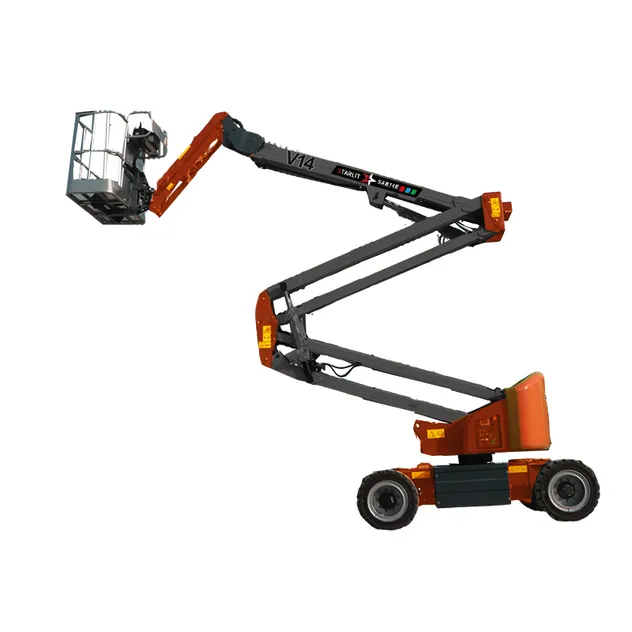

Compact Articulated Lift Detail 3

Technical Specification Comparison

Model SAB14E SAB16E SAB18E SAB20E
Operating Weight (kg) 5960 6630 9100 10000
Pump Power (kW) 4 4 12 12
Max Working Height (m) 15.8 17.7 20.2 22.5
Max Working Radius (m) 7.5 8.9 11.1 11.8
Platform Dimensions 1.4*0.76m 1.4*0.76m 1.8*0.76m 1.8*0.76m
Fuel/Hydraulic Tank 45L 45L 105L 105L

Drawings & Product Features

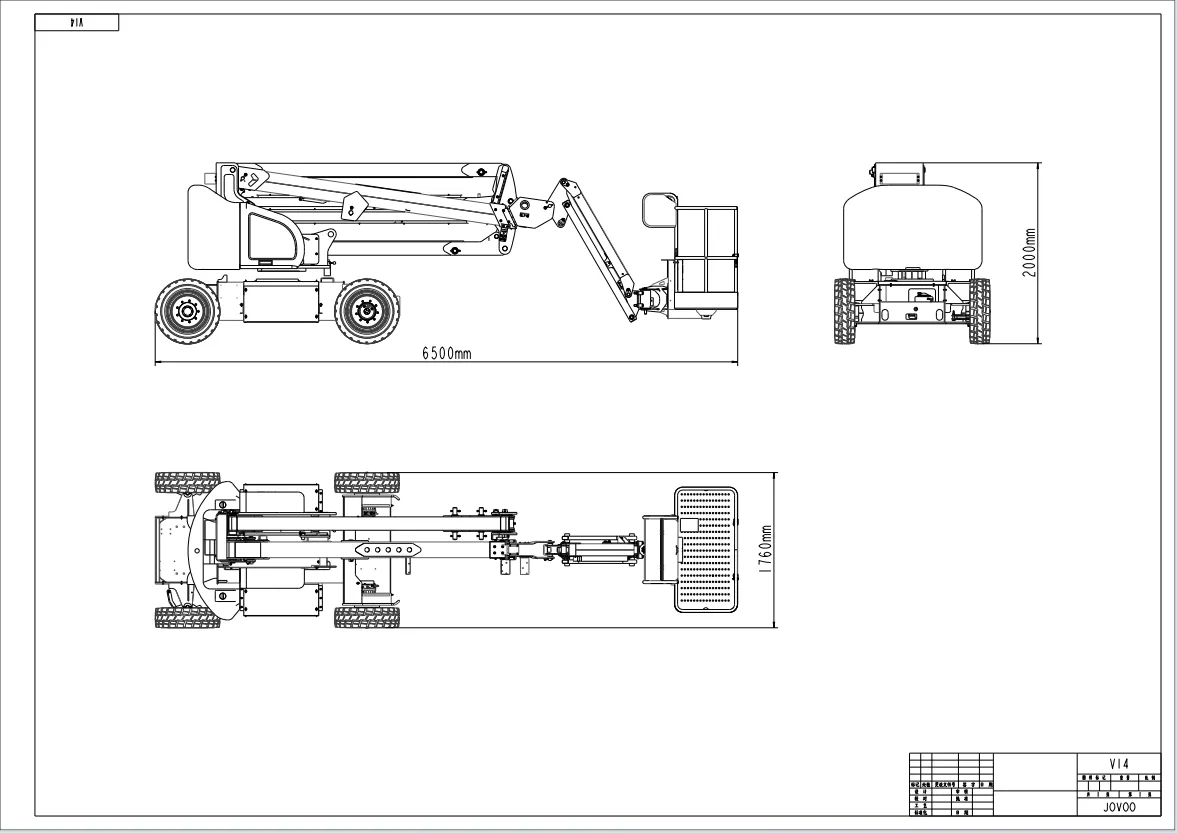

Lift Dimensions Drawing

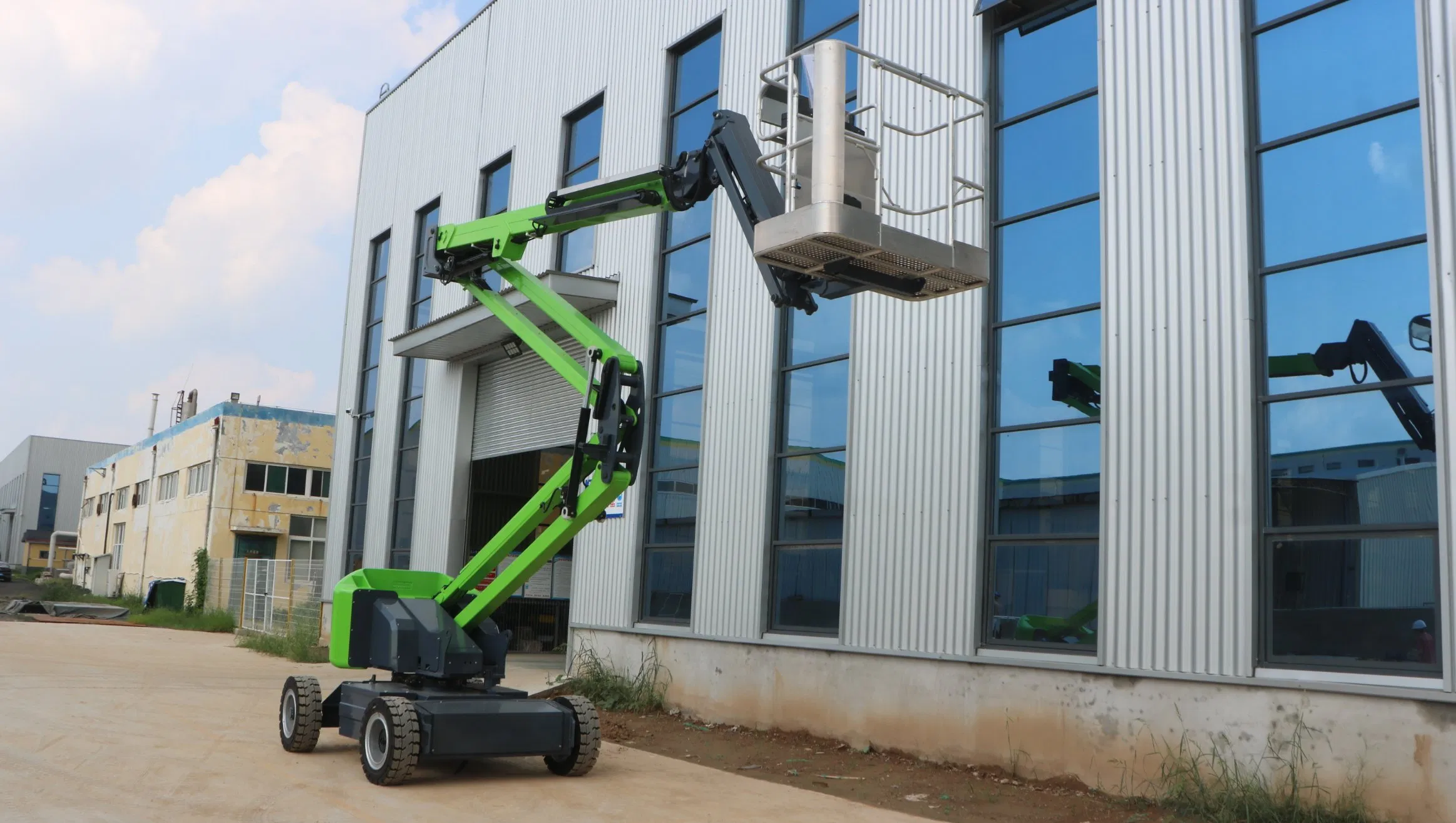

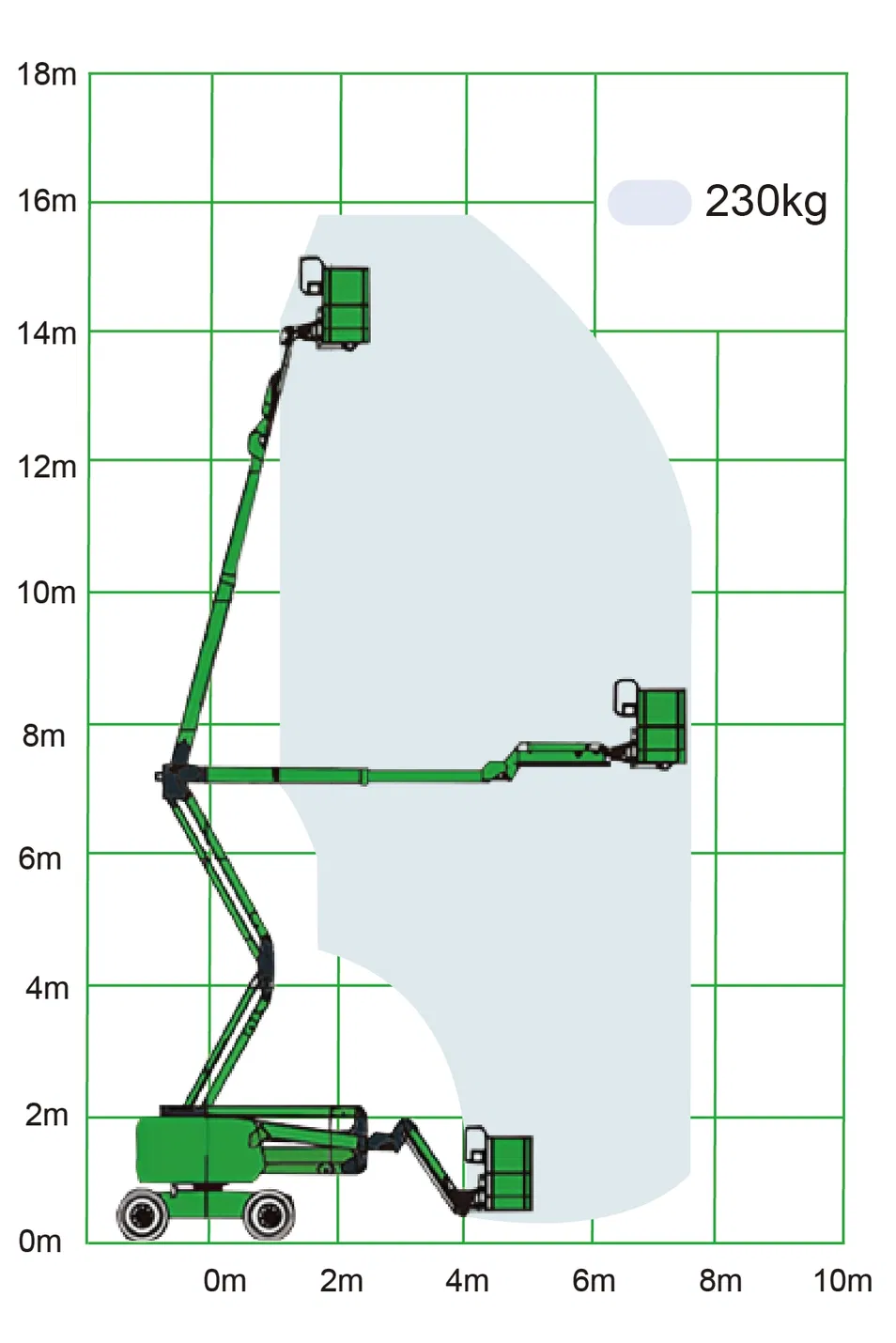

Product Working View
Safety Systems
  • Descent & Movement Alarms
  • Tilt Alarm & Horn
  • Emergency Stop (Platform & Chassis)
  • Two-wheel brake system
Smart Controls
  • Equal proportion automatic leveling
  • Proportional Joystick Controls
  • Smart Speed Control
  • Active defense system

Support & Service

Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).

Global Support: 24/7 technical assistance and spare parts supply.

Expertise: Leading manufacturer with over 20 years of experience, certified with ISO 9001, CE, and GOST, exporting to 30+ countries.

Workshop view 1
Workshop view 2

Frequently Asked Questions

What’s the lead time for orders?
Standard models ship in 15–30 days; customized units require 30–45 days.
Do you provide after-sales service overseas?
Yes, we have partnered service centers in key regions and provide 24/7 remote technical support.
Can I request a customized bucket or platform size?
Absolutely! We offer tailored attachments and configurations to meet specific job site requirements.
What documents are provided for export?
We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and COC.
What are the main safety certifications?
Our equipment is fully certified with CE, ISO 9001, and GOST standards to ensure global compliance and safety.
How do I place an order?
Please contact our sales team for a detailed quote, and once finalized, you can confirm with a Purchase Order (PO).
