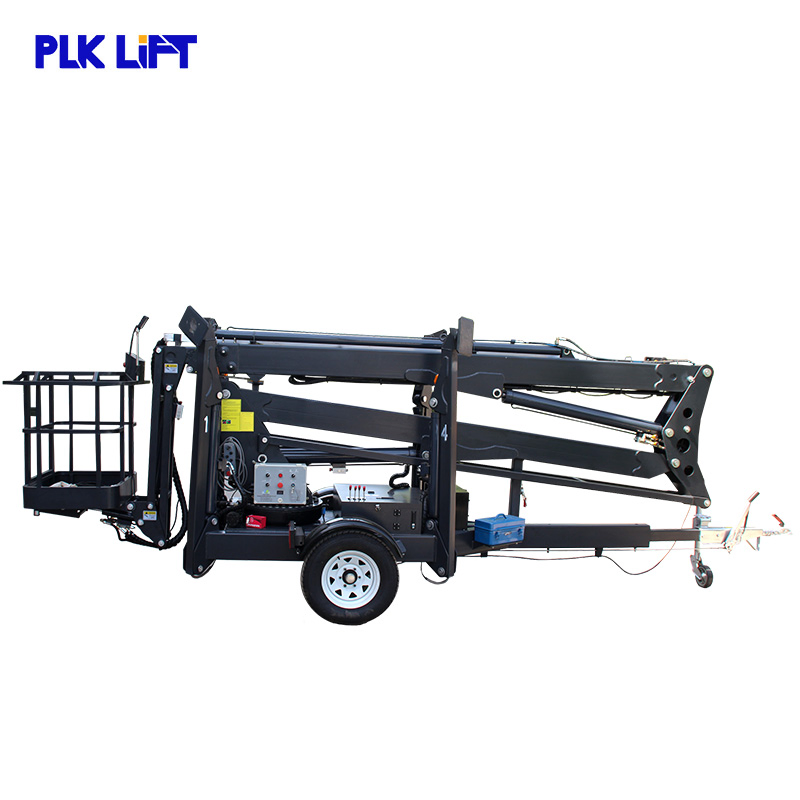

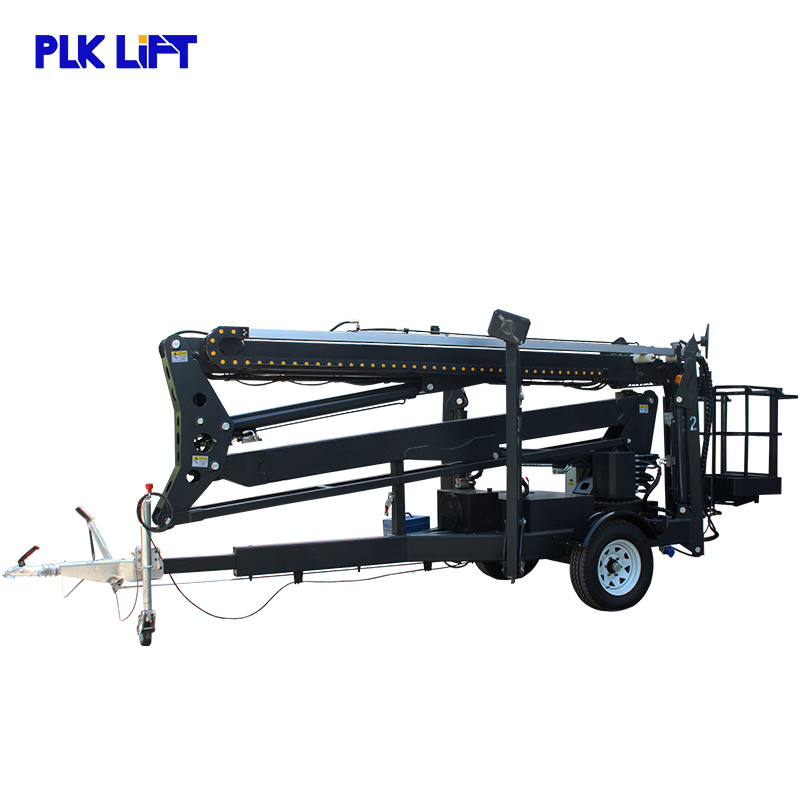

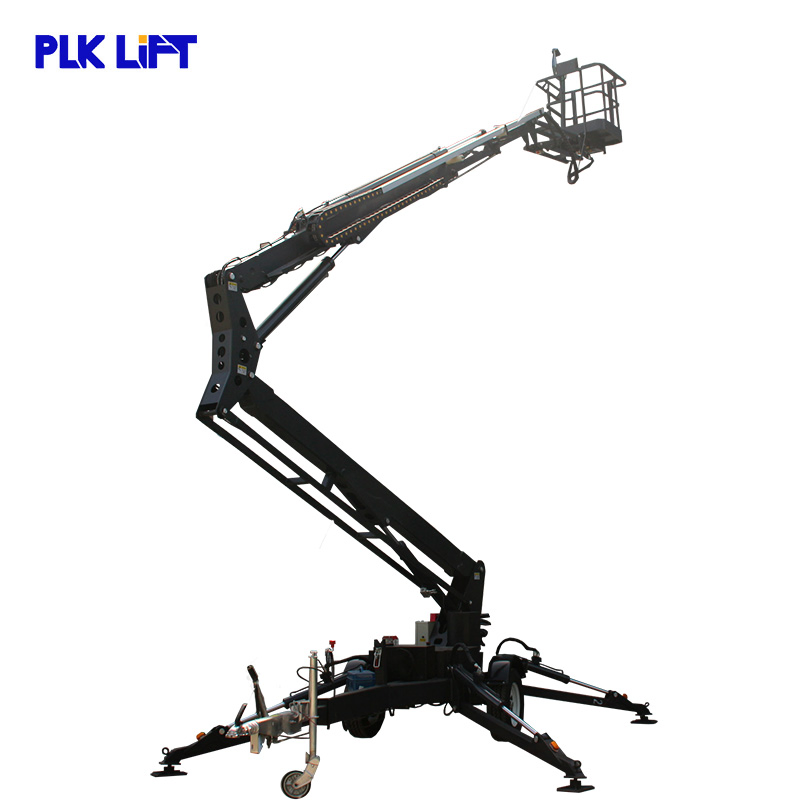

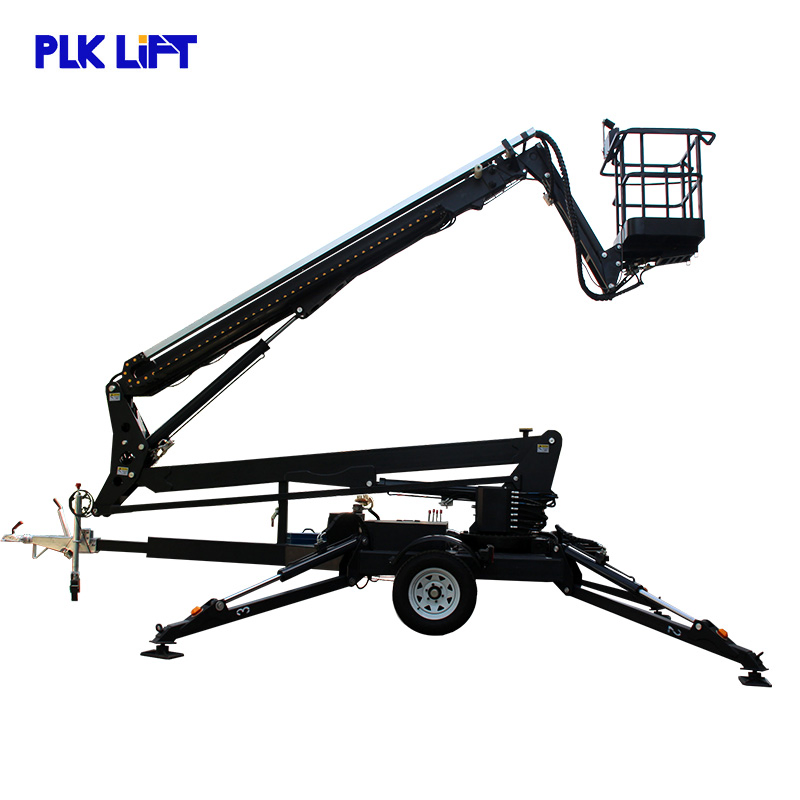

The towable boom lift features platform heights ranging from 10m to 16m, providing working heights from 12m to 18m. With a steady load capacity of 200kg, it is engineered for efficiency and safety. Its towable design allows for easy transportation between job sites, making it an ideal choice for rapid deployment.
Power Versatility: Multiple power options are available to suit your specific site requirements, including AC (electric), DC (battery), gasoline, diesel, and "Dual-Energy" configurations (e.g., Battery & Diesel or Battery & Gasoline). This flexibility ensures the machine can operate effectively in both indoor and outdoor environments.
| Model | TBL-12A | TBL-14A | TBL-14AT | TBL-16A | TBL-18A | TBL-20A | TBL-22A | TBL-24A |
|---|---|---|---|---|---|---|---|---|
| Lifting Height | 10M | 12M | 12M | 14M | 16M | 18M | 20M | 22M |
| Working Height | 12M | 14M | 14M | 16M | 18M | 20M | 22M | 24M |
| Load Capacity | 300KG | 220KG | 300KG | 300KG | 220KG | 220KG | 220KG | 220KG |
| Working Radius | 5.5M | 6.5M | 7.8M | 8.5M | 10.5M | 11M | 11M | 11M |
| Platform Size | 1.2 * 0.8M | |||||||
| Rotation | 359 Degree | 360 Degree | ||||||
