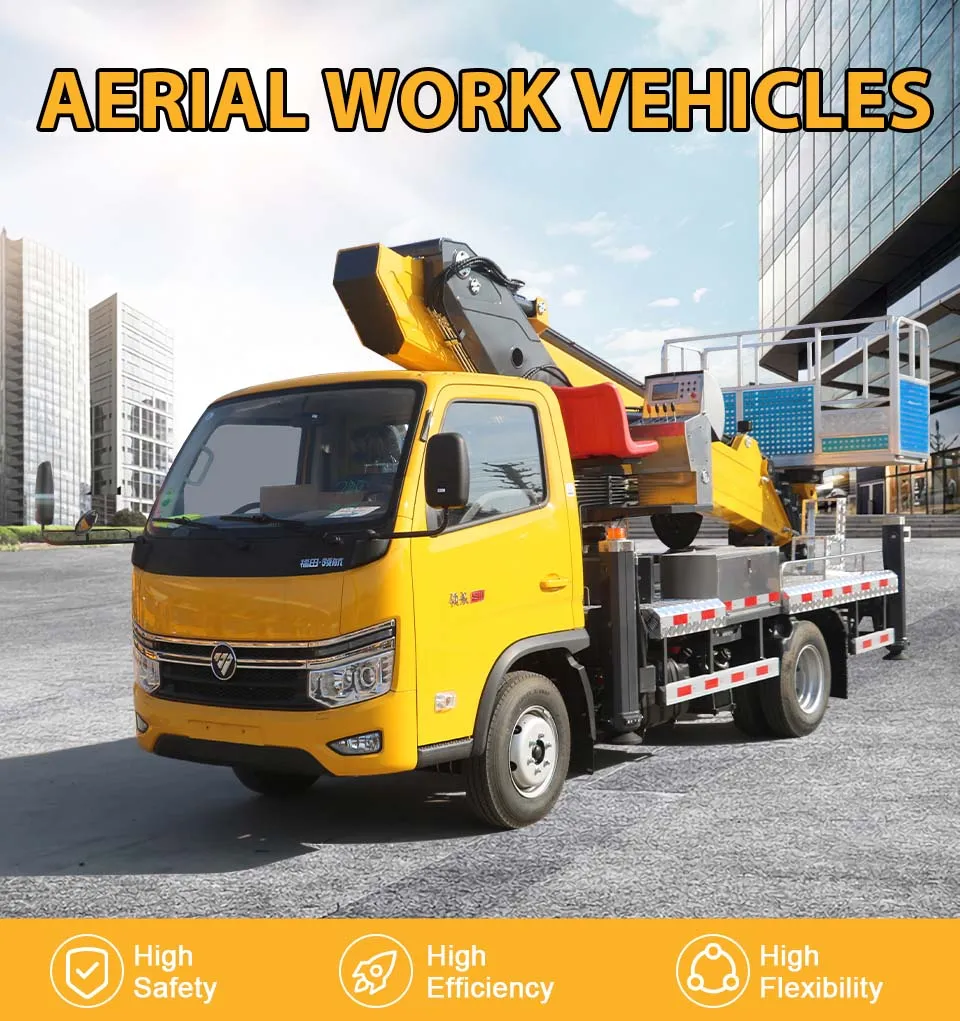

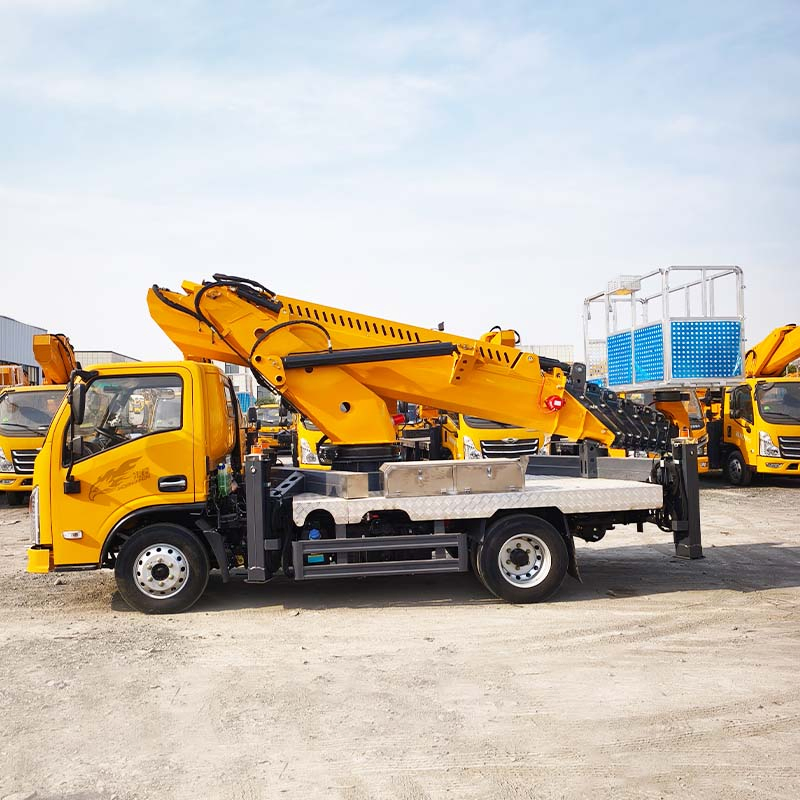

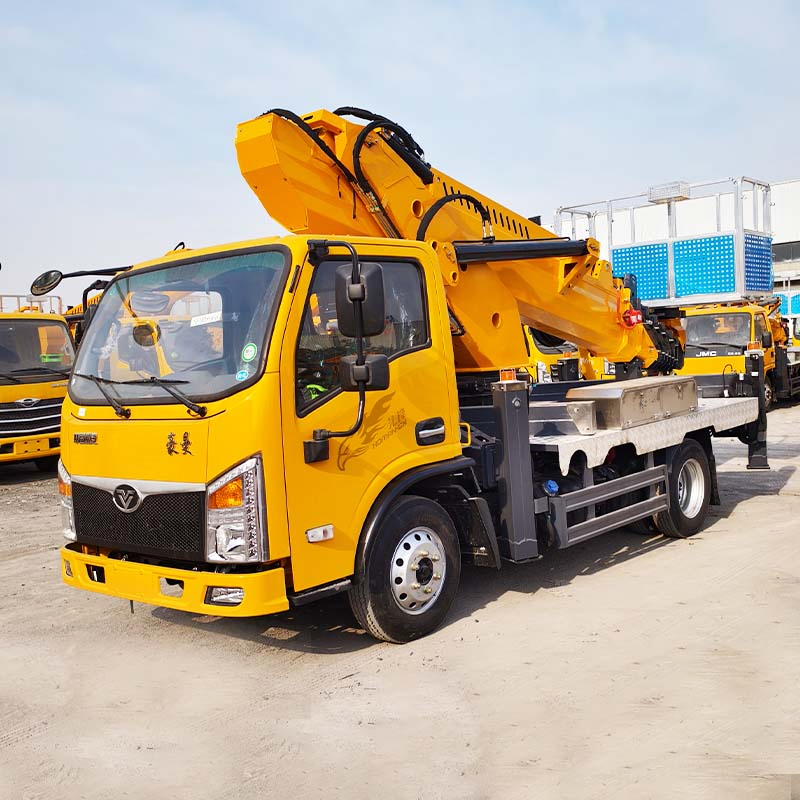

Powerful Aerial Work Platform Diesel Boom Lift 30m Telescopic Boom Lift with High Capacity

Customization:	Available
After-sales Service:	3year
Warranty:	1year

🔹 Basic Specifications

Model NO.

RICHYD-AWP

Type

Awp

Certification

ISO9000, CCC, TS16949, CE, RoHS

Emission Standard

Euro 5

Horsepower

120-140HP

Payload

8t

Fuel

Diesel

Transmission

Automatic

Drive Wheel

4x2

Condition

New

Maximum Height

30-60m

Working Radius

15-30m

Rated Load

200-300kg

Boom Rotation

360 Degrees

Platform Size

1600mm*700mm*1100mm

Total Weight

4500kg

📦 Packaging & Delivery

Package Size

600.00cm * 205.00cm * 280.00cm

Gross Weight

4500.000kg

Transport Type

Sea Transport

🚀 Product Description

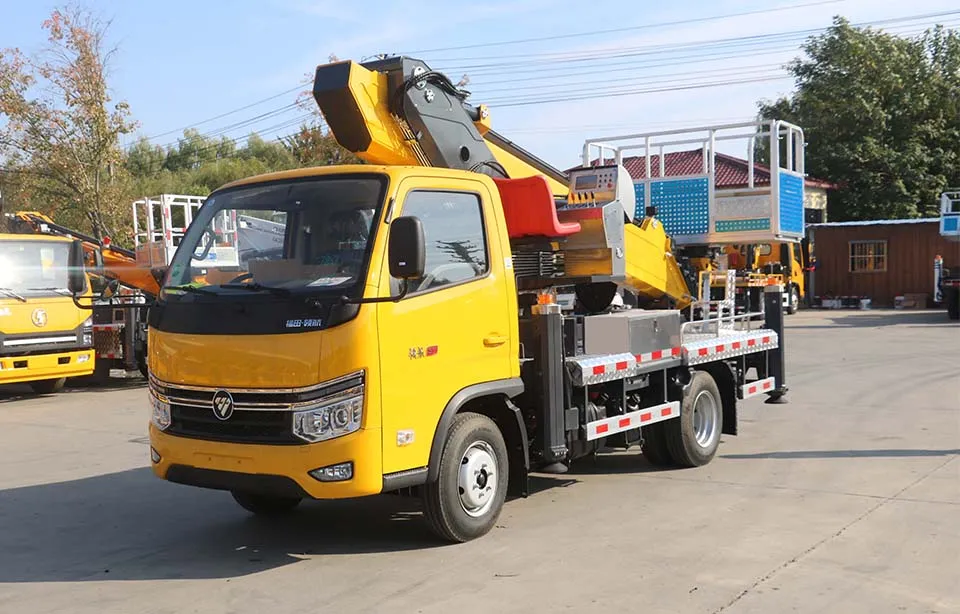

Aerial Work Capability Capable of safely and reliably lifting personnel and tools to a designated height for aerial work.

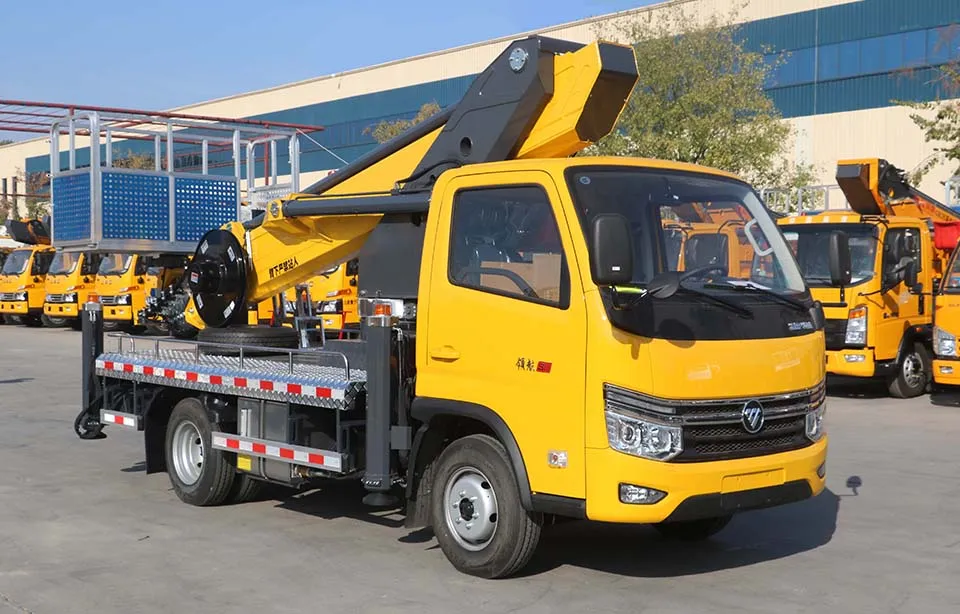

Maneuverability Mounted on a vehicle chassis, these boom lifts offer excellent maneuverability and flexibility for easy movement between locations.

High Safety Standards Equipped with safety features such as outrigger leveling and interlocking systems to ensure worker safety.

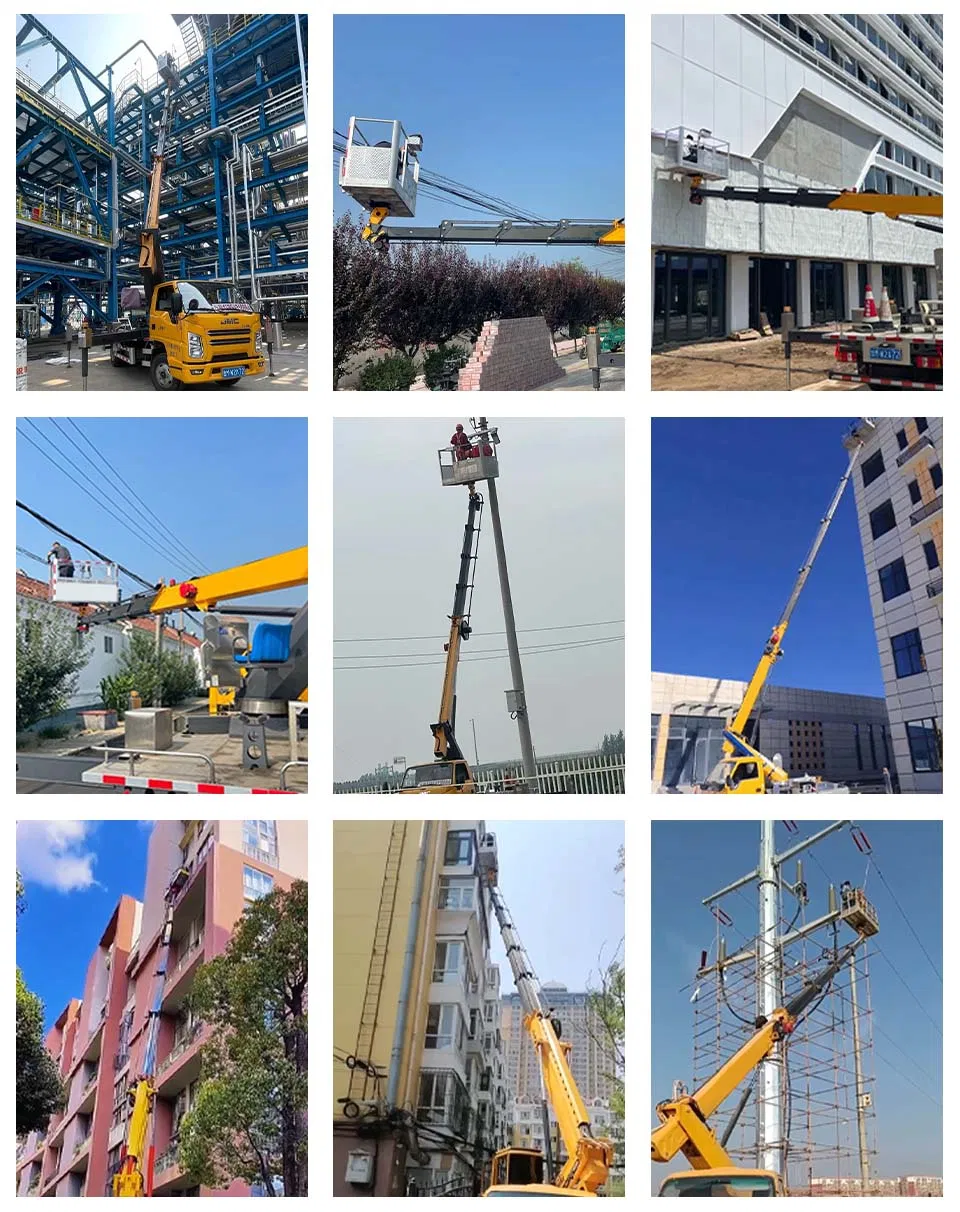

Versatility Features 360-degree rotation and leveling capabilities to meet diverse operational needs in power, municipal, and landscape sectors.

📊 Detailed Technical Parameters

Specifications	Futian Chassis	Howo Chassis	JAC Chassis
Engine	Quanchai 122 HP	Weichai 140 HP	JAC Ruijie 130 HP
Gearbox	5-Speed	5-Speed	5-Speed
Wheelbase	2800mm	3280mm	2850mm
Tire	6.50R15	7.00R16	7.00R16
Max Op. Height	30.5 meters	33.5 meters	45m / 60m
Max Working Radius	15 meters	18 meters	25m / 30m
Rated Load	200KG	200KG	300kg
Boom Design	7-section arm	9-section boom	9-section boom

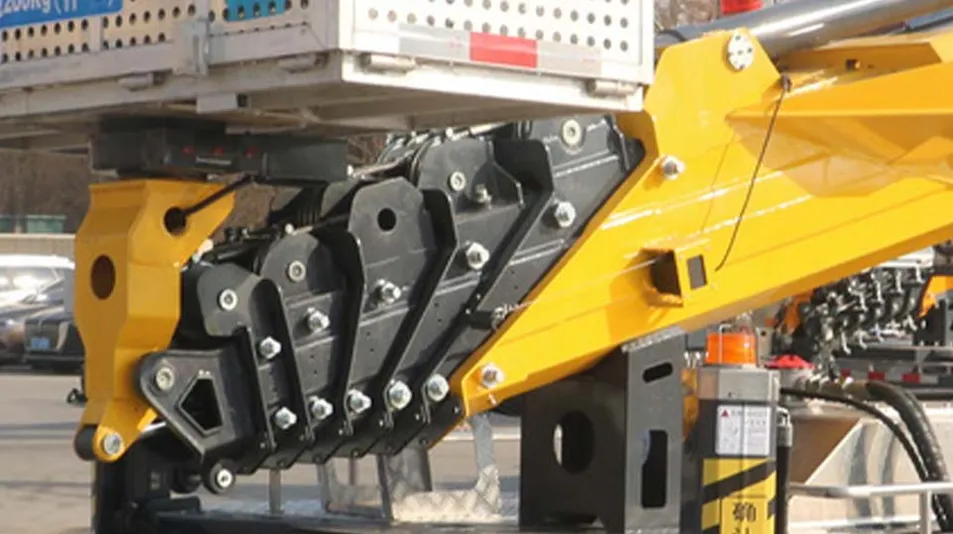

Leveling Device: Indiscriminate leveling based on oil cylinder changes.

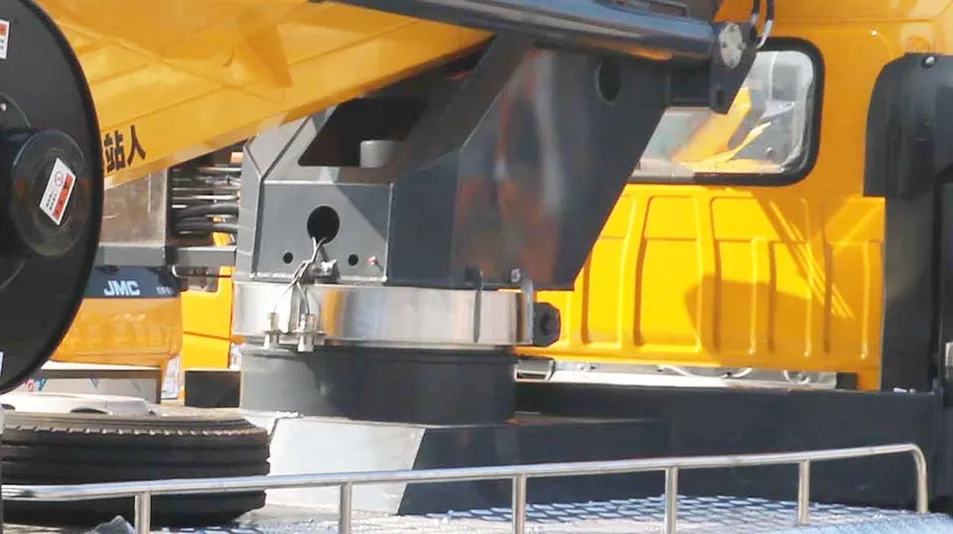

Horizontal Large Rotation: Enhances stability and smooth rotation during operation.

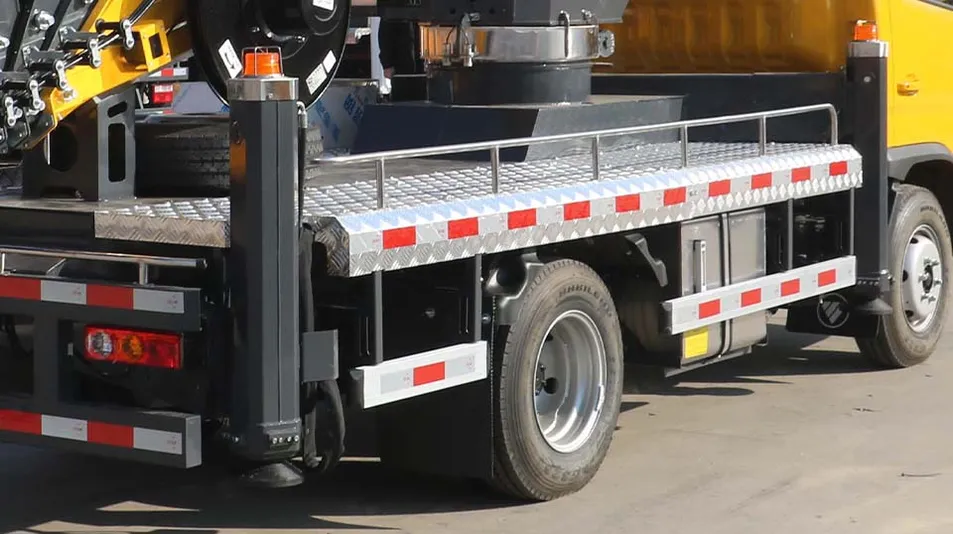

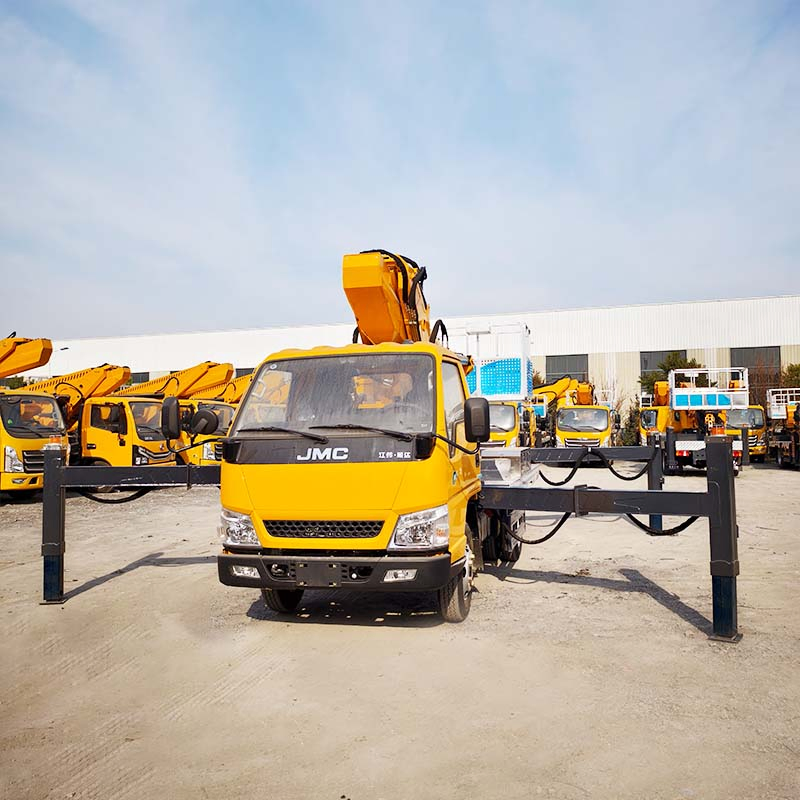

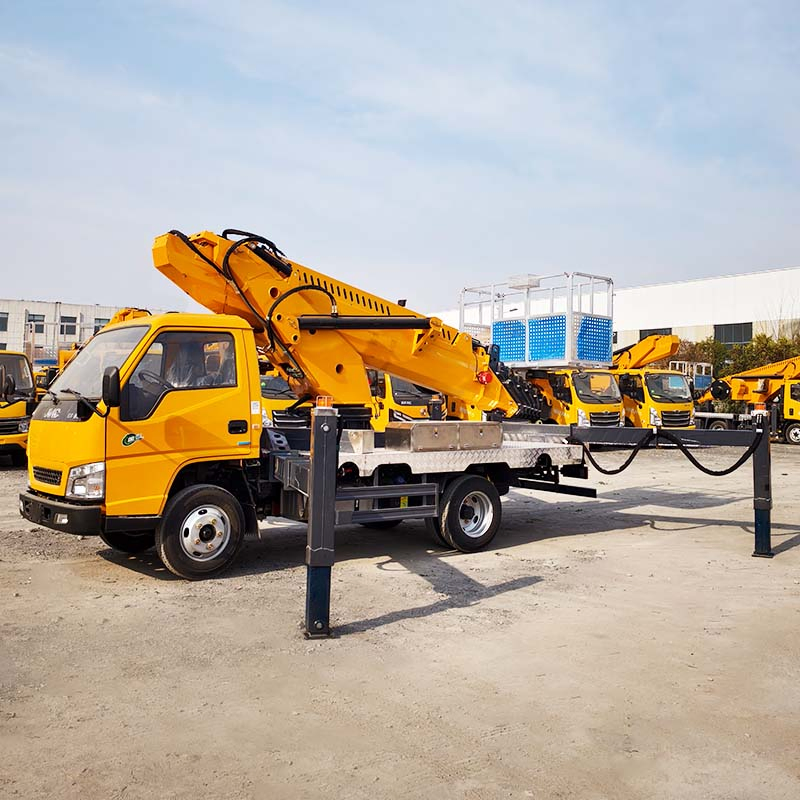

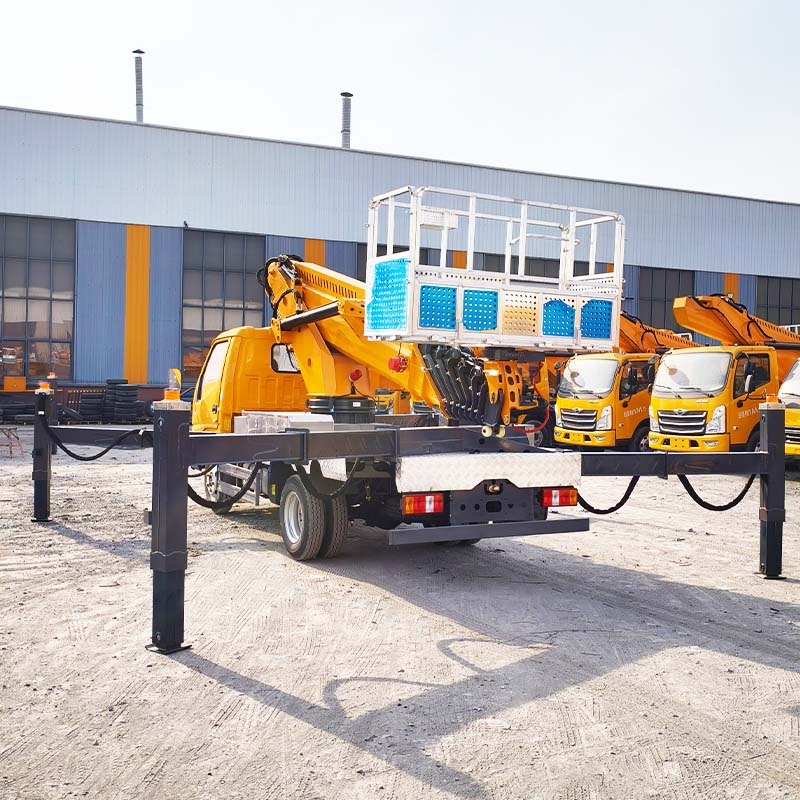

Hydraulic Support Legs: X-shaped double section legs for complex terrain.

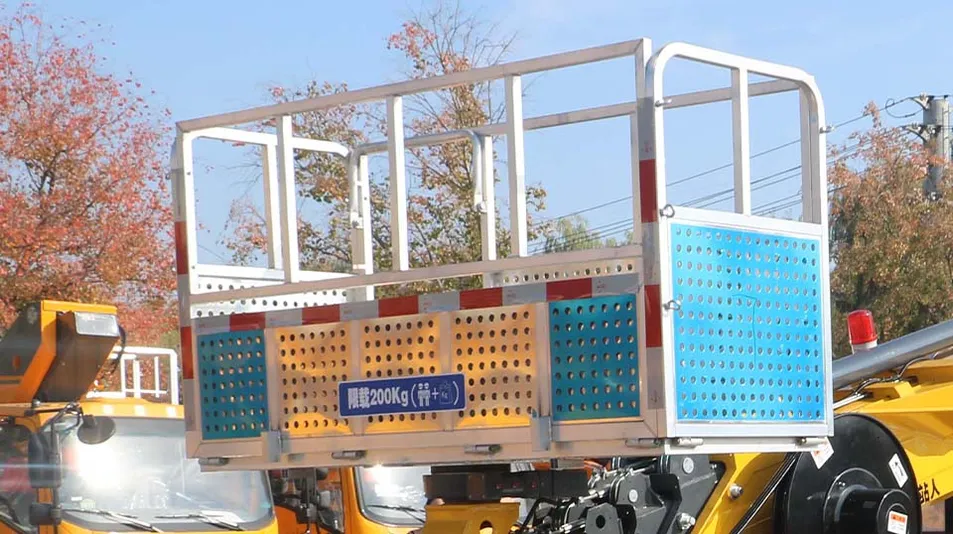

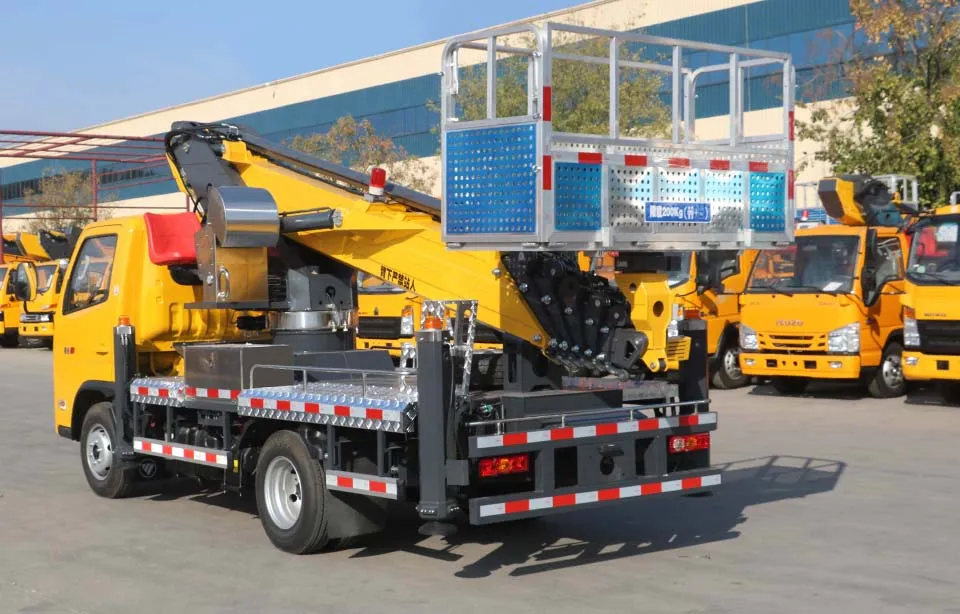

Platform: Automatic leveling and 360 rotation with overload protection.

❓ Frequently Asked Questions

How many years of experience does your factory have?

We have 20 years of production experience and nearly 10 years of export experience to more than 120 countries and regions.

Which types of payment are accepted?

Normally, both T/T and L/C at sight are acceptable to us.

What is the expected delivery time?

Delivery usually takes 7-40 working days after receiving the 30% T/T deposit or L/C.

What is the warranty period for the equipment?

The standard warranty is 1 year. For large quantity orders, terms can be negotiated.

What is your Minimum Order Quantity (MOQ)?

The MOQ is 1 set.

Do you offer customization for these lifts?

Yes, we provide customization based on your requirements, including boom length, engine configuration, and more.
