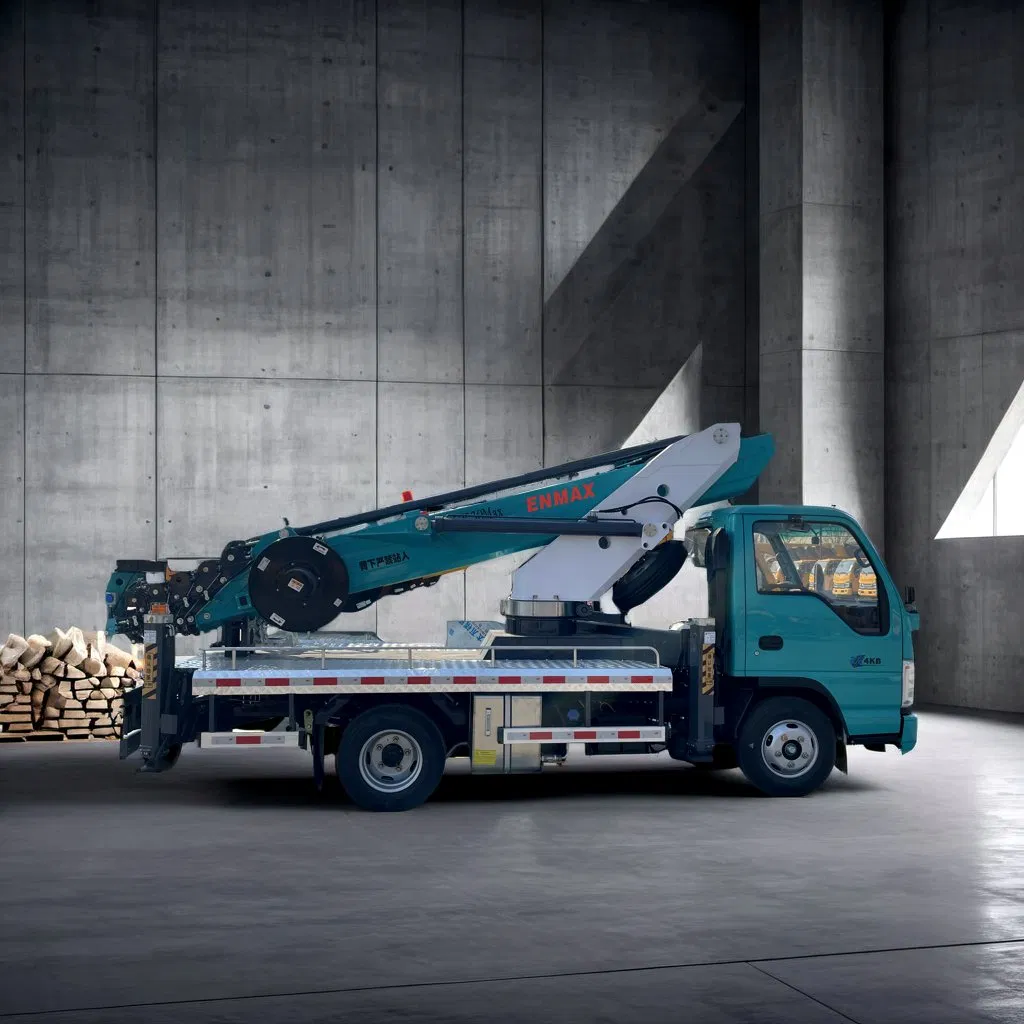

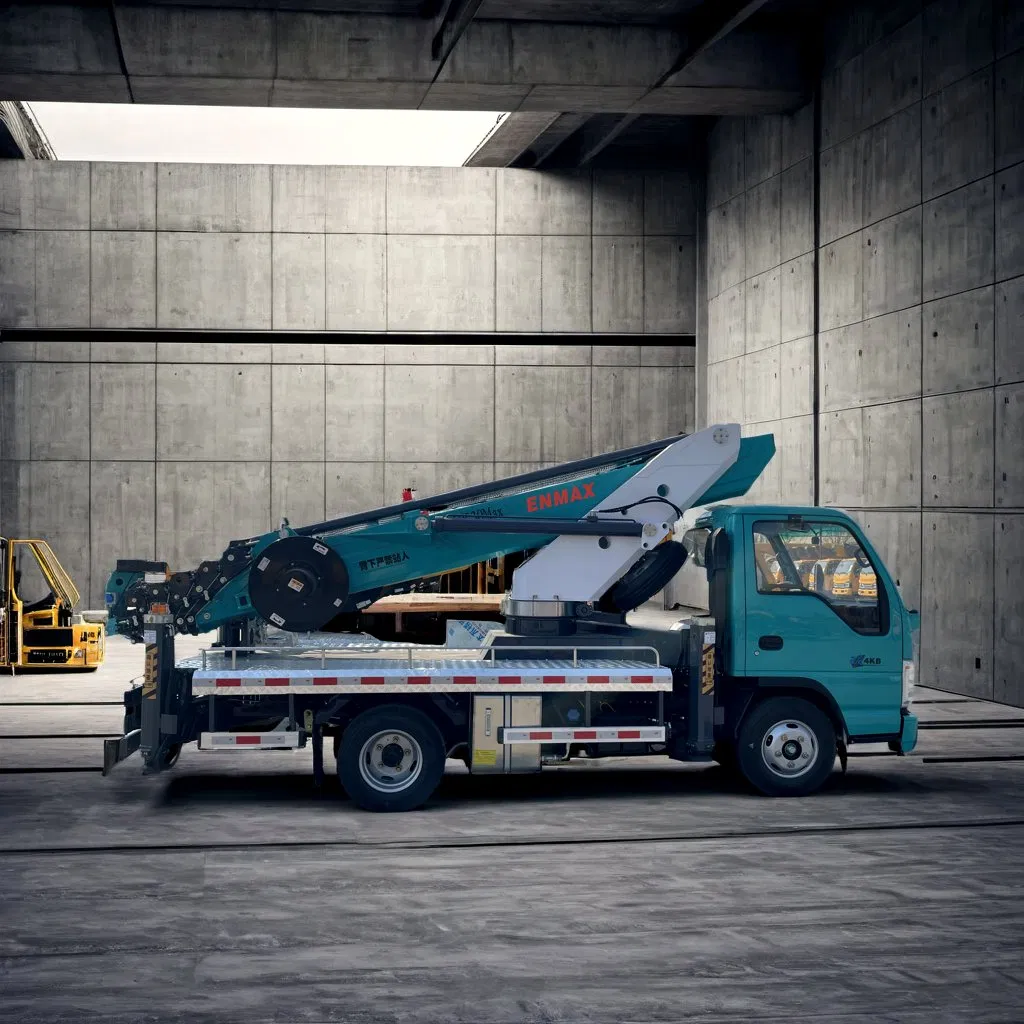

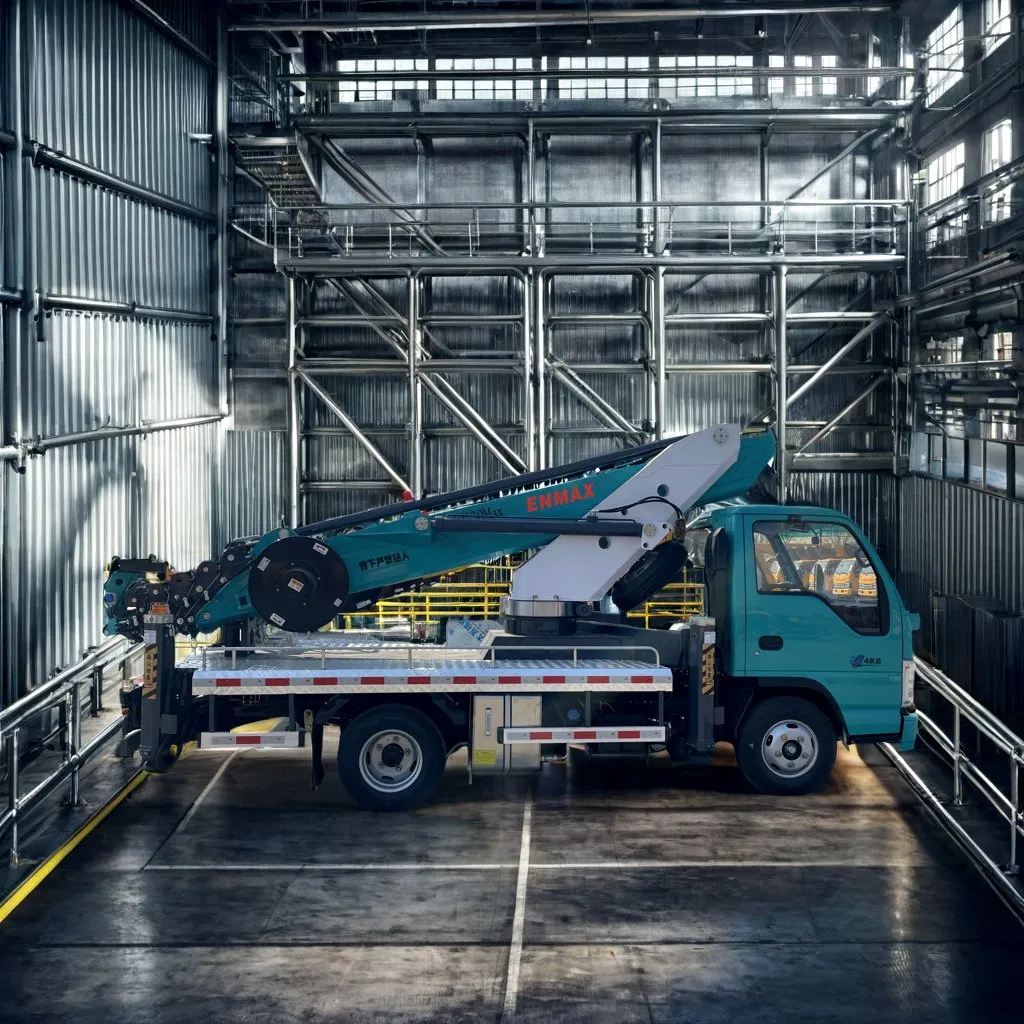

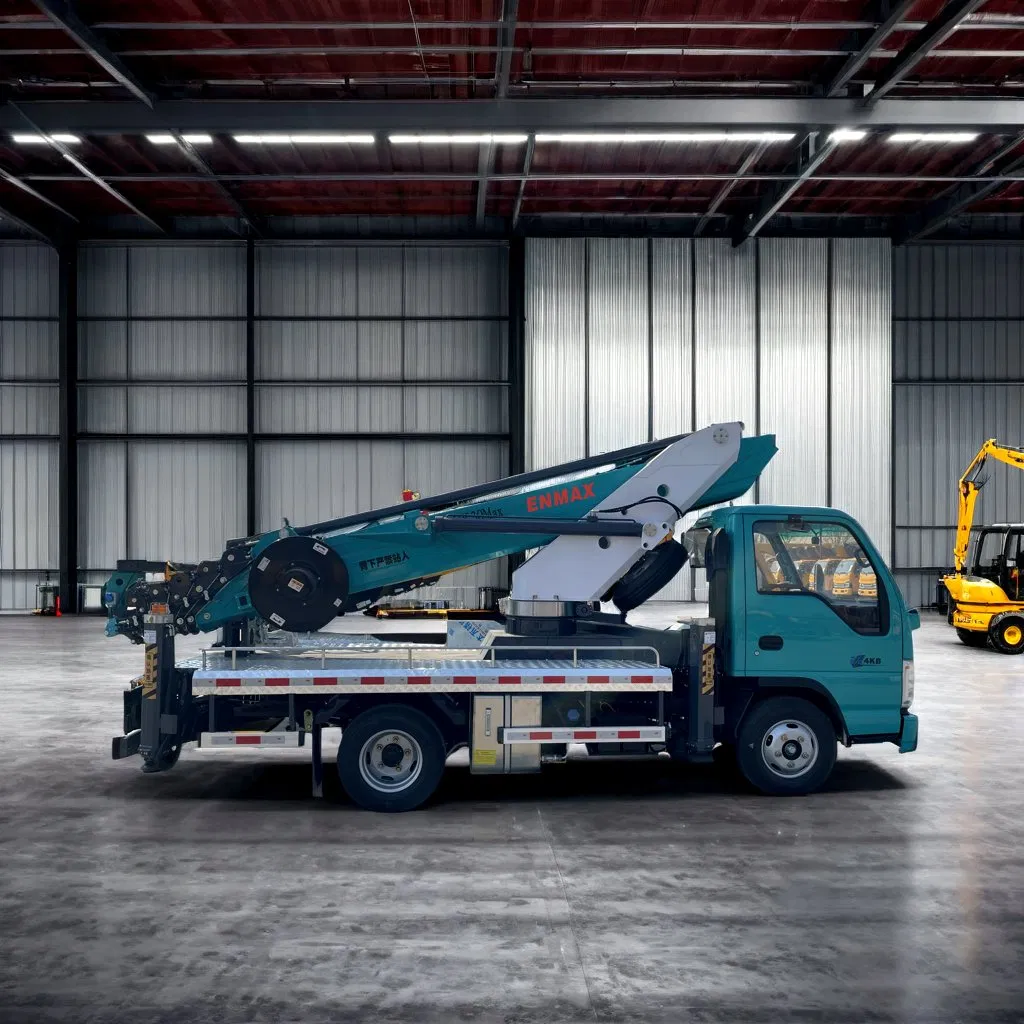

Anugenix Lift
1 / 5

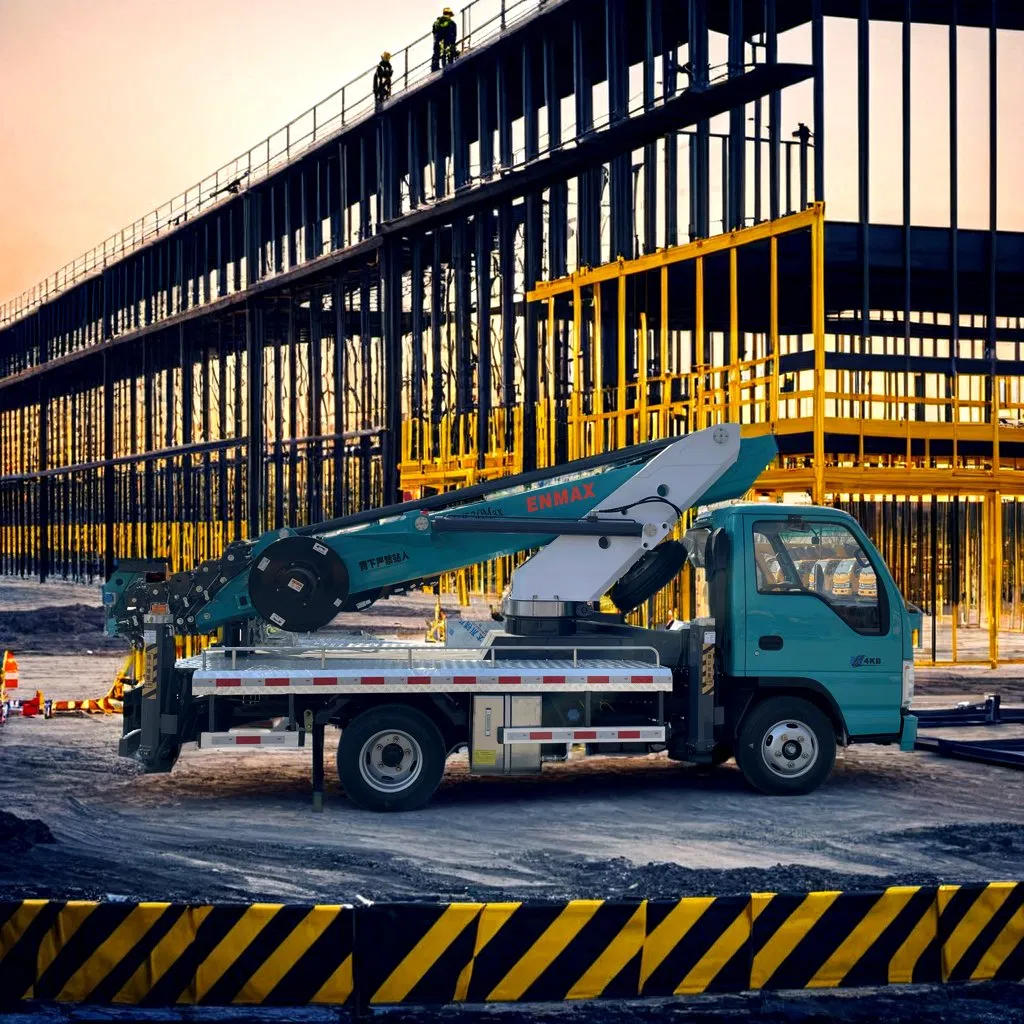

| Model NO. | Aerial Work Platform |
| Max.Operating Height | 30m, 23m, <20m |
| Max. Operating Range | 16m(200kg) |
| Platform Capacity | 200kg |
| Boom Stretch Time | Extension -100s / Contraction -110s |
| Slewing Device | Integrated 360° Rotation |
| Leveling System | Hydraulic Leveling Device |
| Operating System | Outrigger & Lifting System Hydraulic Handle |
| Weight | 4495kg |
| Engine | 132HP / 98kw |
| Dimensions | 5995*2000*2780mm |
Customize Your Crane with Trusted Chassis Brands. We collaborate with world-renowned manufacturers to ensure optimal performance:

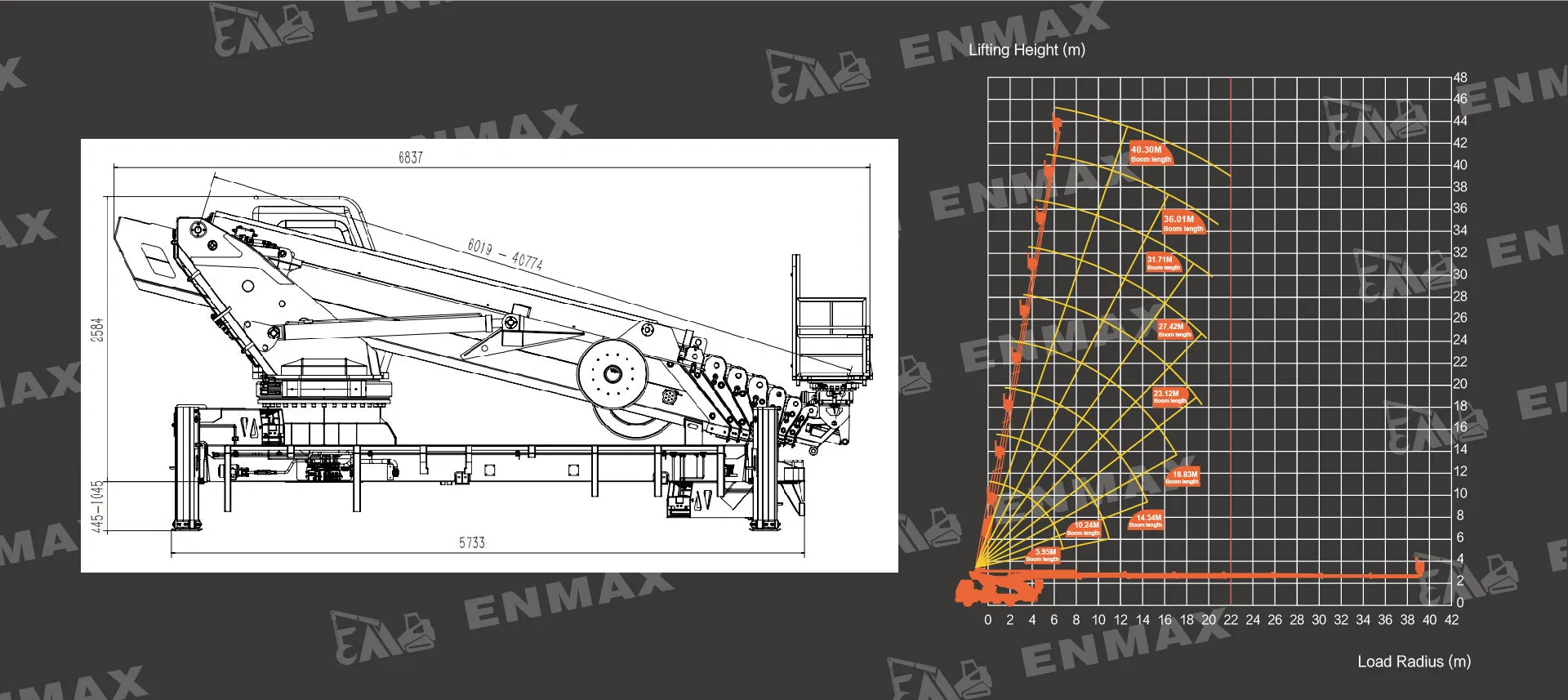

| 45M Hydraulic Aerial Work Upper Part | |
|---|---|
| Max. operating height | 43m |
| Boom Configuration | 5m * 9 sections |
| Horizontal span of outriggers | 7700mm |
| Longitudinal span of outriggers | 7300mm |
| Telescopic System | 8 sections synchronously telescopic |
| Working bucket rated load | 200kg |
| Bucket rotation angle | 360° |
| Working bucket size | 1600 * 700 * 1000mm |
| Chassis Parameters (Example) | |
|---|---|
| Engine Model | JX493ZLQ6A |
| Power/Horsepower | 90/122 hp |
| Wheelbase | 2800mm |
| Tire model | 6.50R16LT |
| Total mass | 4495kg |
| Maximum speed | 100km/h |
| Dimensions | 5995 * 2000 * 2780mm |
We specialize in the production of advanced machinery engineered with precision, ensuring durability and efficiency for industrial applications:
Truck Cranes (5T-16T), Truck Mounted Cranes, and Spider Cranes (1T-10T).
Aerial Work Platforms ranging from 28m to 60m height.
Mini Excavators and Skid Steer Loaders for construction and utility.
