Compact Design Lifting Equipment of Aerial Work Platform Scissor Lift From Hangzhou

📋 Basic Info.

Model NO.

SJY-FD

Max. Working Height

5000mm / 5900mm

Max. Platform Height

3000mm / 3900mm

Min. Turn Radius

1200mm

Driving Motor

2X24/0.4 V/Kw

Lifting Motor

24/0.8 V/Kw

Transport Package

Pallet

Specification

300kg

HS Code

8427900000

Production Capacity

50000 Units

🏗️ Product Description

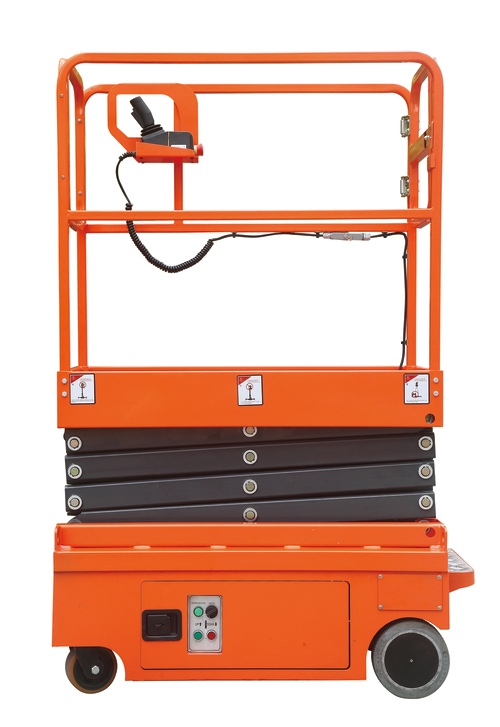

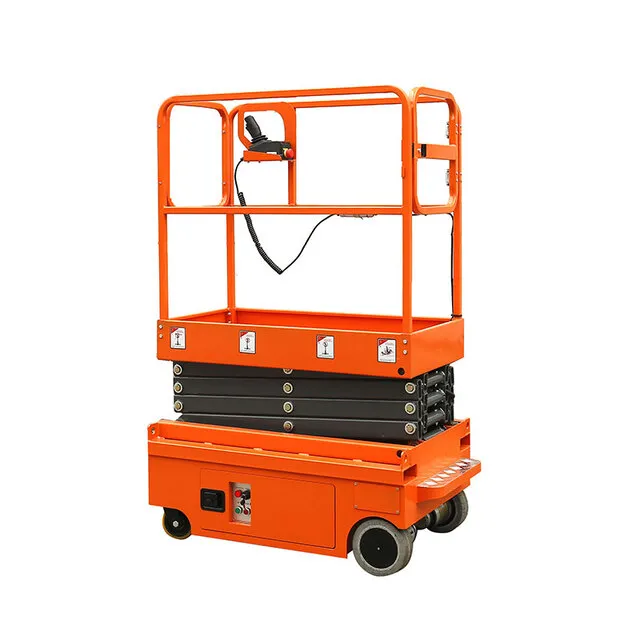

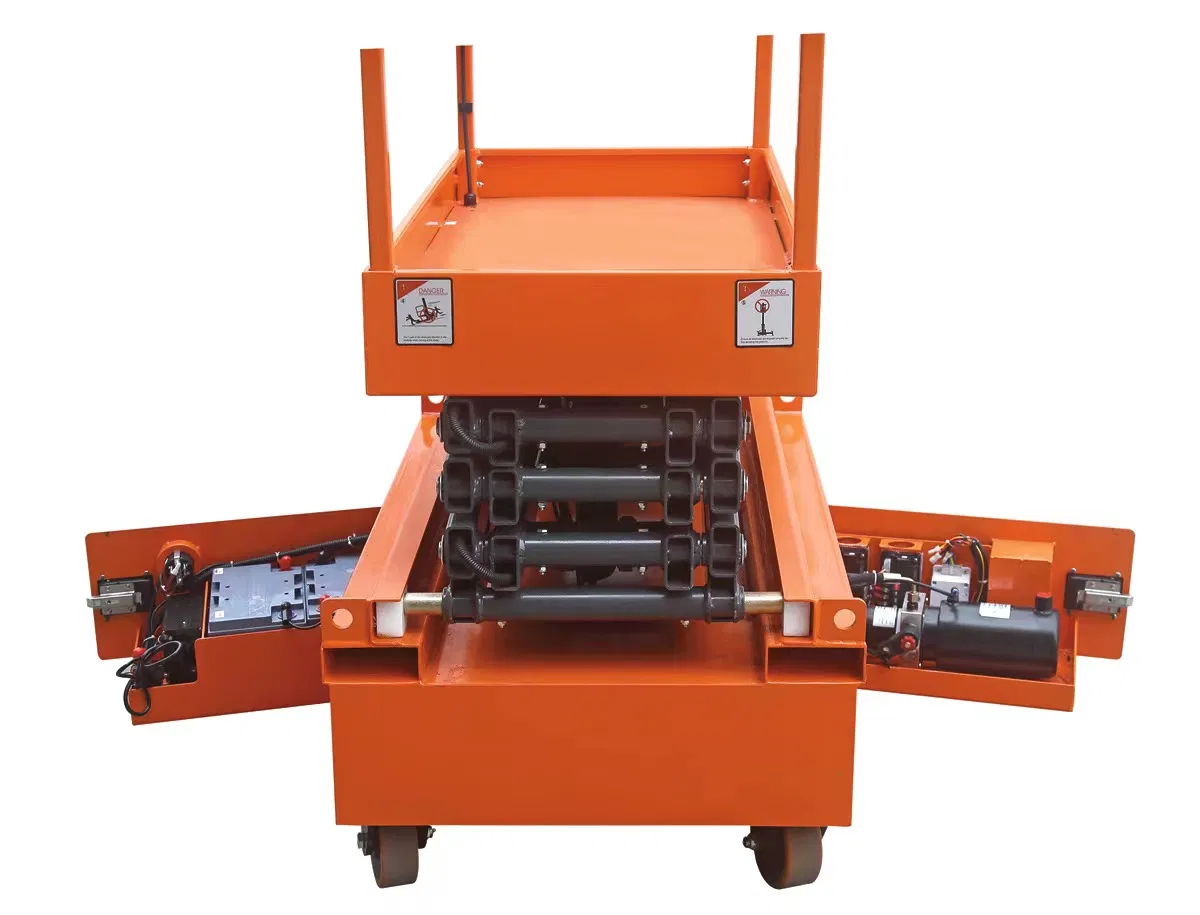

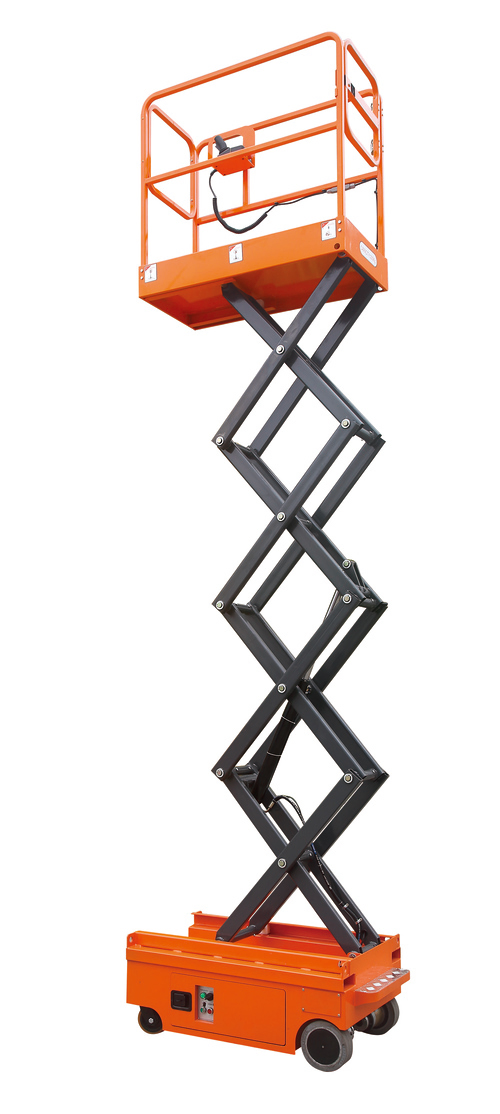

Compact Design Electric Work Platform (SJY-FD)

The full-electric work platform is the best equipment for materials picking and handling. It is widely used in warehouses and supermarkets. Featuring easy moving and operation, it lifts or descends steadily, ensuring safe and reliable performance. It is ideal for order picking applications in distribution warehouses.

1

Small Body: Easy to store, transport, and enter/exit standard doors or elevator doors.

2

Optional Extension Platform: Greatly increases the working range of the operator.

3

Electric-Drive System: Effective and energy-saving system features zero emissions and low noise, perfect for enclosed environments like office buildings, hospitals, and schools.

4

Emergency Descend Button: Safety feature allowing the platform to be lowered manually in case of power failure.

5

Full Protection: Includes charge protection, over-loading limits, and controller temperature protection for maximum safety.

6

CAN BUS Technology: Optimized wiring for improved reliability and easier maintenance.

📊 Product Parameters

Parameter	Unit	SJY-FD-3	SJY-FD-3.9
Lift Rated Capacity	kg	300	300
Max. Working Height	mm	5000	5900
Min. Platform Height	mm	3000	3900
Overall Length	mm	1180	1180
Overall Width	mm	760	760
Overall Height	mm	1830	1930
Platform Size	mm	1170*600	1170*600
Ground Clearance	mm	60	60
Minimun Turn Radius	mm	1200	1200
Driving Motor	V/kw	2*24/0.4	2*24/0.4
Lifting Motor	V/kw	24/0.8	24/0.8
Running Speed (Stowed)	km/h	4	4
Battery	V/Ah	2*12/80	2*12/80
Overall Net Weight	kg	490	600

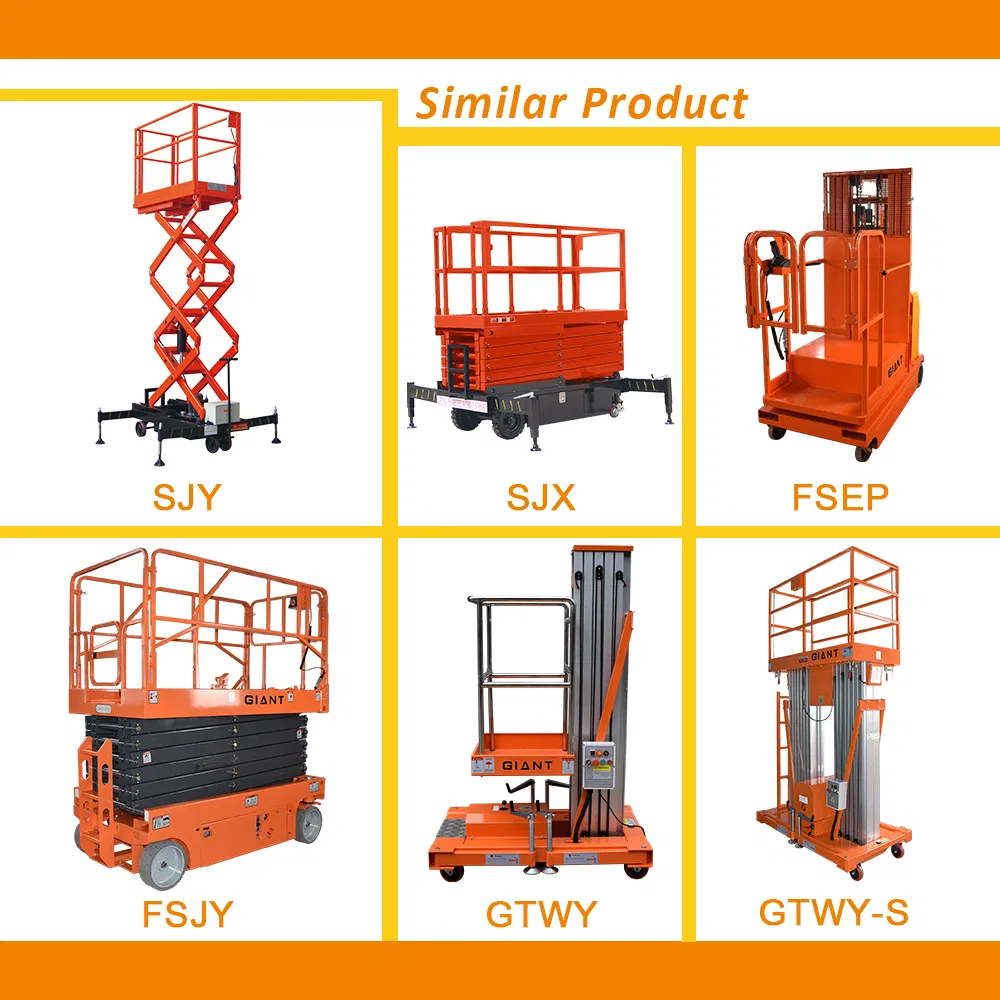

🔄 Similar Products

❓ FAQ

Are you a factory or a trading company?

We are a combination of both. We have focused on manufacturing material handling products such as lift tables, pallet trucks, and lifting platforms for over 35 years. We provide a one-stop purchase experience for industrial lifting equipment.

How do you control product quality?

We select high-quality steel, use standardized production with traceable ID cards, perform 100% finished product testing before shipping, and accept third-party inspections. We are ISO9001 certified.

How long is the warranty on your products?

We provide a 12-month warranty for all our products, excluding wear parts such as wheels, tires, or hydraulic oil.

What is the lead time for production?

Usually, production takes around 10-15 days after payment is received. Lead times may extend to 30 days during peak holiday seasons.

What payment terms do you accept?

We primarily accept T/T or L/C. For other payment methods, please contact our sales team.

What are your advantages compared to others?

We offer unique products with customized services, ensure timely production and delivery to save you time/money, and provide market protection for long-term business strategies.
