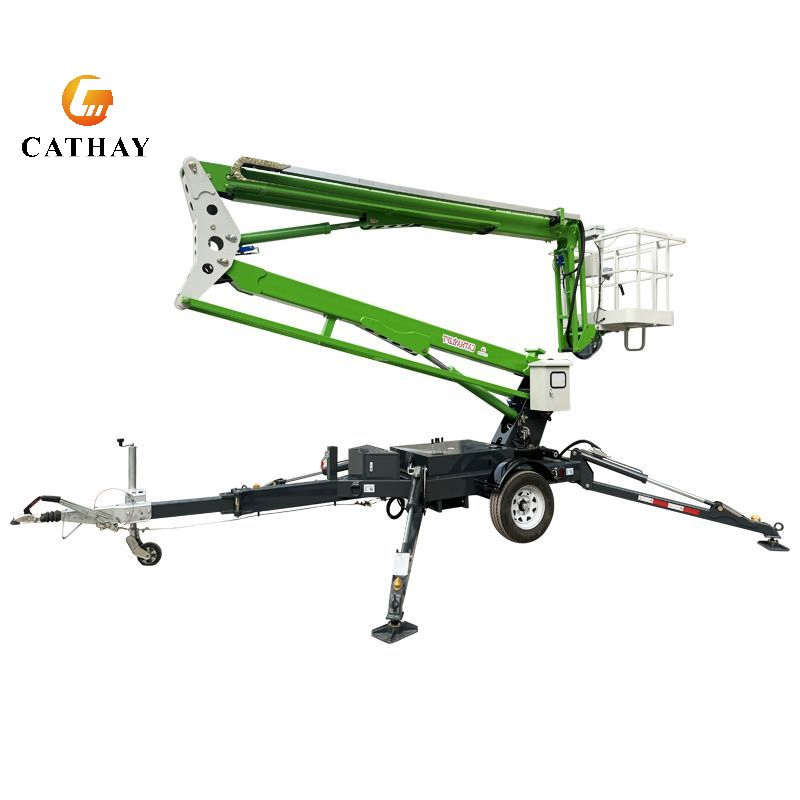

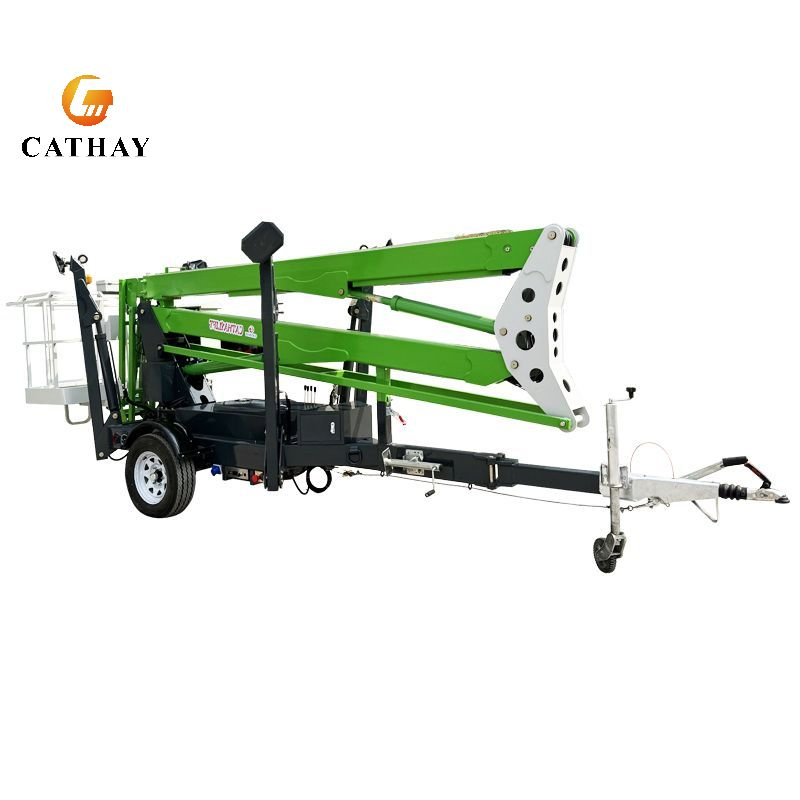

China 10m 14m 15m 16m 18m 20m Electric Aerial Working Man Spider Cherry Picker Trailer Mounted Towable Articulated Boom Lift

1 / 5

China 10m 14m 15m 16m 18m 20m Electric Aerial Working Man Spider Cherry Picker Trailer Mounted Towable Articulated Boom Lift

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Application:Workshop, Shipboard, Warehouse, Building Crane

Lift Mechanism:Articulated Lift

Carrying Capacity:227kg

Moves:Vehicular

Driven Type:AC

Running Mode:Moving

Feature:Explosion-Proof, Insulating

Certification:GS, CE, RoHS, ISO 9001

Platform Size:1.2*0.8m

Working Height:12m-24m

Working Radius:5.5-11m

Net Weight:1750kg-5000kg

Product Description

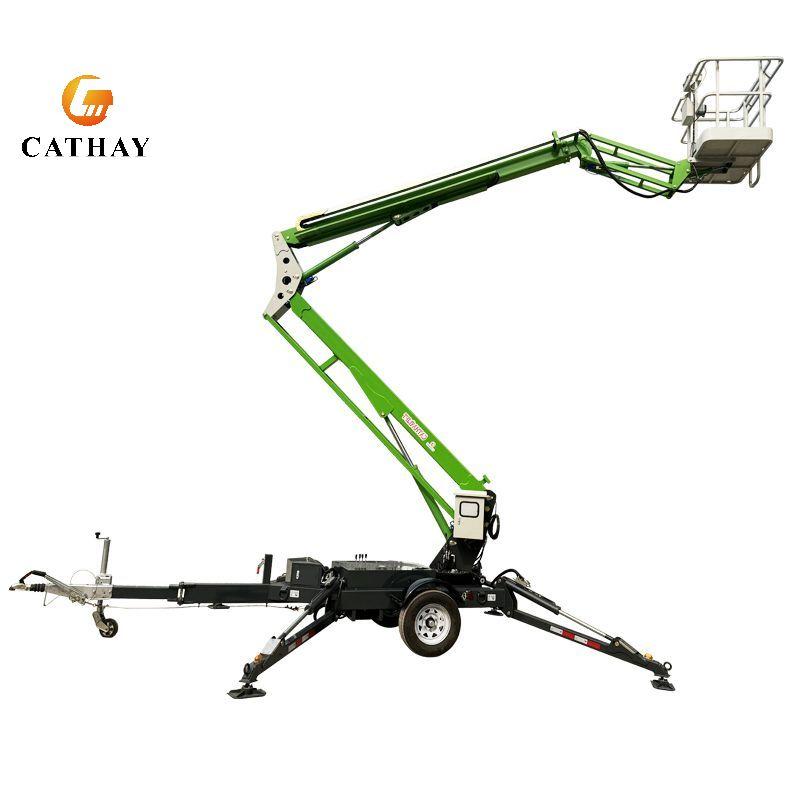

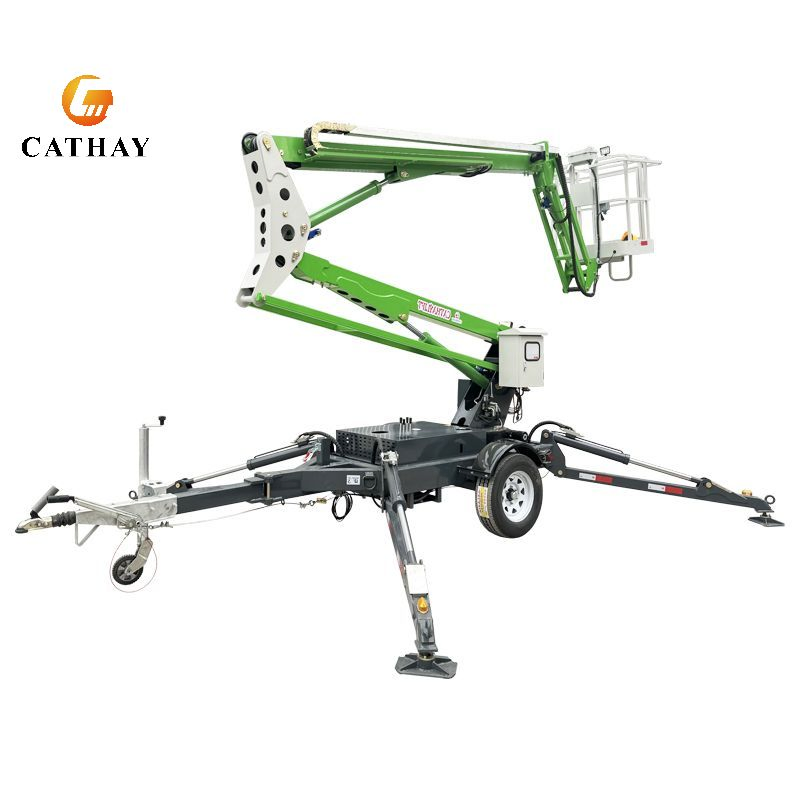

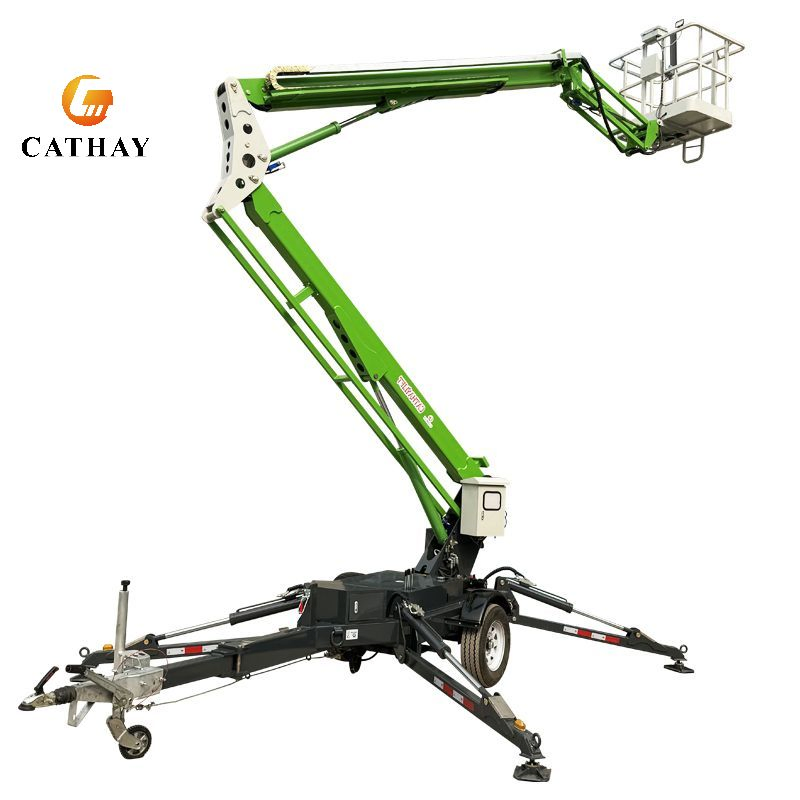

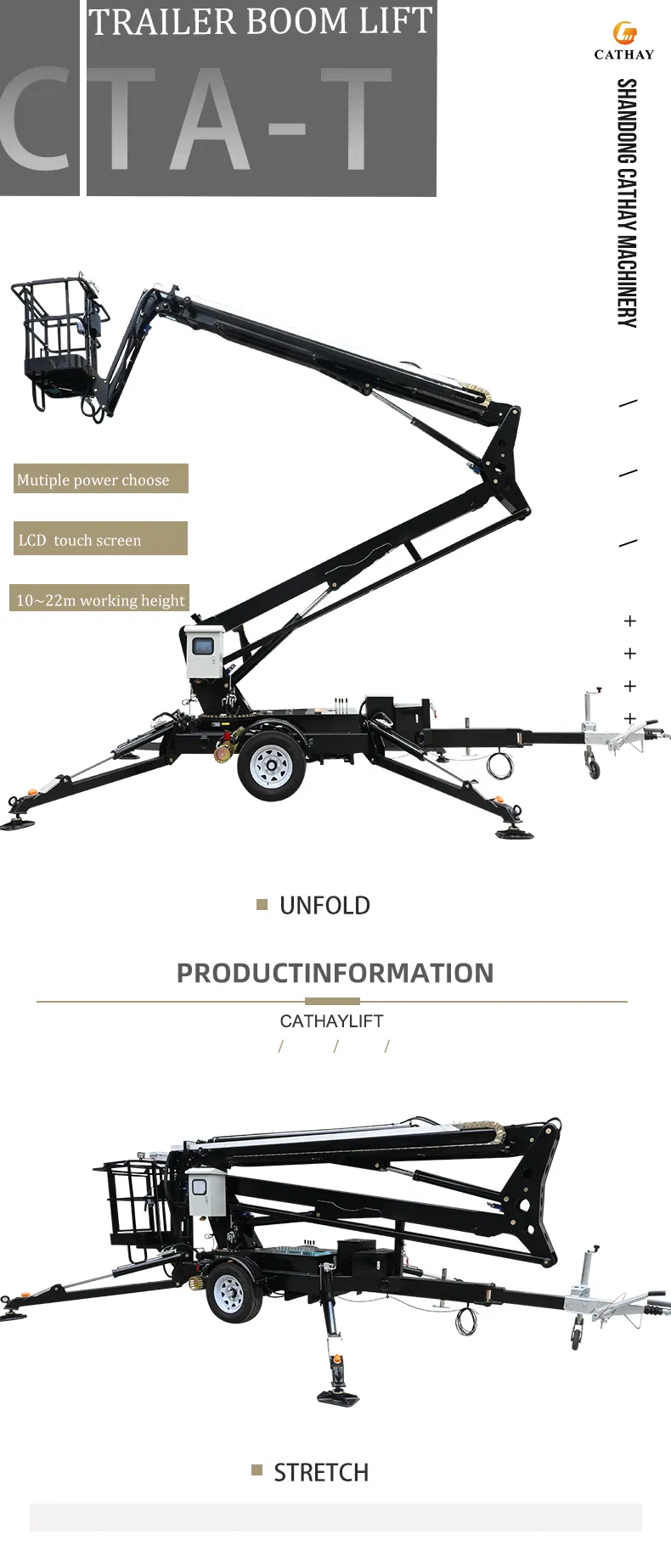

The trailer boom lift is available in two types: telescopic and articulated. With a maximum platform height of 14m (higher models utilize telescopic versions), it offers a horizontal working radius of 5.5m to 11m. Its 360-degree rotating table ensures outstanding performance across various aerial work projects.

Product Parameters

Model Type	CTA-12A	CTA-14A	CTA-14T	CTA-16T	CTA-18T	CTA-20T	CTA-22T	CTA-24T
Version	Articulated	Articulated	Telescopic	Telescopic	Telescopic	Telescopic	Telescopic	Telescopic
Lifting Height	10M	12M	12M	14M	16M	18M	20M	22M
Working Height	12M	14M	14M	16M	18M	20M	22M	24M
Load Capacity	227Kg
Working Radius	5.5M	6.5M	7.8M	8.5M	10.5M	11M	11M	11M
Net Weight	1750KG	1950KG	1850KG	2150KG	2350KG	3000KG	3500KG	5000KG

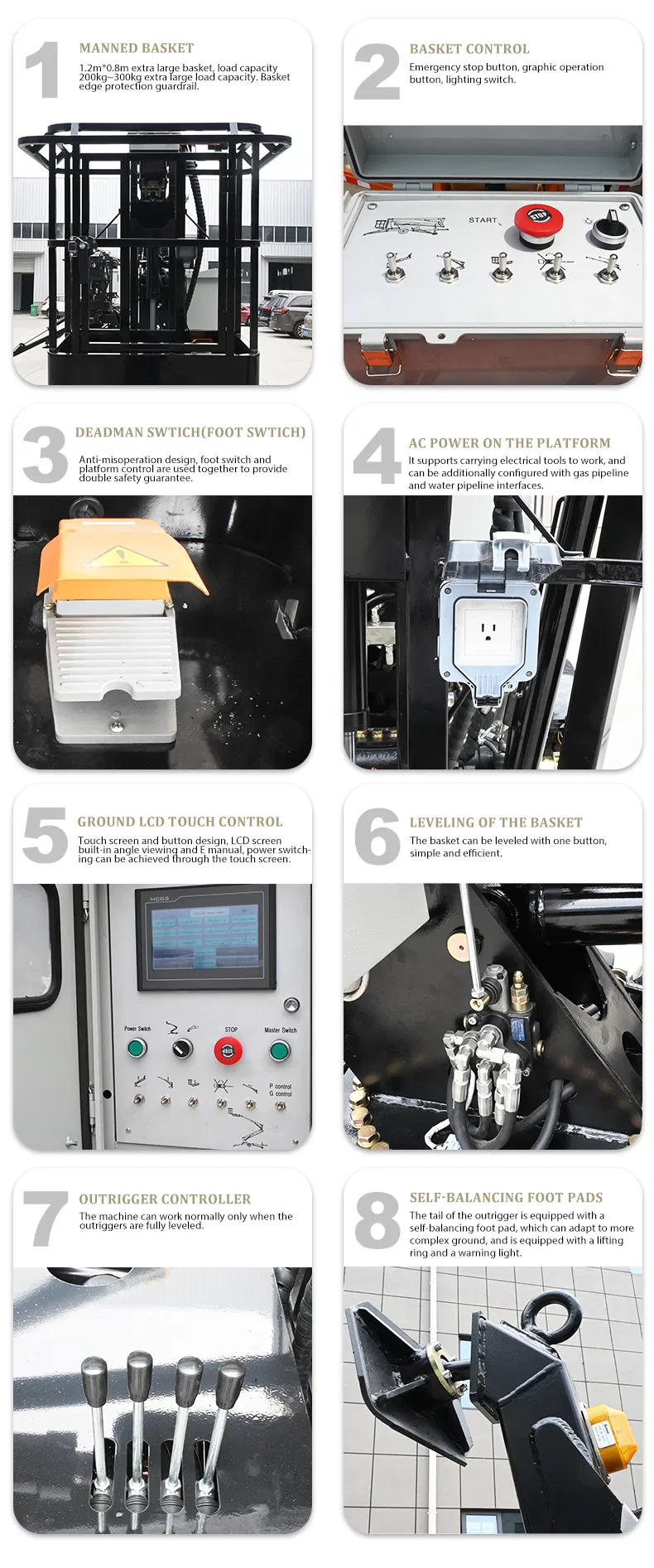

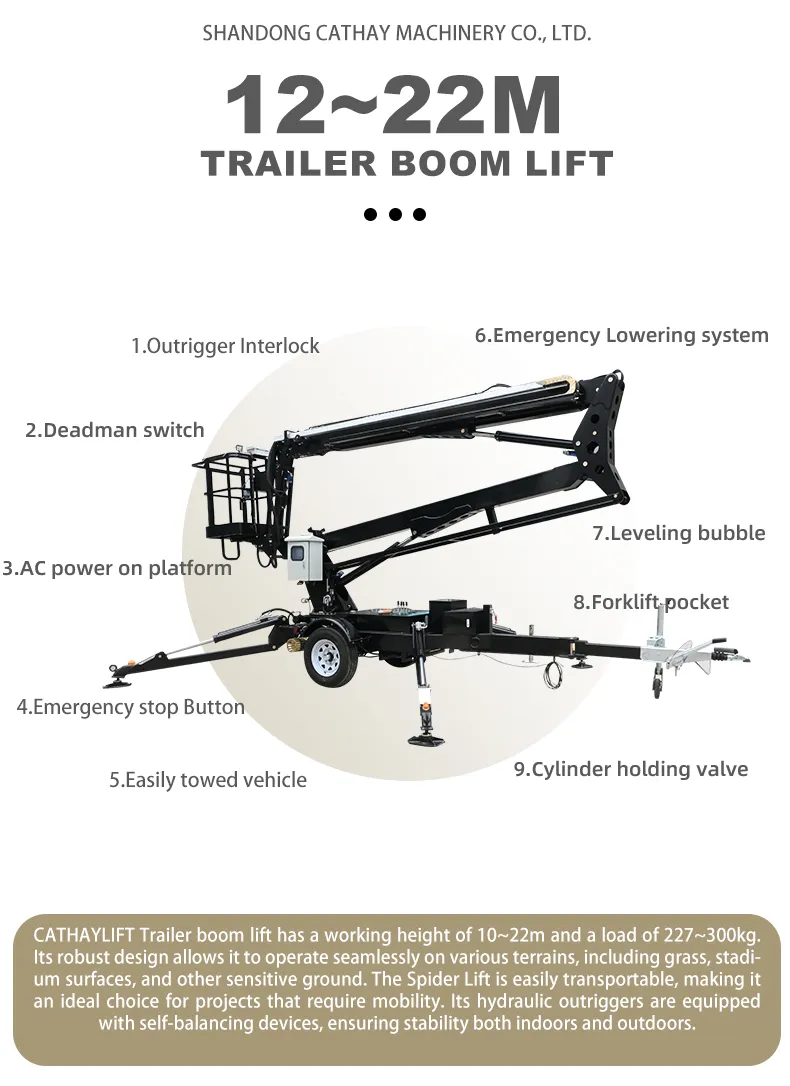

Product Advantages

High Mobility: Compact and portable, it can be towed over long distances by various vehicles without a commercial driver's license.

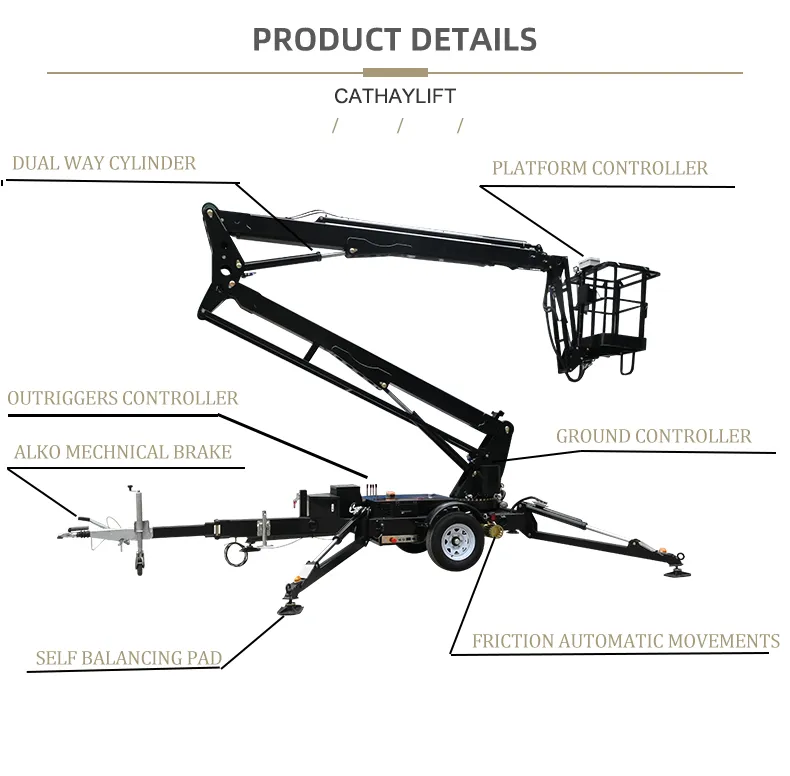

Precision Control: Features bidirectional oil cylinders for accurate movement and excellent sealing to prevent leakage.

Smart Interface: Waterproof control panel with LCD touch screen to monitor machine status and access electronic manuals.

Safety First: Deadman switch design requires coordinated handle and foot switch operation to prevent accidental movement.

Auto-Leveling: Equipped with hydraulic outriggers and a one-button basket leveling system for stability on uneven ground.

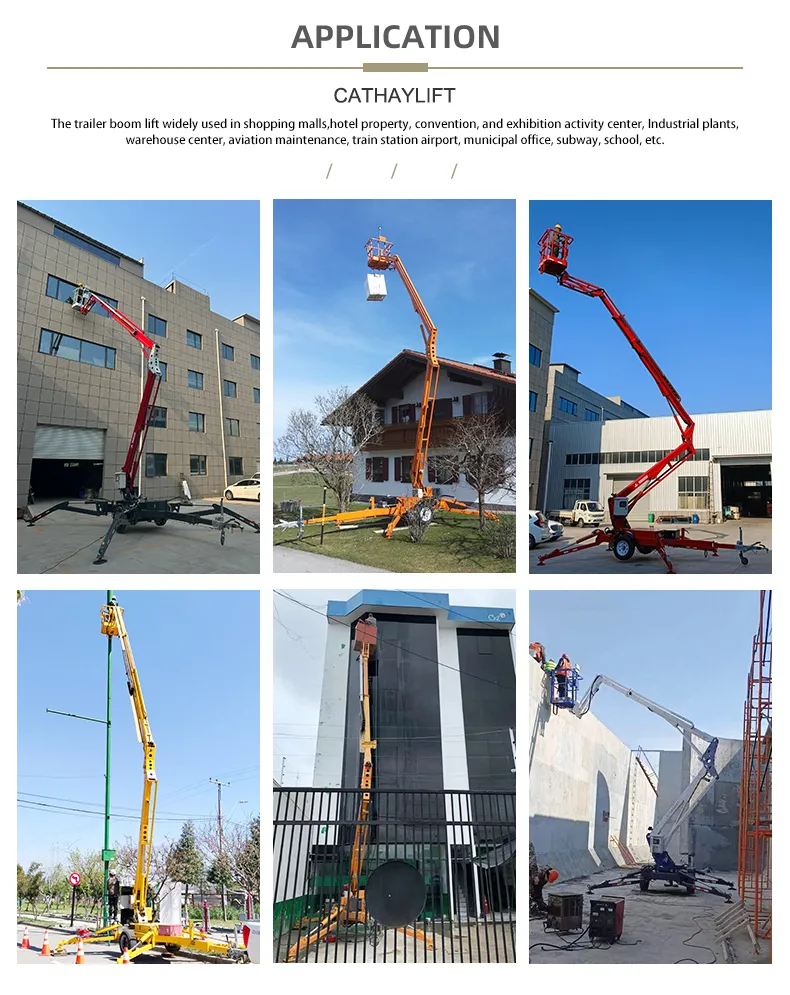

Applications

These versatile machines are used across various industries:

Construction: Installing steel structures and accessing high-rise building areas.
Maintenance: Safe access to roofs, HVAC systems, lighting, and windows.
Agriculture: Fruit harvesting, pruning, and crop inspection.
Utilities: Electrical line maintenance and pole inspections with optional insulated platforms.

Quality Assurance

Related Products

Frequently Asked Questions

Q1: What is the maximum working height available? A: Our trailer mounted boom lifts offer working heights ranging from 12m up to 24m, depending on the specific model selected.

Q2: What power options can I choose from? A: We provide multiple power configurations including AC electrical power, Diesel, Gasoline, DC Battery, and Dual Power options (e.g., AC+Diesel or Gasoline+Battery).

Q3: Is a special license required to tow the lift? A: No, the compact and portable design allows it to be towed by standard vehicles over long distances without the need for a commercial driver's license.

Q4: How does the automatic leveling system work? A: The lift is equipped with hydraulic outriggers and a self-balancing design. A one-button leveling feature is also available to quickly stabilize the basket.

Q5: Can the lift rotate 360 degrees? A: Yes, the machine features a 360-degree continuous turntable rotation, providing excellent accessibility for various aerial tasks.

Q6: What safety features are included? A: Safety features include a Deadman switch (coordinated handle and foot switch), electromagnetic and manual brakes, and a waterproof control panel with real-time status display.
