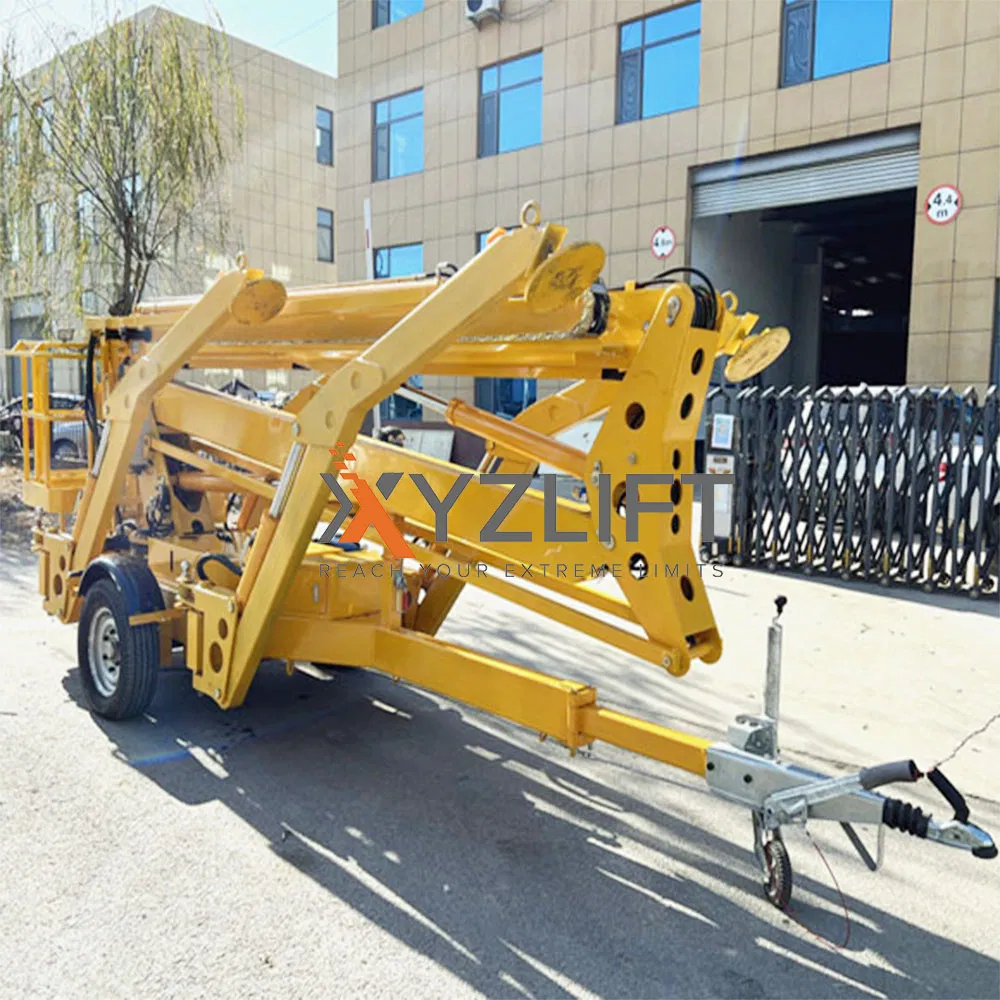

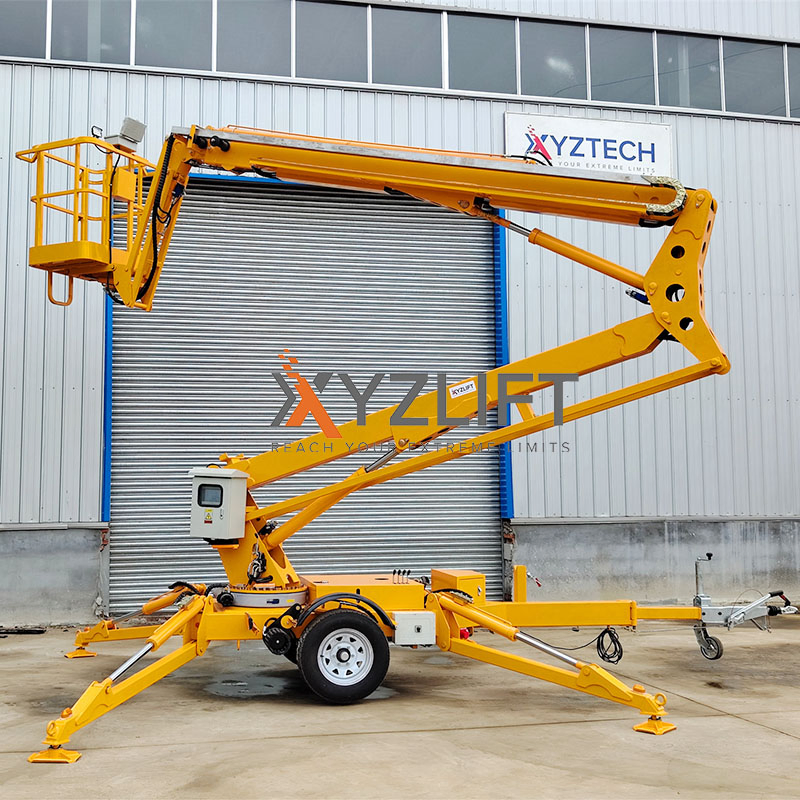

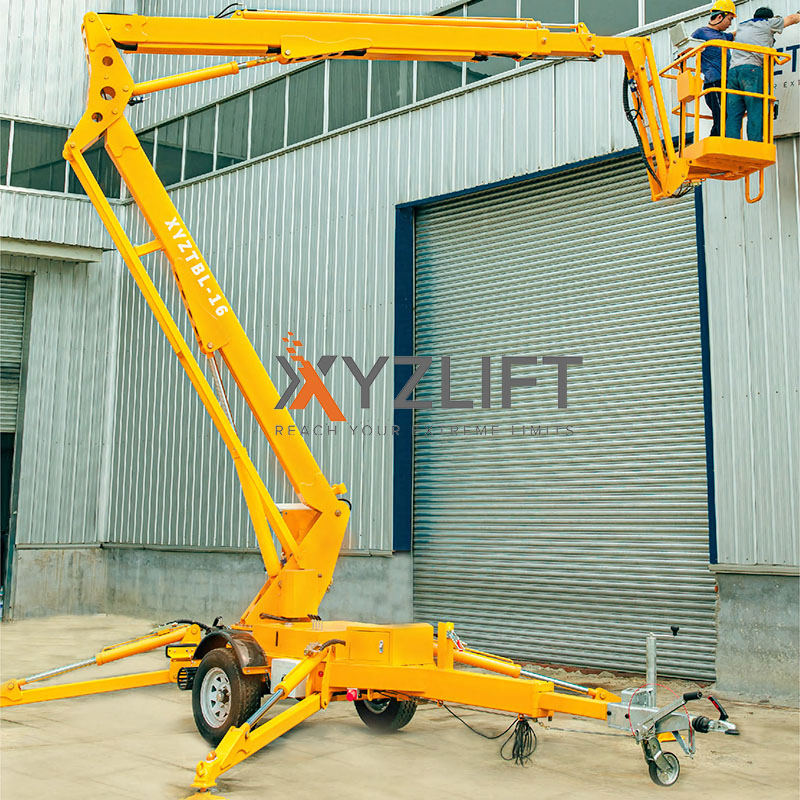

Towable boom lifts, also known as trailer-mounted boom lifts, are versatile pieces of equipment used in various industries for their ability to provide elevated work platforms.
Note: We can customize the lift's height, cabin dimensions, and body width to meet your specific requirements.
| Model |
Platform Height(m) |
Load Capacity(kg) |
Working Radius(m) |
Out Length(m) |
Out Width(m) |
Closed Height(m) |
Platform Size(m) |
| TBL-10 | 10 | 200 | 5.5 | 6.3 | 1.7 | 2.1 | 0.9*0.7 |
| TBL-12A | 12 | 200 | 6.5 | 7.3 | 1.7 | 2.1 | 0.9*0.7 |
| TBL-12B | 12 | 200 | 7.8 | 5.8 | 1.7 | 2.1 | 0.9*0.7 |
| TBL-14 | 14 | 200 | 8.5 | 6.65 | 1.7 | 2.1 | 0.9*0.7 |
| TBL-16 | 16 | 200 | 10.5 | 6.8 | 1.7 | 2.2 | 0.9*0.7 |
| TBL-18 | 18 | 200 | 11 | 7.6 | 1.8 | 2.25 | 0.9*0.7 |
| TBL-20 | 20 | 200 | 11 | 6.9 | 1.9 | 2.25 | 0.9*0.7 |
Our global network provides onsite measurement and free plan consultations.
Since 1997, our manufacturing group has been a leading cargo lift provider. We specialize in hydraulic lift platforms, including scissor lifts, boom lifts, and aerial work platforms. Our mission is to provide customized designs and high-quality lifting solutions at competitive prices.
?
Frequently Asked Questions
How to Choose the Right Lift Height?
The working height is typically the platform height plus 2 meters. Consider the maximum task height you need to reach comfortably.
What determines the Working Radius needed?
The working radius refers to horizontal reach. Choose a larger radius if you cannot position the lift directly next to the work area.
Which Power Source is best for my environment?
Use electric/battery for indoors, diesel/gasoline for outdoors, or dual-power options for mixed-use environments.
Is there a price difference between power sources?
Single power sources (electric, gasoline, diesel) are similarly priced. Battery-powered models may incur extra costs for the battery units.
Can the lifts be customized?
Yes, we offer customization for explosion-proof needs, insulated platforms, narrow workspace designs, and various color options.
Can these operate on uneven ground?

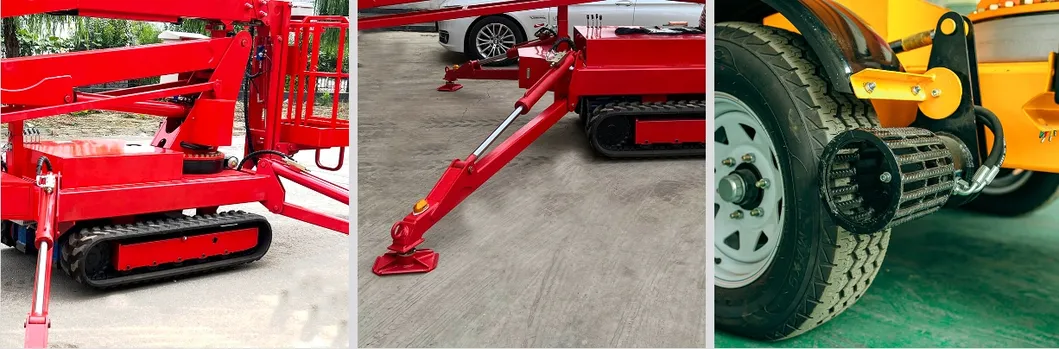

Yes, they are equipped with four adjustable hydraulic outriggers to ensure absolute stability and balance on solid, uneven surfaces.
