📋 Basic Information
Model NO.:GTJZ
Lift Mechanism:Scissor Lift
Driven Type:Hydraulic
Lift Rated Capacity:450kg
Max. Working Height:8m
Max. Platform Height:6m
Carrying Capacity:Middle-Level
Application:Workshop, Shipboard, Warehouse, Building
Certification:GS, CE, RoHS, ISO 9001
Platform Size:2270*1120 mm
Max. Climbing Capacity:25%
Origin:China
🚀 Product Description

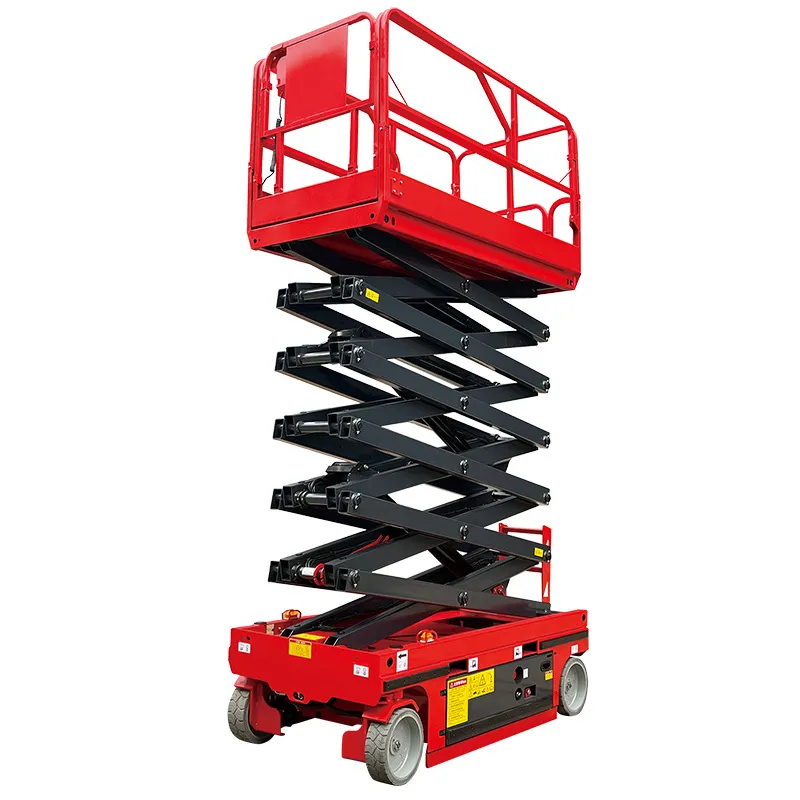

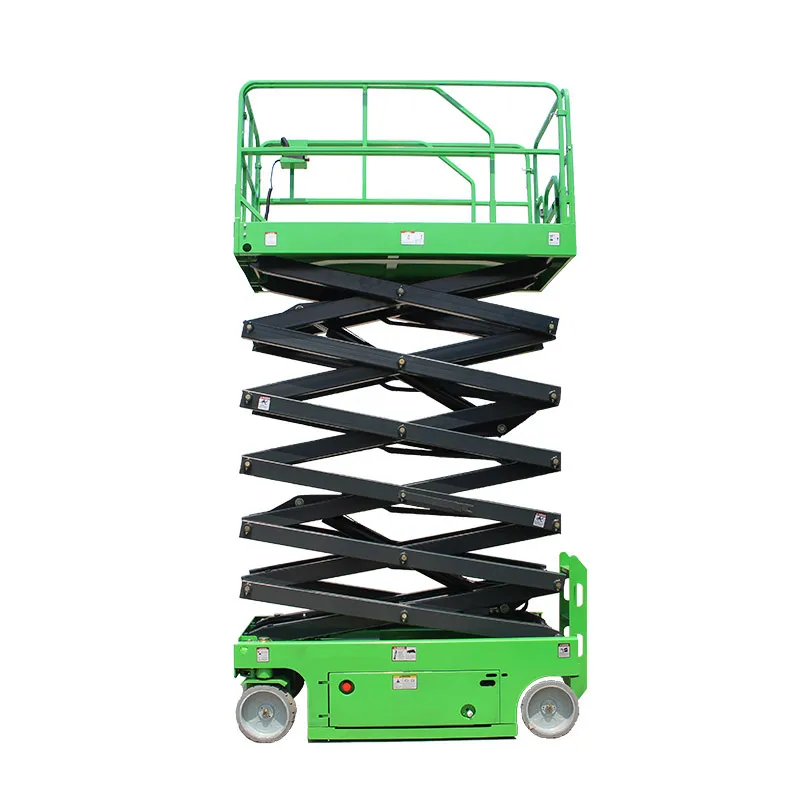

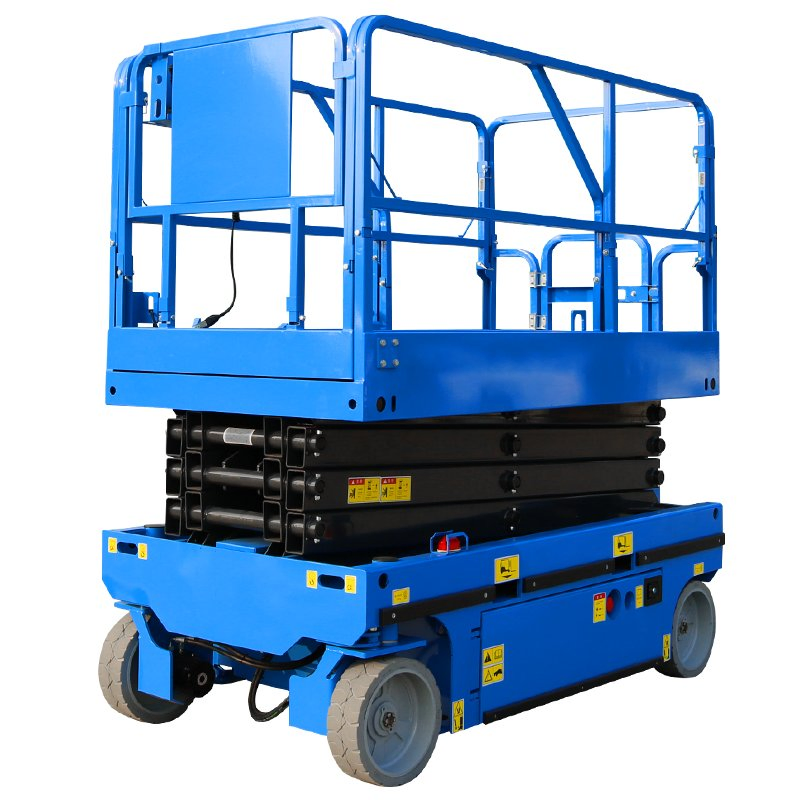

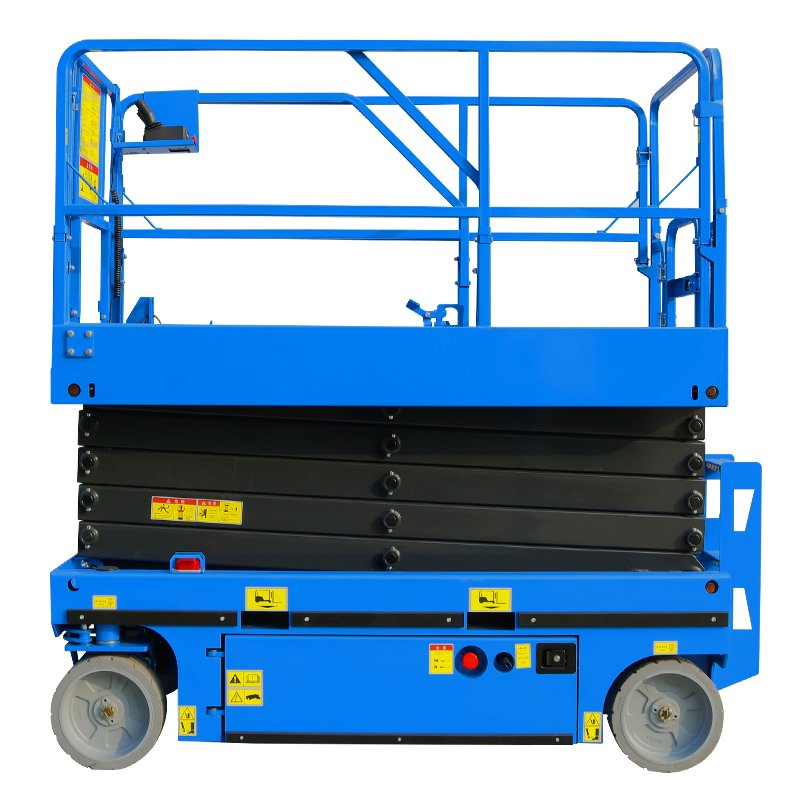

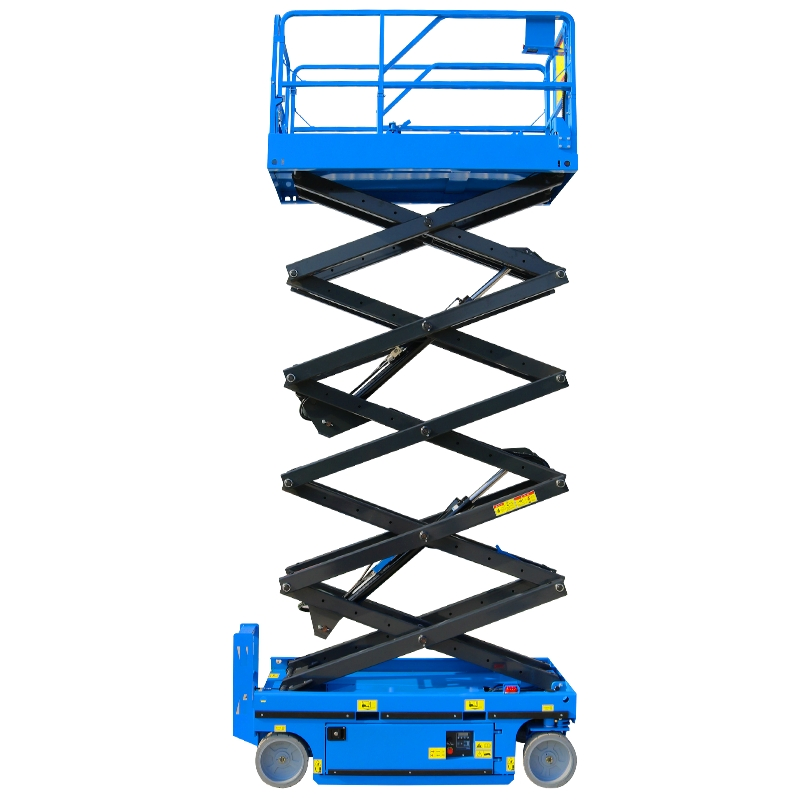

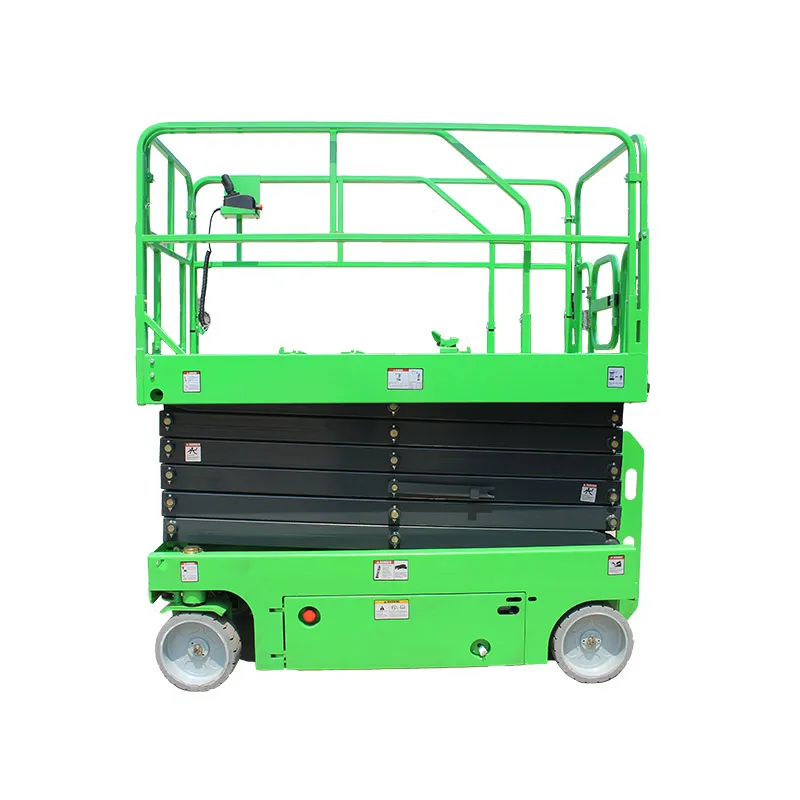

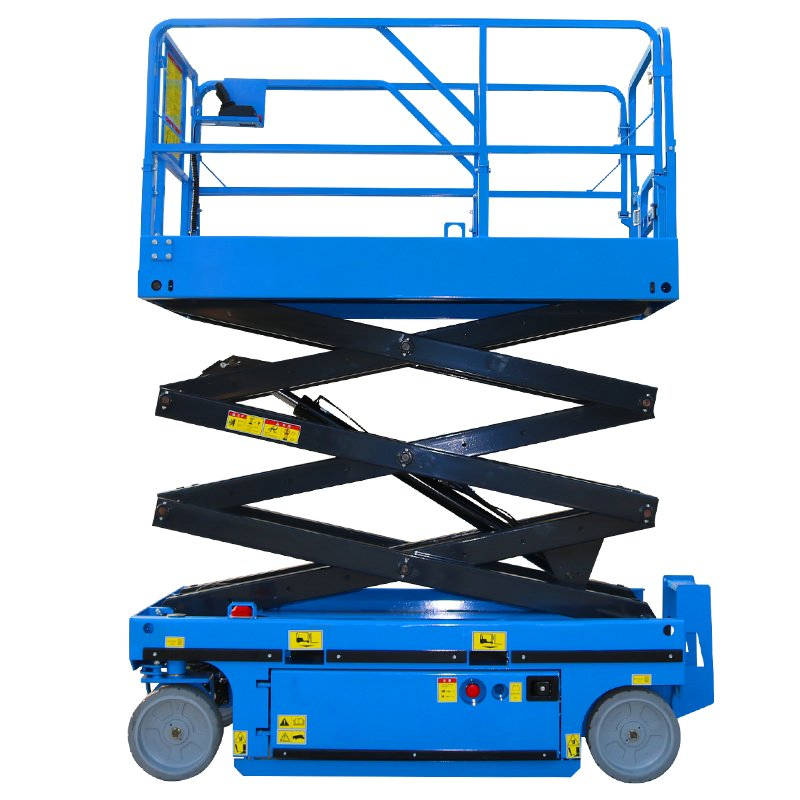

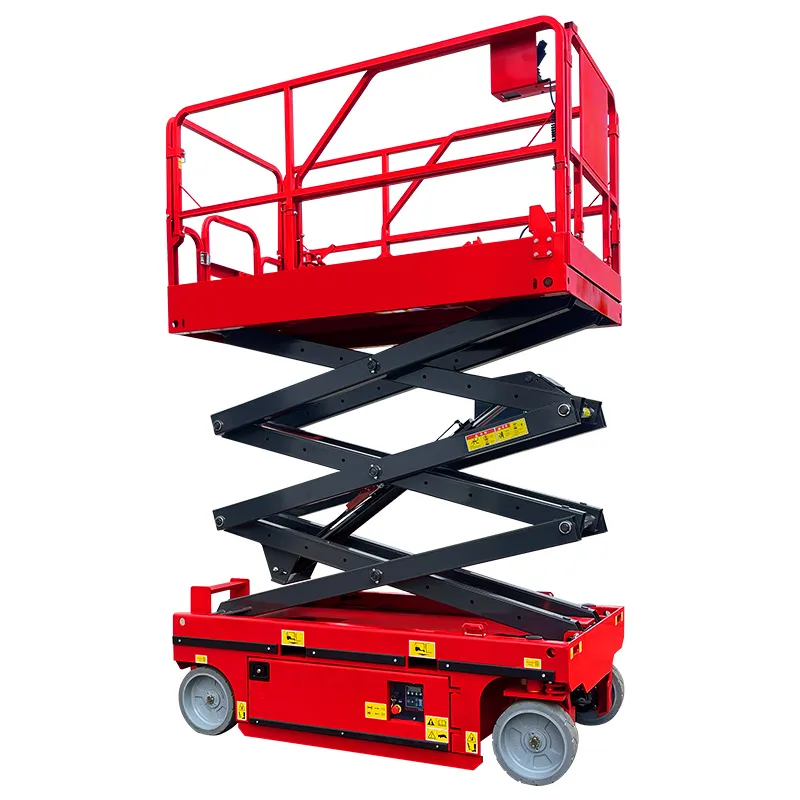

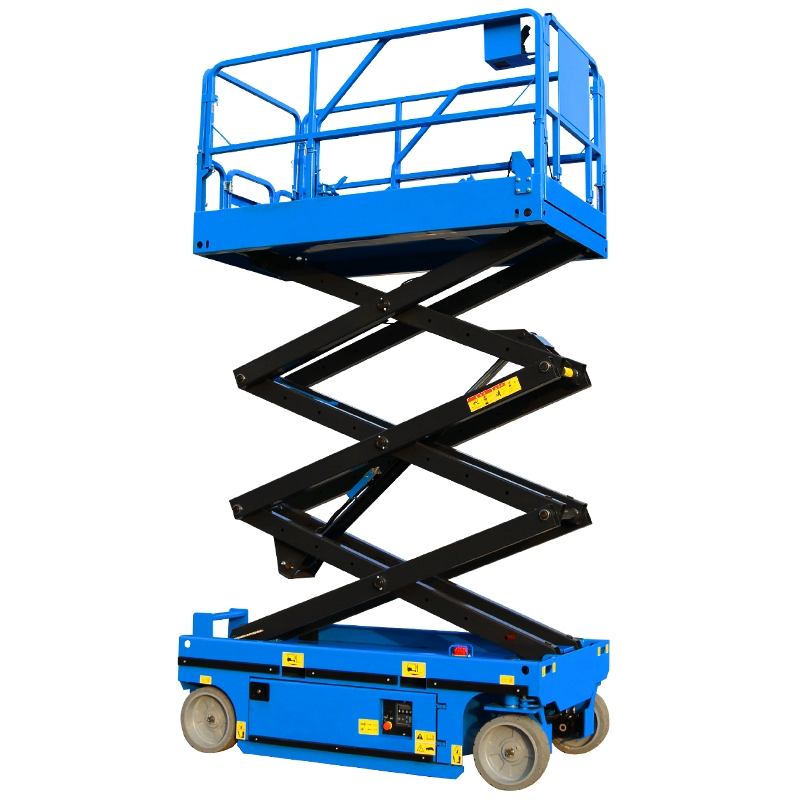

Electric Hydraulic Mobile Self Propelled Scissor Lift
This aerial lift platform features a high-end configuration including America TORJAN Battery, America CURTIS control system, Sweden Bucher pump station, Italy Doyle hydraulic valve, and America White driving wheel. Powered by DC, it can be controlled manually or move automatically with adjustable speed. Safety is prioritized with explosion-proof valves, spillover valves, and an emergency decline valve. These electric and rough terrain scissor lifts offer high performance and versatility, boosting work site productivity for indoor maintenance or outdoor construction tasks.
| Model |
GTJZ08S |
GTJZ08F |
GTJZ10F |
GTJZ12F |
GTJZ14F |
GTJZ16F |
| Rated Capacity |
kg |
230 |
450 |
450 |
320 |
320 |
230 |
| Max. Platform Height |
m |
6 |
6 |
8 |
10 |
11.8 |
13.8 |
| Max. Working Height |
m |
8 |
8 |
10 |
12 |
13.8 |
15.8 |
| Overall Length |
mm |
1850 |
2430 |
2430 |
2430 |
2430 |
2850 |
| Overall Width |
mm |
790 |
1210 |
1210/890 |
1210 |
1210 |
1310 |
| Net Weight |
kg |
1430 |
2250 |
2350/2260 |
2550 |
2980 |
3670 |
❓ Frequently Asked Questions
1. What is the maximum working height of these scissor lifts?
The series offers various models with maximum working heights ranging from 8 meters up to 15.8 meters to suit different aerial task requirements.
2. Which battery brand is used in the equipment?
Our scissor lifts are equipped with high-performance America TORJAN Batteries, ensuring longer runtimes and reliable power supply.
3. Are there any safety features included for emergency situations?
Yes, the lifts include several safety precautions such as explosion-proof valves, spillover valves, and an emergency decline valve for safe lowering during power failure.
4. Can the lift be used on uneven or rough terrain?
Yes, these scissor lifts are designed for both indoor maintenance and outdoor construction tasks, with specific models built to traverse rough terrain effectively.
5. What is the maximum climbing capacity?
The equipment features a maximum climbing capacity of 25%, allowing it to handle inclined surfaces common in construction sites.
6. How is the movement of the platform controlled?
The lift is powered by DC and can be controlled manually. It features automatic movement with fully adjustable speeds for precise positioning.
