CE Approved 6m-16m Gtwy2 Series Double Mast Portable Vertical Hydraulic Ladder Aluminum Alloy Mast Electric Man Lift Towable Telescopic Boom Lift Gtwy

1 / 5

CE Approved 6m-16m Gtwy2 Series Double Mast Portable Vertical Hydraulic Ladder Aluminum Alloy Mast Electric Man Lift Towable Telescopic Boom Lift Gtwy

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Double Mast Portable Vertical Hydraulic Ladder

Basic Information

Model NO.

GTWY2-10

Application

Workshop, Shipboard, Warehouse, Building

Lift Mechanism

Lift Chain

Carrying Capacity

Middle-Level

Moves

Push Around

Driven Type

AC&DC

Certification

Max. Working Height

12m

Max. Platform Height

10m

Loading Capacity

250kg

Occupants

Platform Dimension

1.45m X 0.7m

Origin

China

HS Code

8428909090

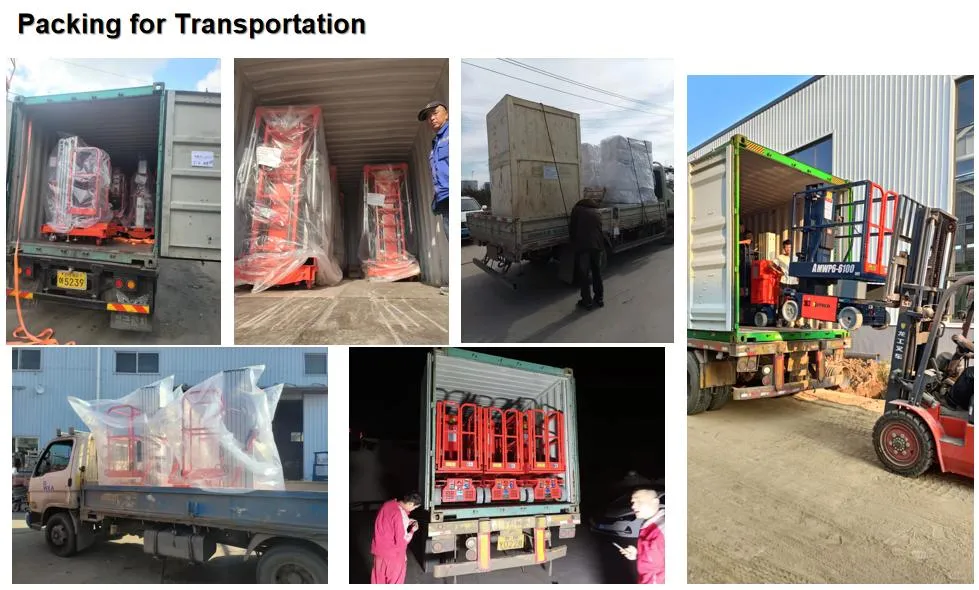

Packaging & Delivery

Package Size

199.00cm * 81.00cm * 150.00cm

Package Gross Weight

800.000kg

Transport Package

Wood Case

Product Specifications

Model	GTWY2-6	GTWY2-8	GTWY2-10	GTWY2-12	GTWY2-14	GTWY2-16
Max. Working Height	8m	10m	12m	14m	16m	18m
Max. Platform Height	6m	8m	10m	12m	14m	16m
Loading Capacity	250kg	250kg	250kg	200kg	200kg	150kg
Occupants	2	2	2	2	2	1
Total Weight AC	610kg	645kg	715kg	750kg	892kg	996kg

Key Features

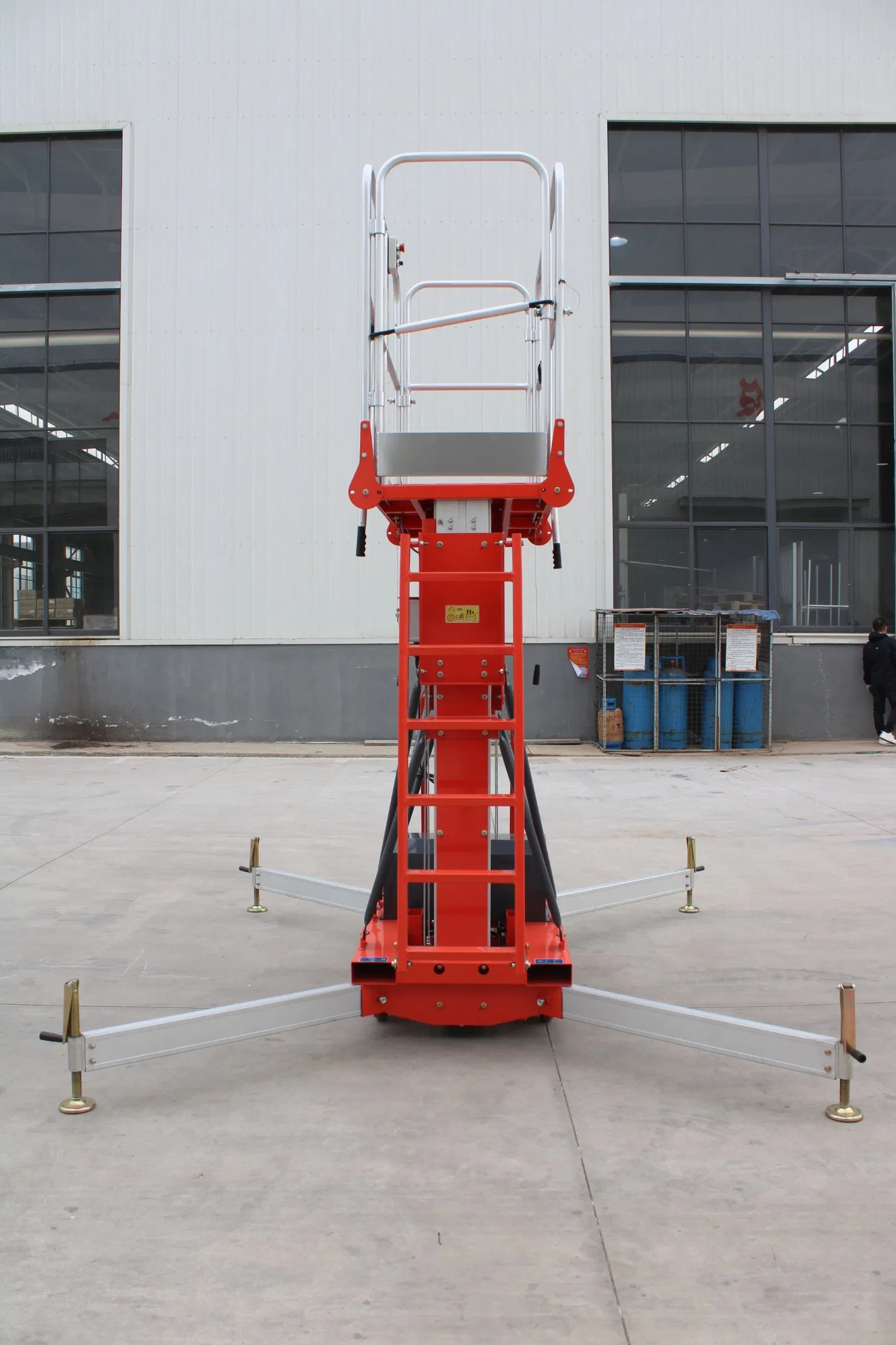

Outriggers with interlock

AC power to platform

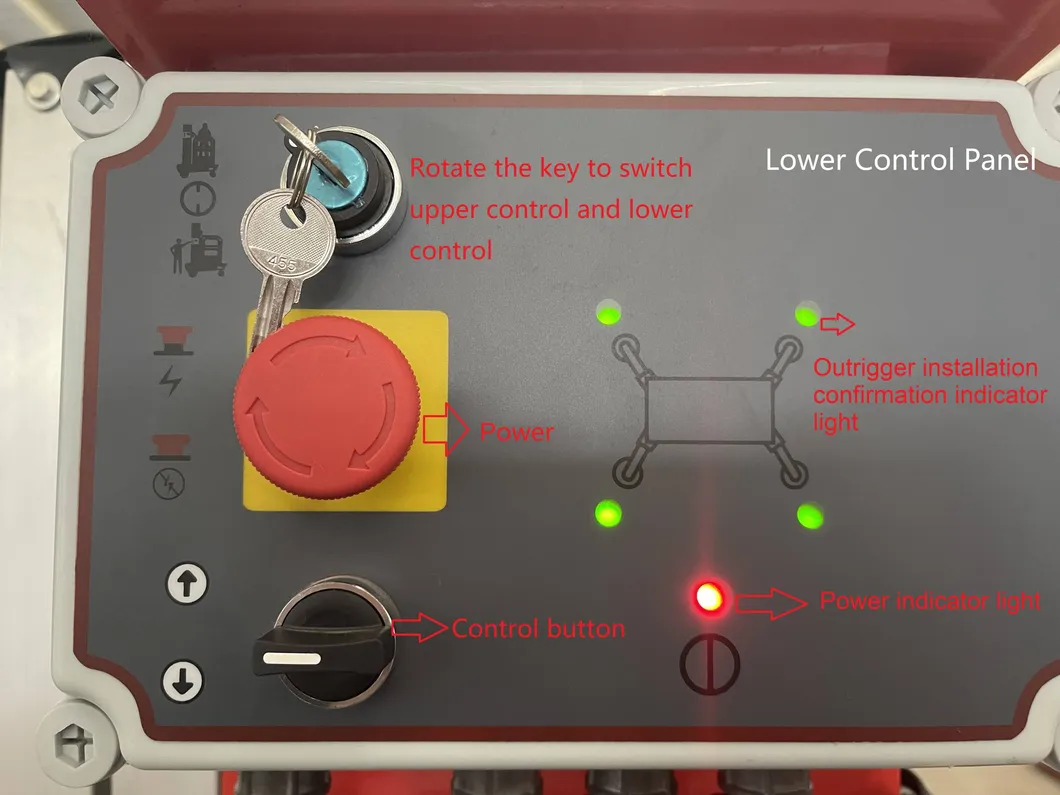

Emergency stop button

Emergency lowering system

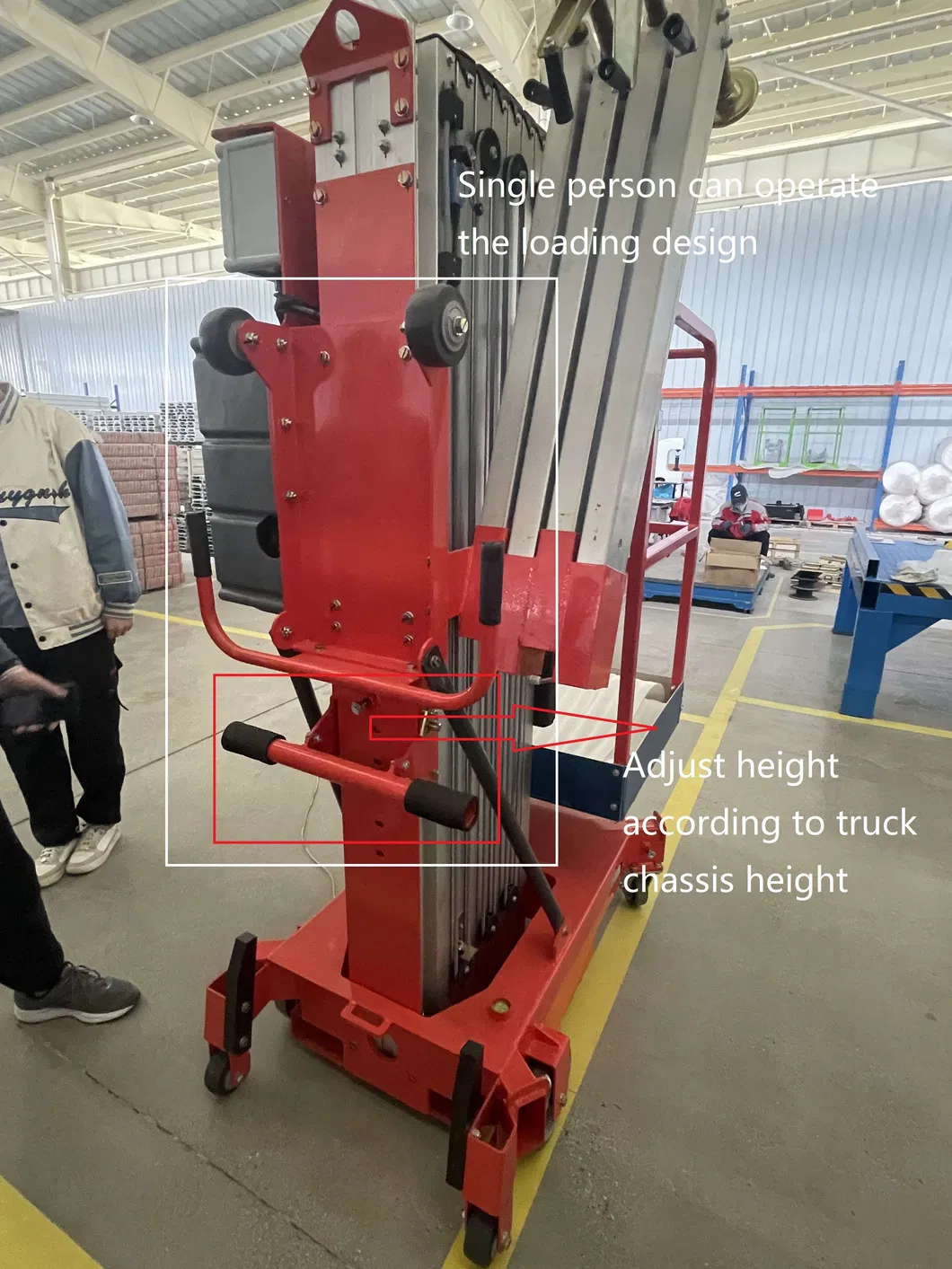

Easy loading in pickup trucks

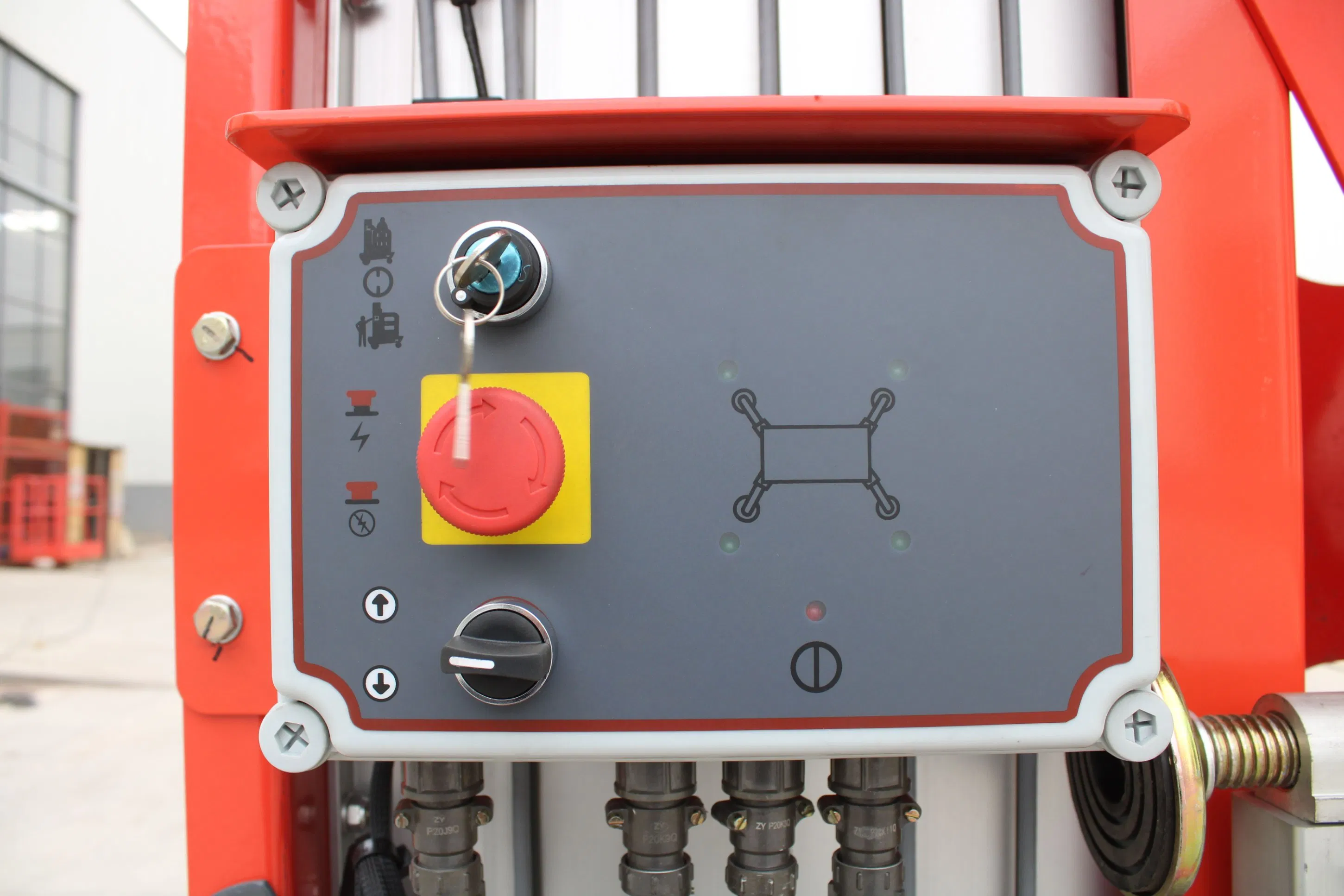

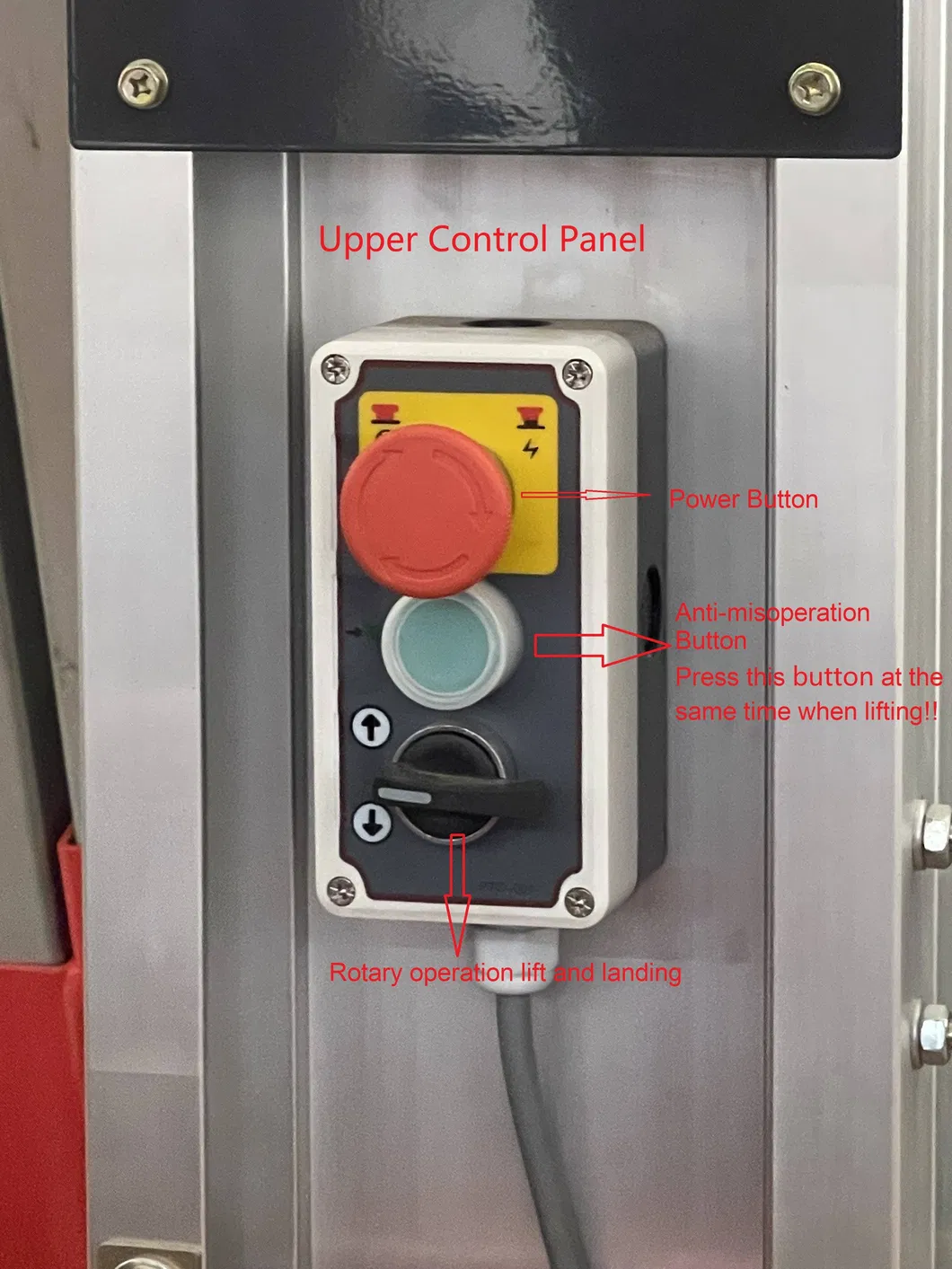

Two controllers operation

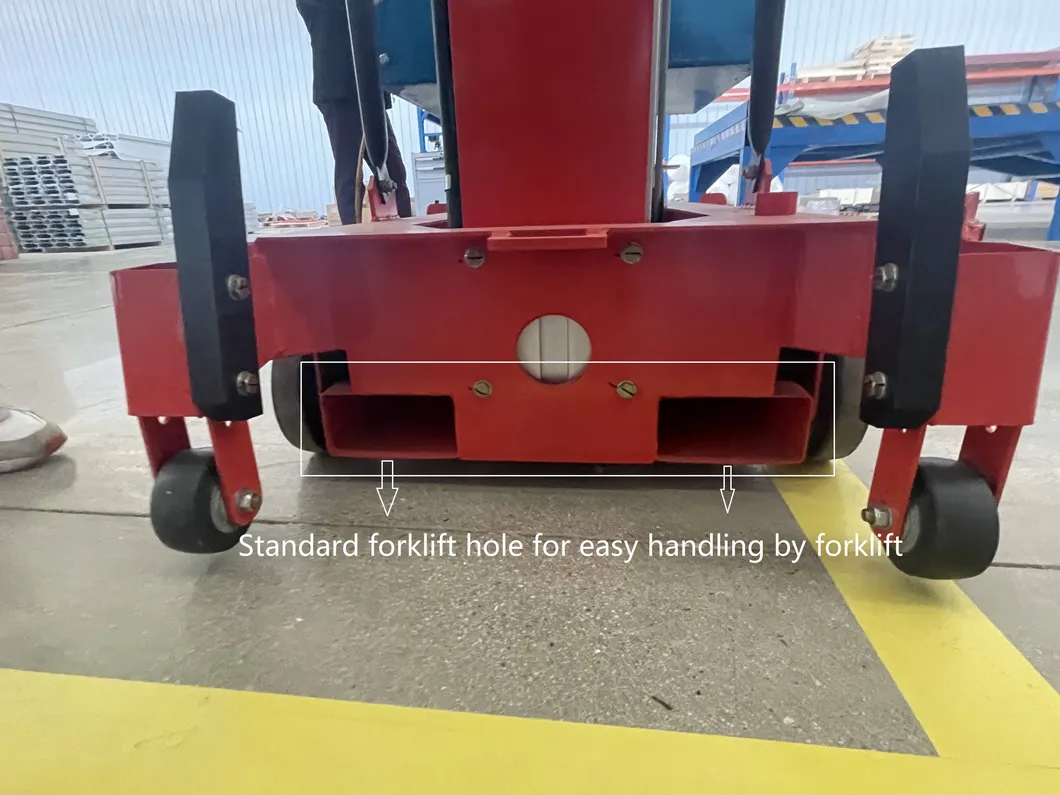

Forklift pockets

Transport tie hole

Deadman Switch

Cylinder holding valve

Options

Overload sensor with alarm

Beacon

All motion alarm

Leveling sensor

Frequently Asked Questions

What is the maximum working height of the GTWY2 series?

The GTWY2 series offers a range of working heights starting from 8m up to 18m, depending on the specific model selected.

What are the power options available for these lifts?

The lifts are designed with dual power versatility, supporting both AC (380V/220V/110V) and DC (2x12V battery) configurations to suit different working environments.

How many occupants can the platform hold?

Most models in the GTWY2 series (from GTWY2-6 to GTWY2-14) are designed for 2 occupants, while the GTWY2-16 model is designed for 1 occupant.

What safety mechanisms are included in the standard configuration?

Standard safety features include outriggers with interlock, emergency stop buttons, an emergency lowering system, a deadman switch, and a cylinder holding valve.

Is the lift easy to transport between locations?

Yes, the design includes forklift pockets and transport tie holes, and it is built to be easily loaded into pickup trucks for convenient relocation.

What is the loading capacity for the GTWY2-10 model?

The GTWY2-10 model has a maximum loading capacity of 250kg, suitable for middle-level carrying requirements.
