Basic Specifications
Application:
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism:
Lift Chain
Carrying Capacity:
Middle-Level
Feature:
Explosion-Proof, Insulating
Certification:
GS, CE, RoHS, ISO 9001
Capacity:
150kg, 200kg, 250kg
Standard Power:
AC Electrical Power Supply
Optional Power:
Battery Operated
Voltage:
110V, 220V, 380V, Customize
Safety Precaution:
Deadman Switch

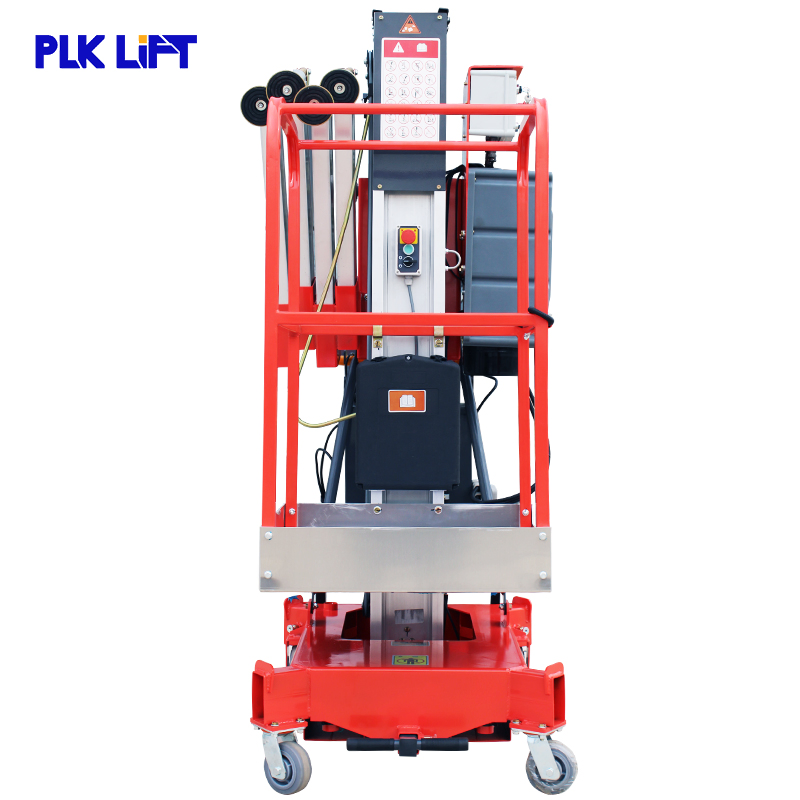

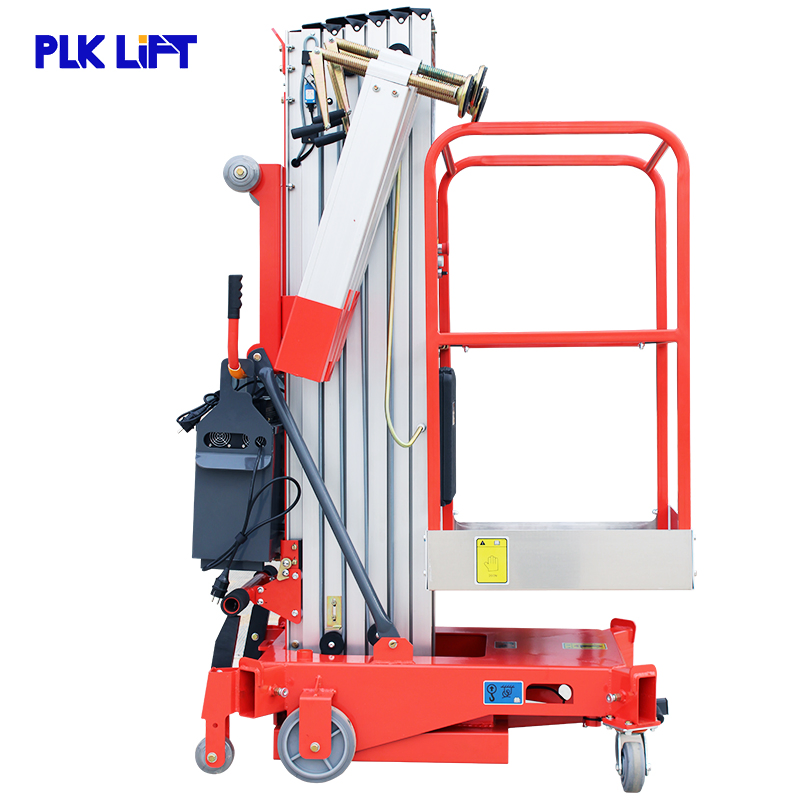

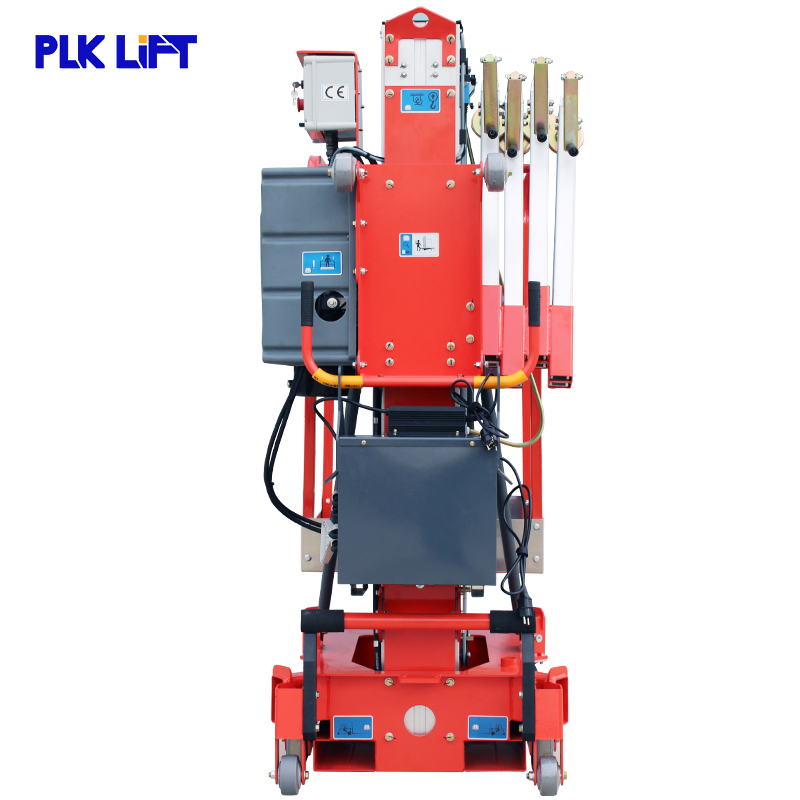

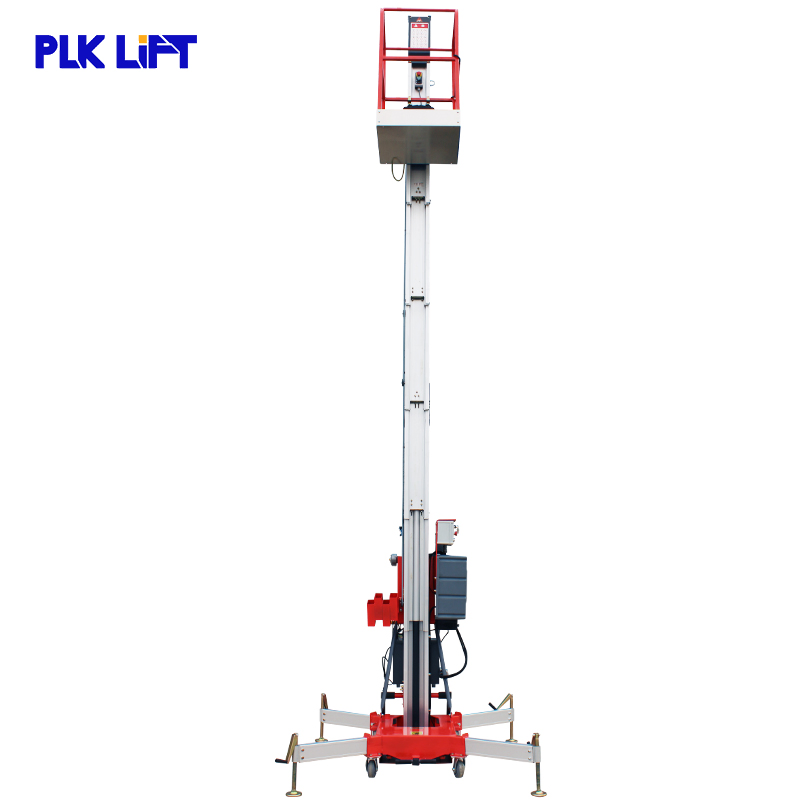

Europe Market High End Hydraulic Man Lift
Aluminum alloy aerial work platforms are easy to use and cost effective, making them the best choice for a wide range of applications. One person can easily set them up and get to work within minutes, providing the ideal tool for almost any access application. Their lightweight and compact size makes the platforms convenient to use in schools, churches, flower shop, warehouses and more. These lift platforms also provide solutions for inside work on construction sites, such as high rises, it can go in and out the elevator smoothly as well as being perfect for easy construction purposes.
Technical Data Sheet
| Model No. |
Max. Platform Height (M) |
Max. Working Height (M) |
Load Capacity (KG) |
Platform Size (M) |
Net Weight (KG) |
Overall Size (M) |
| GTWY6-1H | 6.2 | 8 | 150 | 0.67*0.66 | 320 | 1.24*0.74*1.99 |
| GTWY8-1H | 8 | 10 | 150 | 345 | 1.36*0.74*1.99 |
| GTWY9-1H | 9.2 | 11 | 150 | 365 | 1.4*0.74*1.99 |
| GTWY10-1H | 10.4 | 12 | 136 | 385 | 1.42*0.74*1.99 |
| GTWY12-1H | 12 | 14 | 120 | 460 | 1.46*0.81*2.68 |
Safety Features & Advantages
✓ Deadman switch function for high operational safety
✓ AC power on platform for electric tools usage
✓ Cylinder Holding Valve with anti-explosion function
✓ Standard forklift hole for safe and easy loading
✓ Overload protection and 24V safe control voltage

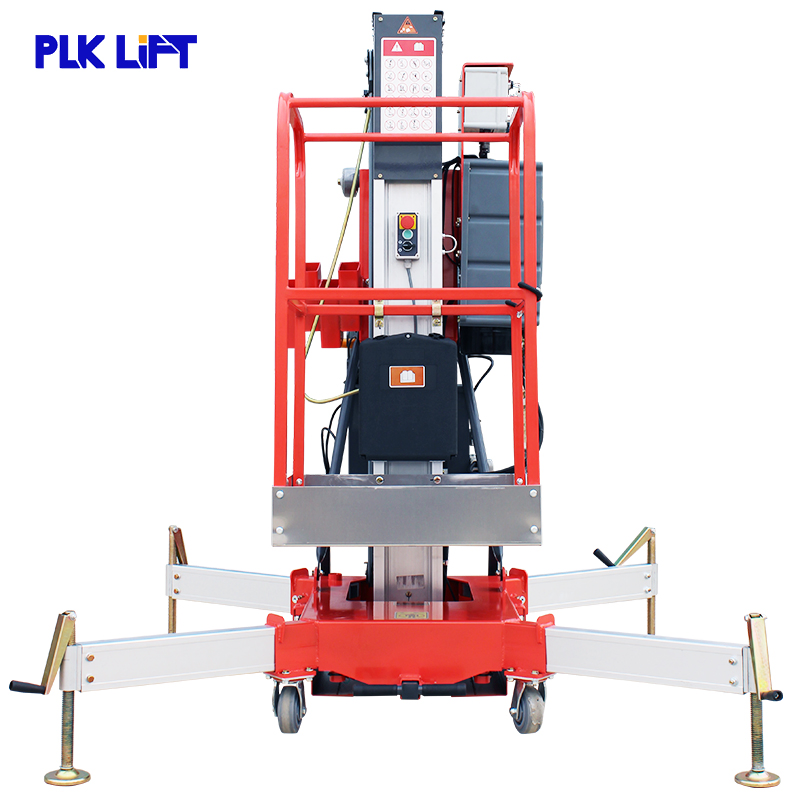

✓ Leveling stabilizers and outriggers support
✓ Non-marking wheels for indoor floor protection
✓ Emergency stop buttons and lowering device

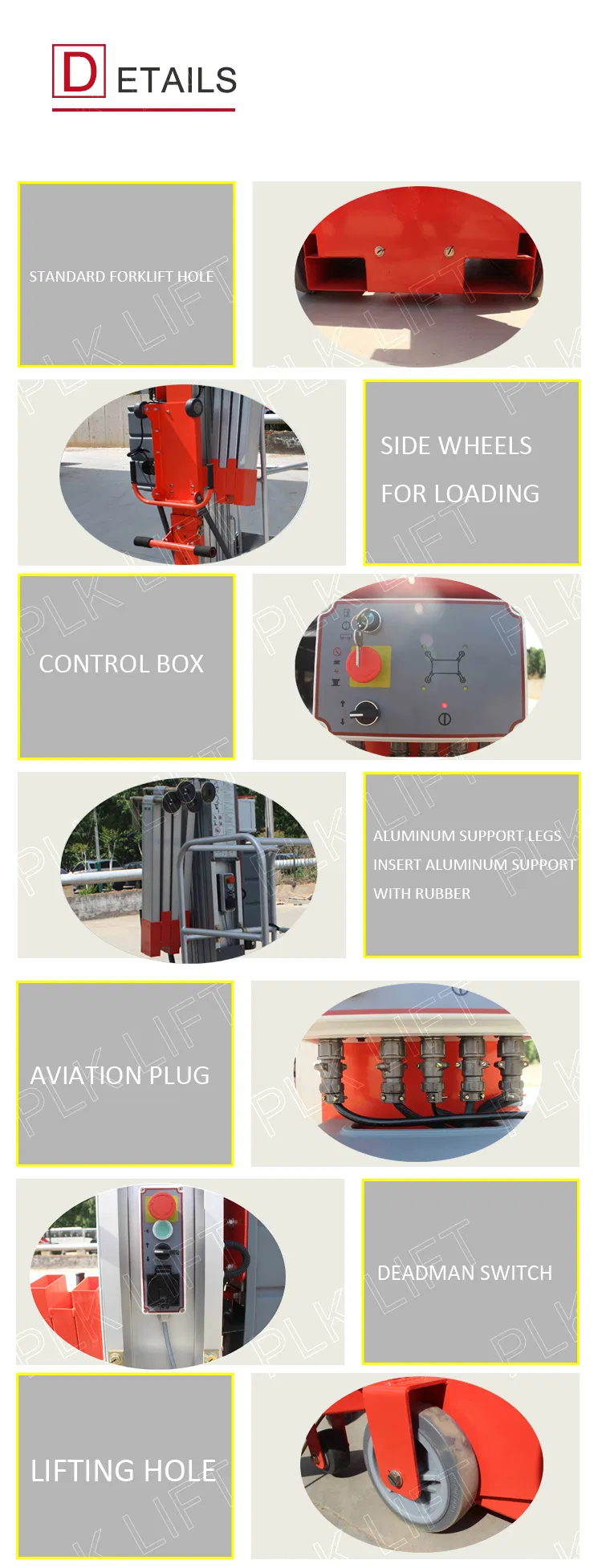

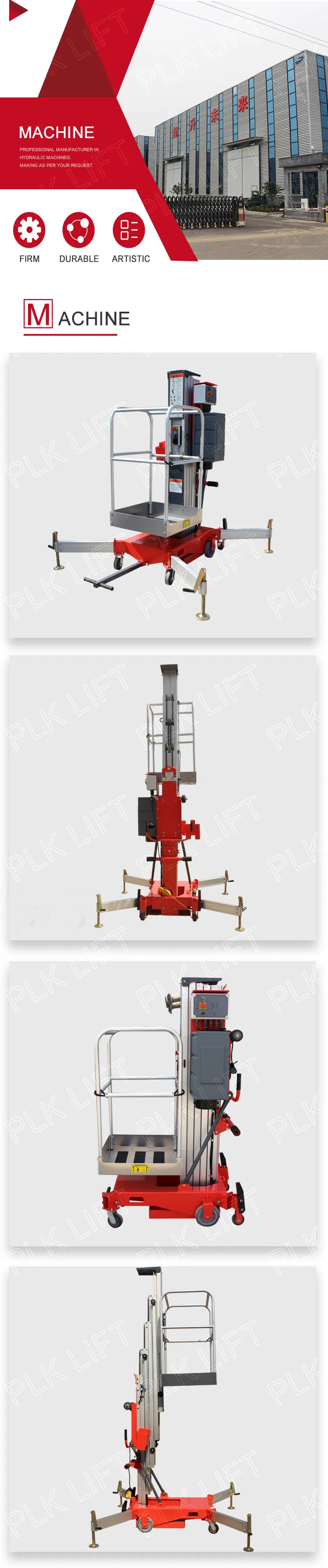

Product Details

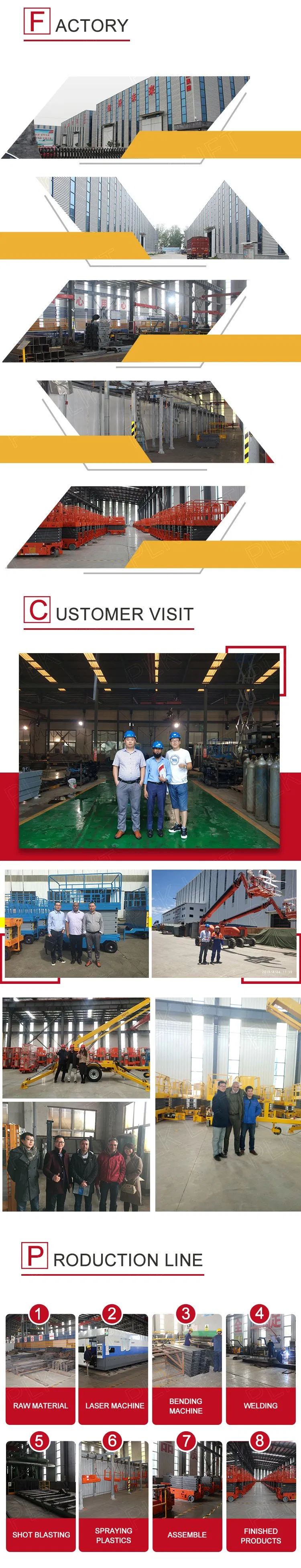

Factory Display
Frequently Asked Questions
What is the maximum working height of this aluminum lift?
The series offers various models with maximum working heights ranging from 8 meters up to 14 meters, depending on the specific model selected.
Can the lift be powered by batteries?
Yes, while the standard power supply is AC electrical power, we offer an optional battery-operated configuration for increased mobility.
Is the platform safe for using electric tools?
Absolutely. The platform is equipped with an AC power outlet specifically designed for the convenient use of electric tools while working at height.
How many people are required to set up the machine?
The lightweight aluminum design allows a single person to easily set up the platform and begin operation within minutes.
What safety measures prevent the platform from falling?
The lift includes a cylinder holding valve with anti-explosion functions, a deadman switch, and an emergency lowering device to ensure maximum safety in case of power or hydraulic failure.
Can it fit through standard doors or elevators?
Yes, its compact size and lightweight structure allow it to pass through standard doorways and move smoothly in and out of most industrial elevators.
