Basic Information
Application
Workshop, Shipboard, Warehouse, Building
Carrying Capacity
Light Level
Feature
Explosion-Proof, Insulating
Certification
CE, ISO 9001

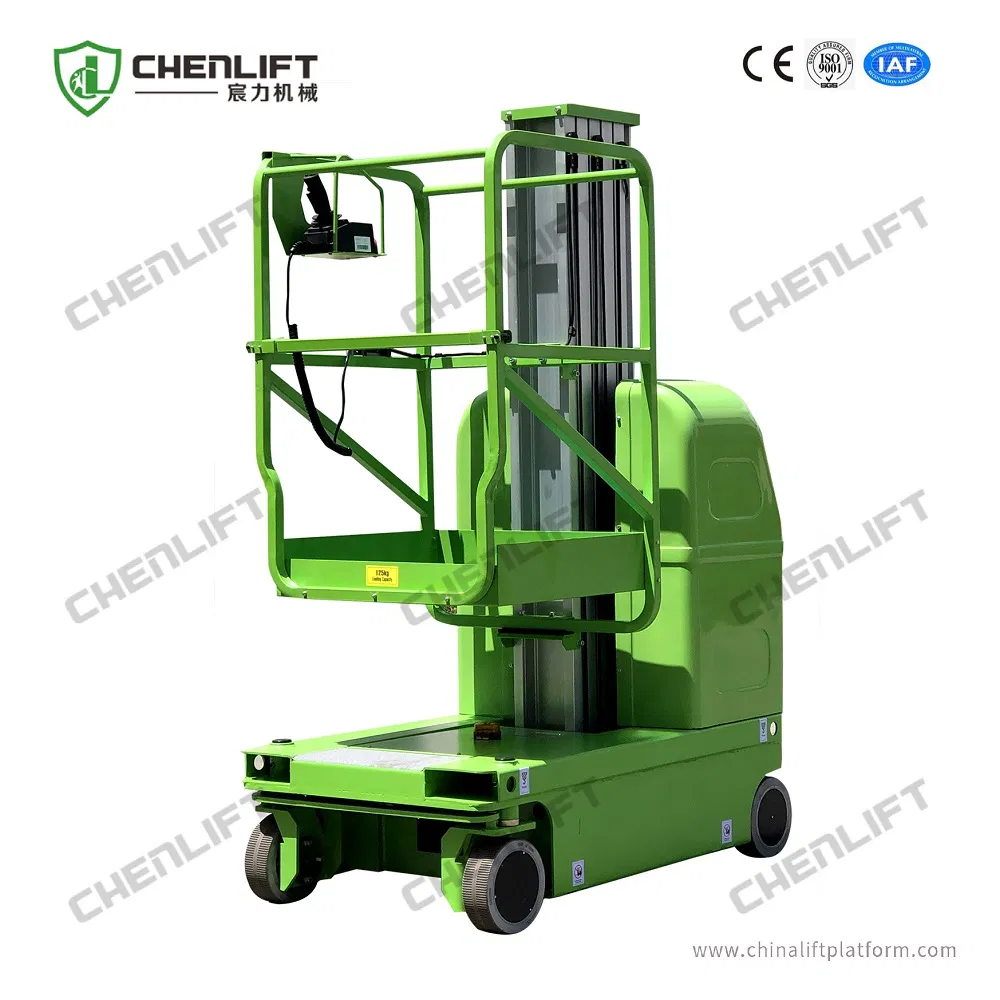

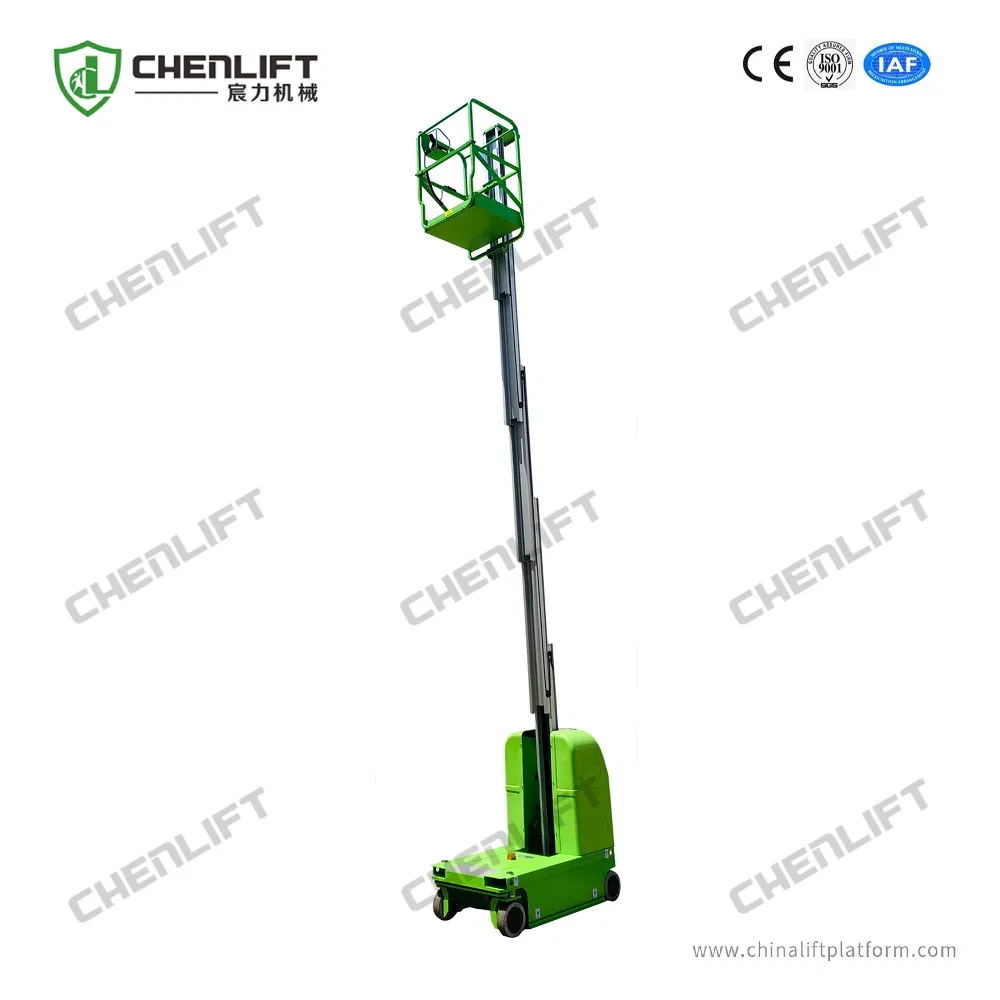

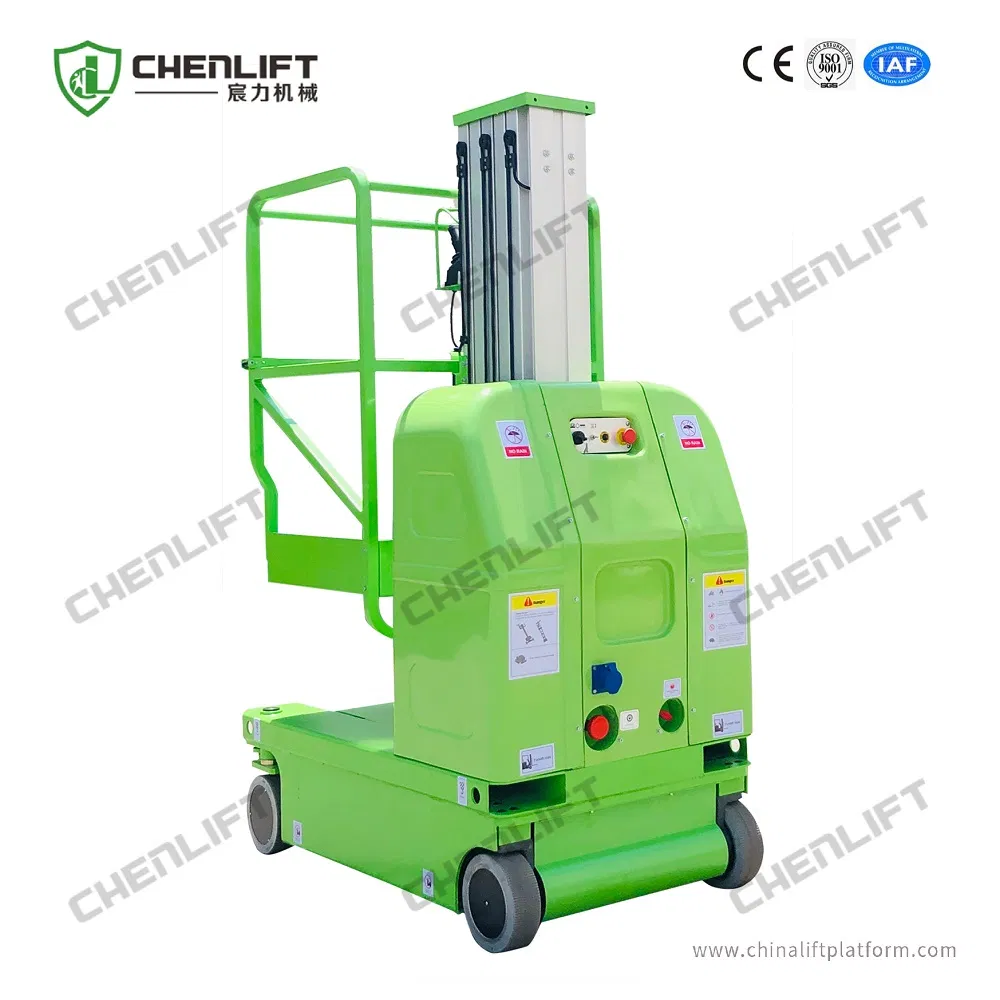

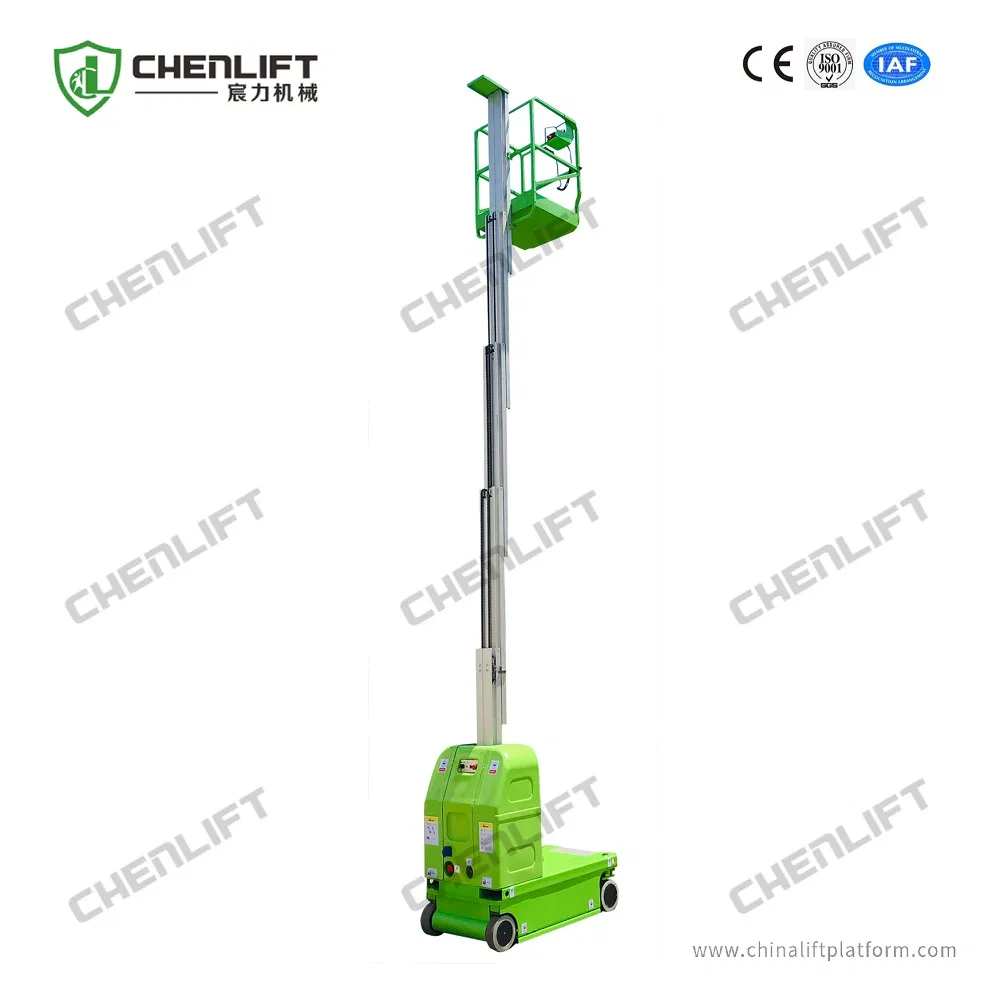

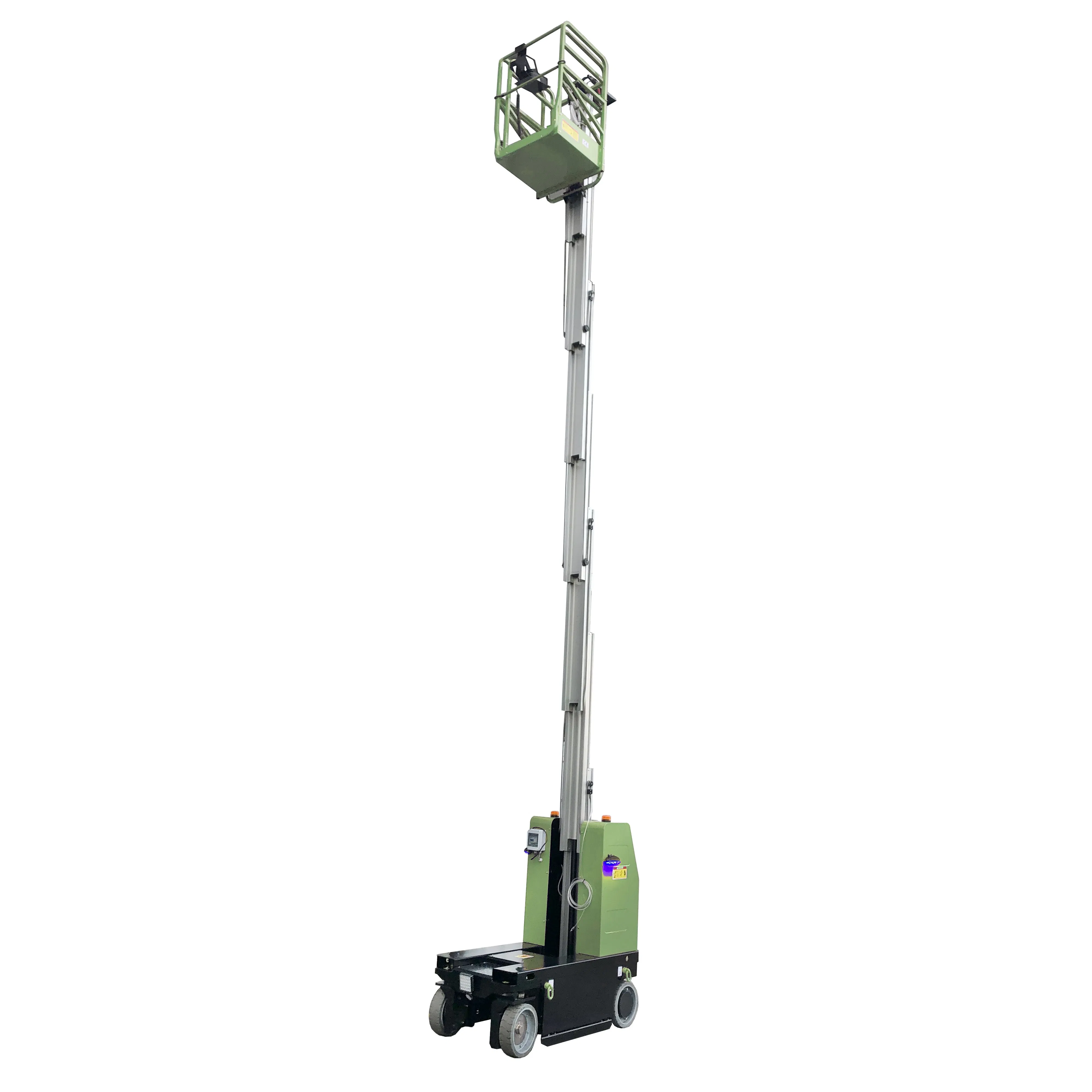

Self-Propelled Economical Vertical Lift
The Self-Propelled Economical Vertical Lift is light and exquisite, convenient and flexible. It can pass through general foyers, enter and exit elevators at will, save energy, and work without damaging the ground. It is ideally suited for wall-mounted work and exploration tasks in hotels, hospitals, stations, airports, and warehouses.
Turning Types & Details

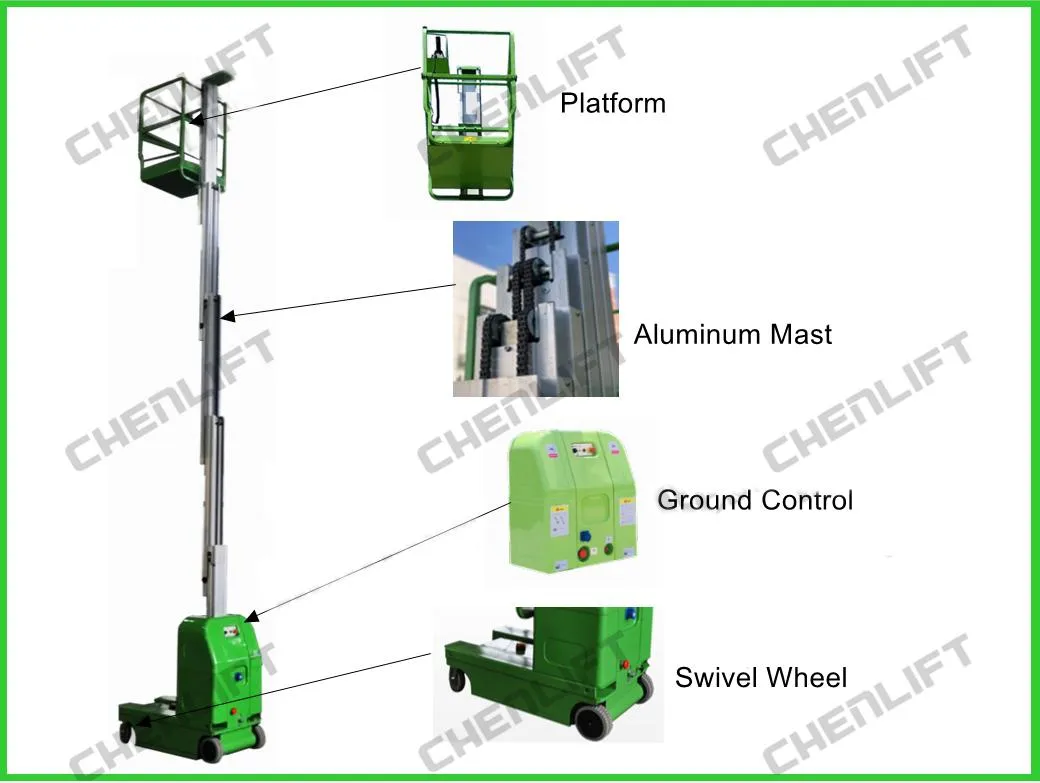

Swivel Turning Type

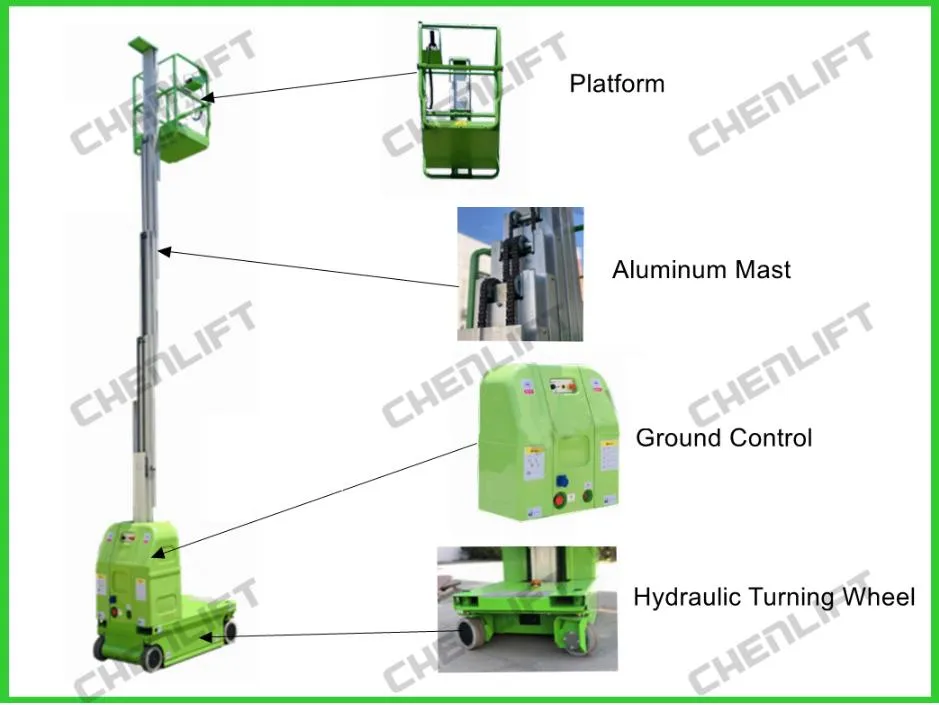

Hydraulic Turning Type
Standard Configuration
✓ Proportional controls
✓ DC power supply
✓ Drivable at full height
✓ Non marking tyre
✓ Automatic braking system
✓ Emergency stop button
✓ Auxiliary lowering
✓ Tilt sensor with alarm
✓ On board Diagnostic system
✓ Anti-dust cover on the mast
Optional Configuration
● AC power to platform
● Overload sensor with alarm
● Platform working light
● Platform extension
● Wireless tracking
Handling & Storage
The equipment must be stored in a horizontal position to prevent oil and electrolyte overflow. Keep it in a clean, dry environment with temperatures not exceeding 40ºC. Periodic recharging is required if the battery is not used for long periods.

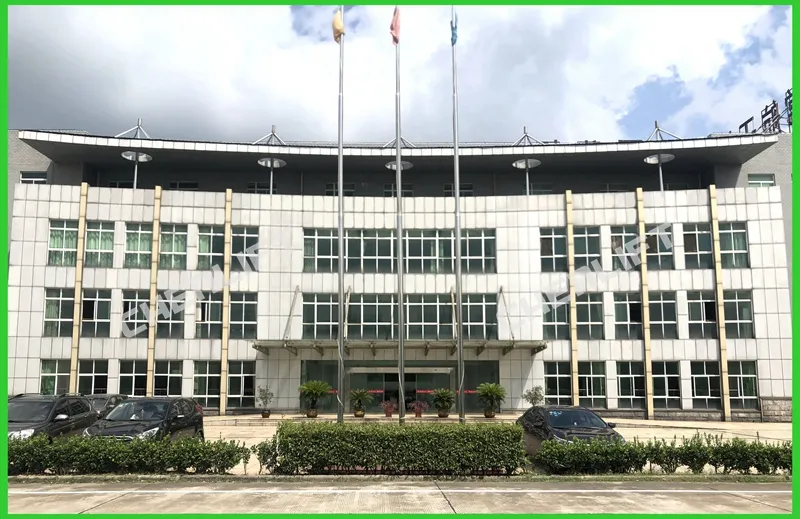

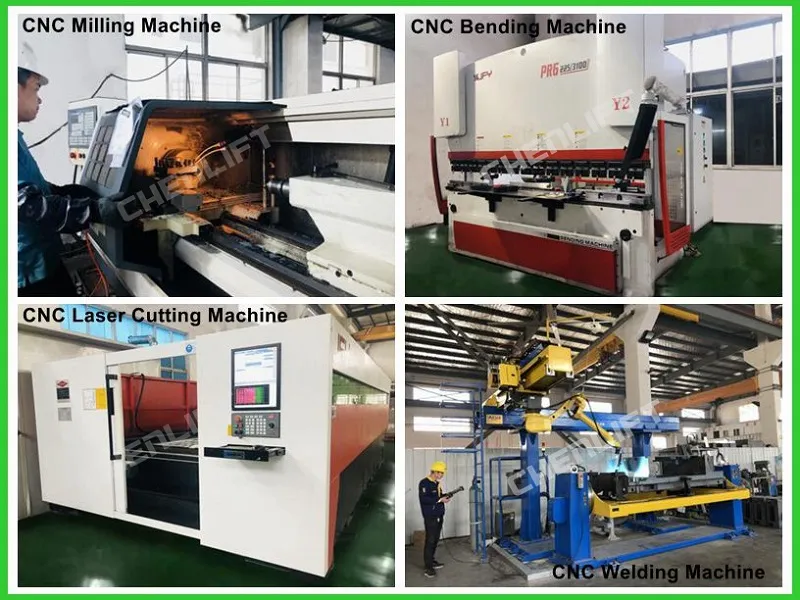

Factory & Quality Control

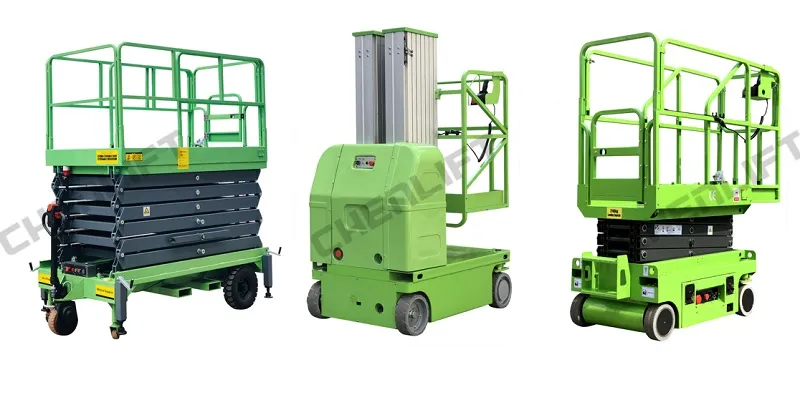

Related Products
Frequently Asked Questions

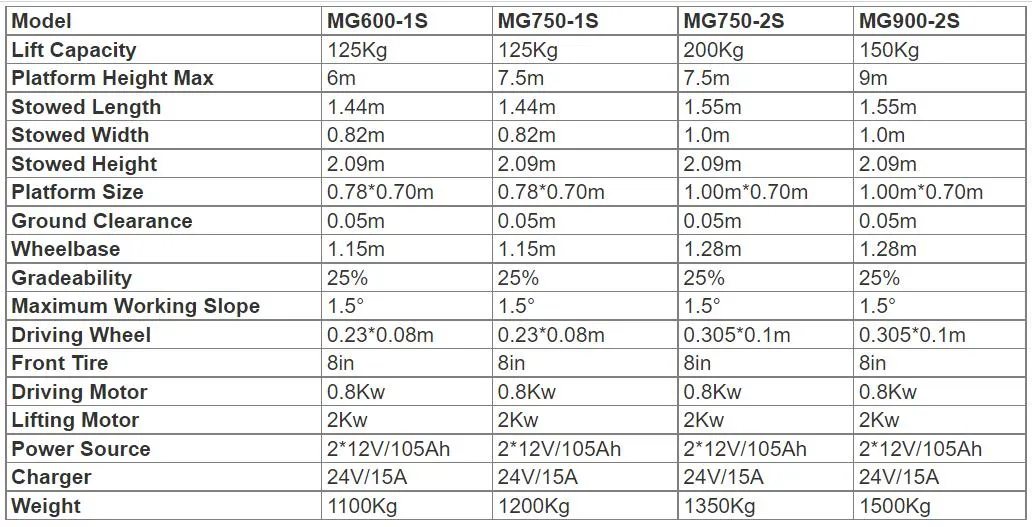

What is the maximum working height of the MG600-1S?
The MG600-1S offers a maximum working height of 8 meters, with a platform height of 6 meters.
Can this vertical lift pass through standard doorways?
Yes, with its compact design (1.36*0.79*2.08m) and light weight, it is designed to easily pass through general foyers and standard elevators.
What safety features are included as standard?
Standard safety features include an automatic braking system, anti-burst valve on the cylinder, emergency stop button, auxiliary lowering, and a tilt sensor with an alarm.
Is the lift suitable for indoor use on sensitive flooring?
Absolutely. It comes equipped with non-marking tires specifically designed to operate without damaging or marking indoor flooring.
How is the equipment powered?
It is powered by a DC system using two 12V/115ah batteries, making it energy-efficient and suitable for environments without immediate AC power access.
Can the platform be extended for more reach?
Yes, a platform extension is available as an optional configuration to provide additional horizontal reach when needed.
