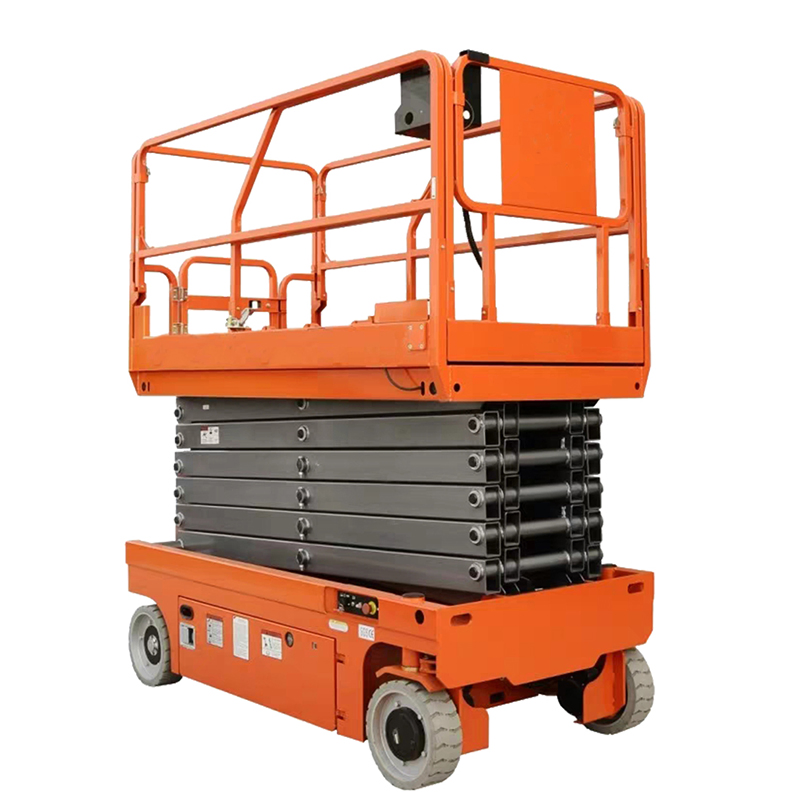

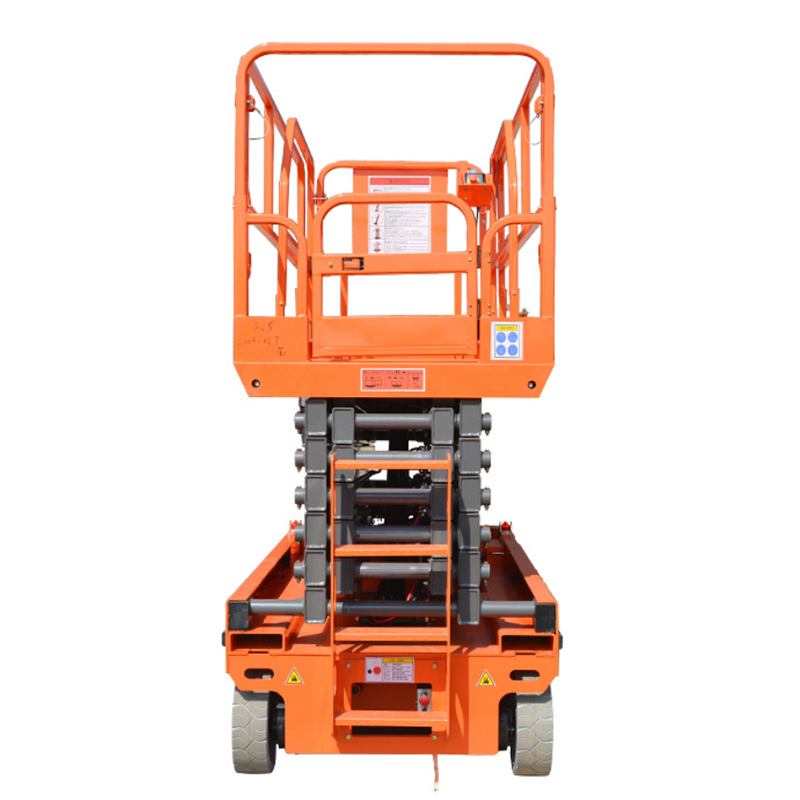

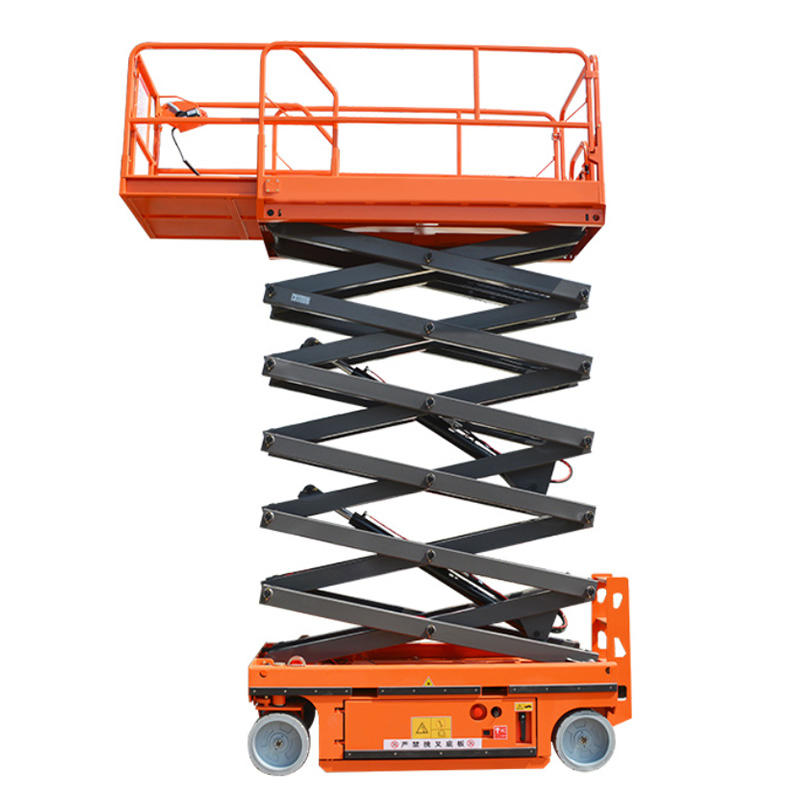

Anugenix Lift
1 / 5
| Model Number | Unit | MSL06 | MSL08 | MSL10 | MSL12 |
|---|---|---|---|---|---|
| Max platform height | mm | 6000 | 8000 | 10000 | 11800 |
| Max working height | mm | 8000 | 10000 | 12000 | 13800 |
| Load capacity | kg | 300 | 300 | 300 | 300 |
| Max height (guardrail up) | mm | 2150 | 2275 | 2400 | 2525 |
| Max height (guardrail removed) | mm | 1190 | 1315 | 1440 | 1565 |
| Total length | mm | 2400 | 2400 | 2400 | 2400 |
| Total width | mm | 1150 | 1150 | 1150 | 1150 |
| Platform size | mm | 2270x1150 | 2270x1150 | 2270x1150 | 2270x1150 |
| Extended platform Length | mm | 900 | 900 | 900 | 900 |
| Min ground clearance (closed) | mm | 110 | 110 | 110 | 110 |
| Min ground clearance (lifting) | mm | 20 | 20 | 20 | 20 |
| Wheelbase | mm | 1850 | 1850 | 1850 | 1850 |
| Moving speed (closed) | km/h | 3.5 | 3.5 | 3.5 | 3.5 |
| Moving speed (lifting) | km/h | 0.8 | 0.8 | 0.8 | 0.8 |
| Rise/fall speed | sec | 70/80 | 70/80 | 70/80 | 70/80 |
| Battery | V/Ah | 4x6/210 | 4x6/210 | 4x6/210 | 4x6/210 |
| Maximum climbing ability | % | 20 | 20 | 20 | 20 |
| Driven | / | Double front wheel | |||
| Hydraulic brake wheel | / | Double rear wheel | |||
| Net weight | kg | 1900 | 2080 | 2490 | 2760 |
