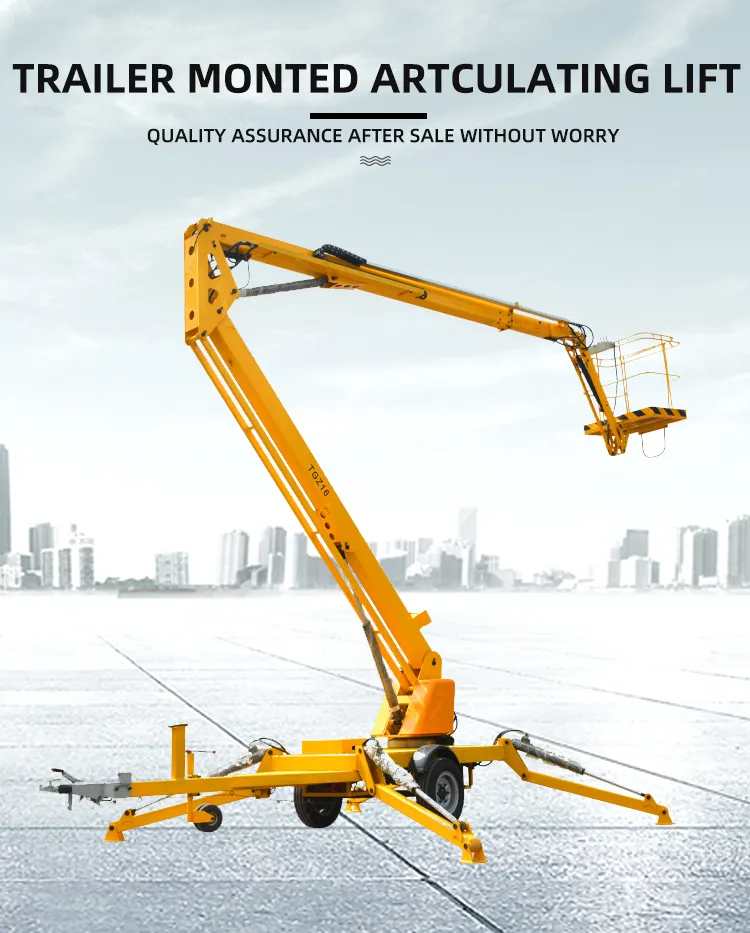

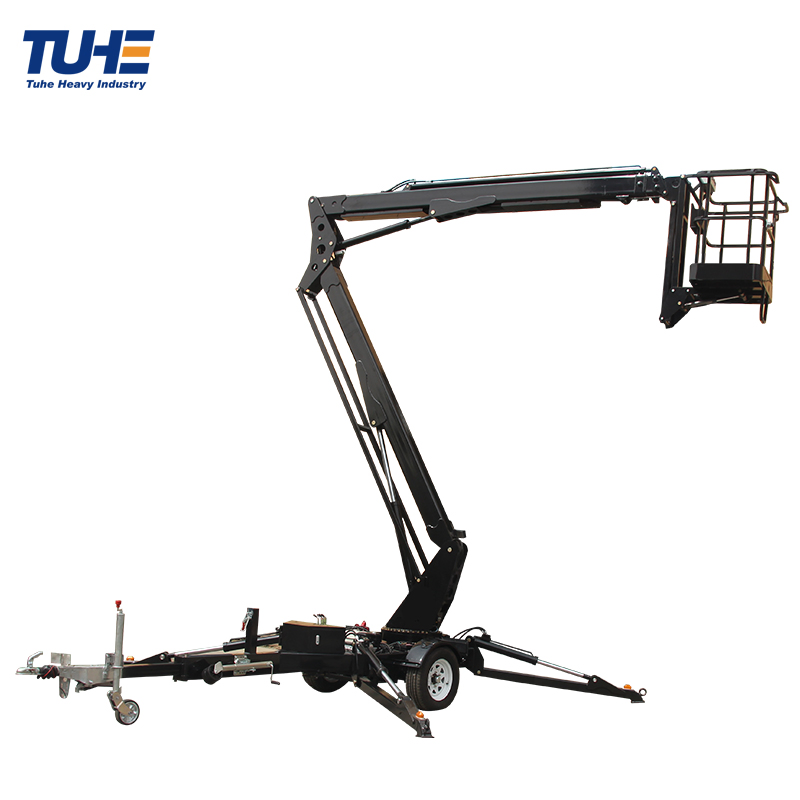

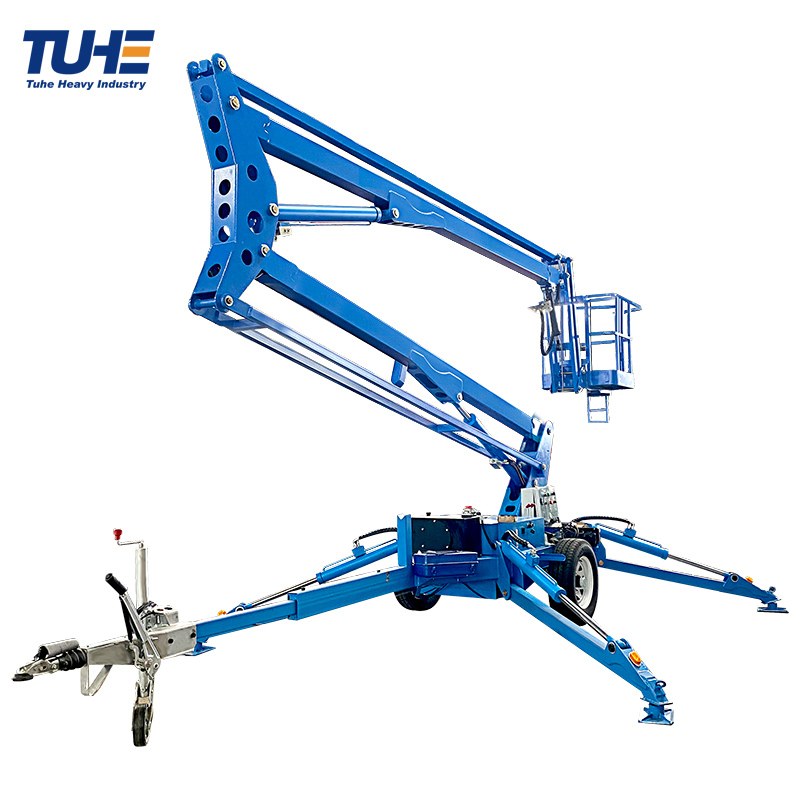

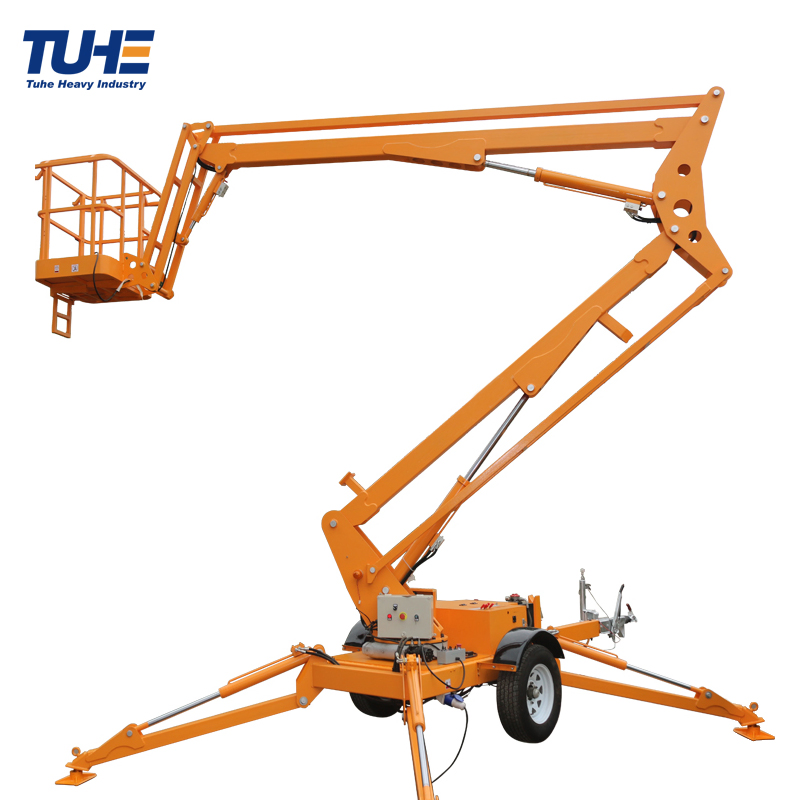

Used Articulating Boom Lift (also known as a "spider boom lift") is a versatile aerial work platform designed for efficiency and safety. The main structure features four outriggers, a telescopic arm, a work basket for staff, and an advanced bottom control system. Equipped with durable pneumatic tires and trailer hooks, it can be easily transported between working locations. The stabilizing outriggers allow for safe operation even on uneven ground.

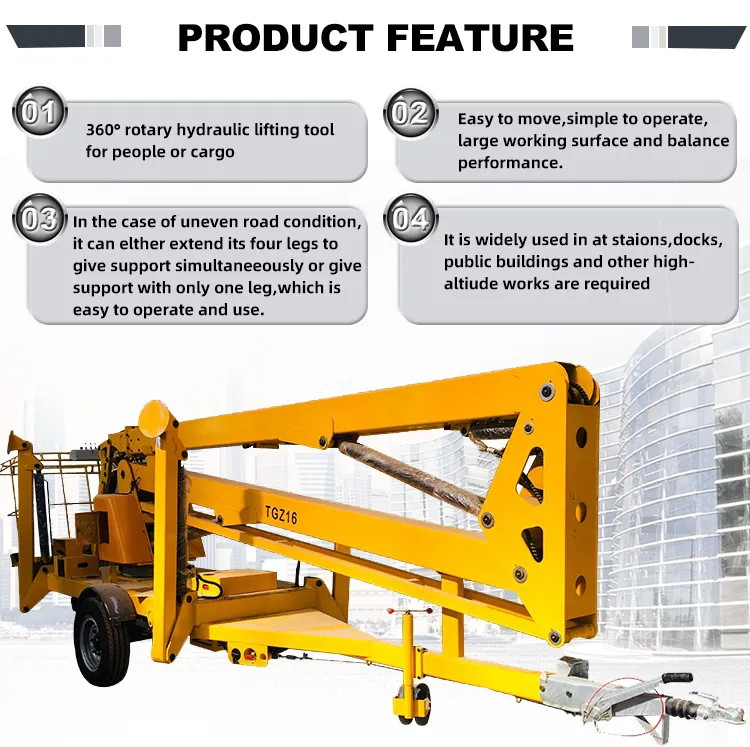

This equipment is exceptionally space-efficient, performing effectively in narrow spaces and folding into a compact size for storage. The 360° rotation capability and automatic hydraulic legs provide superior stability for various high-altitude tasks.
We provide customizable power sources to suit different environments, including AC, DC, Gasoline, or Diesel. Multi-power systems are also available to ensure uninterrupted operation.
• Models THTCZB-10/12/14: A 40ft container can hold 3 sets.
• Models THTCZB-16/18/20: A 40ft container can hold 2 sets.
| Model | Lifting Height (m) | Working Height (m) | Dimensions (mm) | Platform Size (mm) | Weight (kg) | Working Radius (m) | Load Capacity (kg) |
|---|---|---|---|---|---|---|---|
| THTCZB-10 | 10 | 12 | 5400*1665*1900 | 1200*800 | 1700 | 5 | 200 |
| THTCZB-12 | 12 | 14 | 6400*1665*1900 | 1200*800 | 2000 | 6 | 200 |
| THTCZB-14 | 14 | 16 | 6200*1730*2100 | 1200*800 | 2350 | 8.5 | 200 |
| THTCZB-16 | 16 | 18 | 7000*1730*2200 | 1200*800 | 2600 | 9 | 200 |
| THTCZB-18 | 18 | 20 | 7100*1850*2260 | 1200*800 | 4300 | 10 | 200 |
| THTCZB-20 | 19.8 | 22 | 7700*1850*2260 | 1200*800 | 4450 | 12 | 200 |
