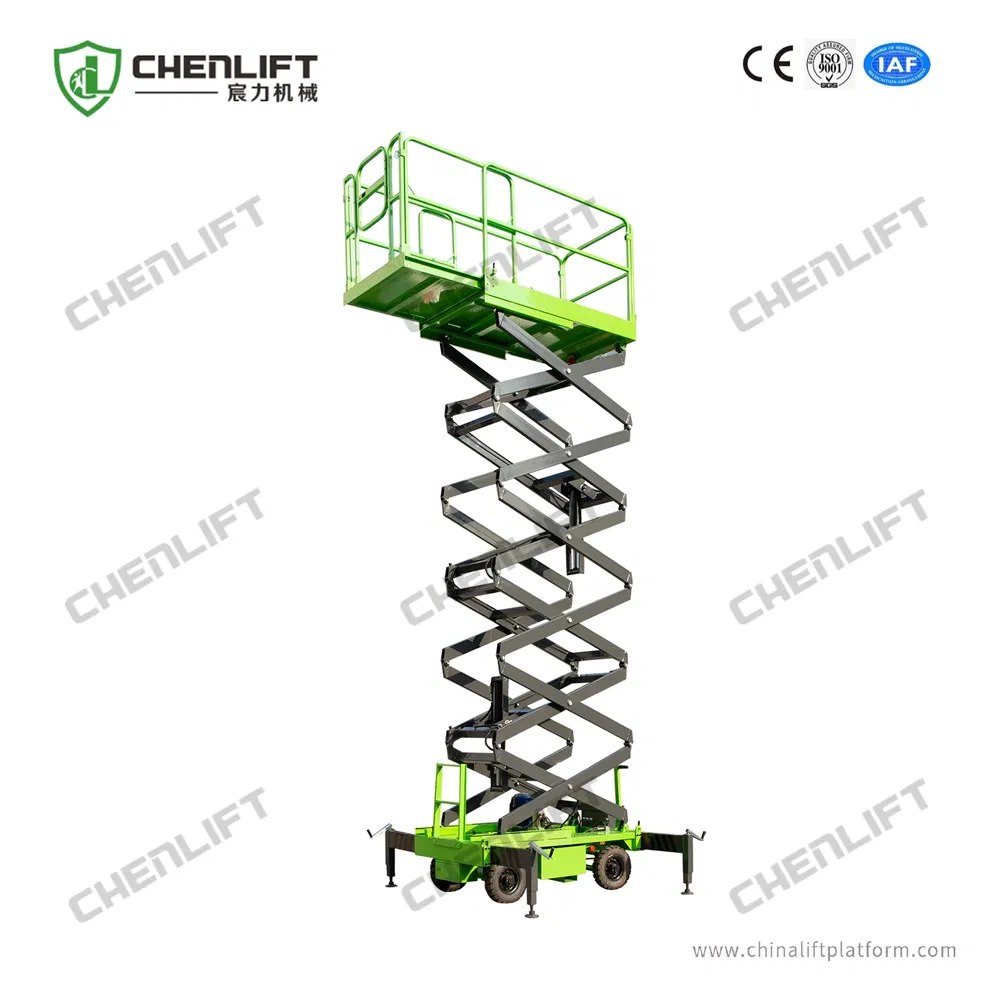

16m Manual Pushing Mobile Elevated Work Platform

Customization: Available
After-sales Service: Can Post Spare Parts Within 1 Week
Warranty: One Year

Product Description

Basic Info.
Model NO.
MK1600
Lift Mechanism
Scissor Lift
Carrying Capacity
Middle-Level
Moves
Moving
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof
Certification
CE, ISO 9001
Platform Height
16 M
Working Height
18 M
Loading Capacity
500kg
Motor Power
3kw
Platform Size
2.75*1.50m
Weight
2980kg
Transport Package
Wrapped with Film, Pallet/ Wooden Case
Specification
2.98*1.68*2.28m
Origin
China
HS Code
8428909090
Product Description

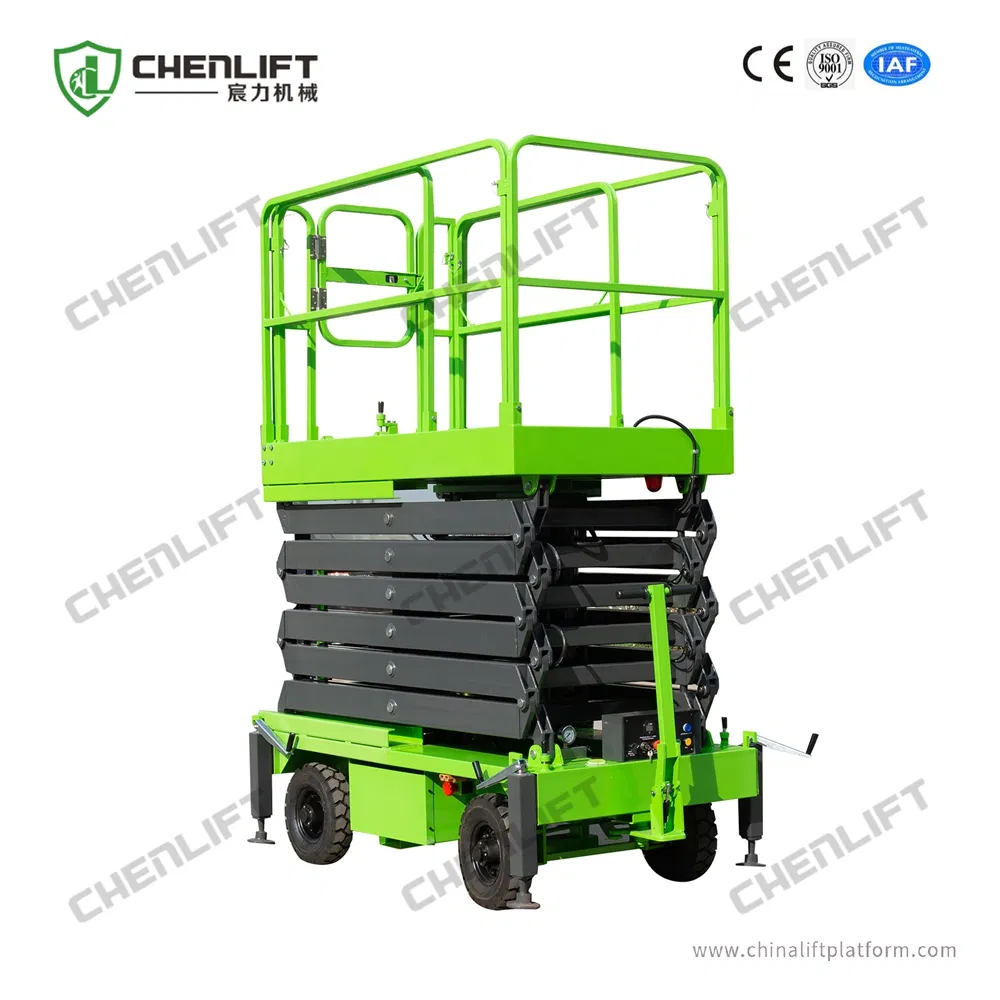

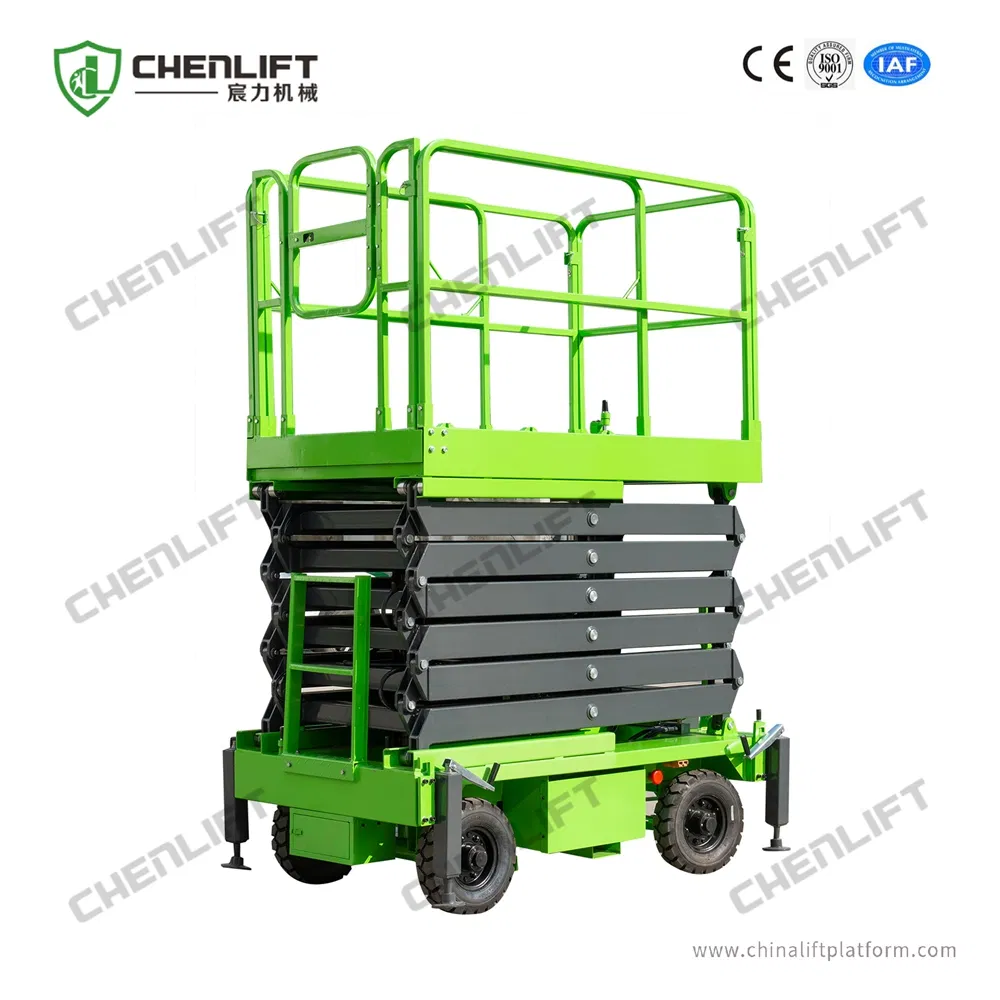

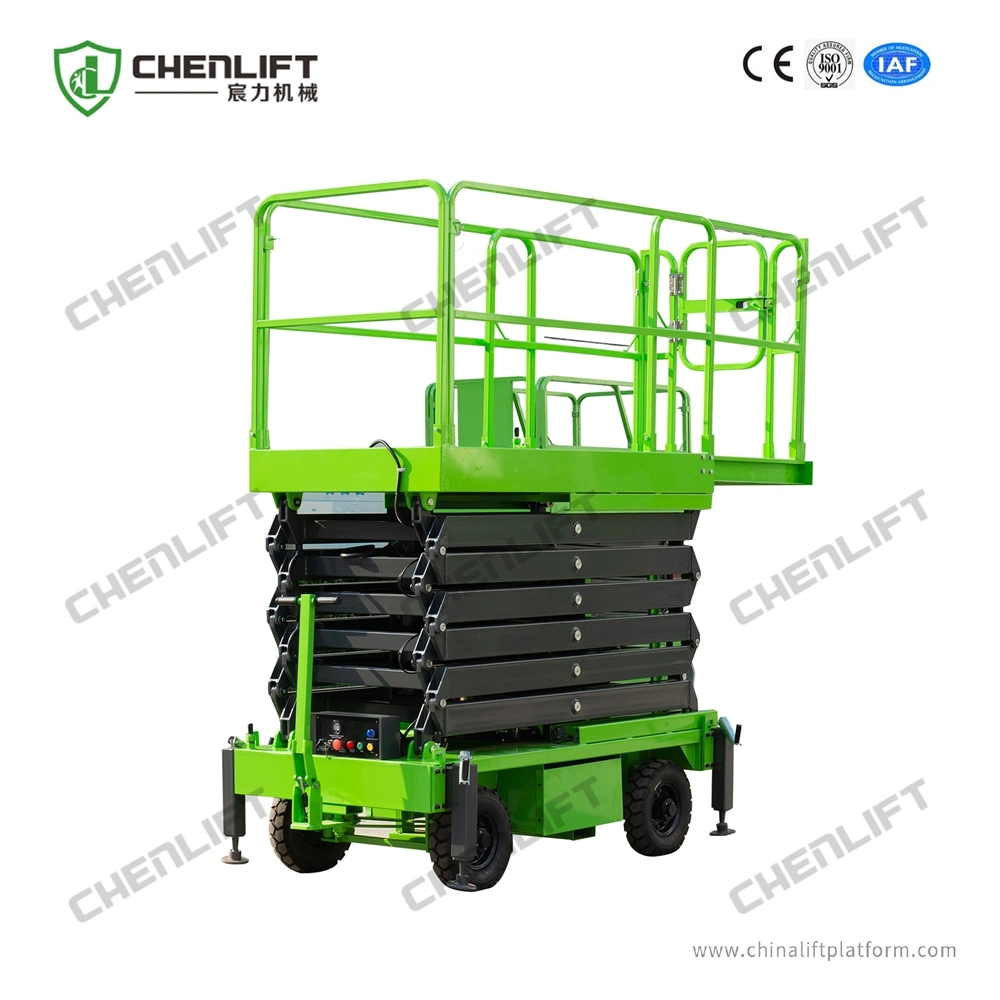

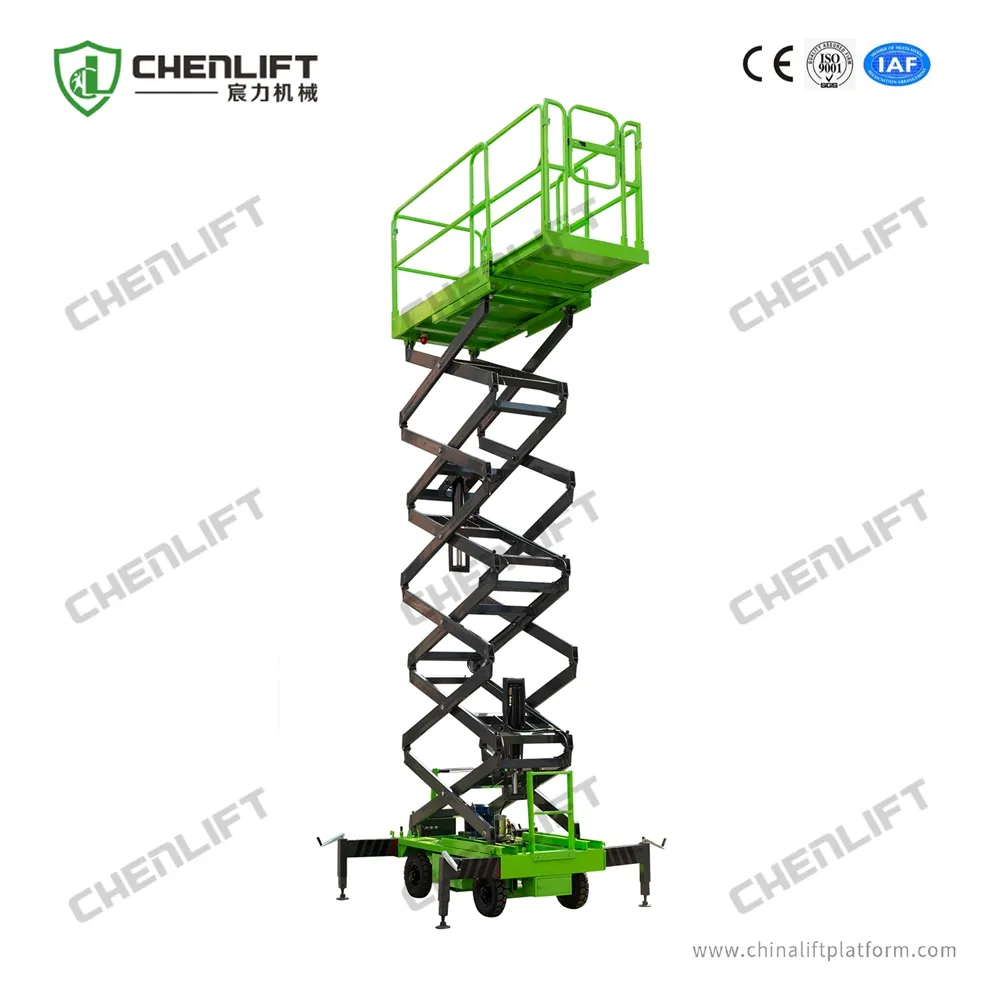

16m Manual Pushing Mobile Elevated Work Platform

The Manual Pushing Scissor Lift is a robust scissor structure man lift designed for aerial work. This versatile equipment can be easily towed by manpower, making it an ideal choice for one or two persons performing aerial tasks.

Our scissor lifts are available in various maximum platform heights, including 3m, 6m, 7.5m, 9m, 11m, 12m, 14m, and 16m, with loading capacities of 300Kg, 500Kg, and 1000Kg. The mechanical structure ensures exceptional platform stability, a wide operating range, and high loading capacity.

The lifting power is typically AC, though DC and combined AC&DC power options are available. The lift is easily operated via control boxes located both on the platform and at ground level. Safety features include supporting legs for stability, guardrails, and optional motorized devices for assisted walking.

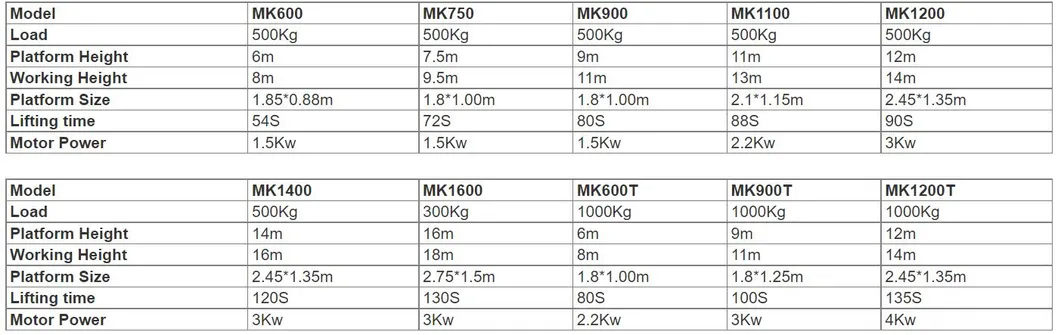

Model List Scissor Lift
Application for Scissor Lift

This scissor lift platform is perfectly suited for use in factories, warehouses, public spaces, stations, and various other industrial or commercial environments. It provides a safe and efficient solution for all your aerial working needs.

Standard Configuration
  • AC power: 220V/380V options
  • Rain-proof electric cabinet
  • Beacon light & Inflated Tyre
  • Forklift slot & Towing hook
  • Hydraulic power pack
  • Pressure gauge & Level gauge
  • Auxiliary release valve
  • Emergency stop (Platform/Ground)
  • Key lock power switch
  • Lockable stabilizer
  • Anti-skid floor with removable rails
  • Toe protection boards
  • 24V Operation voltage
  • Access ladders
  • Limit switch for motor shut off
  • Removable control box
  • Interlock doors on platform
  • Powder coating painting
  • Nylon bush between scissors
  • Short Circuit & leakage protection

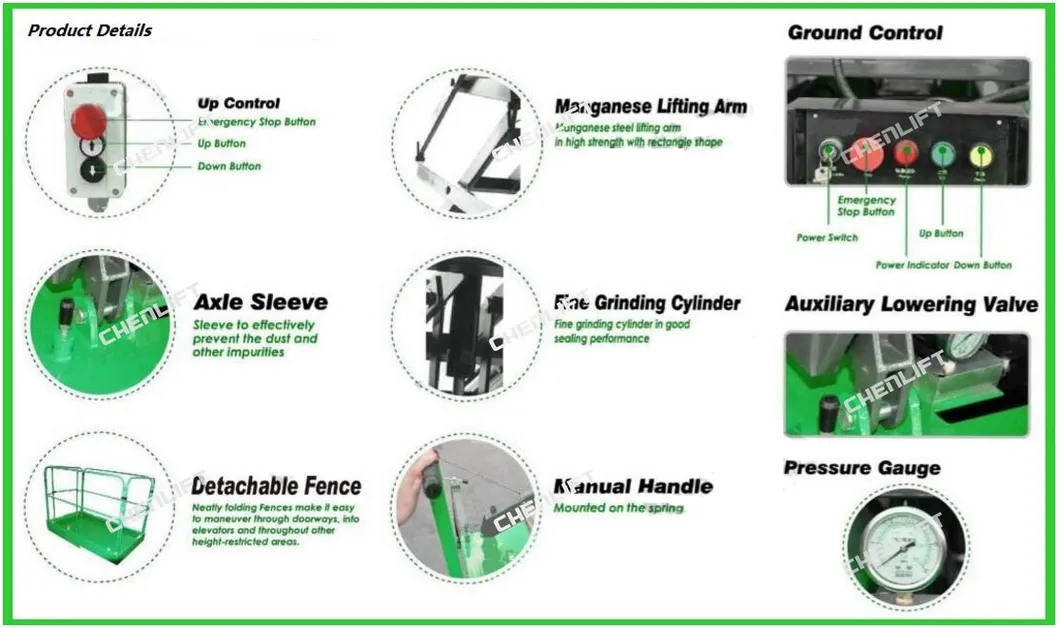

Manual Pushing Scissor Lift Details
Optional Configuration
  • Platform extension
  • Overloading protection
  • DC power supply & Battery Indicator
  • Hour meter for DC power
  • AC&DC dual power supply
  • Motorized device for easy pulling
  • Explosion proof type
  • Maintenance supporting bar
  • Solid Tyre
  • Outrigger sensor
  • Horn and Platform working light
  • Anti-burst valve on cylinder

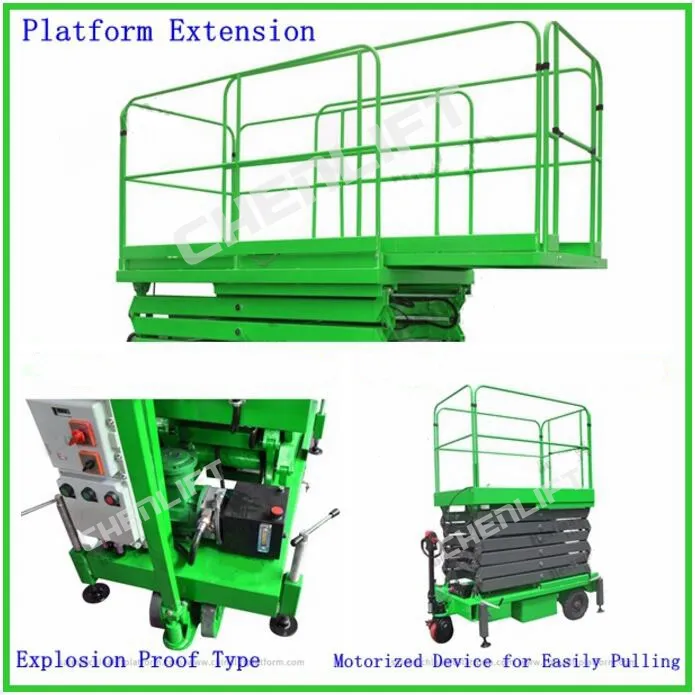

Scissor Lift Optional Features
Exhibition & Facilities

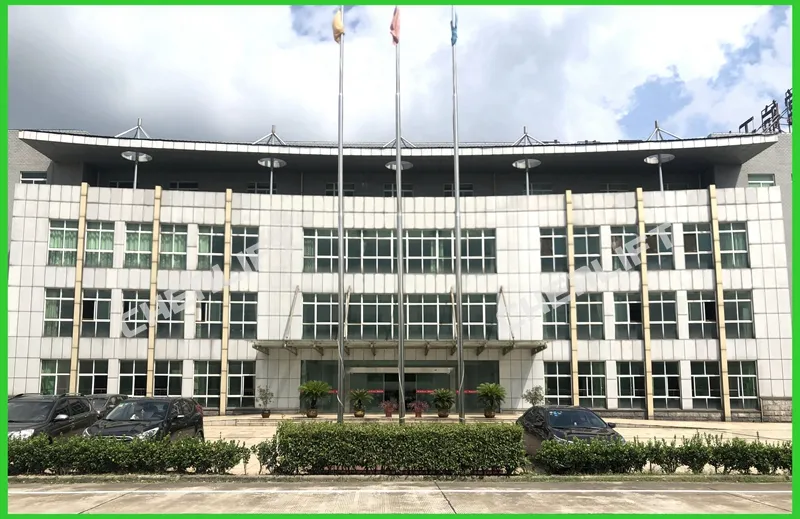

Global Distribution
Certificates

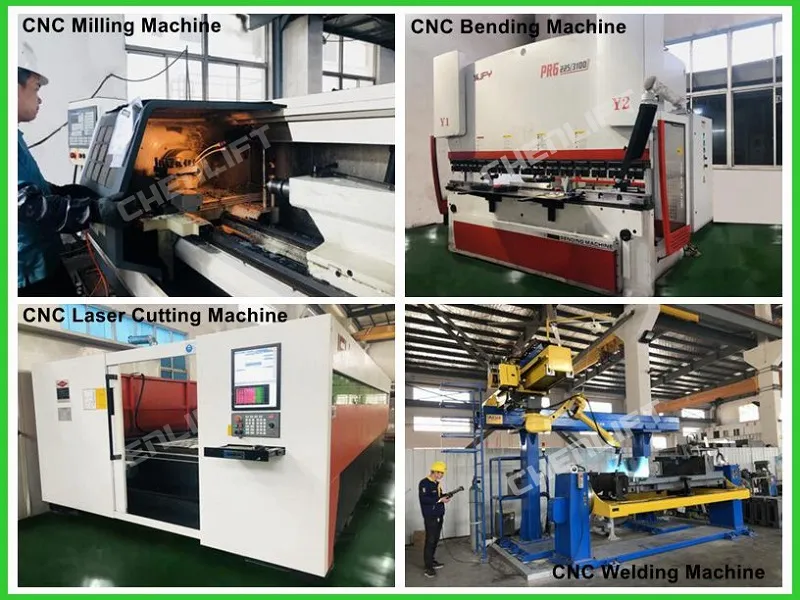

Factory Equipment
Client Exhibition
Related Products
Our Professional Services
  • Customized machine design based on specific requirements.
  • Model recommendations based on detailed needs and budget.
  • Port-to-port shipment arrangement and logistics support.
  • Operational training videos provided upon request.
  • Rapid spare parts delivery via express within 7 days if required.
Frequently Asked Questions
What is the maximum working height of the MK1600 model?
The MK1600 model features a platform height of 16 meters, providing a total working height of approximately 18 meters.
What are the available power options for the scissor lift?
Standard units use AC power (220V or 380V). However, DC battery power and dual AC&DC power systems are available as optional configurations.
Can the loading capacity handle more than 500kg?
While the MK1600 standard capacity is 500kg, we offer other models in the series that can support up to 1000kg depending on your specific needs.
Is this equipment easy to transport?
Yes, the lift is designed with forklift slots and a towing hook. It is typically wrapped in film and packed in pallets or wooden cases for safe international shipping.
What safety measures are in place for operators?
Safety features include emergency stop buttons on both the platform and ground, lockable stabilizers, anti-skid flooring, removable handrails, and toe protection boards.
Can the machine be customized for specific environments?
Yes, we can provide explosion-proof features, platform extensions, and motorized driving devices to suit various industrial requirements.
